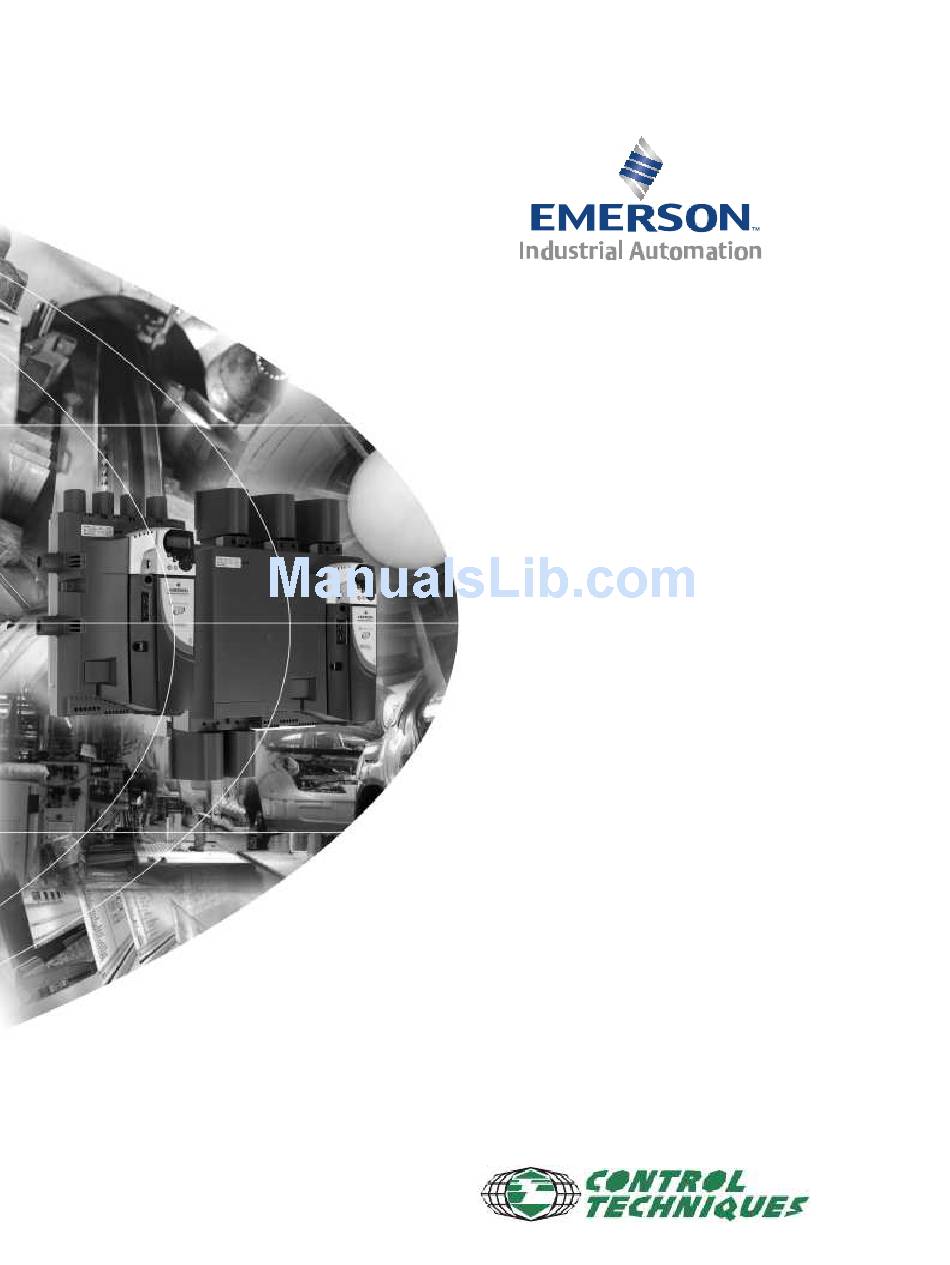

Advanced User Guide
Mentor MP
High performance DC drive
25A to 7400A, 480V to 690V
Two or four quadrant operation
Supplied by Authorized distributor
Oniks Kontrol Sistemleri San.ve Tic. A.Ş
Part Number: 0476-0002-04
Issue: 4
www.onxcontrol.com

Advertisement

Table of Contents
loading

Related Manuals for Emerson Mentor MP

Summary of Contents for Emerson Mentor MP

  • Page 1 Advanced User Guide Mentor MP High performance DC drive 25A to 7400A, 480V to 690V Two or four quadrant operation Supplied by Authorized distributor Oniks Kontrol Sistemleri San.ve Tic. A.Ş Part Number: 0476-0002-04 Issue: 4 www.onxcontrol.com...
  • Page 2 General Information The manufacturer accepts no liability for any consequences resulting from inappropriate, negligent or incorrect installation or adjustment of the optional operating parameters of the equipment or from mismatching the variable speed drive with the motor. The contents of this guide are believed to be correct at the time of printing. In the interests of a commitment to a policy of continuous development and improvement, the manufacturer reserves the right to change the specification of the product or its performance, or the contents of the guide, without notice.

  • Page 3: Table Of Contents

    4.2.3 Sources and destinations ............................19 Update rates ............................20 4.3.1 Speed reference update rate ............................. 20 4.3.2 Hard speed reference update rate ..........................20 4.3.3 Torque reference update rate ............................ 20 Mentor MP Advanced User Guide Issue Number: 4 www.onxcontrol.com...

  • Page 4: Table Of Contents

    Analog reference ..........................211 Analog outputs ..........................211 Digital inputs and outputs ......................... 211 Current feedback ..........................211 Bandwidth ............................211 7.6.1 Speed loop ................................211 7.6.2 Current loop ................................211 Mentor MP Advanced User Guide www.onxcontrol.com Issue Number: 4...

  • Page 5: Parameter Structure

    Pr 11.44 (SE14, 0.35) is set to L1 (0). When Pr 11.44 (SE14, 0.35)is not 0 the left and right keys will allow access to the advance parameter set and menu 0 will become a linear menu. Mentor MP Advanced User Guide Issue Number: 4 www.onxcontrol.com...

  • Page 6: Pre-Defined Sub Blocks

    Enable field control SE12 Defines the sub block headers. Can be used by the MP-Keypad to display the same strings as the SM-Keypad. 0.34 5.12 Autotune SE13 0.35 11.44 Security status SE14 Mentor MP Advanced User Guide www.onxcontrol.com Issue Number: 4...

  • Page 7: Menu 0 (Linear)

    Parameter description Advanced parameter Serial comms Parameter structure Keypad and display Parameter x.00 Performance format protocol descriptions Diagnostic Speed feedback Menu 0 Parameter Description Display Menu 0 Parameter Description Display 0.71 3.26 Speed feedback selector Fb01 0.36 1.01 Speed reference selected di01 Tachometer rating (V/1000 0.37...
  • Page 8 Menu 4 4.07 Mentor MP Advanced User Guide Issue Number: 4 www.onxcontrol.com...

  • Page 9: Advanced Menus

    Any Solutions Module type is recognised with all drive types in any slots. The relevant template is used to define menu 15 for the module type installed in slot 1, menu 16 for slot 2, and menu 17 for slot 3. Mentor MP Advanced User Guide www.onxcontrol.com Issue Number: 4...

  • Page 10: Keypad And Display

    Keypad and display Understanding the display There are two types of keypad available for the Mentor MP. The SM-Keypad has an LED display, and the MP-Keypad has an LCD display. 2.1.2 MP-Keypad (LCD) 2.1.1 SM-Keypad (LED) The display consists of three lines of text.

  • Page 11: Status Mode

    When changing the values of parameters, make a note of the new values in case they need to be entered again. NOTE For new parameter-values to apply after the AC supply to the drive is interrupted, new values must be saved. Mentor MP Advanced User Guide www.onxcontrol.com Issue Number: 4...
  • Page 12 During adjustment of a parameter value with the Up or Down keys the display does not flash, providing the parameter value is in range, such that the user can see the value being edited without interruption. Mentor MP Advanced User Guide Issue Number: 4 www.onxcontrol.com...

  • Page 13: Mp-Keypad

    Turbo browse time interval 0 to 200 ms 50 ms RW Uni Unidrive SP (0), 40.23 Product identification RO Txt Commander SK (1), Mentor MP (2), Affinity (4), Digitax ST (5) Table 2-2 Menu 41 parameter descriptions Parameter Range( ) Default( ) Type 41.00...

  • Page 14: Parameter Access Level And Security

    At this point, the only parameter that 0.84 7.03 Analog input 3 in04 can be changed by the user is the access level Pr 11.44 (SE14, 0.35). 10.77 Input frequency Mentor MP Advanced User Guide Issue Number: 4 www.onxcontrol.com...

  • Page 15: Keypad Control Mode

    1. If the second motor map is being used the decimal point second from the right of the first row is on. 2. When parameters are saved to a SMARTCARD the right-most decimal point on the first row flashes for 2 seconds. Mentor MP Advanced User Guide www.onxcontrol.com Issue Number: 4...

  • Page 16: Parameter X.00 Reset

    3. 6. User save parameters are saved to drive EEPROM after defaults are loaded. Mentor MP Advanced User Guide Issue Number: 4 www.onxcontrol.com...

  • Page 17: Loading Defaults

    Rated field voltage Eur: 360, USA: 300 21.23 (SE11, 0.32) 5.75 Field voltage mode Eur: OFF (0), USA: On (1) Analog input 3 mode 7.15 Eur: th (8), USA: VOLt (6) (in01, 0.81) Mentor MP Advanced User Guide www.onxcontrol.com Issue Number: 4...

  • Page 18: Parameter Description Format

    Bit default one/unsigned: Bit parameters with this flag set to one have a default of one (all other bit parameters have a default of zero. Non-bit parameters are unipolar if this flag is one. Power-down save: parameter automatically saved in drive EEPROM when the under volts (UV) trip occurs. Mentor MP Advanced User Guide Issue Number: 4 www.onxcontrol.com...

  • Page 19: Parameter Ranges And Variable Maximums

    Vac x ( 2 x 3 / ) 480 +10 % drive: 720 ARMATURE_VOLTAGE_MAX 575 +10 % drive: 860 [1025] 690 +10 % drive: 1025 NOTE For 4 quadrant drives maximum armature voltage = Vac x 1.15 Mentor MP Advanced User Guide www.onxcontrol.com Issue Number: 4...

  • Page 20: Default

    18.11, which has a maximum of 32767, the source input is zero if the source data value is less than 16383 and one if it is greater than this. Mentor MP Advanced User Guide Issue Number: 4 www.onxcontrol.com...

  • Page 21: Update Rates

    For faster update rate Pr 91.03 must be used (this parameter is only visible from the Solutions Modules). Any value written to Pr 91.03 is automatically mapped into the hard speed reference Pr 3.22. Mentor MP Advanced User Guide www.onxcontrol.com Issue Number: 4...

  • Page 22: Advanced Parameter Descriptions

    Parameter description Advanced parameter Serial comms Parameter structure Keypad and display Parameter x.00 Performance format protocol descriptions Advanced parameter Table 5-2 gives a full key of the coding which appears in the following parameter tables. descriptions Table 5-2 Key to parameter coding Overview Coding Attribute...
  • Page 23 In some cases, the function or range of a parameter is affected by the setting of another parameter; the information in the lists relates to the default condition of such parameters. Mentor MP Advanced User Guide Issue Number: 4 www.onxcontrol.com...

  • Page 24: Menu 1: Speed Reference

    Read-only (RO) Output 0.XX 1.18 parameter Memory terminals 1.19 Precision The parameters are all shown in their default settings reference trim *Refer to Pr 1.14 (SE05, 0.26) on page 27. Mentor MP Advanced User Guide www.onxcontrol.com Issue Number: 4...
  • Page 25 [1.06] Skip Skip Skip speed 2 speed 3 speed 1 Velocity 1.05 feed-forward 1.30 [1.06] 1.32 1.34 reference Skip Skip Skip reference speed band speed band sp eed band [1.06] [1.07] Mentor MP Advanced User Guide Issue Number: 4 www.onxcontrol.com...
  • Page 26 Maximum reference clamp {SE02, 0.23} Txt VM DP ND RA US RW BU Coding Range SPEED_LIMIT_MAX rpm Default 1000.0 Second motor Pr 21.01 parameter Update rate Background read See also Pr 1.07 overleaf. Mentor MP Advanced User Guide www.onxcontrol.com Issue Number: 4...
  • Page 27 If Pr 1.08=1: MAX_SPEED_REF is Pr 1.06 {SE02, 0.23} or -Pr 1.07 {SE01, 0.22} whichever is the largest (If the second motor map is selected Pr 21.01 is used instead of Pr 1.06 {SE02, 0.23} and Pr 21.02 instead of Pr 1.07 {SE01, 0.22}) Mentor MP Advanced User Guide Issue Number: 4...
  • Page 28 Pr 1.01 {di01, 0.36} = selected reference x (100 + Pr 1.38) / 100 and when this parameter is 1 the reference is given by Pr 1.01 {di01, 0.36} = selected reference + Pr 1.04 Mentor MP Advanced User Guide www.onxcontrol.com Issue Number: 4...
  • Page 29 Pr 1.44 = 1 then Pr 1.49 = 5 Pr 1.52 = 1 then Pr 1.49 = 6 The bit parameters with lower numbers have priority over those with higher numbers. Mentor MP Advanced User Guide Issue Number: 4 www.onxcontrol.com...
  • Page 30 Preset defined by Pr 1.50 (Pr 1.21 to Pr 1.28) Preset defined by Pr 1.50 (Pr 1.21 to Pr 1.28) Keypad reference (Pr 1.17) Precision reference (Pr 1.18 and Pr 1.19) Keypad reference only Mentor MP Advanced User Guide www.onxcontrol.com Issue Number: 4...
  • Page 31 Instead, the drive uses the value stored in memory preventing the possibility of data skew. Mentor MP Advanced User Guide Issue Number: 4...
  • Page 32 US RW BU Coding Update rate 4 ms write This parameter indicates that the selected reference is within one of the skip reference zones such that the motor speed is not as demanded. Mentor MP Advanced User Guide www.onxcontrol.com Issue Number: 4...
  • Page 33 Txt VM DP ND RA NC NV US RW BU Coding Update rate 4 ms write This bit indicates that the position controller has selected the velocity feed forward as a reference for the drive Mentor MP Advanced User Guide Issue Number: 4 www.onxcontrol.com...
  • Page 34 Preset reference selected indicator Txt VM DP ND RA NC NV US RW BU Coding Range 1 to 8 Update rate 4 ms write Indicates the preset reference currently being selected Mentor MP Advanced User Guide www.onxcontrol.com Issue Number: 4...
  • Page 35 When this parameter is set, the speed reference is controlled by the keypad but the pushbuttons (Start / Stop / FWD / REV) do not perform their usual functions, the drive is controlled from the terminals. The pushbuttons can be used as digital inputs. Mentor MP Advanced User Guide Issue Number: 4...
  • Page 36 Jog acceleration 2.19 rate Jog selected 1.13 indicator Reverse accel. rate Acceleration Ramp control 2.03 Ramp hold Pre-ramp speed S-Ramp time 2.40 1.03 reference S-Ramp mode 2.41 2.39 Ramp rate speed units Mentor MP Advanced User Guide www.onxcontrol.com Issue Number: 4...
  • Page 37 2.06 S-Ramp enable** Menu 3 limit d/dt Pr 3.18 = Motor and load inertia 2.38 Pr 5.32 = Motor torque per amp Inertia compensation torque **For more information refer to Chapter 11.22 Advanced Features in the Mentor MP User Guide.
  • Page 38 Mentor MP Advanced User Guide Issue Number: 4 www.onxcontrol.com...
  • Page 39 Where A is the selected ramp rate in s / See Pr 2.39 If the S ramp is enabled (Pr 2.06 = 1) then the ramp time is extended as shown in the diagram opposite. Mentor MP Advanced User Guide www.onxcontrol.com...
  • Page 40 Since the new ramp rate is selected with the new reference, the acceleration applies towards the selected preset if the motor needs to accelerate to reach the preset. Mentor MP Advanced User Guide Issue Number: 4...
  • Page 41 Since the new ramp rate is selected with the new reference, the deceleration applies towards the selected preset if the motor needs to decelerate to reach the preset. Mentor MP Advanced User Guide www.onxcontrol.com...
  • Page 42 Txt VM DP ND RA NC NV US RW BU Coding Update rate 4 ms read These bits are provided for control by logic input terminals for external ramp selection (see Pr 2.10 and Pr 2.20). Mentor MP Advanced User Guide Issue Number: 4 www.onxcontrol.com...
  • Page 43 When this parameter is 1 (default) and the S ramp is enabled then Pr 2.40 is used to define the S ramp time. When this parameter is 0 and the S ramp is enabled then Pr 2.07 is used to define the S ramp limit. Mentor MP Advanced User Guide www.onxcontrol.com...

  • Page 44: Menu 3: Speed Feedback And Speed Control

    100ppm, and so the absolute speed accuracy is 100ppm (0.01 %) of the reference, when a preset speed is used. If an analog input is used the absolute accuracy is further limited by the absolute accuracy and non-linearity of the analog input. If analog feedback is used the accuracy is even further limited. Mentor MP Advanced User Guide Issue Number: 4 www.onxcontrol.com...
  • Page 45 The parameters are all shown at their default settings * If Pr 5.28 (Field weakening compensation disable) is set to ‘OFF (0)’ a multiplication factor is applied to the speed loop gains when the flux is below 100 %. Mentor MP Advanced User Guide www.onxcontrol.com Issue Number: 4...
  • Page 46 It should be noted that any filtering included within the speed controller feedback loop, either on the speed feedback or the current demand, introduces a delay and limits the maximum bandwidth of the controller for stable operation. Mentor MP Advanced User Guide Issue Number: 4 www.onxcontrol.com...
  • Page 47 Default Update rate Background read 3.07 At speed upper limit Txt VM DP ND RA NC NV US RW BU Coding Range 0 to 10,000 rpm Default Update rate Background read Mentor MP Advanced User Guide www.onxcontrol.com Issue Number: 4...
  • Page 48 Txt VM DP ND RA NC NV US RW BU Coding Range 0.00 to 655.35 (s / (rad/s)) Default 0.10 Second motor Pr 21.18 (3.11) parameter Update rate Background read See the description under Pr 3.16 Mentor MP Advanced User Guide Issue Number: 4 www.onxcontrol.com...
  • Page 49 It should be noted that the differential term is limited internally so that it is ineffective if speed in rpm x Kd x Ki is greater than 170. Mentor MP Advanced User Guide www.onxcontrol.com...
  • Page 50 The Kd gain is not affected. If Pr 3.17 is set to 2 automatic gain set up is not active, but Kp is boosted by a factor of 16. Mentor MP Advanced User Guide Issue Number: 4...
  • Page 51 The step response of the speed controller gives approximately 10 % overshoot with unity damping factor. 3.22 Hard speed reference Txt VM DP ND RA US RW BU Coding Range ±MAX_SPEED_REF rpm Default Update rate 4 ms read Mentor MP Advanced User Guide www.onxcontrol.com Issue Number: 4...
  • Page 52 ND RA NC NV US RW BU Coding Range ±32,678 revolutions Update rate 4 ms write This is used in conjunction with Pr 3.29. See the description under Pr 3.29 overleaf. Mentor MP Advanced User Guide Issue Number: 4 www.onxcontrol.com...
  • Page 53 If Pr 3.33 is zero the revolution counter (Pr 3.28) is held at zero. If Pr 3.33 has any other value it defines the maximum number of the revolution counter before it is reset to zero. For example, if Pr 3.33 = 5, then Pr 3.28 counts up to 31 before being reset. Mentor MP Advanced User Guide www.onxcontrol.com...
  • Page 54 0, Ab: Quadrature incremental encoder, with or without marker pulse 1, Fd: Incremental encoder with frequency and direction outputs, with or without marker pulse 2, Fr: Incremental encoder with forward and reverse outputs, with or without marker pulse Mentor MP Advanced User Guide Issue Number: 4 www.onxcontrol.com...
  • Page 55 Both the above trips can over ride trip Enc2 so if there is a wire break trip and then a power supply trip the drive will store both trips in the trip log. Both the above trips turn the terminal encoder supply off. Mentor MP Advanced User Guide www.onxcontrol.com...
  • Page 56 The encoder is re-initialized when this is set to 1 or encoder supplies are restored or a trip reset Pr 3.47 is automatically reset when re-initialization is complete. To allow detection of non initialized state Pr 3.48 remains zero for 500µs. Mentor MP Advanced User Guide Issue Number: 4...
  • Page 57 US RW BU Coding Range ±SPEED_MAX rpm Update rate 1 ms write Provided the tachometer voltage rating parameter for the tachometer is correct this parameter shows the tachometer speed in rpm. Mentor MP Advanced User Guide www.onxcontrol.com Issue Number: 4...
  • Page 58 US RW BU Coding Default Update rate Background read When this bit is set the speed feedback source is automatically changed to estimated speed feedback when the selected speed feedback is lost. Mentor MP Advanced User Guide Issue Number: 4 www.onxcontrol.com...
  • Page 59 Indicate bit to indicate that the speed feedback is outside the loss window, see Pr 3.55 and Pr 3.56. Cleared to zero when the drive is inactive. 3.58 Speed feedback percentage Txt VM DP ND RA US RW BU Coding Range ±100.0 % Update rate Background write Gives the speed feedback as a percentage of MAX_SPEED_REF. Mentor MP Advanced User Guide www.onxcontrol.com Issue Number: 4...
  • Page 60 Parameter Keypad and Advanced parameter Serial comms Performance Menu 4 format protocol structure descriptions Parameter description Mentor MP Advanced User Guide Issue Number: 4 www.onxcontrol.com...
  • Page 61 Overload detection Current limits magnitude Thermal 4.05 Motoring 4.15 time Current 4.01 constant Regenerating measurement Thermal protection Filtered current Symmetrical mode magnitude User current max scaling 4.02 4.24 Percentage load 4.20 Mentor MP Advanced User Guide www.onxcontrol.com Issue Number: 4...
  • Page 62 Input Read-write (RW) 0.XX terminals parameter Motor current overload alarm 10.17 Read-only (RO) Output 0.XX indicator parameter terminals Motor overload 4.19 accumulator The parameters are all shown at their default settings Mentor MP Advanced User Guide Issue Number: 4 www.onxcontrol.com...
  • Page 63 Range 0 to MOTOR1_CURRENT_LIMIT_MAX % Default 150.0 Second motor Pr 21.28 parameter Update rate Background read The regen current limit applies in either direction when the machine is producing regenerating torque. Mentor MP Advanced User Guide www.onxcontrol.com Issue Number: 4...
  • Page 64 When ‘RUN FWD / RUN REV’ is removed while in ‘Torque mode’, the drive will stop in the method selected by Pr 6.01. Mentor MP Advanced User Guide Issue Number: 4...
  • Page 65 5 rpm until a stop is applied. The operating area is shown in the following diagram: Area for coiler operation, speed limited to ref and positve torque Final speed Torque demand Speed -5rpm Area for decelerating the coiler, reverse speed limited and negative torque Mentor MP Advanced User Guide www.onxcontrol.com Issue Number: 4...
  • Page 66 R is the load resistance in ohms f is the supply frequency in Hertz Imax is the peak load current (including any overload) in amps V rms is the line-to-line supply voltage in volts. Mentor MP Advanced User Guide Issue Number: 4 www.onxcontrol.com...
  • Page 67 (set by Pr 5.07 {SE07, 0.28} or Pr 21.07) after time t is given by -t/  Temp = [I / (1.05 x Motor rated current) ] (1 - e ) x 100 % Mentor MP Advanced User Guide www.onxcontrol.com Issue Number: 4...
  • Page 68 The torque reference is added to the speed controller output to provide inertia compensation. This can be used in speed or torque control applications to produce the torque required to accelerate or decelerate the load inertia. Mentor MP Advanced User Guide Issue Number: 4...
  • Page 69 Current taper 1 end point Txt VM DP NC NV US RW BU Coding Range 0 to 1000.0 % Default 1000.0 % Update rate Background read Defines the current at the end of taper 1. Mentor MP Advanced User Guide www.onxcontrol.com Issue Number: 4...
  • Page 70 Pr 4.33 is defined as allowed per unit change per second. Slew rate in amps s = Pr 4.33 x DRIVE_CURRENT_MAX Mentor MP Advanced User Guide Issue Number: 4 www.onxcontrol.com...
  • Page 71 There is hysteresis on bridge change over to prevent oscillation between the two bridges under lightly loaded conditions. In applications which require fine control of the current the bridge change over hysteresis can be reduced from 1.6 % to 0.2 % of the drive maximum current by setting this parameter. Mentor MP Advanced User Guide www.onxcontrol.com Issue Number: 4...
  • Page 72 Parameter Keypad and Serial comms Advanced parameter Performance Menu 5 description format protocol structure descriptions Parameter Parameter x.00 Mentor MP Advanced User Guide Issue Number: 4 www.onxcontrol.com...
  • Page 73 5.14 contactor 5.16 A1 A2 A1 A2 5.02 MA1 MA2 Input Read-write (RW) 0.XX Armature terminals parameter MA1 MA2 voltage Machine Read-only (RO) 5.06 armature Output 0.XX parameter voltage terminals Mentor MP Advanced User Guide www.onxcontrol.com Issue Number: 4...
  • Page 74 1 Motor saturation 5.30 breakpoint Field rated 5.70 current Rated field 5.74 Field overload calculation compensation factor Field thermal 5.81 time constant Field overload Field current 5.82 accumulator 5.56 feedback Mentor MP Advanced User Guide Issue Number: 4 www.onxcontrol.com...
  • Page 75 The armature voltage feedback has a resolution of 10-bit plus sign. 5.03 Output power VM DP ND RA NC NV US RW BU Coding Range ±POWER_MAX kW Update rate Background write Power = Armature voltage x Armature current. Mentor MP Advanced User Guide www.onxcontrol.com Issue Number: 4...
  • Page 76 Background read The rated current should be set at the motor nameplate value for rated current. The value of this parameter is used in the following: Current limits Motor thermal protection Mentor MP Advanced User Guide Issue Number: 4 www.onxcontrol.com...
  • Page 77 Pr 5.10 there is no protection against excessive acceleration, output voltage or current other than the instantaneous over current trip. Also take care WARNING to reset Pr 5.11 to 0 after the completion of tests. Mentor MP Advanced User Guide www.onxcontrol.com Issue Number: 4...
  • Page 78 When this operation is performed the drive will perform an estimation of Motor saturation break points (Pr 5.29, Pr 5.30) by spinning the motor at 25 % of its Base speed (Pr 5.08) with respect to the selected motor map and store the values. Mentor MP Advanced User Guide Issue Number: 4...
  • Page 79 Update rate Background read The source for the armature voltage feedback is determined as follows: Pr 5.14 Pr 5.16 Pr 6.55 Armature voltage selected A1, A2 MA1, MA2 A1, A2 MA1, MA2 Mentor MP Advanced User Guide www.onxcontrol.com Issue Number: 4...
  • Page 80 Continuous integral gain (Pr 4.14) is not set by the continuous autotune. Calculation of the gains is suspended when the voltage field weakening voltage loop becomes active so that the gains are not increased when the field is weakened. Mentor MP Advanced User Guide Issue Number: 4 www.onxcontrol.com...
  • Page 81 If Pr 5.29 and Pr 5.30 are increased above 50 and 75 the drive estimate of flux can include the effect of non-linearity. It is unlikely that information will be available to set up these parameters, and so the values are determined during the rotating autotune test. Mentor MP Advanced User Guide www.onxcontrol.com Issue Number: 4...
  • Page 82 P.2br12P Parallel - 2 bridge - 12 pulse P.2br24P Parallel - 2 bridge - 24 pulse FrEE Not used Not used Not used P.cont Parallel 6P master P.SLAuE Parallel 6P slave Mentor MP Advanced User Guide Issue Number: 4 www.onxcontrol.com...
  • Page 83 *For fuse information please refer to section 4.6 in the Mentor MP User Guide. To configure the drives for use in a parallel 12 pulse speed control system, they should be programmed so that the master drive is set up in speed control mode (Pr 4.11 = 0), and the slave drive is programmed in torque control mode (Pr 4.11 = 1).
  • Page 84 Select torque mode Pr 10.52 = 168 Mask field loss trip Pr 10.62 = Off Mask field loss trip Pr 5.43 = 3 Armature mode to parallel 24 pulse with bridge lockout Mentor MP Advanced User Guide Issue Number: 4 www.onxcontrol.com...
  • Page 85 Figure 5-10 6 Pulse parallel operation 2 drives Fuses* Choke / inductor Master drive Slave drive RJ 45 RJ 45 *For fuse information please refer to section 4.6 in the Mentor MP User Guide. Mentor MP Advanced User Guide www.onxcontrol.com Issue Number: 4...
  • Page 86 Slave drive RJ 45 RJ 45 parallel comms *For fuse information please refer to section 4.6 in the Mentor MP User Guide. Master Drive in 6 pulse parallel system Slave Healthy The master drive must know the state of health of the slave (or slaves), in a 6 pulse parallel system. This can be achieved using digital IO or a communication module.
  • Page 87 51 52 53 51 52 53 2829 Slave Slave 51 52 53 51 52 53 Set Pr 8.22 to Pr 5.45, Pr 8.25 to Pr 5.46 and Pr 8.26 to Pr 5.47. Mentor MP Advanced User Guide www.onxcontrol.com Issue Number: 4...
  • Page 88 Save the current setup and reset the drive. • The Line contactor control must be controlled from the master. • Enable the drive. • If the drive is not enabled the drive will trip Slave.Er. Mentor MP Advanced User Guide Issue Number: 4 www.onxcontrol.com...
  • Page 89 VM DP NC NV US RW BU Coding ±150.0 % Range Update rate Background write Flux feedback after the current to flux converter, see motor saturation breakpoints (Pr 5.29 and Pr 5.30). Mentor MP Advanced User Guide www.onxcontrol.com Issue Number: 4...
  • Page 90 5.60 Field output voltage VM DP NC NV US RW BU Coding 0 to 500 Vdc Range Update rate Background write The calculated voltage being generated on the field output terminals. Mentor MP Advanced User Guide Issue Number: 4 www.onxcontrol.com...
  • Page 91 (Pr 5.66). This is used to prevent the motor windings from overheating if the drive is stopped and the motor ventilation is switched off. This can also be used to prevent condensation in the motor when it is not in use. Mentor MP Advanced User Guide www.onxcontrol.com...
  • Page 92 Stop command Reset Power on Sequencer run Drive active Reset action Speed Field economy Active Field current Pr 5.66 Pr 5.66 Pr 5.66 Pr 5.66 Pr 6.54 Pr 6.54 100ms 100ms Mentor MP Advanced User Guide Issue Number: 4 www.onxcontrol.com...
  • Page 93 Second motor Pr 21.31 parameter Update rate Background read Increasing this parameter will allow the loop to track the current demand more closely. Setting the value too high will result in instability. Mentor MP Advanced User Guide www.onxcontrol.com Issue Number: 4...
  • Page 94 Background read Increasing this parameter will allow the loop to track the current demand more closely. Setting the value too high will result in instability. Table 5-6 Converting from Mentor II gains to Mentor MP gains Mentor II Mentor MP Pr 6.16...
  • Page 95 0 to 1 Default Background read Update rate When set to 1 the field economy level is selected. When set to 0 field economy is controlled by the field economy timeout function. Mentor MP Advanced User Guide www.onxcontrol.com Issue Number: 4...
  • Page 96 Figure 5-18 and Figure illustrate the sequence of events during a forward to reverse and reverse to forward change of direction. Mentor MP Advanced User Guide Issue Number: 4...
  • Page 97 Wait for positive flux level Entry / Clear flux invert Wait for negative flux level Wait for Zero Speed reverse Entry / Set flux invert Running Reverse Entry /Set invert speed error Mentor MP Advanced User Guide www.onxcontrol.com Issue Number: 4...
  • Page 98 100 % compensation is not required. In these cases this parameter must be adjusted to apply the correct amount of compensation. Setting a negative value will cause the speed to fall as load increases. Mentor MP Advanced User Guide Issue Number: 4...
  • Page 99 This parameter allows the flux feedback to come from an external field current controller (not FXMP25). This can be done via either an analog input or by a high speed fieldbus. When Pr 5.48 is set to 1 this parameter is used as the flux feedback. Mentor MP Advanced User Guide www.onxcontrol.com...
  • Page 100 Select clock for trip Motor 6.28 change due 5.03 log time stamp power Input Read-write (RW) 0.XX terminals parameter Read-only (RO) Output 0.XX terminals parameter The parameters are all shown at their default settings Mentor MP Advanced User Guide Issue Number: 4 www.onxcontrol.com...
  • Page 101 • If the line supply is lost and the auxiliary supply is good, the drive goes into ‘rdy’ state. Firing of the thyristors will suspend within 10 ms of the line supply being lost. When the supply is re-applied the drive is preloaded with ‘catch a spinning motor’ mode. Mentor MP Advanced User Guide www.onxcontrol.com...
  • Page 102 When this bit is set the drive remains active even when the run command has been removed and the motor has reached standstill. The drive goes to the 'StoP' state instead of the 'rdy' state. Mentor MP Advanced User Guide Issue Number: 4...
  • Page 103 This parameter controls the action of the Fwd/Rev key on the drive in keypad mode. Pr 6.13 Action of Fwd/Rev key None Reverse select is toggled every time the button is pressed Drive runs in reverse direction Mentor MP Advanced User Guide www.onxcontrol.com Issue Number: 4...
  • Page 104 If the data is not written with the various parts in the correct range (i.e. minutes are greater than 59, etc.) the clock is set to zero on the next minute. This clock may be used for time stamping the trip log if Pr 6.28 = 0. This parameter is used in conjunction with Pr 6.21. Mentor MP Advanced User Guide Issue Number: 4...
  • Page 105 Txt VM DP US RW BU Coding Range ±32,000 Update rate Background write Instantaneous read out of the cost/hour of running the drive. This requires Pr 6.16 to be set up correctly. Mentor MP Advanced User Guide www.onxcontrol.com Issue Number: 4...
  • Page 106 Update rate 4 ms read See Pr 6.34 for description. 6.33 Sequencing bit: Forward/reverse VM DP US RW BU Coding Default Update rate 4 ms read See Pr 6.34 for description. Mentor MP Advanced User Guide Issue Number: 4 www.onxcontrol.com...
  • Page 107 VM DP ND RA US RW BU Coding Default Update rate 4 ms read 6.40 Enable sequencer latching Txt VM DP US RW BU Coding Default Update rate 4 ms read Mentor MP Advanced User Guide www.onxcontrol.com Issue Number: 4...
  • Page 108 8 is written to Pr 1.42. With default drive settings this selects analog reference 1 (bit8 = 0) or preset reference 1 (bit8 = 1). If any other drive parameters are routed to Pr 1.42 the value of Pr 1.42 is undefined. Mentor MP Advanced User Guide Issue Number: 4...
  • Page 109 When using the contactor logic the run command has to be delayed to allow time for the contactor to change before allowing the firing pulses. 6.55 Contactor active Txt VM DP US RW BU Coding Update rate Background write This parameter can be used to control an external contactor. Mentor MP Advanced User Guide www.onxcontrol.com Issue Number: 4...
  • Page 110 Sequencer run Sequencer run delayed Hold zero speed Contactor active Drive active Motor Speed 6.54 6.54 100ms 6.56 Run rise Run rise Drive active edge delay edge delay falling edge delay Mentor MP Advanced User Guide Issue Number: 4 www.onxcontrol.com...
  • Page 111 250 s, special scaling is used as described in the table and the user scaling is ignored. Output source Scaling Pr 3.02 = {di05, 0.40} - Speed 10.0 V = SPEED_MAX Pr 4.01 = {di08, 0.43} - Current 10.0 V = 2 x Motor rated current magnitude Mentor MP Advanced User Guide www.onxcontrol.com Issue Number: 4...
  • Page 112 Current ??.?? magnitude Read-only (RO) Output 0.XX 7.24 7.23 4.01 parameter terminals Analog Analog ??.?? output 2 output 2 The parameters are all shown at their default settings scaling mode selector Mentor MP Advanced User Guide Issue Number: 4 www.onxcontrol.com...
  • Page 113 Release from O.ht2 Warning temperature MP25A4(R) MP45A4(R) MP75A4(R) MP105A4(R) MP155A4(R) MP210A4(R) MP25A5(R) MP45A5(R) MP105A5(R) MP155A5(R) MP210A5(R) MP350A4(R) MP420A4(R) MP550A4(R) MP700A4(R) MP825A4(R) MP900A4(R) MP1200A4(R) MP1850A4(R) MP350A5(R) MP470A5(R) MP700A5(R) MP825A5(R) MP1200A5(R) MP1850A5(R) MP350A6(R) MP470A6(R) Mentor MP Advanced User Guide www.onxcontrol.com Issue Number: 4...
  • Page 114 THS trip if R < 50 R TH trip if R > 3 k 3 Thermistor without short circuit detection TH reset if R < 1 k 8 th diSp Thermistor display only with no trip Mentor MP Advanced User Guide Issue Number: 4 www.onxcontrol.com...
  • Page 115 Update rate Background read 7.18 T8 analog input 3 destination VM DP US RW BU Coding Range Pr 0.00 to Pr 22.99 Default Pr 0.00 Update rate Read on drive reset Mentor MP Advanced User Guide www.onxcontrol.com Issue Number: 4...
  • Page 116 Pr 4.02 Update rate Read on drive reset 7.23 T10 analog output 2 scaling VM DP ND RA US RW BU Coding Range 0.000 to 40.000 Default 1.000 Update rate Background read Mentor MP Advanced User Guide Issue Number: 4 www.onxcontrol.com...
  • Page 117 0 to 150 C Update rate Background read This parameter is an estimate of the SCR / thyristor junction temperature. If the value rises above 120 C, the drive will trip O.ht1. Mentor MP Advanced User Guide www.onxcontrol.com Issue Number: 4...
  • Page 118 6.04 8.23 I/O 3 source/ Start/stop destination 8.29 logic select 8.30 T26 digital I/O polarity Open collector 8.13 unprotected I/O 3 invert select output parameter ??.?? Run forward 6.30 x(-1) ??.?? Mentor MP Advanced User Guide Issue Number: 4 www.onxcontrol.com...
  • Page 119 Drive enable External trip Read-only (RO) Output 0.XX x(-1) 10.32 parameter 8.29 terminals Drive enable I.O polarity select This logic diagram applies only when all parameters are at their default settings Mentor MP Advanced User Guide www.onxcontrol.com Issue Number: 4...
  • Page 120 Relay Contactor state Relay 2 enable x(-1) Destination Any bit 5V (On) paramete r Start Key state Destination 5V (On) Any bit paramete r Reverse Key state Toggle enable Pr 8.52 Mentor MP Advanced User Guide Issue Number: 4 www.onxcontrol.com...
  • Page 121 DE Txt VM DP RA NC NV US RW BU PS Coding Default See Table 5-7 Update rate 4 ms write OFF (0) = Terminal inactive ON (1) = Terminal active Mentor MP Advanced User Guide www.onxcontrol.com Issue Number: 4...
  • Page 122 T24 input / output 1 T25 input / output 2 T26 input / output 3 T27 input 4 T28 input 5 T29 input 6 Relay 1 Enable Relay 2 Start button Forward / Reverse button Mentor MP Advanced User Guide Issue Number: 4 www.onxcontrol.com...
  • Page 123 When this parameter = 1 either the high-side drive (negative logic polarity) or the low-side driver (positive logic polarity) is disabled. This allows outputs to be connected in a wire-ORed configuration. Mentor MP Advanced User Guide www.onxcontrol.com Issue Number: 4...
  • Page 124 Forward / Reverse button destination DE Txt VM DP RA NC NV US RW BU Coding Default See Table 5-7 Range Pr 0.00 to Pr 22.99 Update rate Read on drive reset Mentor MP Advanced User Guide Issue Number: 4 www.onxcontrol.com...
  • Page 125 ??.?? ??.?? x(-1) Function-2 input-2 9.16 source parameter Input Read-write (RW) 0.XX terminals parameter Read-only (RO) 0.XX Output parameter terminals The parameters are all shown at their default settings Mentor MP Advanced User Guide www.onxcontrol.com Issue Number: 4...
  • Page 126 9 and 12 functions active. The logic functions are active if one or both the sources are routed to a valid parameter. The other functions are active if the output destination is routed to a valid unprotected parameter. Mentor MP Advanced User Guide Issue Number: 4...
  • Page 127 Logic function 2 source 2 invert Txt VM DP RA NC NV US RW BU Coding Default Update rate 4 ms x number of menu 9 or 12 functions active read Mentor MP Advanced User Guide www.onxcontrol.com Issue Number: 4...
  • Page 128 Motorized pot mode DE Txt VM DP RA NC NV US RW BU Coding Range 0 to 3 Default Update rate Background read The motorized pot modes are given in the following table: Mentor MP Advanced User Guide Issue Number: 4 www.onxcontrol.com...
  • Page 129 Read on reset 9.26 Motorized pot up Txt VM DP RA NC NV US RW BU Coding Default Update rate 4 ms x number of menu 9 or 12 functions active read Mentor MP Advanced User Guide www.onxcontrol.com Issue Number: 4...
  • Page 130 4 ms x number of menu 9 or 12 functions active write 9.33 Binary sum destination DE Txt VM DP RA NC NV US RW BU PS Coding Range Pr 0.00 to Pr 22.99 Default Pr 0.00 Update rate Read on reset Mentor MP Advanced User Guide Issue Number: 4 www.onxcontrol.com...
  • Page 131 The output is the logic AND of the 2 inputs. The output is the logic OR of the 2 inputs. Exclusive OR The output is the exclusive OR of the 2 inputs. Mentor MP Advanced User Guide www.onxcontrol.com Issue Number: 4...
  • Page 132 Parameter description RS flip flop Reset Output (source 2) (source 1) No change D-type flip-flop Clock Data Output (source 2) (source 1) No change 0->1 0->1 No change 1->0 No change Mentor MP Advanced User Guide Issue Number: 4 www.onxcontrol.com...
  • Page 133 US RW BU Coding Update rate Background write Indicates that the absolute value of the active current is greater or equal to the rated motor current as defined in menu 5. Mentor MP Advanced User Guide www.onxcontrol.com Issue Number: 4...
  • Page 134 10.19 Drive warning VM DP US RW BU Coding Update rate Background write Indicates that one of the drive alarms is active, i.e. Pr 10.19 = Pr 10.17 OR Pr 10.18. Mentor MP Advanced User Guide Issue Number: 4 www.onxcontrol.com...
  • Page 135 SMARTCARD trip: SMARTCARD can not perform the required function as it is being accessed by a Solutions Module Wait for the Solutions Module to finish accessing the SMARTCARD and then re-attempt the required function Mentor MP Advanced User Guide www.onxcontrol.com...
  • Page 136 Replace feedback device If wire break detection on the main drive encoder input is not required, set Pr 3.40 = 0 to disable the Enc2 trip EnC3 Drive encoder trip: Overload Overload Mentor MP Advanced User Guide Issue Number: 4 www.onxcontrol.com...
  • Page 137 Hardware fault - return drive to supplier HF09 Data processing error: Heap overflow Hardware fault - return drive to supplier HF10 Data processing error: Router error Hardware fault - return drive to supplier Mentor MP Advanced User Guide www.onxcontrol.com Issue Number: 4...
  • Page 138 If this parameter is set to zero, the over speed threshold is automatically set to 1.2 x Pr 1.06 (SE02, 0.23) or Pr 1.07 (SE01, 0.22). Reduce the speed loop gain (Pr 3.10 (SP01, 0.61)) and speed integral (Pr 3.11 (SP02, 0.62)) to prevent speed overshoot. Mentor MP Advanced User Guide Issue Number: 4 www.onxcontrol.com...
  • Page 139 If the trip persists, contact the supplier of the drive. S.Old The maximum power the over voltage suppressor can handle has been exceeded Check the recommended line reactors are installed Check the recommended external suppressor resistor is installed Mentor MP Advanced User Guide www.onxcontrol.com Issue Number: 4...
  • Page 140 S.OV Excessive suppressor voltage Operation of the drive requires the installation of the external suppressor resistance, see Section 4.7 External suppressor resistor in the Mentor MP User Guide. t002 Reserved A value of 2 is being written to user trip (Pr 10.38). The drives internal logic, on board or Solutions Module program must be interrogated.
  • Page 141 * If a tunE through tunE 7 trip occurs, then after the drive is reset the drive cannot be made to run unless it is disabled via the drive enable parameter (Pr 6.15) or the control word (Pr 6.42). Mentor MP Advanced User Guide www.onxcontrol.com...
  • Page 142 Trip not saved to EEProm Unless otherwise stated, trips cannot be reset until 1.0 s after the trip has been accepted by the drive. Mentor MP Advanced User Guide Issue Number: 4 www.onxcontrol.com...
  • Page 143 10.34 No. of auto-reset attempts Txt VM DP RA NC NV US RW BU Coding Range 0 to 5 Default Update rate Background read See also Pr 10.35 overleaf Mentor MP Advanced User Guide www.onxcontrol.com Issue Number: 4...
  • Page 144 Not used Not used Pr 10.14 Pr 10.13 Not used Not used Pr 10.10 Pr 10.09 Pr 10.08 Pr 10.07 Pr 10.06 Pr 10.05 Pr 10.04 Pr 10.03 Pr 10.02 Pr 10.01 Mentor MP Advanced User Guide Issue Number: 4 www.onxcontrol.com...
  • Page 145 The user can mask some of the trips from tripping the drive. The trip can be completely masked (do nothing in the event of the selected trip) by setting the trip number into the parameter. Mentor MP Advanced User Guide www.onxcontrol.com...
  • Page 146 Sets to 1 when the armature voltage clamp is activated. Prevents the voltage from increasing further. When the armature voltage exceeds 1.15 times the supply voltage the armature voltage clamp is activated to prevent the voltage rising. SCR firing is inhibited until the voltage has fallen. Mentor MP Advanced User Guide Issue Number: 4 www.onxcontrol.com...
  • Page 147 L1 missing 10.77 Input frequency Txt VM DP RA NC NV US RW BU Coding Range 0 to 100.00 Update rate Background read The input frequency measured on the auxiliary terminals. Mentor MP Advanced User Guide www.onxcontrol.com Issue Number: 4...
  • Page 148 Full details of the CT implementation of ANSIx3.28 are given in Chapter 6 Serial communications protocol. Modbus RTU protocol Full details of the CT implementation of Modbus RTU are given in Chapter 6 Serial communications protocol. Mentor MP Advanced User Guide Issue Number: 4 www.onxcontrol.com...
  • Page 149 (slave). The drive does not respond until at least 1 ms after the message has been received from the host allowing 1 ms for the host to change from transmit to receive mode. This initial delay can be extended using Pr 11.26 if required for both ANSI and Modbus RTU protocols. Mentor MP Advanced User Guide www.onxcontrol.com Issue Number: 4...
  • Page 150 0 (480 V) , 1 (575 V), 2 (690 V) Update rate Write at power-up This parameter has three possible values (480 V, 575 V, 690 V) and indicates the voltage rating of the drive. Mentor MP Advanced User Guide Issue Number: 4 www.onxcontrol.com...
  • Page 151 The actions of erasing a card, erasing a file, creating a new file, changing a menu 0 parameter, or inserting a new card will set Pr 11.37 to 0. Various SMARTCARD actions can be initiated via Pr x.00, or the copying parameter (Pr 11.42 = {SE09, 0.30}), and resetting the drive as given in the following table: Mentor MP Advanced User Guide www.onxcontrol.com Issue Number: 4...
  • Page 152 However, if the transfer fails the parameters are not saved to drive EEPROM, therefore only the RAM values will be incorrect. If the drive is powered down and then powered up again the original drive parameters will be restored. Mentor MP Advanced User Guide Issue Number: 4...
  • Page 153 Product Identifier Unidrive SP (standard) Digitax ST Affinity Mentor MP 11.38 SMARTCARD data type/mode TE VM DP RA NC NV US RW BU Coding Range 0 to 18 Update rate Background write Mentor MP Advanced User Guide www.onxcontrol.com Issue Number: 4...
  • Page 154 Sets the timeout for the drive display to revert to status mode from edit mode following no key presses. Although this parameter can be set to less than 2s, the minimum timeout is 2s. Mentor MP Advanced User Guide Issue Number: 4...
  • Page 155 11.44 Security status {SE14, 0.35} TE VM DP RA NC NV US RW BU Coding Range 0 to 2 Default Update rate Background read Mentor MP Advanced User Guide www.onxcontrol.com Issue Number: 4...
  • Page 156 The Drive Onboard Application Lite Ladder Program Status parameter indicates to the user the actual state of the drive Onboard Application Lite Ladder Program. (not installed / running / stopped / tripped.) Mentor MP Advanced User Guide Issue Number: 4...
  • Page 157 Pr 11.52 and Pr 11.53 give a unique drive serial number for the drive. Digits 876 543 210 Format Parameter Digits Description Range 11.53 Build location 0-255 11.52 Works order number 0-999999 11.52 Number 0-999 Mentor MP Advanced User Guide www.onxcontrol.com Issue Number: 4...
  • Page 158 690 V Single 825 A MP825 700 A MP700R 690 V Four 825 A MP825R 1200 A MP1200 480 V 1850 A MP1850 Single 1200 A MP1200 690 V 1850 A MP1850 Mentor MP Advanced User Guide Issue Number: 4 www.onxcontrol.com...
  • Page 159 The module in the specified slot will if capable, perform parameter mappings and conversions so that the module “looks like” an MD29 or Mentor 2. For example : An ANSI master device transmits a parameter read message to a number of Mentor 2 drives over EIA (RS) -485. Mentor MP Advanced User Guide www.onxcontrol.com Issue Number: 4...
  • Page 160 Parameter description At some point, one of the Mentor 2 drives is replaced with a Mentor MP drive. The EIA (RS) -485 cable is wired to an SM-Applications module in slot 3 of the Mentor MP instead of being wired into the drive.
  • Page 161 If this is not entered correctly the power dissipated, and therefore the thermal protection model for the resistor will be incorrect. This could lead to the resistor being operated beyond its thermal limits. Mentor MP Advanced User Guide www.onxcontrol.com Issue Number: 4...
  • Page 162 This is the voltage measured on the bucket suppressor. If this voltage rises this indicates that there are voltage transients present on the supply and an external resistor may be required to limit the voltage. Mentor MP Advanced User Guide Issue Number: 4...

  • Page 163: Brake Control Function

    Threshold detector 1 source 12.23 Threshold detector 2 source Txt VM DP RA NC NV US RW BU Coding Range Pr 0.00 to Pr 22.99 Default Pr 0.00 Update rate Read on reset Mentor MP Advanced User Guide www.onxcontrol.com Issue Number: 4...
  • Page 164 Pr 12.25) the output becomes active, or if the value is less than the threshold minus half the hysteresis band the output becomes inactive. The output may be inverted if required by setting the invert flag (Pr 12.06, Pr 12.26). The result is routed to the destination (defined by Pr 12.07, Pr 12.27). Mentor MP Advanced User Guide Issue Number: 4...
  • Page 165 Variable selector 1 source 2 12.29 Variable selector 2 source 2 Txt VM DP RA NC NV US RW BU Coding Range Pr 0.00 to Pr 22.99 Default Pr 0.00 Update rate Read on reset Mentor MP Advanced User Guide www.onxcontrol.com Issue Number: 4...
  • Page 166 Variable selector 2 source 2 scaling DE Txt VM DP RA NC NV US RW BU Coding Range ±4.000 Default 1.000 Update rate 4 ms x number of menu 9 or 12 functions active read Mentor MP Advanced User Guide Issue Number: 4 www.onxcontrol.com...
  • Page 167 Pr 12.14 to give a full scale value of 4000.0 rpm. The speed input is added to the accumulator to move the output position forwards or backwards with respect to the position input. Mentor MP Advanced User Guide www.onxcontrol.com...
  • Page 168 Pr 12.41 has been changed. The changes are done in two stages: the first stage restores the I/O used as defined by the initial setting of Pr 12.41 and the second stage sets up the I/O as defined by the new setting of Pr 12.41. Mentor MP Advanced User Guide Issue Number: 4...
  • Page 169 Brake release output Drive OK output Pr 12.40 Pr 10.01 Not stop Drive OK output 0 or 3 Pr 6.39 Pr 10.01 Reset 0 or 3 Pr 10.33 No change No change Mentor MP Advanced User Guide www.onxcontrol.com Issue Number: 4...
  • Page 170 2. If the reset input is 0 the output latches at 1 if the input is 1 Input Read-write (RW) 0.XX terminals parameter Read-only (RO) Output 0.XX terminals parameter The parameters are all shown at their default settings Mentor MP Advanced User Guide Issue Number: 4 www.onxcontrol.com...
  • Page 171 Brake apply speed delay Coding Txt VM DP ND RA NC NV RW BU Range 0.0 to 25.0 s Default 1.0 s Update rate Background read See Pr 12.45 for more information. Mentor MP Advanced User Guide www.onxcontrol.com Issue Number: 4...
  • Page 172 Update rate Background read When Pr 12.51 = 0, Pr 12.50 is controlled by the internal field controller. When Pr 12.51 = 1, Pr 12.50 is controlled by an external field controller. Mentor MP Advanced User Guide Issue Number: 4 www.onxcontrol.com...
  • Page 173 By default, the brake release action defined by Pr 12.49 is triggered by the brake release logic (Pr 12.40). When this parameter is set to 1, the brake release action is triggered by an external feedback (Pr 12.54). Mentor MP Advanced User Guide www.onxcontrol.com...
  • Page 174 Parameter Keypad and Advanced parameter Serial comms Performance Menu 13 format protocol structure descriptions Parameter description Mentor MP Advanced User Guide Issue Number: 4 www.onxcontrol.com...
  • Page 175 Drive source 3.28 3.29 Encoder 13.05 Slot 1 15.04 15.05 15.06 ⊗ Position Slot 2 16.04 16.05 16.06 Limited to ± Slot 3 17.04 17.05 17.06 Orientation 13.13 position reference Mentor MP Advanced User Guide www.onxcontrol.com Issue Number: 4...
  • Page 176 13.14 Orientation Input Read-write (RW) 0.XX terminals parameter Orientation Read-only (RO) Output 0.XX position 13.15 parameter terminals complete This logic diagram applies only when all parameters are at their default settings Mentor MP Advanced User Guide Issue Number: 4 www.onxcontrol.com...
  • Page 177 If a Solutions Module slot is selected as a source, but the module is not a position feedback category Solutions Module the position controller cannot be enabled. Mentor MP Advanced User Guide www.onxcontrol.com Issue Number: 4...
  • Page 178 Parameter Feed forward Mode value active Position controller disabled Rigid position control Rigid position control Non-rigid position control Non-rigid position control Orientation on stop Orientation on stop and when drive enabled Mentor MP Advanced User Guide Issue Number: 4 www.onxcontrol.com...
  • Page 179 When the position is within the window defined by Pr 13.14, the orientation complete indication is given in Pr 13.15. The stop mode selected by Pr 6.01 has no effect if orientation is enabled. Mentor MP Advanced User Guide www.onxcontrol.com...
  • Page 180 Pr 13.14 defines the position acceptance window either side of the position reference for orientation in 1/2 of a revolution. When the position is within the window defined by Pr 13.14, Pr 13.15 indicates orientation is complete. Mentor MP Advanced User Guide Issue Number: 4 www.onxcontrol.com...
  • Page 181 0 to 65,535 Default Update rate 4 ms read 13.21 Local reference position Txt VM DP RA NC NV US RW BU Coding Range 0 to 65,535 Default Update rate 4 ms read Mentor MP Advanced User Guide www.onxcontrol.com Issue Number: 4...
  • Page 182 (and not the turns or fine position) is available. This feature is not available when absolute mode is selected (Pr 13.11 = 1). Mentor MP Advanced User Guide Issue Number: 4...

  • Page 183: Menu 14: User Pid Controller

    This menu contains a PID controller which has programmable reference and feedback inputs, programmable enable bit, reference slew rate limiting, variable clamp levels and programmable destination. The sample rate of the PID controller is 4 ms. Figure 5-34 Menu 14 logic diagram Mentor MP Advanced User Guide www.onxcontrol.com Issue Number: 4...
  • Page 184 The parameters are all shown at their default settings *The PID controller is only enabled if Pr 14.16 is set to a non Pr xx.00 and unprotected destination parameter. Mentor MP Advanced User Guide Issue Number: 4 www.onxcontrol.com...
  • Page 185 This parameter defines the time taken for the reference input to ramp from 0 to 100.0 % following a 0 to 100 % step change in input. 14.08 PID enable Txt VM DP RA NC NV US RW BU Coding Default Update rate 4 ms read Mentor MP Advanced User Guide www.onxcontrol.com Issue Number: 4...
  • Page 186 If Pr 14.18 = 1, the upper limit defines the maximum positive or negative magnitude for the PID controller output. When any of the limits are active the integrator is held. Mentor MP Advanced User Guide Issue Number: 4...
  • Page 187 US RW BU Range ±100.00 % Update rate 4 ms write 14.21 PID feedback Coding Txt VM DP RA NC NV US RW BU Range ±100.00 % Update rate 4 ms write Mentor MP Advanced User Guide www.onxcontrol.com Issue Number: 4...
  • Page 188 Performance Menu 14 format protocol structure descriptions Parameter description 14.22 PID error Coding DE Txt VM DP RA NC NV US RW BU Range ±100.00 % Update rate 4 ms write Mentor MP Advanced User Guide Issue Number: 4 www.onxcontrol.com...

  • Page 189: Menus 15, 16 And 17: Solutions Module Slots

    Parameters common to all categories Parameter Range Default Type x.01 Solutions Module ID 0 to 599 RO Uni PT US x.50 Solutions Module error status 0 to 255 RO Uni NC PT Mentor MP Advanced User Guide www.onxcontrol.com Issue Number: 4...

  • Page 190: Menu 18: Application Menu 1

    VM DP US RW BU Coding Range -32,768 to 32,767 Default Update rate 18.31 to 18.50 Application menu 1 read-write bit Txt VM DP US RW BU Coding Default Update rate Mentor MP Advanced User Guide Issue Number: 4 www.onxcontrol.com...

  • Page 191: Menu 19: Application Menu 2

    Txt VM DP US RW BU Coding Range -32,768 to 32,767 Default Update rate 19.31 to 19.50 Application menu 2 read-write bit Txt VM DP US RW BU Coding Default Update rate Mentor MP Advanced User Guide www.onxcontrol.com Issue Number: 4...

  • Page 192: Menu 20: Application Menu 3

    US RW BU Coding Range -32,768 to 32,767 Default Update rate 20.21 to 20.40 Application menu 3 read-write long integer VM DP US RW BU Coding Range to 2 -1 Default Update rate Mentor MP Advanced User Guide Issue Number: 4 www.onxcontrol.com...

  • Page 193: Menu 21: Second Motor Parameters

    Pr 21.03 defines how the value of Pr 1.49 is derived as follows: Value of Pr 21.03 Display String Pr 1.49 A1.A2 *Selected by terminal input A1.Pr A2.Pr Keypad ref only Mentor MP Advanced User Guide www.onxcontrol.com Issue Number: 4...
  • Page 194 Update rate Background read 21.06 Base speed VM DP US RW BU Coding Range 0 to 10000.0 rpm Default 1000 Normal Pr 5.08 = {SE08, 0.29} parameter Update rate Background read Mentor MP Advanced User Guide Issue Number: 4 www.onxcontrol.com...
  • Page 195 Update rate Background read 21.11 Motor constant Txt VM DP US RW BU Coding Range 0.0 to 100.0 % Default 50 % Normal Pr 5.15 parameter Update rate Background read Mentor MP Advanced User Guide www.onxcontrol.com Issue Number: 4...
  • Page 196 Pr 21.15 does not have an equivalent normal motor parameter, but shows when motor 2 is active. 21.16 Thermal filter VM DP US RW BU Coding Range 0.0 to 3000.0 Default 89.0 Normal motor Pr 4.15 parameter Update rate Background read Mentor MP Advanced User Guide Issue Number: 4 www.onxcontrol.com...
  • Page 197 If a position feedback category Solutions Module is not installed in slot 1 the drive produces an EnC9 trip. 2, Slot2: Solutions Module in slot 2 3, Slot3: Solutions Module in slot 3 4, tacho 5, Est speed Mentor MP Advanced User Guide www.onxcontrol.com Issue Number: 4...
  • Page 198 Update rate Background read 21.27 Motoring current limit Txt VM DP US RW BU Coding Range 0 to MOTOR2_CURRENT_LIMIT_MAX % Default 150.0* Normal Pr 4.05 parameter Update rate Background read Mentor MP Advanced User Guide Issue Number: 4 www.onxcontrol.com...
  • Page 199 21.32 Flux loop I gain Txt VM DP US RW BU Coding Range 0 to 300.0 Default Normal Pr 5.72 parameter Update rate Background read Field current control loop integral gain. Mentor MP Advanced User Guide www.onxcontrol.com Issue Number: 4...
  • Page 200 Field weakening control loop integral gain. 21.35 Rated field compensation factor VM DP US RW BU Coding Range 0 to 100 % Default 100 % Normal Pr 5.74 parameter Update rate Background read Mentor MP Advanced User Guide Issue Number: 4 www.onxcontrol.com...

  • Page 201: Menu 22: Additional Menu 0 Setup

    Txt VM DP US RW BU Coding Range Pr 0.00 to Pr 22.99 Default 0.00 Update rate Background read These parameters define the parameters that reside in the programmable area in menu 0. Mentor MP Advanced User Guide www.onxcontrol.com Issue Number: 4...

  • Page 202: Menu 23 Header Definitions

    When moving between parameters within a block only valid parameters are displayed. Figure 5-35 Sub block navigation SEt UP SE00 SE13 diAGnoS di01 di14 triPS inPut in01 in10 Headers Mentor MP Advanced User Guide Issue Number: 4 www.onxcontrol.com...
  • Page 203 0 to 127 Update rate Background read The Binary sum of Pr 23.03 to Pr 23.09. To be used by the MP-Keypad. Parameter Value 23.03 23.04 23.05 23.06 23.07 23.08 23.09 Mentor MP Advanced User Guide www.onxcontrol.com Issue Number: 4...
  • Page 204 Parameter Keypad and Advanced parameter Serial comms Performance Menu 23 format protocol structure descriptions Parameter description 23.03 to 23.09 Pre defined sub block enable Txt VM DP US RW BU Coding Range 0 to 1 Default Update rate Background read When this parameter is set to 1 the associated pre-defined sub block is accessible.
  • Page 205 Trips bypassed. Mentor MP Advanced User Guide Issue Number: 4 www.onxcontrol.com Speed loop 5.23 Pre-Defined Sub Blocks set-up Serial interface Speed feedback Diagnostic...
  • Page 206 The menus and parameters roll over in both directions. 2.21 Menu 0 Menu 1 0.04 0.05 0.06 1.14 Menu 4 4.07 Mentor MP Advanced User Guide www.onxcontrol.com Issue Number: 4...

  • Page 207: Bit Parameters

    Pr 160.00 to Pr 161.00 to Pr 162.00 to Pr 163.00 to Pr 164.00 to Pr 165.00 to Pr 160.99 Pr 161.99 Pr 162.99 Pr 163.99 Pr 164.99 Pr 165.99 Menu 165 Mentor MP Advanced User Guide Issue Number: 4 www.onxcontrol.com...

  • Page 208: Serial Communications Protocol

    Introduction 123456 +123456 Mentor MP supports an ANSIx3.28 type comms protocol as supported by previous Control Techniques products with some modification to If the parameter to be read does not exist the End of transmission allow access to 32 bit parameters. This chapter describes the character (Ctl D) is returned.

  • Page 209: Drive Address

    Parameter description Advanced parameter Serial comms Parameter structure Keypad and display Parameter x.00 Performance format protocol descriptions 6.1.5 Drive address 2. The command is aborted because the two digits for drive address 1 The drive only acts on messages received that contain a drive address if digit, drive address 2 digit, menu number or parameter number are the whole drive address or drive group address match the whole...
  • Page 210 1. The command is aborted because a non-numerical value is received in the drive address, menu or parameter numbers. Mentor MP Advanced User Guide Issue Number: 4 www.onxcontrol.com...

  • Page 211: Ct Modbus Rtu Specification

    + transmission time for the response. minimum silence minimum silence period period Slave frame frame detect Master request Slave response Master request processing New master request Slave response time can start here Time Mentor MP Advanced User Guide www.onxcontrol.com Issue Number: 4...

  • Page 212: Slave Address

    MOST significant byte is sent first. So for example 16 - bits 0x1234 would be 0x12 0x34 32 - bits 0x12345678 would be 0x12 0x34 0x56 0x78 Mentor MP Advanced User Guide Issue Number: 4 www.onxcontrol.com...

  • Page 213: Extended Data Types

    NOTE The selection is applied for the whole block access. bit 15 bit 14 bits 0 - 13 TYP1 TYP0 Type select Parameter address X x 100+Y-1 Mentor MP Advanced User Guide www.onxcontrol.com Issue Number: 4...

  • Page 214: Exceptions

    Parameter description Advanced parameter Serial comms Parameter structure Keypad and display Parameter x.00 Performance format protocol descriptions The 2bit type field selects the data type according to the table below: Start Number Read Response Comments Type field Selected data register of 16bit Comments bits 15-14...
  • Page 215 If a write multiple (FC16 or FC23) request exceeds the slave maximum buffer size then the slave will discard the message. No exception will be transmitted in this case and the master will time out. Mentor MP Advanced User Guide Issue Number: 4 www.onxcontrol.com...

  • Page 216: Device Compatibility Parameters

    If this data type is not supported then an 32bit float data type over range error will be raised if this data supported type is used Maximum buffer size Determines the maximum block size. Mentor MP Advanced User Guide www.onxcontrol.com Issue Number: 4...

  • Page 217: Performance

    Relay output opening 4 ms* 4 ms* *software only Current feedback Accuracy: 5 % Resolution: 10 bit plus sign Full scale resolution is equivalent to 222 % drive rated current (A Mentor MP Advanced User Guide Issue Number: 4 www.onxcontrol.com...
  • Page 218 Inertia compensation torque ...........40 Jog acceleration rate .............. Jog deceleration rate .............. Jog reference ................. Keypad ..................Keypad control ............... Keypad control mode reference ..........29 Limit switch ................104 Load reached ............... 130 Mentor MP Advanced User Guide www.onxcontrol.com Issue Number: 4...
  • Page 219 Position controller P gain ............. 175 Powered-up time ..............101 Update rate ................19 Precision reference ..............29 US defaults ................16 Preset reference selected indicator ........32 Preset selector ............... 28 Programmable logic ............. 122 Mentor MP Advanced User Guide Issue Number: 4 www.onxcontrol.com...

  • Page 220: Www.onxcontrol.com Issue Number

    Velocity feed forward ............176 Velocity feed-forward reference ..........31 Voltage mode select ............... 76 Voltage rating ................ 147 Wire break detect ..............52 Zero speed ................130 Zero speed threshold .............. 44 Mentor MP Advanced User Guide www.onxcontrol.com Issue Number: 4...
  • Page 222 0476-0002-04...

Table of Contents
