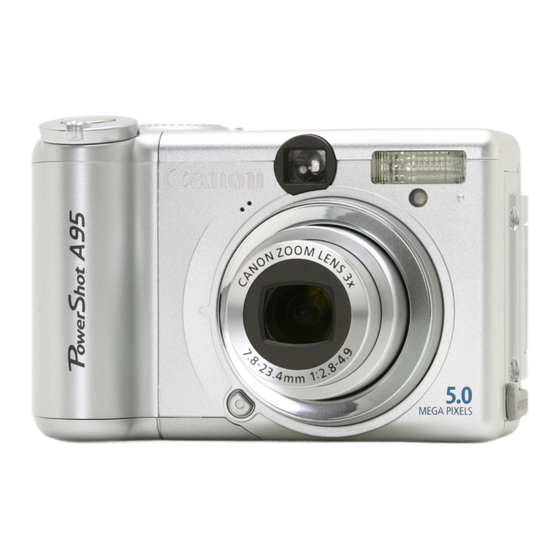

Canon POWERSHOT A95 Service Manual
Hide thumbs
Also See for POWERSHOT A95:
- User manual (330 pages) ,
- Connection manual (2 pages) ,
- Quick start manual (2 pages)
Table of Contents
Advertisement
Quick Links
Advertisement
Table of Contents
Related Manuals for Canon POWERSHOT A95
Summary of Contents for Canon POWERSHOT A95
- Page 2 Application This CD-ROM is issued by Canon Inc. for qualified persons to learn technical theory and prod- uct repair. This CD-ROM covers all localities where the products are sold. For this reason, there may be information in this CD-ROM that does not apply to the product sold in your locality.
-
Page 3: Safety Precautions
SAFETY PRECAUTIONS The following precautions should be observed when servicing. Since many parts in the unit have special safety-related characteristics, always use genuine CANON replacement parts. Especially critical parts in the power circuit block should not be replaced with other makes. -
Page 4: Parts Catalog
PARTS CATALOG c CANON INC., 2004... -
Page 5: Table Of Contents
PARTS CATALOG CONTENTS PowerShot A95 Casing Parts ----------------------------------------------------------------------------------------------------------------------- Pg1 Internal Parts-1 ------------------------------------------------------------------------------------------------------------------- Pg2 Internal Parts-2 ------------------------------------------------------------------------------------------------------------------- Pg3 Optical Unit ----------------------------------------------------------------------------------------------------------------------- Pg4 Fuse -------------------------------------------------------------------------------------------------------------------------------- Pg5 Accessories-1 ------------------------------------------------------------------------------------------------------------------------- Pg6 Accessories-2 ------------------------------------------------------------------------------------------------------------------------- Pg7 Accessories-3 ------------------------------------------------------------------------------------------------------------------------- Pg8 Service Tools-1 ----------------------------------------------------------------------------------------------------------------------- Pg9 Service Tools-2 ---------------------------------------------------------------------------------------------------------------------- Pg10... -
Page 6: Powershot A95
PowerShot A95 Casing Parts... - Page 7 PowerShot A95 P A R T S L I S T SYMBOL PARTS NO. CLASS QTY D E S C R I P T I O N R E M A R K S CM1-2501-000 COVER UNIT, FRONT CD3-2635-000 COVER, CARD SLOT...
-
Page 8: Internal Parts-1
PowerShot A95 Internal Parts-1... - Page 9 PowerShot A95 P A R T S L I S T SYMBOL PARTS NO. CLASS QTY D E S C R I P T I O N R E M A R K S CM1-2504-000 BATTERY COVER UNIT CD3-1347-000 SPRING, BATTERY COVER...
-
Page 10: Internal Parts-2
PowerShot A95 Internal Parts-2 See Pg4... - Page 11 PowerShot A95 P A R T S L I S T SYMBOL PARTS NO. CLASS QTY D E S C R I P T I O N R E M A R K S CD3-2614-000 SHEET, INSULATION CD3-2624-000 FRAME, SUB...
-
Page 12: Optical Unit
PowerShot A95 Optical Unit... - Page 13 PowerShot A95 P A R T S L I S T SYMBOL PARTS NO. CLASS QTY D E S C R I P T I O N R E M A R K S CD3-1198-000 CAP, FRONT CD3-1214-000 TAPE, FRONT CAP...
-
Page 14: Fuse
PowerShot A95 Fuse DC/JACK UNIT... - Page 15 PowerShot A95 P A R T S L I S T SYMBOL PARTS NO. CLASS QTY D E S C R I P T I O N R E M A R K S CY4-6076-000 FUSE, MATSU.DENKI UNHS205...
-
Page 16: Accessories-1
PowerShot A95 Accessories-1 Wrist Strap WS-200 USB Interface Cable IFC-400PCU CF Case AV Cable AVC-DC300 CF Card FC-32MH Canon Digital Camera Solution Disk, ArcSoft Camera Suite Disk ArcSoft camera Suite Disk Alkaline Batteries (X4) N.S : N.S Stand for No Stock... - Page 17 PowerShot A95 P A R T S L I S T SYMBOL PARTS NO. CLASS QTY D E S C R I P T I O N R E M A R K S C84-1060-000 STRAP, WRIST WS-200 FC2-9610-000 CASE, CF...
-
Page 18: Accessories-2
PowerShot A95 Accessories-2 Compact Power Adapter Conversion Lens Adapter LA-DC52D CA-PS500 Wide Converter WC-DC52 AC Cable PLUG TYPE Battery Charger CB-4AH Tele Converter TC-DC52A NiMH Battery NB4-200 N.S : N.S Stand for No Stock... - Page 19 PowerShot A95 P A R T S L I S T SYMBOL PARTS NO. CLASS QTY D E S C R I P T I O N R E M A R K S D82-0641-000 CABLE, AC, JAPAN FOR JAPAN...
-
Page 20: Accessories-3
PowerShot A95 Accessories-3 Waterproof Case WP-DC 50 Wrist Strap Waterproof Seal Silicone Grease Diffusion Plate Unit Neck Strap Hood Strap N.S : N.S Stand for No Stock... - Page 21 PowerShot A95 P A R T S L I S T SYMBOL PARTS NO. CLASS QTY D E S C R I P T I O N R E M A R K S CY1-6199-000 BUCKLE ASS’Y CY1-6169-000 CAP, BUTTON...
