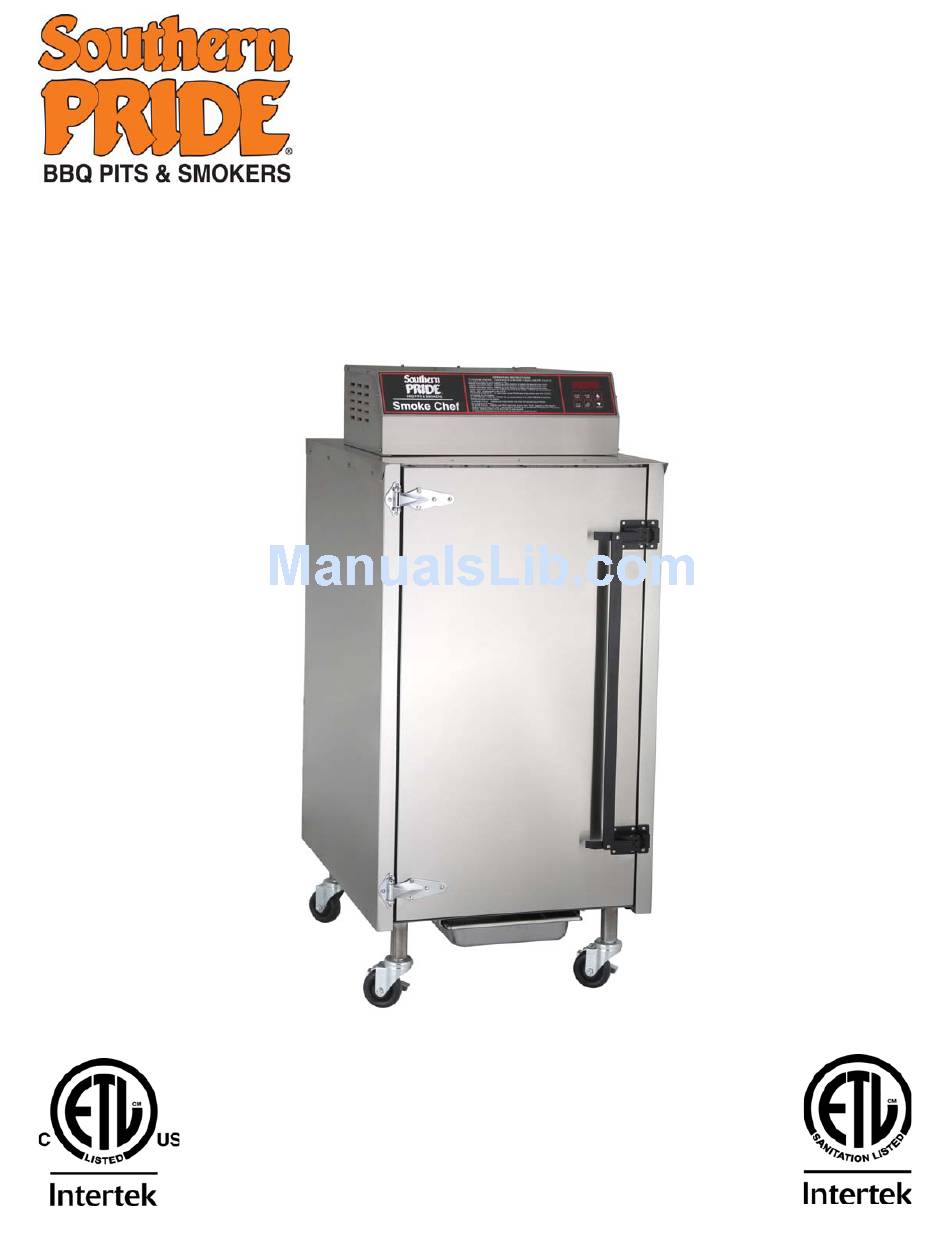

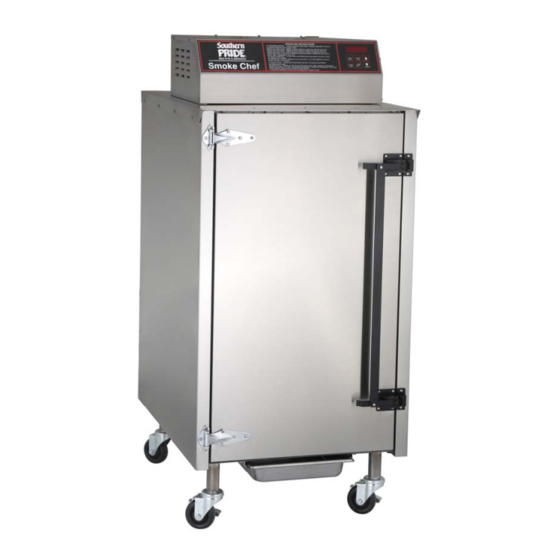

OWNER'S MANUAL
SC-200
Southern Pride smokers have been tested and approved by Intertek Testing Services,
and are ETL listed to UL STD 197, certified to CSA STD C22.2 No. 109,
and to NSF/ANSI Standard 4.
ETL File Number 4007026
401 South Mill Street , Alamo, Tennessee 38001
731-696-3175
http://www.southern-pride.com
Copyright 2015 by Southern Pride Distributing, LLC Volume 2
1 of 22
Advertisement
Table of Contents
Related Manuals for Southern Pride SC-200
Summary of Contents for Southern Pride SC-200
- Page 1 Stationary Rack BBQ Smoker OWNER’S MANUAL SC-200 Southern Pride smokers have been tested and approved by Intertek Testing Services, and are ETL listed to UL STD 197, certified to CSA STD C22.2 No. 109, and to NSF/ANSI Standard 4. ETL File Number 4007026...
- Page 2 Southern Pride electric smokers are woodchip-burning, ETL listed, commercial cooking appliances whose installation, operation, and maintenance should comply with the instructions in this manual, NFPA® 96 and other codes and standards as called out in this manual. For a list of ETL approved smokers go to www.intertek.com/directories, click on ETL Listed Mark Directory and search “Southern Pride.”...
- Page 3 CONGRATULATIONS! In selecting Southern Pride, you have chosen the finest, most advanced and most fully automatic woodchip burning barbecue smoker available. With us, “ It’s Simply, a Matter of Pride”. Please read this Manual carefully prior to installation, operation and maintenance of your Southern Pride smoker.
-
Page 4: Table Of Contents
Daily ........................16 Monthly ......................16-17 As Needed ...................... 18-19 Wiring Diagram ....................20 Replacement Parts List ..................21 Before You Call For Service ................21 Limited Warranty ....................22 Copyright 2015 by Southern Pride Distributing, LLC Volume 2 4 of 22... -
Page 5: Safety Information And Precautions
10. Ashes removed from the woodchip boxes should be stored in a non-combustible container with a sealed lid only. Store ashes in a well ventilated area. FUMES COULD BE HAZARDOUS. Copyright 2015 by Southern Pride Distributing, LLC Volume 2 5 of 22... -
Page 6: Diagram Of Controls & Components
DIAGRAM OF CONTROLS AND COMPONENTS Front View Rear View Top View Left Side View Right Side View Copyright 2015 by Southern Pride Distributing, LLC Volume 2 6 of 22... -
Page 7: Diagram Of Controls & Components
11. TETHER / WALL ANCHOR BOLT MOUNTING LOCATION - Threaded hole for installation of eyelet bolt used to attach restraining device for smokers mounted on caster wheels to guard against transmission of strain to the electrical connections. Required by UL STD 197. Copyright 2015 by Southern Pride Distributing, LLC Volume 2 7 of 22... -
Page 8: Installation
(2) Drop-in flue dampers SITE INSTRUCTIONS The Southern Pride smoker must be installed in a location that will permit the smoker to function for its in- tended purpose and to allow adequate clearance for ventilation, proper cleaning, and maintenance access. -
Page 9: Electrical Instructions
Some components in this smoker operate on 110/120 volts AC. This current is supplied from L1 and the neutral connection on the terminal block. This must be verified before applying power to the smoker. Copyright 2015 by Southern Pride Distributing, LLC Volume 2 9 of 22... -
Page 10: Installation Instructions For Restraining Device
1. Staple bracket 2. Eyebolt with jam nut 3. Restraining cable 4. Spring loaded hook 5. #10 x 1” screws 6. Plastic anchors 7. Instruction sheet Figure B Figure C Copyright 2015 by Southern Pride Distributing, LLC Volume 2 10 of 22... -
Page 11: Venting Instructions
To remove the drop-in flue damper center piece, use a screwdriver to pry the piece loose and remove it from the rest of the drop-in flue damper. NOTE: A restricted flue will maintain more moisture and smoke in the smoker cabinet. Copyright 2015 by Southern Pride Distributing, LLC Volume 2 11 of 22... -
Page 12: Operation
Refer to Ash Removal Instructions on page 15. Woodchip box will be hot when the smoker has been in operation. Do not overload woodchip box. Copyright 2015 by Southern Pride Distributing, LLC Volume 2 12 of 22... -
Page 13: Product Loading Instructions
“IDLE”. 12. After each cook cycle the ashes should be removed from the woodchip boxes, and the grease emptied from the drain pan. Copyright 2015 by Southern Pride Distributing, LLC Volume 2 13 of 22... -
Page 14: Product Unloading Instructions
2. Carefully open the product loading door just enough to release the smoke from the cabinet, then wait ap- proximately 5 seconds before fully opening the product loading door. 3. Product should be removed from top rack to the bottom rack. Copyright 2015 by Southern Pride Distributing, LLC Volume 2 14 of 22... -
Page 15: Ash Removal Instructions
1. Immediately empty the grease pan after each cook cycle. CAUTION: Grease will be hot. 2. Grease should be poured into an approved grease recycling bin. WOOD STORAGE INSTRUCTIONS The solid fuel should be stored in accordance with NFPA® 96. Copyright 2015 by Southern Pride Distributing, LLC Volume 2 15 of 22... -
Page 16: Maintenance
Be sure there is no solids or creosote buildup. Clean as needed. 2. Check the product door hinges and the product door latches. Tighten screws and align as needed. Copyright 2015 by Southern Pride Distributing, LLC Volume 2 16 of 22... - Page 17 Loosen the Allen head or square head set screw for the blower wheel. To re-install repeat the above steps in reverse order. Be sure to tighten the blower wheel set screw. Copyright 2015 by Southern Pride Distributing, LLC Volume 2 17 of 22...
-
Page 18: As Needed
To dry interior of the smoker leave product door open and allow to air dry. Note: Consult with the appropriate state or local health department regarding all applicable cleaning and sanitation requirements for equipment. Copyright 2015 by Southern Pride Distributing, LLC Volume 2 18 of 22... - Page 19 Always use the proper cleaning agent at the manufacturer’s recommended strength. EXTERIOR: Southern Pride BBQ Smokers are known for their attractive appearance. We achieve this by selecting only the finest grade of type 304 stainless steel and applying exacting workmanship.
-
Page 20: Wiring Diagram
Copyright 2015 by Southern Pride Distributing, LLC Volume 2 20 of 22... -
Page 21: Replacement Parts List
Verify that the fan shroud and air channels are properly seated. Error 10 appears on the control Plug the meat probe into the probe receptacle, or turn the meat probe off by pressing the up arrow. Copyright 2015 by Southern Pride Distributing, LLC Volume 2 21 of 22... -
Page 22: Limited Warranty
WILL SOUTHERN PRIDE OR ANY COMPANY/INDIVIDUAL AFFILIATED WITH IT BE LIABLE FOR INCI- DENTAL OR CONSEQUENTIAL DAMAGES. In no event shall Southern Pride be liable for loss of use, loss of reve- nue or profit, or loss of product, or for any indirect, incidental or consequential damages.
