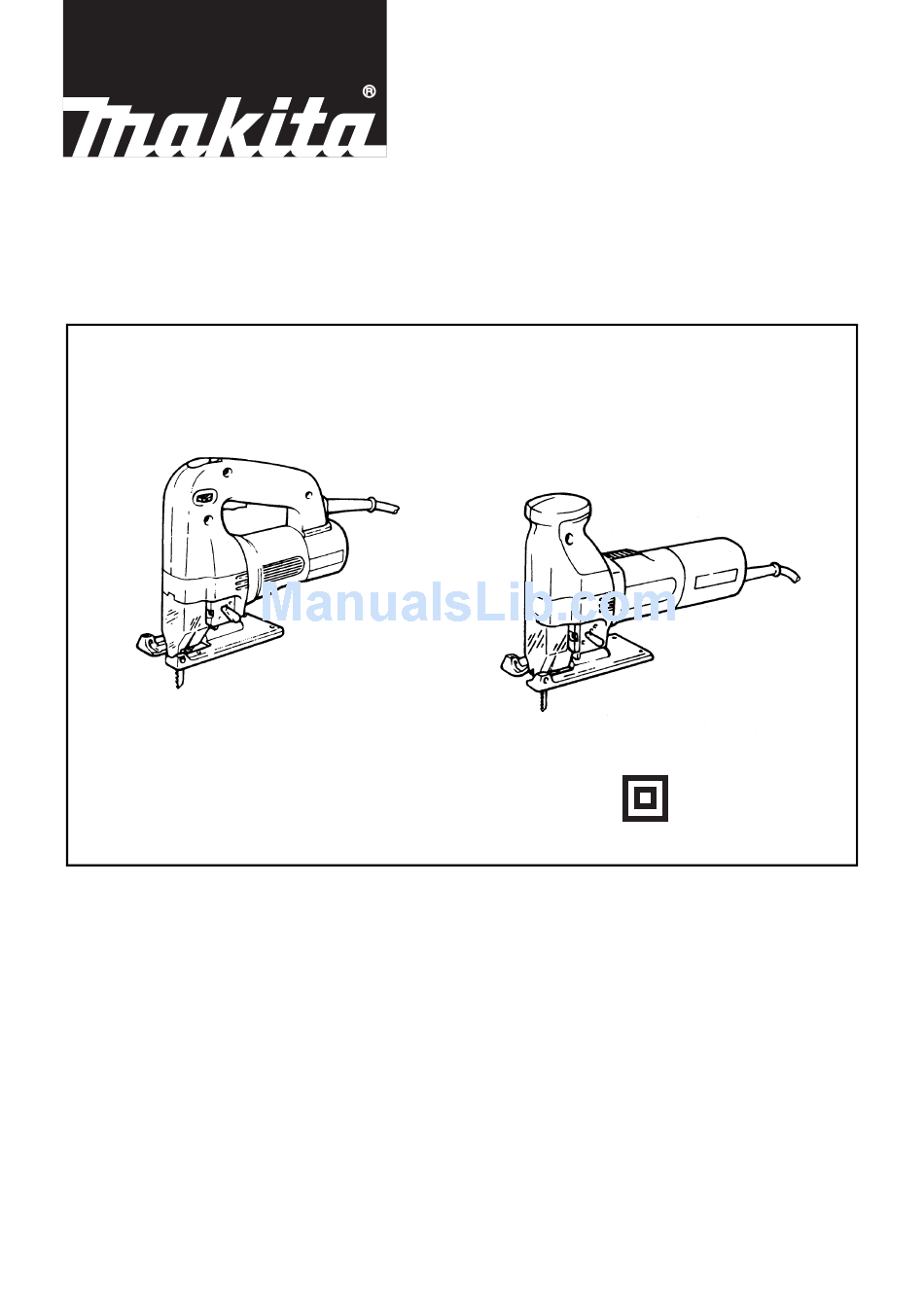

- Page 1 Jig Saw 4304 4305 4304 4305 DOUBLE INSULATION...
-
Page 2: Specifications
EN60745, EN55014, EN61000 in accordance with Council Directives, 89/336/EEC and 98/37/EC. CE 2005 Yasuhiko Kanzaki Director MAKITA INTERNATIONAL EUROPE LTD. Michigan Drive, Tongwell, Milton Keynes, Bucks MK15 8JD, ENGLAND Responsible manufacturer: Makita Corporation Anjo Aichi Japan... - Page 5 Symbols The followings show the symbols used for the tool. Be sure that you understand their meaning before use. Read instruction manual. DOUBLE INSULATION Only for EU countries Do not dispose of electric equipment together with household waste material! In observance of European Directive 2002/96/EC on waste electrical and electronic equipment and its implementation in accordance with national law, electric equipment that have reached the end of their life must be collected separately and returned to an environmentally compatible recycling facility.
-
Page 6: General Safety Rules
ENGLISH Explanation of general view Screw 11 Switch lever 21 Anti-splintering device Hex wrench 12 Speed adjusting dial 22 Guide rule Loosen 13 Base 23 Threaded knob Blade holder 14 Cutting line 24 Circular guide Jig saw blade 15 Bolt 25 Pin Roller 16 Cross-shaped slot... -
Page 7: Specific Safety Rules
For fast cutting in aluminum and mild steel. Large orbit cutting action For fast cutting in wood and plywood. Switching ON and OFF For 4305 (Fig. 5) For 4304 (Fig. 4) CAUTION: Before plugging in the tool, always check to see that the CAUTION: switch actuates properly. -
Page 8: Maintenance
Speed adjusting dial As the blade pierces the workpiece, slowly lower the (Fig. 4 for 4304 and Fig. 5 for 4305) base of the tool down onto the workpiece surface. The tool speed can be adjusted between 500 and 3,000 Complete the cut in the normal manner.
