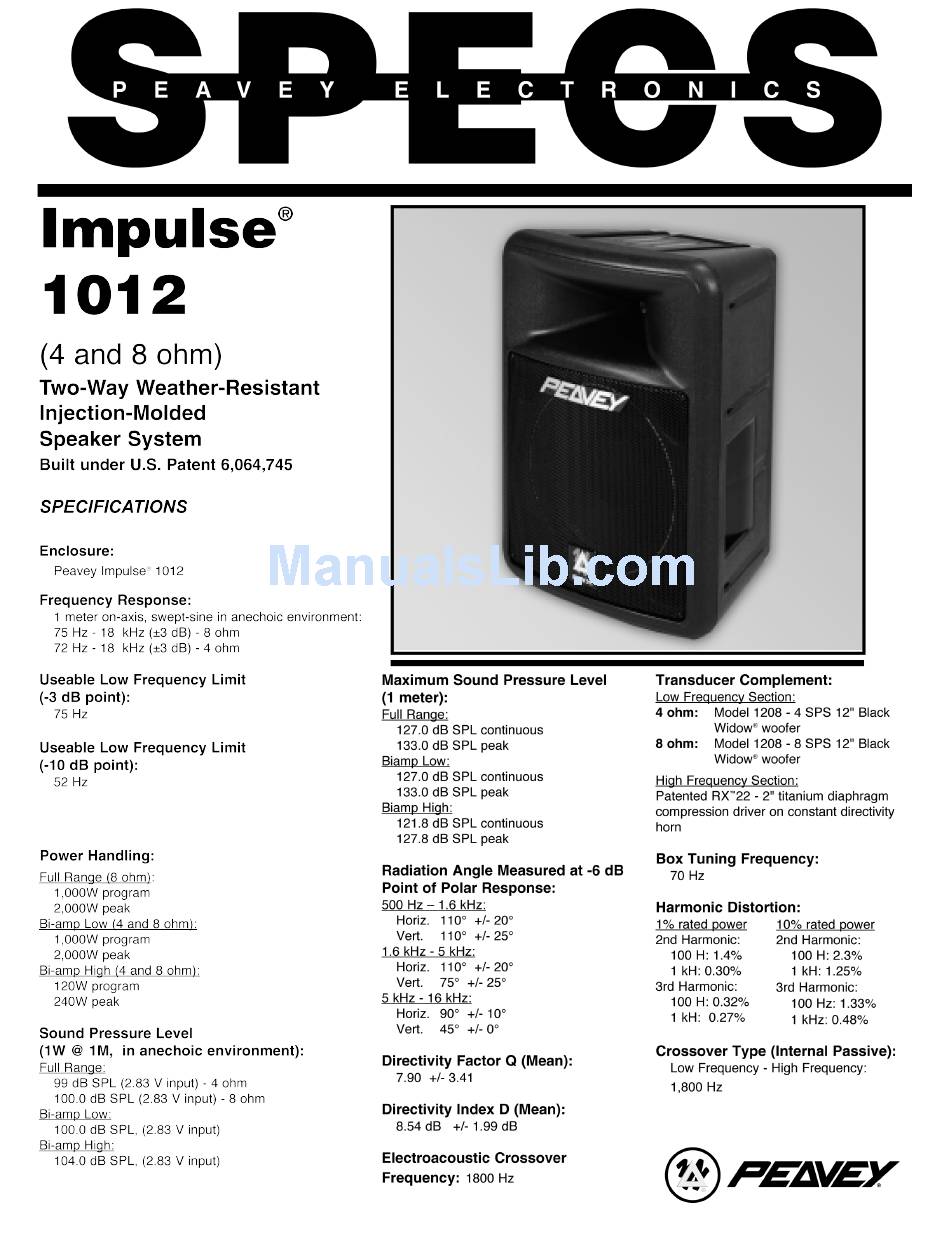

- Page 2 Top and bottom flying point inserts • Molded-in horn with exceptionally smooth response and pattern control DESCRIPTION: The Impulse 1012 is a two-way full- range speaker system engineered to pro- vide ultra-high performance in a portable, Amplitude Response (1W 1m On-Axis) Frequency (Hz)
-
Page 3: Frequency Response
This measurement is useful in deter- mining how accurately a given unit repro- duces an input signal. The frequency response of the Impulse 1012 (8 ohm) is measured at a distance of 1-meter using a 1 watt (into the nominal impedance) swept-sine input signal. - Page 4 23.69 inches high by 17.81 inches wide by 13.75 inches deep. The weight shall be 44 pounds. The loud- speaker system shall be a Peavey model Impulse 1012 (8 ohm). The 8 ohm loudspeaker system shall have an operating bandwidth of 75 Hz - 18 kHz.
- Page 5 250 Hz 500 Hz 1 kHz Impulse ® 1012 Horizontal Polar Patterns 6 dB per Division 315 Hz 630 Hz 1.25 kHz 400 Hz 800 Hz 1.6 kHz...
- Page 6 2 kHz 4 kHz 8 kHz Impulse ® 1012 Horizontal Polar Patterns 6 dB per Division 2.5 kHz 5 kHz 12.5 kHz 3.15 kHz 6.3 kHz 16 kHz...
- Page 7 250 Hz 500 Hz 1 kHz Impulse ® 1012 Vertical Polar Patterns 6 dB per Division 315 Hz 630 Hz 1.25 kHz 400 Hz 800 Hz 1.6 kHz...
- Page 8 2 kHz 4 kHz 8 kHz Impulse ® 1012 Vertical Polar Patterns 6 dB per Division 2.5 kHz 5 kHz 12.5 kHz 3.15 kHz 6.3 kHz 16 kHz...
- Page 9 Impulse ® 1012 Biamp Wiring Diagram for Speakon Highs Pin 2+ (Hi+) Pin 2- (Hi-) Lows Pin 1+ (Low+) Pin 1- (Low-) Impulse ® 1012 Impulse ® 1015 ® Mixer Output CH B - High Output ® 800s ® 800s equipped with optional X1 Crossover Module...
- Page 10 Impulse ® 1012 Top Mounting Dimensions...
- Page 11 Impulse ® 1012 Bottom Mounting Dimensions...
