Quickie Puma 20 Technical Manual

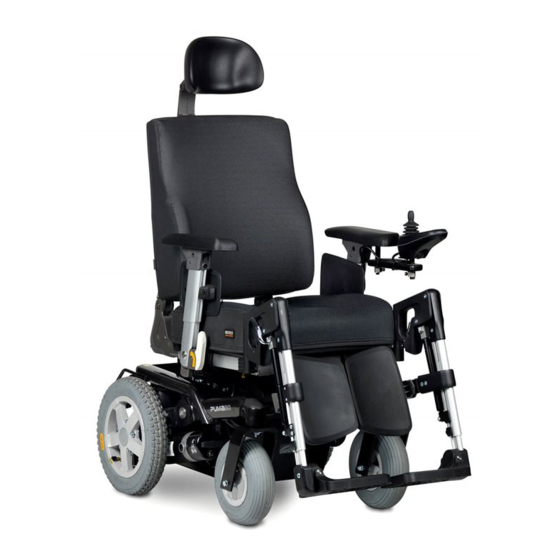

Powered wheelchair
Hide thumbs Also See for Puma 20:
Table of Contents

Advertisement

Quick Links

See also: User Manual
Powered wheelchair
TECHNICAL MANUAL
EN
Puma 20 / 40

Advertisement

Table of Contents
loading

Related Manuals for Quickie Puma 20

Summary of Contents for Quickie Puma 20

  • Page 1 Powered wheelchair TECHNICAL MANUAL Puma 20 / 40...

  • Page 2: Puma

    Puma 20/40...
  • Page 3 Puma 20/40 © 2016 Sunrise Medical All rights reserved. The information provided herein may not be reproduced and/or published in any form, by print, photoprint, microfilm or any other means whatsoever (electronically or mechanically) without the prior written authorization of Sunrise Medical.

  • Page 4: Table Of Contents

    4 | Table of content Puma 20/40 Table of content Introduction ................................6 This manual 1.2 Identification of the product Symbols used in this manual Safety ................................... 7 2.1 Maximum User weight reduction when Puma 20 options are installed on a Puma 40! 2.2 Personnel qualification Cautions and warning statements Used decals on the wheelchair Tools, parts and components ..........................10...
  • Page 5 Puma 20/40 Table of content | 5 5.3.5 Mounting the kerb climber (RWD, all Puma-versions) 5.3.6 Replacing the carbon brushes, Puma 40 / 5-spoke wheels > October 2016 5.3.7 Replacing the carbon brushes, Puma 40 / 3-spoke wheels > October 2016 5.3.8 Replacing the carbon brushes, Puma 40 < November 2016 and Puma 20 (all versions) 5.3.9 Replacing the drive wheel, indoor/outdoor, Puma 40 / 5-spoke wheels > October 2016 5.3.10 Replacing the drive wheel, indoor/outdoor Puma 40 / 3-spoke wheels > October 2016 5.3.11 Replacing the drive wheel, indoor/outdoor, Puma 40 < November 2016 5.3.12 Replacing the drive wheel, indoor/outdoor, Puma 20 (all versions) 5.3.13 Replacing the tube and/or tyre of a drive wheel, Puma 40 / 5-spoke wheels > October 2016 121 5.3.14 Replacing the tube and/or tyre of a drive wheel, Puma 40 / 3-spoke wheels > October 2016 124 5.3.15 Replacing the tube and/or tyre of a drive wheel, Puma 20/40 < November 2016 5.3.16 Replacing the castor wheel, all Puma-versions 5.3.17 Replacing the tyre and/or tube of the castor wheel, all Puma-versions 5.3.18 Replacing the castor fork, all Puma-versions 5.3.19 Mounting the direct access, all Puma-versions 5.3.20 Mounting the attendant steering on backrest frame Sedeo Pro+, all Puma-versions 5.3.21 Mounting the attendant Z-steering mechanisme Sedeo Pro+ (only for Norwegian market) 5.3.22 Replacing the batteries, all Puma-versions 5.3.23 Replacing the power module, all Puma-versions...

  • Page 6: Introduction

    6 | Introduction Puma 20/40 Introduction 1.1 This manual This manual contains the instructions for repairs and general maintenance. Mechanics who do repairs on this wheelchair must be well trained and familiar with the repair methods and the maintenance of the wheelchair.

  • Page 7: Safety

    2.1 Maximum User weight reduction when Puma 20 options are installed on a Puma 40! In case one of the following Puma 20 options is installed on a Puma 40 carrier, the maximum user weight is reduced to 136 kg: •...
  • Page 8 8 | Safety Puma 20/40 Seat adjustment factory settings Sunrise Medical HCM will deliver a Puma wheelchair with default factory settings. These settings depend on the options ticked on the order form. When a configuration is ordered that causes interference, Sunrise Medical HCM applies modified factory settings and informs the customer of this via a note included in the wheelchair delivery.

  • Page 9: Used Decals On The Wheelchair

    Don’t put the freewheel switch in ‘Push’ mode on a slope left-hand (Puma 20 and older versions of Puma 40) ‘Drive’ mode: freewheel lever inwards/upwards ‘Push’ mode: freewheel lever outwards/downwards Don’t put the freewheel switch in ‘Push’ mode on a slope Battery charging connection Attachment point of the tie-down system for transportation in a vehicle.

  • Page 10: Tools, Parts And Components

    10 | Tools, parts and components Puma 20/40 Tools, parts and components 3.1 Tools The tools below are needed for various mechanical settings and maintenance: Quantity Description Size (mm) Screwdriver, medium Screwdriver, crosshead Hammer (plastic) Chaser Pair of wire cutters...

  • Page 11: Spare Parts

    Puma 20/40 Spare parts | 11 Spare parts 4.1 Use of the parts lists This document is meant as a reference book to be used to order parts for the wheelchair that is shown on the front cover. How to order: When ordering parts, please specify: •...

  • Page 12: Carrier And Seat Adjustments

    Puma 20 Description Page Battery tray and suspension and chair interface Puma 20/40 (all versions) Dahl car docking system Puma 40 FWD (only i.c.w. Sedeo Pro+) Dahl car docking system Puma 40 RWD (only i.c.w. Sedeo Pro+) Suspension arm and motors Puma 40 > October 2016 Suspension arm and motors Puma 40 <...

  • Page 13: Pos Description Page

    Puma 20/40 Spare parts | 13 Carrier and seat adjustments Continued from Description Page Direct access Puma 20/40 (all versions) Attendant Z-steering (only for the Norwegian market)

  • Page 14: Battery Tray And Suspension And Chair Interface Puma 20/40 (All Versions)

    14 | Spare parts Puma 20/40 Battery tray and suspension and chair interface Puma 20/40 (all versions) Article number Description 9005935 Chair Interface set 4,5a 9002758 Battery 38 Ah (C20) Gel 4,5b 6000589 Battery 50 Ah (C20) AGM 4,5c 9002759...

  • Page 15: Dahl Car Docking System Puma 40 Fwd (Only I.c.w. Sedeo Pro+)

    Puma 20/40 Puma 20/40 Spare parts | 15 Spare parts | 15 Dahl car docking system Puma 40 FWD (only i.c.w. Sedeo Pro+) Article number Description 1,12-16 1017025 Battery Box Car Docking FWD 2-11 1017123 Dahl cardocking, set 9009478 Plate and bolts Dahl cardocking system O-ring 7x2,5 NBR 70 Washer Pa Di/Do 10.6/20 S=2.2...

  • Page 16: Dahl Car Docking System Puma 40 Rwd (Only I.c.w. Sedeo Pro+)

    16 | Spare parts Puma 20/40 Dahl car docking system Puma 40 RWD (only i.c.w. Sedeo Pro+) Article number Description 1,12-16 1017026 Battery Box Car Docking RWD 2-11 1017123 Dahl cardocking, set 9009478 Plate and bolts Dahl cardocking system O-ring 7x2,5 NBR 70...

  • Page 17: Suspension Arm And Motors Puma 40 > October 2016

    Puma 20/40 Spare parts | 17 Suspension arm and motors Puma 40 > October 2016 Loctite 243 10Nm 50Nm 25Nm 18 14 23 24 40a, 41a, 42a, 43a, 45a, 46a 40b, 41b, 42b, 43b, 45b, 46b SM_P40RWD_EV-03_2016 Article no Article number Description...

  • Page 18: Suspension Arm And Motors Puma 40 < November 2016

    35-39, 46a, 44b 9008630 November 2016, Puma 40 Motor 4-pole RWD right/FWD left, 12,5 km/h PG (R-net and VR2), version < 35-39, 46b, 44b 9008631 November 2016, Puma 40 37-38 1015807 Freewheel lever, Puma 20, Puma 40 version < November 2016...
  • Page 19 Puma 20/40 Spare parts | 19 Continued from Suspension arm and motors Puma 40 < November 2016 Article number Description 9002784 Brake Release Sticker 9005107 4PHT 8 mm motor brushes service (6 and 10 km/h) 9008819 4PHT 5 mm motor brushes service (12,5 km/h)

  • Page 20: Suspension Arm And Motors Puma 20 > October 2016

    5.2.1. 25,27-35,37,38 9007484 Motor set, 10 km/h DX and Shark, Puma 20 Motor RWD right/ FWD left, 10 km/h DX and Shark, Puma 20, see paragraph 25,27-35a,37,38 9007485 5.2.1. Motor RWD left/FWD right, 10 km/h DX and Shark, Puma 20, see paragraph...

  • Page 21: Suspension Arm And Motors Puma 20 < November 2016

    5.2.1. 28-32,35,37,38 9007484 Motor set, 10 km/h DX and Shark, Puma 20 Motor RWD right/ FWD left, 10 km/h DX and Shark, Puma 20, see paragraph 28-32,35a,37,38 9007485 5.2.1. Motor RWD left/FWD right, 10 km/h DX and Shark, Puma 20, see paragraph...

  • Page 22: Castor Forks And Wheels Puma 40 / 5-Spoke Wheels > October 2016

    22 | Spare parts Puma 20/40 Castor forks and wheels Puma 40 / 5-spoke wheels > October 2016 Loctite 243 25Nm 75Nm 4a, 4b 22, 23, 24, 25, 26, 27, 28 11, 12 13a, 14a, 15a, 16a 13b, 14b, 15b, 16b...
  • Page 23 Puma 20/40 Spare parts | 23 Continued from Castor forks and wheels Puma 40 / 5-spoke wheels > October 2016 Article number Description 17-21,28,29-31 9011595 Drive wheel outdoor 3.00-8 (14"), grey PU, version > October 2016 17-21,28,29-31 9011596 Wheel Set outdoor 3.00-8 (14"), grey PU, version > October 2016...

  • Page 24: Castor Forks And Wheels Puma 40 / 3-Spoke Wheels > October 2016

    24 | Spare parts Puma 20/40 Castor forks and wheels Puma 40 / 3-spoke wheels > October 2016 Loctite 243 25Nm 75Nm 50Nm 4a, 4b 22, 23, 24, 25, 26, 27, 28 11, 12 13a, 14a, 15a, 16a 13b, 14b, 15b, 16b...

  • Page 25: Castor Forks And Wheels Puma 40 < November 2016

    Puma 20/40 Spare parts | 25 Castor forks and wheels Puma 40 < November 2016 Loctite 243 25Nm 4a, 4b 22, 23, 24, 25, 26, 27, 28 11, 12 13a, 14a, 15a, 16a 13b, 14b, 15b, 16b SM_P40RWD_EV-04a_HC Article number Description...
  • Page 26 26 | Spare parts Puma 20/40 Continued from Castor forks and wheels Puma 40 / 3-spoke wheels > October 2016 Article number Description 17-21,26,29 9010254 Drive wheel outdoor 3.00-8, grey punctureproof (14"), All Weather 17-21,27,29 1017012 Drive wheel outdoor 3.00-8, black air (14"), Puma 40...

  • Page 27: Castor Forks And Wheels Puma 20 (All Versions)

    Drive wheel indoor 12 1/2 x 2 1/4, grey air (12,5"), Puma 20 13-15,16a,17 1017958 Drive wheel indoor 12 1/2 x 2 1/4, grey air (12,5"), Puma 20, set 13-15,16b,17 1017315 Drive wheel indoor 12 1/2 x 2 1/4, grey punctureproof (12,5"), Puma 20...
  • Page 28 28 | Spare parts Puma 20/40 Continued from Castor forks and wheels Puma 20 (all versions) Article number Description 1015297 Inner tube 200x50 (8") 1015298 Outer tyre 200x50 (8") grey line profile 1015116 Inner tube 2.80/2.50x4 (9") 1015107 Outer tyre 2.80/2.50x4 (9") grey line profile 1015115 Inner tube 3.00-4 (10")

  • Page 29: Covers Puma 40 / 5-Spoke Wheels > October 2016

    Puma 20/40 Spare parts | 29 Covers Puma 40 / 5-spoke wheels > October 2016 8a 8b 8c 8d 16a 16b 16c 16d 18b 18c 18d 18e 19a 19b 19c 19d SM_P40RWD_EV-05_5spaak_2016 Article number Description Article number Description 9005971 Battery cover black...

  • Page 30: Covers Puma 40 / 3-Spoke Wheels > October 2016

    30 | Spare parts Puma 20/40 Covers Puma 40 / 3-spoke wheels > October 2016 8a 8b 8c 8d 16a 16b 16c 16d 18b 18c 18d 18e 19a 19b 19c 19d SM_P40RWD_EV-05_3spaak_2016 Article number Description Article number Description 9005971 Battery cover black...

  • Page 31: Covers Puma 40 < November 2016

    Puma 20/40 Spare parts | 31 Covers Puma 40 < November 2016 Article number Description Article number Description 9005971 Battery cover black 9005972 Battery cover clips set 9005970 Logo Quickie 9009308 Suspension bridge cover dark grey, version < November 2016...

  • Page 32: Covers Puma 20 > October 2016

    32 | Spare parts Puma 20/40 Covers Puma 20 > October 2016 SM_P20_RWD_05_2016 Article number Description Article number Description 9005971 Battery cover black 9005972 Battery cover clips set 9009305 Battery access cover 9005973 Tube end covers dark grey set 9005970...

  • Page 33: Covers Puma 20 < November 2016

    Puma 20/40 Spare parts | 33 Covers Puma 20 < November 2016 Article number Description 9005971 Battery cover black 9005972 Battery cover clips set 9009305 Battery access cover 9005973 Tube end covers dark grey set 9005970 Logo Quickie 9-10 9011604...

  • Page 34: Tilt And Lift Modules Puma 40 (All Versions)

    34 | Spare parts Puma 20/40 Tilt and lift modules Puma 40 (all versions) 12 13 14 15 16 17 Article number Description Article number Description 1-2,4-7,12-14 9006019 Electrical lift with fixed tilt 1-2,8-11,15-17 9006021 Electrical tilt 45º 1-11 9006020 Electrical lift with electrical tilt 45º...

  • Page 35: Tilt Modules Puma 20 (All Versions)

    Puma 20/40 Spare parts | 35 Tilt modules Puma 20 (all versions) Article number Description Article number Description 9006017 Electrical tilt 25º 9006025 Til actuator mounting set 9006023 Tilt actuator < mid October 2012 (1 micro switch) 1017466 Tilt actuator > mid October 2012 (2 micro switches)

  • Page 36: Kerb Climber Puma 20/40 (All Versions)

    36 | Spare parts Puma 20/40 Kerb climber Puma 20/40 (all versions) 11 12 Article number Description Article number Description 1-14 90115 Kerb climber, adjustable 7-13 9003571 Kerb climber gas spring 03411.0190 Kerb climber shoe...

  • Page 37: Direct Access Puma 20/40 (All Versions)

    Puma 20/40 Spare parts | 37 Direct access Puma 20/40 (all versions) Article number Description Article number Description 1,3-4 1016970 R-net direct access keypad joystick side 1016968 R-net direct access keypad joystick side, set 2,5-6 1016971 Direct access keypad bracket joystick side...

  • Page 38: Attendant Z-Steering (Only For The Norwegian Market)

    38 | Spare parts Puma 20/40 Attendant Z-steering (only for the Norwegian market) Article number Description 9006030 R-net attendant module service 1017223 R-net attendent module for Z-steering, Sedeo Pro+ 1-18 1017034 R-net Z-steering incl. electronics and mounting set, Sedeo Pro+...

  • Page 39: Wiring And Modules Shark

    Puma 20/40 Spare parts | 39 4.3 Wiring and modules Shark Article number Description Article number Description 9007143 Shark Remote Drive Only DK-REMD01 service 9007144 Shark Remote Drive+Lights DK-REMD31 service 9007145 Shark Remote Drive+Lights+2Act. DK-REMD21 service 9007150 Shark Power Module (Drive only) DK-PMB01 (60 + 15A) service...
  • Page 40 40 | Spare parts Puma 20/40 Electrical diagrams Shark (1) Shark Battery & Motor connections (Drive only) 1x 70A 9006229 1002945 (1.5m) Batteries FWD: 9006429 (0.9m) RWD: 9006430 (1.2m) 9006231 Motor Motor Shark 1 Puma2040 Cable lenghts are not drawn to scale Shark Drive &...
  • Page 41 Puma 20/40 Spare parts | 41 Electrical diagrams Shark (2)) Shark Recline & Tilt (Lights optional) 6000038 6000039 Lighting 6000038 6000039 9006298 1002945 (1.5m) 9006301 Loop FWD: 9006429 (0.9m) Tilt RWD: 9006430 (1.2m) Recline 9006303 Shark 3 Puma2040 Cable lenghts are not drawn to scale Shark Lift &...
  • Page 42 42 | Spare parts Puma 20/40 Electrical diagrams Shark (3) Shark with Legrests (Lights optional) 6000038 6000039 Lighting 6000038 6000039 9006298 1002945 (1.5m) 9006301 Loop FWD: 9006429 (0.9m) Legrest 9002923 RWD: 9006430 (1.2m) Legrest 9002923 9006303 Shark 5 Puma2040 Cable lenghts are not drawn to scale Shark with Attendant Control 1002945 (1.5m)
  • Page 43 Puma 20/40 Spare parts | 43 Cable routing Shark - Drive only 9007143 Shark Remote Drive Only DK-REMD01 service 9006027 Shark Attendant Remote DK-ACU service 9007150 Shark Power Module DK-PMB01 (60 + 15A) service...
  • Page 44 44 | Spare parts Puma 20/40 Cable routing Shark - Drive and lights...
  • Page 45 Puma 20/40 Spare parts | 45 Cable routing Shark - Drive, lights & seats 9007145 Shark Remote Drive+Lights+2Act. DK-REMD21 service 9006027 Shark Attendant Remote DK-ACU service Lift / Tilt / Back actuators 1014907 Sedeo Lite Lighting 9007152 1010963 Sedeo Pro Lighting set on flip up armrest...

  • Page 46: Wiring And Modules R-Net

    46 | Spare parts Puma 20/40 4.4 Wiring and modules R-net Article number Description Article number Description 9007156 R-net Joystick Module Lights JSM LED-L service 9002910 R-net Joystick Module Colour CJSM-L-sw service 9007165 R-net Joystick Module Colour CJSM-L-sw Worktop service...
  • Page 47 Puma 20/40 Spare parts | 47 Electrical diagrams R-net (1) RNet Battery & Motor connections (Drive only) PM 120A PM EL (90A) 1x 100A 1x 70A 9006230 9006229 9002484 (1.5m) Batteries Batteries 9006228 PM EL (90A) PM 120A Motor Motor...
  • Page 48 48 | Spare parts Puma 20/40 Electrical diagrams R-net (2) RNet Lift, Tilt, Recline & Legrests (Lights optional) 9006323 Tilt 45° 9006301 FB-Term 9006319 Legrest Left 9006330 9002484 (1.5m) Lift 9006327 Direct Access FB-Term No Lift 9006319 Legrest Right 9002482 (2m)
  • Page 49 Puma 20/40 Spare parts | 49 Electrical diagrams R-net (3) RNet with Gyro Module and/or Attendant Remote (Lights optional) 9002484 (1.5m) 9002484 (1.5m) 9002481 (1m) 4-Way 9002482 (2m) 9002482 (2m) Gyro Rnet 5 Puma2040 Cable lenghts are not drawn to scale...
  • Page 50 50 | Spare parts Puma 20/40 Cable routing R-net 9007156 R-net Joystick Module Lights JSM LED-L service 1016968 R-net Direct access keypad joystick side, set 9002912 R-Net 9002910 R-Net Seating/Lighting Module ISM-6L R-net Joystick Module (6Act+Lights) service Colour CJSM-L-sw service...
  • Page 51 Puma 20/40 Spare parts | 51 Cable routing R-net - Dual Attendant Control 9006030 R-net Dual Attendant Module service 1017034 R-net Z-steer with mounting set, Sedeo Pro+ Joystick Module 9002912 R-Net Seating/ Lighting Module ISM-6L (6Act+Lights) service 9006238 R-Net 4-way Connector Block service...

  • Page 52: Wiring And Modules Dx2

    52 | Spare parts Puma 20/40 4.5 Wiring and modules DX2 7a 7b Article number Description Article number Description 9007146 DX2 Remote REM420 service 9007147 DX2 Remote REM421 service 9007148 DX2 Remote REM550 service 9007154 DX 16 key Remote REM48 Rev-C...
  • Page 53 Puma 20/40 Spare parts | 53 Wiring and modules DX2 Continued from Article number Description 00355.0458 Joystick knob T-shaped (round) 00355.0454 Joystick knob chin control, DX2 00355.0444 Joystick knob ball 32mm, DX2 00355.0443 Joystick knob foam ball, DX2 00355.0509 DX charger socket external...
  • Page 54 54 | Spare parts Puma 20/40 Electrical diagrams DX2 (1) DX2 Battery & Motor connections (Drive only) 1x 100A 9006230 00355.0024 (2m) Batteries 9006231 Motor Motor DX2 1 Puma2040 Cable lenghts are not drawn to scale DX2 Drive & Lights...
  • Page 55 Puma 20/40 Spare parts | 55 Electrical diagrams DX2 (2) DX2 Lift, Tilt & Recline (Lights optional) 9007591 FB-Term 9007589 Lift 9007576 9007590 Tilt 00355.0018 (1.75m) 00355.0074 (2.7m) 9006307 Recline No Lift: 00355.0024 (2.0m) DX2 3 Puma2040 Cable lenghts are not drawn to scale DX2 Lift, Tilt, Recline &...
  • Page 56 56 | Spare parts Puma 20/40 Electrical diagrams DX2 (3) DX2 Lift, Tilt, Recline & Central Legrest (Lights optional) 9007591 FB-Term 9007589 Lift 9007576 9006308 Tilt 00355.0018 (1.75m) 9006307 Recline 00355.0025 (0.3m) 9006307 Foot Plate Elevation 00355.0074 (2.7m) 9006307 No Lift: 00355.0024 (2.0 m)
  • Page 57 Puma 20/40 Spare parts | 57 Cable routing DX2 9007148 9007146 DX2 Remote REM420 service DX2 Remote REM550 service 9007147 DX2 Remote REM421 service 9007154 DX 16 key Remote Lights REM48 service 9007155 DX 16 key Remote PLUS REM48 service...

  • Page 58: Wiring And Modules Vr2

    58 | Spare parts Puma 20/40 4.6 Wiring and modules VR2 Article number Description Article number Description 9002907 VR-2 Joystick Module Drive Only JSM service 9002908 VR-2 Joystick Module Lights JSM-L service 9002909 VR-2 Joystick Module Act & Lights JSM-A-L service...
  • Page 59 Puma 20/40 Spare parts | 59 Electrical diagrams VR-2 (1) VR2 Battery & Motor connections (Drive only) 1x 70A 9006229 Batteries FWD: 9006853 (1.0m) RWD: 9006854 (1.5m) 9006228 Motor Motor VR2 1 Puma2040 Cable lenghts are not drawn to scale VR2 Drive &...
  • Page 60 60 | Spare parts Puma 20/40 Electrical diagrams VR-2 (2) VR2 Recline & Tilt 25° (Lights optional) 6000038 9006333 6000039 Lighting 6000038 9006333 6000039 FWD: 9006854 (1.5m) RWD: 9006855 (2.0m) 9006327 FB-Term Recline 9006321 9006321 Tilt 25° VR2 3 Puma2040 Cable lenghts are not drawn to scale VR2 Recline &...
  • Page 61 Puma 20/40 Spare parts | 61 Electrical diagrams VR-2 (3) VR2 Lift & Tilt 45° (Lights optional) 6000038 9006333 6000039 Lighting 6000038 9006333 6000039 FWD: 9006854 (1.5m) RWD: 9006855 (2.0m) Tilt 45° FWD: 9006325 / RWD: 9006326 Lift 9006301 FB-Term...
  • Page 62 62 | Spare parts Puma 20/40 Electrical diagrams VR-2 (4) VR2 with Legrests (Lights optional) 6000038 9006333 6000039 Lighting 6000038 9006333 6000039 FWD: 9006854 (1.5m) RWD: 9006855 (2.0m) 9006327 FB-Term Legrest 9006321 Legrest 9006321 VR2 7 Puma2040 Cable lenghts are not drawn to scale...
  • Page 63 Puma 20/40 Spare parts | 63 Cable routing VR 2 - Drive only 9002907 Joystick Module Drive Only JSM service 9002916 VR-2 Power Module VR2-90 (90A) service 9002917 VR-2 Power Module +2Act VR2-90-2A (90A) service...
  • Page 64 64 | Spare parts Puma 20/40 Cable routing VR 2 - Drive and lights 9002908 Joystick Module Lights JSM-L service 9002911 VR-2 Lighting Module service 1014910 Sedeo Lite Lighting 1014906 Sedeo Pro Lighting set on flip up armrest 1015815 Sedeo Pro Lighting set on seat frame...
  • Page 65 Puma 20/40 Spare parts | 65 Cable routing VR 2 - Drive, lights & seats 9002909 Joystick Module Act & Lights JSM-A-L service 9002911 Lighting Module service Lift / Tilt / Back actuators 1014910 Sedeo Lite Lighting 1014906 Sedeo Pro Lighting set on flip up armrest...
  • Page 66 66 | Spare parts Puma 20/40 Cable routing VR 2 - Dual Attendant Control 9006029 Dual Attendant Module service, Sedeo Lite/Pro Joystick Module 9002916 VR-2 Power Module VR2-90 (90A) service 9002917 VR-2 Power Module +2Act VR2-90-2A (90A) service...

  • Page 67: Service Instructions

    Puma 20/40 Service instructions | 67 Service instructions | 67 Service instructions 5.1 Maintenance plan Below, we have indicated what needs to be checked, how often this should be done and by whom. To be carried out by Time Description...

  • Page 68: Cabling

    68 | Service instructions 68 | Service instructions Puma 20/40 VR-2 1 x 100A FUSE 110648-03-099 • Make sure that the batteries are always well charged. • Do not use the wheelchair if the batteries are almost flat. This may damage the batteries and you run the risk of an unintended standstill.

  • Page 69: Assembly, Replacement And Adjustment Instructions

    9004284 (the article number can be found on the ID plate). If the motor that needs replacement has one of these article numbers, replace both motors with a motor according to Chapter 4.2, drawing 7 'Suspension arm and motors Puma 20, <...

  • Page 70: Converting Front Wheel Drive (Fwd) To Rear Wheel Drive (Rwd) And Vice Versa, Puma 40 / 5-Spoke Wheels > October 2016

    Step 3 • Torque wrench, socket, 13 mm • Change the direction of drive wheels and the mudguards • Pair of wire-cutters (not valid for Puma 20). • Water pump pliers Step 4 • Tie wraps • Replace the anti-tip wheels and the anti-tip brackets •...
  • Page 71 Puma 20/40 Service instructions | 71 Service instructions | 71 110648-03-004-2016 5-spoke 9005963 Anti tip FWD set for converting RWD to FWD. Tools required. Step 2 Remove interface and seating. max. 30 cm 110648-03-007_FWD_5spaak_2016 110648-03-006_FWD_5spaak_2016 Note! Lift the chair in case the wheel chair has an electrical lift.
  • Page 72 72 | Service instructions 72 | Service instructions Puma 20/40 110648-03-008 110648-03-009_FWD_5spaak_2016 110648-03-010_FWD_5spaak_2016...
  • Page 73 Puma 20/40 Service instructions | 73 Service instructions | 73 Note! Keep the spacers for reuse at step 5.2! 110648-03-011_FWD_5spaak_2016 Step 3 Change the direction of drive wheels and the mudguards. 110648-03-911_FWD_5spaak_2016 Note! Use a lifting device to provide a proper working platform.
  • Page 74 74 | Service instructions 74 | Service instructions Puma 20/40 110648-03-016_5spoke_2016 110648-03-014_5spaak_2016 Note! Dispose the bolt! Note! The Puma 40 has mudguards, take them off! Step 4 Replace the anti-tip wheels and brackets. 25Nm 110648-03-914_5spaak_2016 110648-03-913_FWD_5spaak_2016 Note! Replace the anti-tip wheels and brackets! FWD into...
  • Page 75 Puma 20/40 Service instructions | 75 Service instructions | 75 110648-03-916_mudguard_FWD Note! Change mudguard fixation to FWD! Step 5 Remount the drive wheels. 25Nm 110648-03-040_5spaak_2016...
  • Page 76 76 | Service instructions 76 | Service instructions Puma 20/40 Step 6 Change the position of the castor wheels. Loctite 243 Torx 30 110648-03-054_3_5spaak_2016 110648-03-051_3_5spaak_2016 Note! Only in case of 12,5 km/h! Note! Only in case of 12,5 km/h! Step 7 Remount the interface and seating.
  • Page 77 Puma 20/40 Service instructions | 77 Service instructions | 77 110648-03-027_5spaak_2016 110648-03-085_5spaak_2016 110648-03-028...
  • Page 78 78 | Service instructions 78 | Service instructions Puma 20/40 110648-03-029_3_5spaak_2016 Shark 9006429 Shark bus extension cable 0.9m 9006430 Shark bus extension cable 1.2m 9006431 Shark bus extension cable 0.64m 9006429 Shark bus extension cable 0.9m Shark with Lift 9006304...

  • Page 79: Converting Front Wheel Drive (Fwd) To Rear Wheel Drive (Rwd) And Vice Versa, Puma 40 / 3-Spoke Wheels > October 2016

    Step 3 • Torque wrench, socket, 13 mm • Change the direction of drive wheels and the mudguards • Pair of wire-cutters (not valid for Puma 20). • Water pump pliers Step 4 • Tie wraps • Replace the anti-tip wheels and the anti-tip brackets •...
  • Page 80 80 | Service instructions 80 | Service instructions Puma 20/40 110648-03-004-2016 3-spoke 9005963 Anti tip FWD set for converting RWD to FWD. Tools required. Step 2 Remove interface and seating. max. 30 cm 110648-03-007_FWD_3spaak_2016 110648-03-006_FWD_3spaak_2016 Note! Lift the chair in case the wheel chair has an electrical lift.
  • Page 81 Puma 20/40 Service instructions | 81 Service instructions | 81 110648-03-008 110648-03-009_FWD_3spaak_2016 110648-03-010_FWD_3spaak_2016...
  • Page 82 82 | Service instructions 82 | Service instructions Puma 20/40 Note! Keep the spacers for reuse at step 5.2! 110648-03-011_FWD_3spaak_2016 Step 3 Change the direction of drive wheels and the mudguards. 110648-03-911_FWD_3spaak_2016 Note! Use a lifting device to provide a proper working platform.
  • Page 83 Puma 20/40 Service instructions | 83 Service instructions | 83 110648-03-016_FWD_3spaak_2016 110648-03-015_FWD_3spaak_2016 Note! Dispose the ring and bolt! Note! The Puma 40 has mudguards, take them off! Step 4 Replace the anti-tip wheels and brackets. 25Nm 110648-03-914_3spaak_2016 110648-03-913_FWD_3spaak_2016 Note! Replace the anti-tip wheels and brackets! FWD into...
  • Page 84 84 | Service instructions 84 | Service instructions Puma 20/40 110648-03-916_mudguard_FWD Note! Change mudguard fixation to FWD! Step 5 Remount the drive wheels. 25Nm 110648-03-014_3spaak_2016...
  • Page 85 Puma 20/40 Service instructions | 85 Service instructions | 85 Step 6 Change the position of the castor wheels. Loctite 243 Torx 30 110648-03-054_3_5spaak_2016 110648-03-051_3_5spaak_2016 Note! Only in case of 12,5 km/h! Note! Only in case of 12,5 km/h! Step 7 Remount the interface and seating.
  • Page 86 86 | Service instructions 86 | Service instructions Puma 20/40 110648-03-027_3spaak_2016 110648-03-085_3spaak_2016...
  • Page 87 Puma 20/40 Service instructions | 87 Service instructions | 87 110648-03-028 110648-03-029_3spaak_2016 Shark 9006429 Shark bus extension cable 0.9m 9006430 Shark bus extension cable 1.2m 9006431 Shark bus extension cable 0.64m 9006429 Shark bus extension cable 0.9m Shark with Lift...
  • Page 88 88 | Service instructions 88 | Service instructions Puma 20/40 Step 8 Reprogram the wheelchair. Note! Program the correct standard RWD program to the wheelchair.

  • Page 89: Converting Front Wheel Drive (Fwd) To Rear Wheel Drive (Rwd) And Vice Versa, Puma 20/40 < November 2016

    Puma 20/40 Service instructions | 89 Service instructions | 89 5.3.4 Converting front wheel drive (FWD) to rear wheel drive (RWD) and vice versa, Puma 20/40 < November 2016 Preparation Relevant article numbers Step 1 9005962 P2040 Anti-Tip RWD Complete Service •...
  • Page 90 90 | Service instructions 90 | Service instructions Puma 20/40 9005963 Anti tip FWD set for converting RWD to FWD. Tools required. Step 2 Remove interface and seating. max. 30 cm 110648-03-007 110648-03-902 Note! Lift the chair in case the wheel chair has an electrical lift.
  • Page 91 Puma 20/40 Service instructions | 91 Service instructions | 91 110648-03-008 110648-03-009 110648-03-010...
  • Page 92 Puma 20/40 Note! Keep the spacers for reuse at step 5.2! 110648-03-011 Step 3 Change the direction of drive wheels and the mudguards (not for Puma 20). 110648-03-012 Note! Use a lifting device to provide a proper working platform. Note! Position the lift completely under the carrier!
  • Page 93 Puma 20/40 Service instructions | 93 Service instructions | 93 Note! Check the key is still in place! Note! The Puma 40 has mudguards, take them off! Note! Dispose the ring and bolt! Step 4 Replace the anti-tip wheels and brackets.
  • Page 94 110648-03-021 Note! Check the key is still in place! Step 6 Change the position of the castor wheels. Caution! Place at the Puma 20 on both sides of the castor wheel an extra ring between the wheel and the fork!
  • Page 95 Puma 20/40 Service instructions | 95 Service instructions | 95 Loctite 243 Torx 30 110648-03-054_3_5spaak_2016 Note! Only in case of 12,5 km/h! Note! Only in case of 12,5 km/h! Step 7 Remount the interface and seating. 110648-03-025...
  • Page 96 96 | Service instructions 96 | Service instructions Puma 20/40 110648-03-909 110648-03-028 110648-03-910...
  • Page 97 Puma 20/40 Service instructions | 97 Service instructions | 97 Shark 9006429 Shark bus extension cable 0.9m 9006430 Shark bus extension cable 1.2m 9006431 Shark bus extension cable 0.64m 9006429 Shark bus extension cable 0.9m Shark with Lift 9006304 P2040 Shark Cable Light+Lift+Act FWD 9006305 P2040 Shark Cable Light+Lift+Act RWD 00355.0023...

  • Page 98: Puma

    Mounting the kerb climber (RWD, all Puma-versions) Preparation Relevant article numbers • Switch off the wheelchair via the remote control. 9007864 Kerb climber, adjustable Puma 20/40 • Use a lifting device to raise the drive wheels clear of the ground. Tools used...
  • Page 99 Puma 20/40 | 99 | 99 110648-03-034_5spaak_2016...

  • Page 100: Replacing The Carbon Brushes, Puma 40 / 5-Spoke Wheels > October 2016

    100 | 100 | Puma 20/40 5.3.6 Replacing the carbon brushes, Puma 40 / 5-spoke wheels > October 2016 Preparation Relevant article numbers • Switch off the wheelchair via the remote control. 9011587 Bush Kit 4-Pole Incl Caps, • Be sure that the freewheel switch is in ‘drive’ mode. If the version >...
  • Page 101 Puma 20/40 | 101 | 101 110648-03-012_5spaak_2016 110648-03-014_5spaak_2016 110648-03-013_5spaak_2016 110648-03-017_5spoke_2016 110648-03-016_5spoke_2016...
  • Page 102 102 | 102 | Puma 20/40 110648-03-036_5spaak_2016 110648-03-092_3-5spaak_2016 110648-03-037_3_5spaak_2016 Note! Inspect the collector on the anchor of the motor; if the collector is seriously worn, replace the entire drive unit. 50Nm 10Nm 110648-03-091_5spoke_2016 110648-03-038_5spaak_2016...
  • Page 103 Puma 20/40 | 103 | 103 25Nm 110648-03-040_5spaak_2016 110648-03-039_5spaak_2016 110648-03-042_5spaak_2016 110648-03-041_5spoke_2016...

  • Page 104: Replacing The Carbon Brushes, Puma 40 / 3-Spoke Wheels > October 2016

    104 | 104 | Puma 20/40 5.3.7 Replacing the carbon brushes, Puma 40 / 3-spoke wheels > October 2016 Preparation Relevant article numbers • Switch off the wheelchair via the remote control. 9011587 Bush Kit 4-Pole Incl Caps, • Be sure that the freewheel switch is in ‘drive’ mode. If version >...
  • Page 105 Puma 20/40 | 105 | 105 110648-03-012_3spaak_2016 5/16 110648-03-015_3spaak_2016 110648-03-013_3spoke_2016 110648-03-016_3spoke_2016 110648-03-017_3spoke_2016...
  • Page 106 106 | 106 | Puma 20/40 110648-03-092_3-5spaak_2016 110648-03-036_3spaak_2016 110648-03-037_3_5spaak_2016 Note! Inspect the collector on the anchor of the motor; if the collector is seriously worn, replace the entire drive unit. 50Nm 10Nm 110648-03-091_3spoke_2016 110648-03-038_3spoke_2016...
  • Page 107 Puma 20/40 | 107 | 107 5/16 50Nm 110648-03-014_3spoke_2016 110648-03-039_3spoke_2016 110648-03-042_3spaak_2016...

  • Page 108: Replacing The Carbon Brushes, Puma 40 < November 2016 And Puma 20 (All Versions)

    108 | 108 | Puma 20/40 5.3.8 Replacing the carbon brushes, Puma 40 < November 2016 and Puma 20 (all versions) Preparation Relevant article numbers • Switch off the wheelchair via the remote control. 9006360 Puma 20 Motor brush set (2x2pcs with cover) •...
  • Page 109 Puma 20/40 | 109 | 109 110648-03-013 110648-03-035...
  • Page 110 110 | 110 | Puma 20/40 Note! Inspect the collector on the anchor of the motor; if the collector is seriously worn, replace the entire drive unit.
  • Page 111 Puma 20/40 | 111 | 111 25Nm 110648-03-040 Note! Check the key is still in place! Note! Bolts are provided with Loctite thread locker!

  • Page 112: Replacing The Drive Wheel, Indoor/Outdoor, Puma 40 / 5-Spoke Wheels > October 2016

    112 | 112 | Puma 20/40 5.3.9 Replacing the drive wheel, indoor/outdoor, Puma 40 / 5-spoke wheels > October 2016 Preparation 9011590 Wheel Set indoor 12 1/2 x 2 1/4 (13") Air, version > October 2016 • Switch off the wheelchair via the remote control.
  • Page 113 Puma 20/40 | 113 | 113 110648-03-035_5spaak_2016 110648-03-013_5spaak_2016 25Nm 110648-03-014_5spaak_2016 110648-03-040_5spaak_2016 110648-03-042_5spaak_2016 110648-03-041_5spoke_2016...

  • Page 114: Replacing The Drive Wheel, Indoor/Outdoor Puma 40 / 3-Spoke Wheels > October 2016

    114 | 114 | Puma 20/40 5.3.10 Replacing the drive wheel, indoor/outdoor Puma 40 / 3-spoke wheels > October 2016 Preparation Relevant article numbers • Switch off the wheelchair via the remote control. 9011621 Wheel Mount hub assy 3-Spoke Wheel Service •...
  • Page 115 Puma 20/40 | 115 | 115 5/16 110648-03-035_3spaak_2016 110648-03-013_3spoke_2016 5/16 50Nm 110648-03-015_3spaak_2016 110648-03-014_3spoke_2016 110648-03-042_3spaak_2016...

  • Page 116: Replacing The Drive Wheel, Indoor/Outdoor, Puma 40 < November 2016

    116 | 116 | Puma 20/40 5.3.11 Replacing the drive wheel, indoor/outdoor, Puma 40 < November 2016 Preparation 9010254 Drive wheel outdoor 3.00-8, grey punctureproof • Switch off the wheelchair via the remote control. (14"), All Weather • Be sure that the freewheel switch is in ‘drive’ mode. If 1017012 Drive wheel outdoor 3.00-8, black air (14"), Puma...
  • Page 117 Puma 20/40 | 117 | 117 110648-03-035 110648-03-013 25Nm 110648-03-040 Note! Check the key is still in place! Note! Bolts are provided with Loctite thread locker!
  • Page 118 118 | 118 | Puma 20/40...

  • Page 119: Replacing The Drive Wheel, Indoor/Outdoor, Puma 20 (All Versions)

    • Be sure that the freewheel switch is in ‘drive’ mode. If punctureproof (13"), Puma 20, set the freewheel switch is in ‘push’ mode this will make 1017312 Drive wheel outdoor 3.00-8, grey air (14"), Puma 20 loosening the bolts impossible. 1017956 Drive wheel outdoor 3.00-8, grey air (14"), Puma •...
  • Page 120 120 | 120 | Puma 20/40 110648-03-035_5spaak_2016 110648-03-013_5spaak_2016 25Nm 110648-03-014_5spaak_2016 110648-03-040_5spaak_2016 110648-03-042_5spaak_2016 110648-03-041_5spoke_2016...

  • Page 121: Replacing The Tube And/Or Tyre Of A Drive Wheel, Puma 40 / 5-Spoke Wheels > October 2016

    Puma 20/40 | 121 | 121 5.3.13 Replacing the tube and/or tyre of a drive wheel, Puma 40 / 5-spoke wheels > October 2016 Preparation 9011592 Wheel Set indoor 12 1/2 x 2 1/4 (13") PU, version > October 2016 •...
  • Page 122 122 | 122 | Puma 20/40 110648-03-035_5spaak_2016 110648-03-013_5spaak_2016 110648-03-014_5spaak_2016 110648-03-045_5spaak_2016 Caution! Deflate the tyre first, before you dismantle the wheel. Follow the steps as shown!
  • Page 123 Puma 20/40 | 123 | 123 TECHNICAL SPECIFICATIONS 110648-03-046_5spaak_2016 Caution! Ensure tube and tyre are properly positioned on the rim! Caution! Make sure the tube is not jammed between the two rim halves! Note! Inflate the tube to the correct pressure! (See: ‘Technical specifications’)

  • Page 124: Replacing The Tube And/Or Tyre Of A Drive Wheel, Puma 40 / 3-Spoke Wheels > October 2016

    124 | 124 | Puma 20/40 5.3.14 Replacing the tube and/or tyre of a drive wheel, Puma 40 / 3-spoke wheels > October 2016 Preparation Relevant article numbers • Switch off the wheelchair via the remote control. Puma 40 3-spoke wheels •...
  • Page 125 Puma 20/40 | 125 | 125 5/16 110648-03-035_3spaak_2016 110648-03-013_3spoke_2016 110648-03-015_3spaak_2016 110648-03-045_3spaak_2016 Caution! Deflate the tyre first, before you dismantle the wheel. Follow the steps as shown!
  • Page 126 126 | 126 | Puma 20/40 TECHNICAL SPECIFICATIONS 110648-03-046_3spaak_2016 Caution! Ensure tube and tyre are properly positioned on the rim! Caution! Make sure the tube is not jammed between the two rim halves! Note! Inflate the tube to the correct pressure! (See: ‘Technical specifications’)

  • Page 127: Replacing The Tube And/Or Tyre Of A Drive Wheel, Puma 20/40 < November 2016

    Puma 20/40 | 127 | 127 5.3.15 Replacing the tube and/or tyre of a drive wheel, Puma 20/40 < November 2016 Preparation Relevant article numbers • Switch off the wheelchair via the remote control. Puma 20/40 • Be sure that the freewheel switch is in ‘drive’ mode. If 9006792 Drive wheel mounting set, Puma 20 the freewheel switch is in ‘push’...
  • Page 128 128 | 128 | Puma 20/40 110648-03-035 110648-03-013 Caution! Deflate the tyre first, before you dismantle the wheel. Follow the steps as shown!
  • Page 129 Puma 20/40 | 129 | 129 Caution! Ensure tube and tyre are properly positioned on the rim! Caution! Make sure the tube is not jammed between the two rim halves! Note! Inflate the tube to the correct pressure! (See: ‘Technical specifications’)
  • Page 130 130 | 130 | Puma 20/40 110648-03-042_5spaak_2016...

  • Page 131: Replacing The Castor Wheel, All Puma-Versions

    Puma 20/40 | 131 | 131 5.3.16 Replacing the castor wheel, all Puma-versions Preparation Puma 20/40 • Switch off the wheelchair via the remote control. 1016998 Castor wheel indoor 2.80/2.50x4 (9"), air • Use a lifting device to raise the drive and castor wheels 1017438 Castor wheel indoor 2.80/2.50x4 (9"), air, set...
  • Page 132 132 | 132 | Puma 20/40 110648-03-035 110648-03-042_5spaak_2016 Caution! Place at the Puma 20 on both sides of the castor wheel an extra ring between the wheel and the fork!

  • Page 133: Replacing The Tyre And/Or Tube Of The Castor Wheel, All Puma-Versions

    Puma 20/40 | 133 | 133 5.3.17 Replacing the tyre and/or tube of the castor wheel, all Puma-versions Preparation Relevant article numbers • Switch off the wheelchair via the remote control. Puma 20 • Use a lifting device to raise the drive and castor wheels 1015297 Inner tube 200x50 (8")
  • Page 134 134 | 134 | Puma 20/40 110648-03-035 Caution! Deflate the tyre first, before you dismantle the wheel. Follow the steps as shown! Caution! Ensure tube and tyre are properly positioned on the rim! Caution! Make sure the tube is not jammed between the two rim halves!
  • Page 135 Puma 20/40 | 135 | 135 110648-03-042_5spaak_2016 Caution! Deflate the tyre first, before you dismantle the wheel. Follow the steps as shown!

  • Page 136: Replacing The Castor Fork, All Puma-Versions

    • Switch off the wheelchair via the remote control. 9005932 Castor fork (9" and 10") • Use a lifting device to raise the drive and castor wheels 9007752 Castor fork 60 mm (8") (only for Puma 20) clear of the ground. Tools used Instructions •...
  • Page 137 110648-03-051_3_5spaak_2016 Loctite 243 Torx 30 110648-03-054_3_5spaak_2016 Caution! Apply Loctite 243 to the bolt of the castor fork! 110648-03-042_5spaak_2016 Caution! Place at the Puma 20 on both sides of the castor wheel an extra ring between the wheel and the fork!

  • Page 138: Mounting The Direct Access, All Puma-Versions

    138 | 138 | Puma 20/40 5.3.19 Mounting the direct access, all Puma-versions Preparation Relevant article numbers Note! Switch off the wheelchair via remote control. 1016968 R-net direct access keypad joystick side, set 1016969 R-net direct access keypad not joystick side, set...

  • Page 139: Mounting The Attendant Steering On Backrest Frame Sedeo Pro+, All Puma-Versions

    Puma 20/40 | 139 | 139 5.3.20 Mounting the attendant steering on backrest frame Sedeo Pro+, all Puma-versions Preparation Relevant article numbers Note! Switch off the wheelchair via remote control. 1017036 Attendant steering R-net including mounting set and electronics, set, Sedeo Pro+...

  • Page 140: Mounting The Attendant Z-Steering Mechanisme Sedeo Pro+ (Only For Norwegian Market)

    140 | 140 | Puma 20/40 5.3.21 Mounting the attendant Z-steering mechanisme Sedeo Pro+ (only for Norwegian market) Preparation Relevant article numbers Note! Switch off the wheelchair via remote control. 1017034 R-net Z-steering incl. electronics and mounting set, Sedeo Pro+...

  • Page 141: Replacing The Batteries, All Puma-Versions

    Puma 20/40 | 141 | 141 5.3.22 Replacing the batteries, all Puma-versions Preparation Relevant article numbers • Switch off the wheelchair via the remote control. 9002592 M8x12 CKS BZK PRECOTE 85 • Remove the fuses from the battery compartment before 00000.2003 Locking ring, flat M8...
  • Page 142 142 | 142 | Puma 20/40 110648-03-057 110648-03-056 110648-03-058 110648-03-059 Caution! A battery tray with batteries is a heavy load! Be careful at the moment you undock the battery tray from the battery box! Caution! Undock the battery tray slowly from projection in the battery box!
  • Page 143 Puma 20/40 | 143 | 143 110648-03-062 Note! Insert the battery spacer set correctly, as shown in the next diagrams! Note! Insert the battery spacer set correctly, as shown in the next diagrams! 110648-03-086 Caution! Dock the battery tray slowly on the projection in the...
  • Page 144 144 | 144 | Puma 20/40 110648-03-087 110648-03-088...

  • Page 145: Replacing The Power Module, All Puma-Versions

    Puma 20/40 | 145 | 145 5.3.23 Replacing the power module, all Puma-versions Preparation Relevant article numbers • Switch off the wheelchair via the remote control. 9007150 Shark power module DK-PMB01 (60+15A) • Remove the fuses from the battery compartment before 9007151 Shark power module DK-PMB31 (60+15A) carrying out any work on the electrical system.
  • Page 146 146 | 146 | Puma 20/40 110648-03-063 Caution! Dispose of the power module has to be done in accordance with local regulations! 110648-03-066 110648-03-030 Note! Reprogram the wheelchair...

  • Page 147: Replacing The Mudguards, Puma 40 / 5-Spoke Wheels > October 2016

    Puma 20/40 | 147 | 147 5.3.24 Replacing the mudguards, Puma 40 / 5-spoke wheels > October 2016 Preparation Relevant article numbers • Switch off the wheelchair via the remote control. 9011606 Drive wheel fender black with bracket set, • Use a lifting device to raise the drive wheels clear of the version >...
  • Page 148 148 | 148 | Puma 20/40 110648-03-042_5spaak_2016...

  • Page 149: Replacing The Mudguards, Puma 40 / 3-Spoke Wheels > October 2016

    Puma 20/40 | 149 | 149 5.3.25 Replacing the mudguards, Puma 40 / 3-spoke wheels > October 2016 Preparation Relevant article numbers • Switch off the wheelchair via the remote control. 9005978 Drive wheel fender black with bracket set, • Use a lifting device to raise the drive wheels clear of the version >...
  • Page 150 150 | 150 | Puma 20/40 110648-03-042_3spaak_2016...

  • Page 151: Replacing The Mudguards, Puma 20/40 < November 2016

    Puma 20/40 | 151 | 151 5.3.26 Replacing the mudguards, Puma 20/40 < November 2016 Preparation Relevant article numbers • Switch off the wheelchair via the remote control. 0001.1110 Rivets alu 3,2 x 10 • Use a lifting device to raise the drive wheels clear of the 9006008 Drive wheel mounting set, Puma 40, version <...
  • Page 152 152 | 152 | Puma 20/40 110648-03-042_5spaak_2016...

  • Page 153: Replacing The Coloured Covers (All Puma 40-Versions, Not Valid For Puma 20)

    Puma 20/40 | 153 | 153 5.3.27 Replacing the coloured covers (all Puma 40-versions, not valid for Puma 20) Ball head cover / Deco ring motor arm / Deco strip suspension bridge cover Preparation Relevant article numbers Switch off the wheelchair via the remote control.
  • Page 154 154 | 154 | Puma 20/40 110648-03-075_3_5spaak_2016 110648-03-077_3_5spaak_2016 110648-03-077_3_5spaak_2016...

  • Page 155: Replacing The Anti-Tip Wheels And Bracket, All Puma-Versions

    Puma 20/40 | 155 | 155 5.3.28 Replacing the anti-tip wheels and bracket, all Puma-versions Preparation Relevant article numbers Switch off the wheelchair via the remote control. 9005962 P2040 Anti-Tip RWD Complete Service 9005963 P2040 Anti-Tip FWD Complete Service Instructions Follow the illustrated instructions.

  • Page 156: Adjusting The Seating Height, All Puma-Versions

    156 | 156 | Puma 20/40 5.3.29 Adjusting the seating height, all Puma-versions Preparation Relevant article numbers • Switch off the wheelchair via the remote control. 9002592 M8x12 CKS BZK PRECOTE 85 • Remove the fuses from the battery compartment before 00000.2003 Locking ring, flat M8...
  • Page 157 Puma 20/40 | 157 | 157 max. 30 cm 110648-03-007_FWD_5spaak_2016 Note! Lift the chair, in case the wheelchair has a lift. 110648-03-008 110648-03-009...
  • Page 158 158 | 158 | Puma 20/40 110648-03-010 Note! Keep the spacers for reuse for rebuilding the wheelchair. 110648-03-011 Caution! Two people are needed to carry out this operation. 110648-03-079...
  • Page 159 Puma 20/40 | 159 | 159 110648-03-080 Caution! Two people are needed to carry out this operation. 110648-03-081 Note! Reuse the spacers. 110648-03-082 Note! Fasten the cables with tie wraps!
  • Page 160 160 | 160 | Puma 20/40 110648-03-083 110648-03-903...

  • Page 161: Adjusting The Centre Point Of Gravity, All Puma-Versions

    Puma 20/40 | 161 | 161 5.3.30 Adjusting the centre point of gravity, all Puma-versions Preparation Relevant article numbers Switch off the wheelchair via the remote control. 9002592 M8x12 CKS BZK PRECOTE 85 00000.2003 Locking ring, flat M8 Instructions • Remove the leg rests.
  • Page 162 162 | 162 | Puma 20/40 110648-03-010 110648-03-093...
  • Page 163 Puma 20/40 | 163 | 163 110648-03-094 110648-03-903...

  • Page 164: Adjusting The Mechanical Seat Tilt, All Puma-Versions

    164 | 164 | Puma 20/40 5.3.31 Adjusting the mechanical seat tilt, all Puma-versions Preparation Relevant article numbers Switch off the wheelchair via the remote control. 9006016 Mechanical tilt Instructions Tools used • Remove the entire seating unit from the carrier. Two •...

  • Page 165: Adjusting The Electrical Seat Tilt 0 - 25°, All Puma-Versions

    Puma 20/40 | 165 | 165 5.3.32 Adjusting the electrical seat tilt 0 - 25°, all Puma-versions Preparation Notice Switch off the wheelchair via the remote control. Changing back the wheelchair's tilt position from 20° to 25° may negatively influence the wheelchair's driving Instructions characteristics.
  • Page 166 166 | 166 | Puma 20/40 hp1 hp2 110648-03-904 Caution! Changing the wheelchair’s tilt position may negatively influence the wheelchair’s driving characteristics! Please read the user manual!

  • Page 167: Adjusting The Electrical Seat Tilt 0 - 45°, The Minimum Tilt Angle (0 - 9°), All Puma-Versions

    Puma 20/40 | 167 | 167 5.3.33 Adjusting the electrical seat tilt 0 - 45°, the minimum tilt angle (0 – 9°), all Puma-versions With this adjustment the minimum / down limit angle of the • Carefully tilt the seat forward until it stops, and check if the resulting angle is as desired tilt can be set.
  • Page 168 168 | 168 | Puma 20/40 10º 110648-03-906...

  • Page 169: Adjusting The Electrical Seat Tilt 0 - 45°, The Maximum Tilt Angle (< 45°) ), All Puma-Versions

    Puma 20/40 | 169 | 169 5.3.34 Adjusting the electrical seat tilt 0 - 45°, the maximum tilt angle (< 45°) ), all Puma-versions There are certain settings of the carrier and seating system • Move the switch to the point that it makes contact with...
  • Page 170 170 | 170 | Puma 20/40 110648-03-908 Note! If needed fixate the cable with a new tie wrap...

  • Page 171: Seat Tilt Configuration Tables

    Puma 20/40 | 171 | 171 5.4 Seat tilt configuration tables The tables show in which configurations / adjustment settings seat tilt is limited due to interference. Several factors are involved: driving wheels (FWD or RWD), seating system (Sedeo Lite or Pro) tilt module type (0-45 º or 0-25º), mounting of the 0-25º tilt module (on hinge point 1 or hinge point 2, see figure), seat height, seat depth, seat cushion, centre of gravity setting.
  • Page 172 172 | 172 | Puma 20/40 RWD, Sedeo Lite, electrical tilt adjustment 0 - 25°...
  • Page 173 Puma 20/40 | 173 | 173 FWD, Sedeo Lite, electrical tilt adjustment 0 - 25°...
  • Page 174 174 | 174 | Puma 20/40 RWD, Sedeo Pro, electrical tilt adjustment 0 - 45°...
  • Page 175 Puma 20/40 | 175 | 175 FWD, Sedeo Pro, electrical tilt adjustment 0 - 45°...
  • Page 176 176 | 176 | Puma 20/40 RWD, Sedeo Pro, electrical tilt adjustment 0 - 25°...
  • Page 177 Puma 20/40 | 177 | 177 FWD, Sedeo Pro, electrical tilt adjustment 0 - 25°...
  • Page 178 178 | 178 | Puma 20/40 RWD, Sedeo Pro+, electrical tilt adjustment 0 - 45° (no limitation FWD, Sedeo Pro+)

  • Page 179: Guidelines To Solve Shimmy Problems

    Puma 20/40 | 179 | 179 5.5 Guidelines to solve shimmy problems If the castor wheels shimmy at a higher speeds (≥10 km/h), check the following points: Possible cause Check Solution The anti-shimmy Check the anti-shimmy set: If the castor fork turns to loose; replace the anti-shimmy...

  • Page 180: Trouble Shooting

    180 | Trouble shooting Puma 20/40 Trouble shooting If your electric wheelchair is not working even though the batteries are fully charged, the following checks can be carried out before contacting your supplier. Check whether all of the battery clips are firmly in place.

  • Page 181: R-Net Faultfinding Table

    Puma 20/40 Trouble shooting | 181 6.2 R-net faultfinding table Trip Trip Text Description Code The most common cause of this trip is if the joystick is deflected away from center before and during the time the control system is switched on. The joystick displaced screen will be displayed for 5 seconds, if the joystick is not released within that time then a trip is registered.
  • Page 182 182 | Trouble shooting Puma 20/40 Trip Trip Text Description Code This occurs when the control system detects a short in either of the Lamp Circuits. • Check the lamps, cables and connections to the control system. Left Lamp Short...
  • Page 183 Puma 20/40 Trouble shooting | 183 Trip Trip Text Description Code This is a non specific memory error which could be caused by any of the modules within the system. • Check all cables and connections. • Cycle the power.
  • Page 184 184 | Trouble shooting Puma 20/40 Trip Trip Text Description Code The Omni has detected that the User Switch has become disconnected. • Check all cables and connectors between the Omni and the User Switch. If the trip is still present after the above checks have been made, then the User Switch may be User Switch detached defective.

  • Page 185: Dx2 Faultfinding Table

    Puma 20/40 Trouble shooting | 185 6.3 DX2 faultfinding table Signal Possible cause Remedy The controller plug is not properly inserted in This is probably a 'STALL' timeout. the ‘power module’. Place the joystick in neutral and try again ON/OFF light...
  • Page 186 186 | Trouble shooting Puma 20/40 Signal Possible cause Remedy Bus high fault: usually a communication fault ON/OFF light: Check the cables and the modules and replace if caused by one of the DX bus cables or DX flashes 10 times necessary.
  • Page 187 Puma 20/40 Trouble shooting | 187 DX2-ACT Flash Code List Note: These flash codes are the Actuator Module flash codes that are visible on LED 1 of the Actuator Module. They are not the DX System flash codes that are visible on the DX System status LED on the Master Remote. For DX System flash codes, see DX2...
  • Page 188 188 | Trouble shooting Puma 20/40 Flash Fault code Meaning Code source (HHP) DX BUS hardware fault • Check DX BUS cables • Turn the system off and on several times. Make sure to wait 10 09, 10 DX BUS seconds before you turn the system on again.

  • Page 189: Faultfinding Table

    Puma 20/40 Trouble shooting | 189 6.4 VR-2 faultfinding table Trip types and their possible causes Once the trip type has been established, refer to the relevant section below for further information. Trip code Trip Type Description & Reference 1320 Refer to "Current Limit Active"...
  • Page 190 190 | Trouble shooting Puma 20/40 Trip Possible cause Remedy This occurs when the control system detects that the right motor has become disconnected. Check the right motor, motor connectors and wiring. If the trip is still present after the above checks have been made, then the Power Module may be...
  • Page 191 Puma 20/40 Trouble shooting | 191 Possible cause Remedy The most common cause of this trip is if the joystick is deflected away from the center when the Joystick Displaced at control system is being switched on. When the control system is switched on, the battery gauge Power-up will blink for a short time.

  • Page 192: Technical Product Information

    ISO 7176-14 for electrically powered wheelchairs 1997 ISO 7176-16 Requirements for resistance to ignition of upholstered parts May 1997 ISO 7176-19 The Puma 20/40 meets the crash test requirements as described in 77 kg (2008) ISO 7176-19 (2008) 7.2 Technical information Batteries Max.
  • Page 193 Puma 20/40 Technical product information | 193 Model: PUMA 40 Sedeo Pro+ Class B Description Unit Maximum safe slope ° Static stability Downwards ° Upwards ° Sidewards ° Reversing distance mm (inch) 1180 (46.5) 1700 (66.9) Turning radius (ISO 7176-5)
  • Page 194 * The following aspects have a negative effect on the distance range: obstacles, rugged terrain, driving on slopes, exposure to temperatures below freezing point and frequent use of electronic adjustment options. ** Seat height incl. load, 0° seat angle and 13" drive wheels Model: PUMA 20 Sedeo Lite Class B Description...

  • Page 195: Warranty

    Puma 20/40 Warranty | 195 Warranty 8.1 Definitions of terms Definitions of terms used in this warranty: • After sales service part: Part purchased after the intial product that is durable and may be subjected to natural wear and tear or natural contamination during normal operation within the lifetime of the product.;...
  • Page 196 196 | Warranty Puma 20/40 Sunrise Medical will only accept shipment costs and corrective costs related to warranty on equipment during the warranty period. This warranty will void in case of: • The product and/or its parts being modified; • Changes in cosmetic appearance by use;...
  • Page 197 • Changed description article number 9007479 and 9007480. • Removed article numbers 1017956, 1017957, 10179586, 1017959 • Merged drawings 11 Castor forks and wheels Puma 20 > Octobber 2016 and 12 Castor forks 11-12 and wheels Puma 20 < November 2016 to drawing 11 Castor forks and wheels Puma 20 (all versions) •...
  • Page 198 198 | Puma 20/40...
  • Page 199 Puma 20/40 | 199...

  • Page 200: Serial Number

    Sunrise Medical Pty. Ltd. Sunrise Medical HCM B.V. 6 Healey Circuit, Huntingwood Vossenbeemd 104 NSW 2148 5705 CL Helmond Australia The Netherlands T: +61 (2) 9678 6600 T: +31 (0)492 593 888 E: enquiries@sunrisemedical.com.au E: customerservice@sunrisemedical.nl www.SunriseMedical.com.au www.SunriseMedical.nl www.SunriseMedical.eu (International) Sunrise Medical HCM B.V.

This manual is also suitable for:

Puma 40

Table of Contents
