- Page 1 8B+ ™ 350-Watt, 8-Channel Mixer aMPlifier Operating Manual www.peavey.com...
- Page 2 ATTENTION: Afin de réduire le risque de choc électrique, ne pas enlever le couvercle. Il ne se trouve à l’intérieur aucune pièce pouvant être reparée par l’utilisateur. Confiez I’entretien et la réparation de l’appareil à un réparateur Peavey agréé. AVIS: Dans le but de reduire les risques d’incendie ou de decharge electrique, cet appareil ne doit pas etre expose a la pluie ou a l’humidite et aucun objet rempli de liquide, tel qu’un vase, ne doit...
-
Page 3: Important Safety Instructions
WARNING: When using electrical products, basic cautions should always be followed, including the following: Read these instructions. Keep these instructions. Heed all warnings. Follow all instructions. Do not use this apparatus near water. Clean only with a dry cloth. Do not block any of the ventilation openings. Install in accordance with manufacturer’s instructions. Do not install near any heat sources such as radiators, heat registers, stoves or other apparatus (including amplifiers) that produce heat. - Page 4 INSTRUCCIONES IMPORTANTES PARA SU SEGURIDAD CUIDADO: Cuando use productos electrónicos, debe tomar precauciones básicas, incluyendo las siguientes: Lea estas instrucciones. Guarde estas instrucciones. Haga caso de todos los consejos. Siga todas las instrucciones. No usar este aparato cerca del agua. Limpiar solamente con una tela seca.

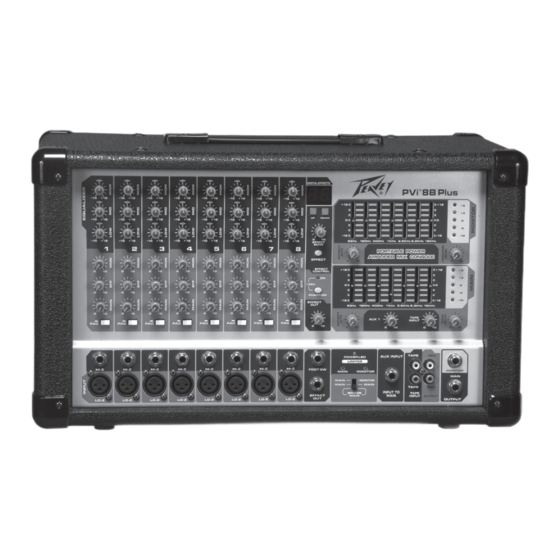

- Page 5 350-Watt, 8-Channel Mixer Amplifier The PVi 8B+ powered mixer is easy to use and transport, and is designed with the latest Peavey technology. Constructed with a rugged metal structure, wood cabinet, vinyl surface and protective corners, the PVi 8B+ is the ideal powered mixer.
- Page 6 Front Panel Rear Panel...
- Page 7 Front Panel (1) 3-PIN LOW-IMPEDANCE MICROPHONE INPUT This input is for typical balanced, low-impedance microphones. It will automatically provide phantom power (15V) for condenser mics or active direct boxes. This has an input impedance of 1k ohms. The connector is wired as: Pin 1=shield; Pin 2=positive (hot); Pin 3=negative (cold).
- Page 8 Front Panel (17) MONITOR EQ This is the 7-band EQ with level meter. (18) EFFECTS RETURN/MONITOR This controls the level of effects applied to the monitors. (19) MONITOR MIX LEVEL This controls the monitor output level at the Monitor Output Jack (29). (20) MAIN EQ These are used to adjust the overall EQ of the master mix.
- Page 9 Rear Panel (1) SPEAKER OUTPUTS These are four two-conductor 1/4" speaker outputs. Each one is rated at 4 ohms minimum impedance. Total minimum load for each amplifier channel is 4 ohms, except Bridged which is 8 ohms. You may connect either one 4-ohm (except Bridged), one 8-ohm or two 8-ohm speakers per output jack. Do not operate below rated minimum impedance.
-
Page 10: Specifications
Output Power: 350 watts / 4 ohms, music power 220 watts / 8 ohms, music power 250 watts / 4 ohms, continuous 150 watts / 8 ohms, continuous 650 watts / 8 ohms, Bridged Aux SEND Output: -10 dBv nominal, 1k ohms Tape REC Output: -10 dBv nominal, 1k ohms Input lmpedance:... - Page 11 Notes:...
