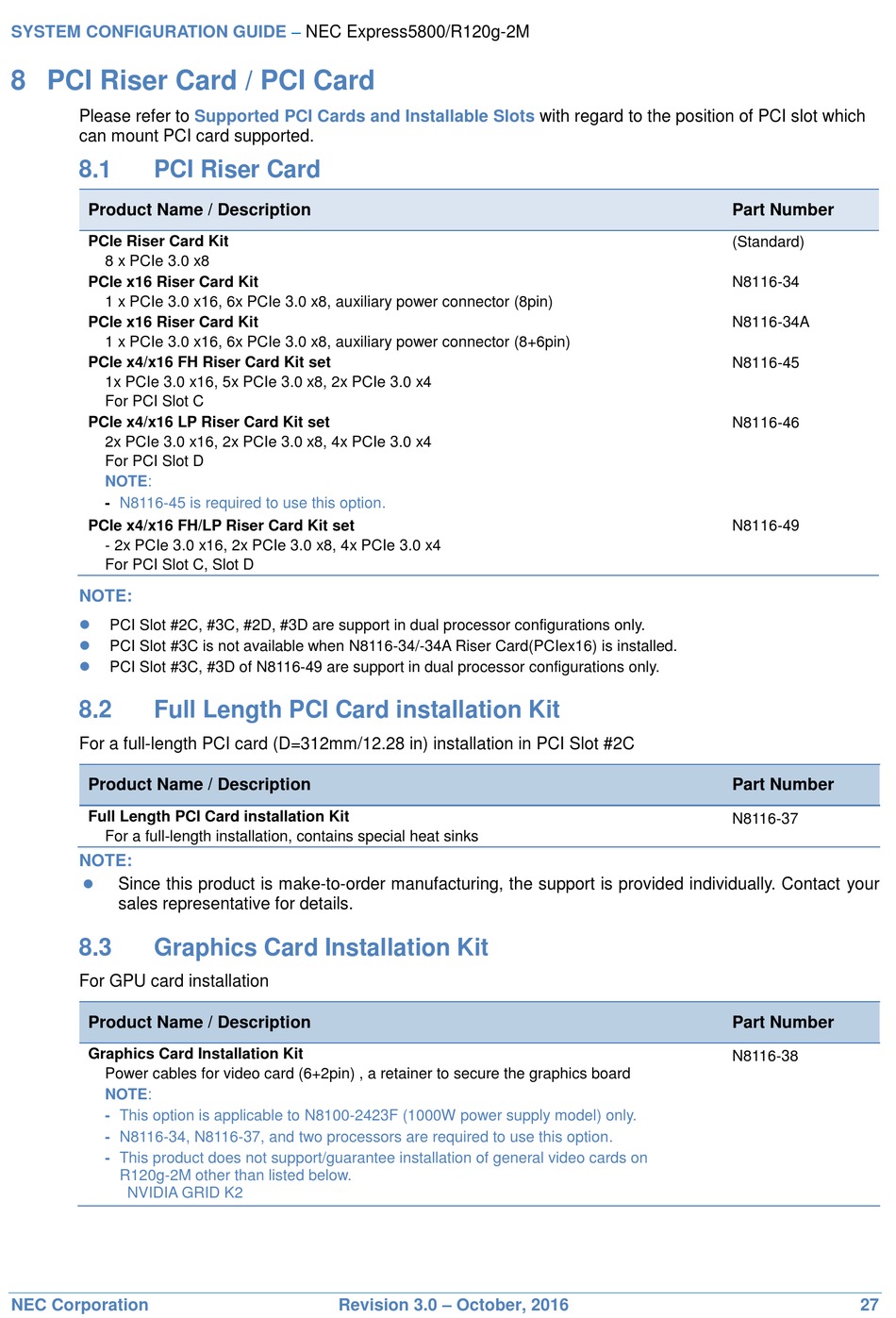

SYSTEM CONFIGURATION GUIDE

8 PCI Riser Card / PCI Card

Please refer to
can mount PCI card supported.
8.1

PCI Riser Card

Product Name / Description
PCIe Riser Card Kit
8 x PCIe 3.0 x8
PCIe x16 Riser Card Kit
1 x PCIe 3.0 x16, 6x PCIe 3.0 x8, auxiliary power connector (8pin)
PCIe x16 Riser Card Kit
1 x PCIe 3.0 x16, 6x PCIe 3.0 x8, auxiliary power connector (8+6pin)
PCIe x4/x16 FH Riser Card Kit set
1x PCIe 3.0 x16, 5x PCIe 3.0 x8, 2x PCIe 3.0 x4
For PCI Slot C
PCIe x4/x16 LP Riser Card Kit set
2x PCIe 3.0 x16, 2x PCIe 3.0 x8, 4x PCIe 3.0 x4
For PCI Slot D
NOTE:
- N8116-45 is required to use this option.
PCIe x4/x16 FH/LP Riser Card Kit set
- 2x PCIe 3.0 x16, 2x PCIe 3.0 x8, 4x PCIe 3.0 x4
For PCI Slot C, Slot D
NOTE:

PCI Slot #2C, #3C, #2D, #3D are support in dual processor configurations only.

PCI Slot #3C is not available when N8116-34/-34A Riser Card(PCIex16) is installed.

PCI Slot #3C, #3D of N8116-49 are support in dual processor configurations only.
8.2

Full Length PCI Card installation Kit

For a full-length PCI card (D=312mm/12.28 in) installation in PCI Slot #2C
Product Name / Description
Full Length PCI Card installation Kit
For a full-length installation, contains special heat sinks
NOTE:

Since this product is make-to-order manufacturing, the support is provided individually. Contact your
sales representative for details.
8.3

Graphics Card Installation Kit

For GPU card installation
Product Name / Description
Graphics Card Installation Kit
Power cables for video card (6+2pin) , a retainer to secure the graphics board
NOTE:
- This option is applicable to N8100-2423F (1000W power supply model) only.
- N8116-34, N8116-37, and two processors are required to use this option.
- This product does not support/guarantee installation of general video cards on
R120g-2M other than listed below.
NVIDIA GRID K2
