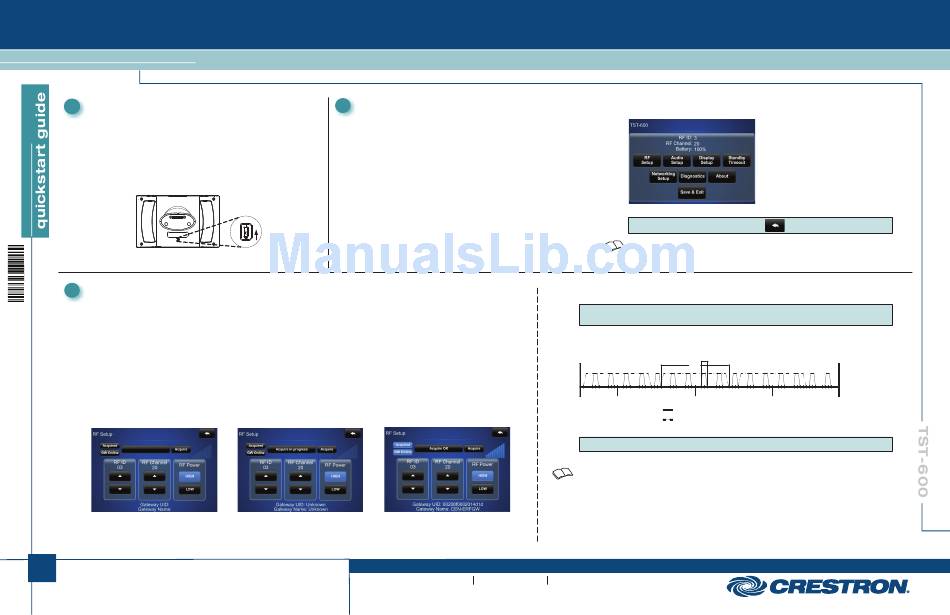

Crestron TST-600 Quick Start Manual

TST-600
5.7" Wireless Touch Screen
Battery Switch
1
The TST-600 from Crestron ships with the battery switch (on the rear) in the
®
OFF (downward) position. The OFF position is used for shipping and long
term storage only. Use the included T-pin to turn the switch ON (slide it
upward) and place the TST-600 on the included docking station/charger for a
minimum of four hours before using.
To charge the internal battery, the TST-600 must be placed on the
TST-600-DS Docking Station, which must be connected to a powered
TST-600-IMCW Interface Module (included).
3 Basic Wireless Setup
Before a TST-600 can be used with a Crestron control system, it must first be acquired by a CEN(I)-ERFGW-POE Extended Range RF Wireless
Gateway (sold separately).
To acquire a TST-600:
1. Use a stylus or other thin tipped object to press ACQUIRE on the CEN(I)-ERFGW-POE gateway to enter Acquire mode. The accompanying
LED illuminates, indicating the unit is ready to link with the touch screen.
2. From the main menu on the TST-600, touch RF Setup to display the RF Setup screen. Then place the TST-600 in Acquire mode by touching
Acquire on the RF Setup screen. The screen displays an "Acquire in progress" message and the TST-600 is automatically acquired by the
gateway within 2 minutes.
3. When the process is complete, the screen displays an "Acquire OK" message. Press ACQUIRE on the gateway to exit Acquire mode. The LED
turns off.
RF Setup Screen
1
For regulatory compliance information, refer to Doc. 7382.
QUICKSTART DOC. 7381E (2034457, Sheet 1 of 2)
2 Configure the Touch Screen
The main menu is the starting point for configuring the TST-600. If no project is
loaded, touch the screen to access the main menu. If a project is running, the
main menu can be accessed by using the following procedure:
1. Press and hold the left trigger key on the top of the touch screen until the unit
resets (approximately 5 seconds).
2. When the display turns black, then displays a "3", release the trigger key.
3. When "Loading Crestron Applications" appears on the display, touch the
screen.
4. Release the touch screen when "Preparing to enter setup" appears.
The main menu can also be accessed by pressing HOME, MEDIA,  and, on
the left of the touch screen display, in sequence twice (press HOME, MEDIA, ,
, HOME, MEDIA, , ) within a 5 second period.
Up
RF Setup (Acquire in Progress) Screen RF Setup (Acquire OK) Screen
www.crestron.com
09.14 Specifications subject to
change without notice.
NOTE: From any of the setup menus, touch
For details on configuring the TST-600, refer to the TST-600 Configuration Guide
(Doc. 7383) at www.crestron.com/manuals.
NOTE: Select an RF channel between 12 and 23 for maximum range. Channels 11, 24-26 will result in less
range but are available if RF interference requires moving the RF channel.
IEEE 802.15.4 Channel Selection (2400 MHz PHY)
Channel 1
(802.11b/g)
Channel
12 13 14 15
11
2410 2415 2420 2425 2430
2400 MHz 2412 MHz
NOTE: The RF ID of the unit must match the RF ID specified in the SIMPL Windows program.
For details, refer to "Appendix A: The RF Spectrum" and "Appendix B: Optimum RF Reception Guidelines" in
the TST-600 Configuration Guide (Doc. 7383).
888.273.7876 201.767.3400
to go back to the previous menu.
Channel 6 Channel 11
(802.11b/g) (802.11b/g)
2 MHz
22 MHz
16 17 18 19 20 21 22 23 24 25 26
2435 2440 2445 2450 2455 2460 2465 2470 2475 2480
2437 MHz 2462 MHz 2483.5 MHz
RF (802.15.4)
Wi-Fi (802.11b/g)
