English - Alesis compactkit 4 User Manual

User Guide (English)
Introduction
Box Contents
CompactKit 4
(2) Drum Sticks
Power Adapter
Support
For the latest information about this product (system requirements, compatibility information,
etc.) and product registration, visit alesis.com.
For additional product support, visit alesis.com/support.
Features

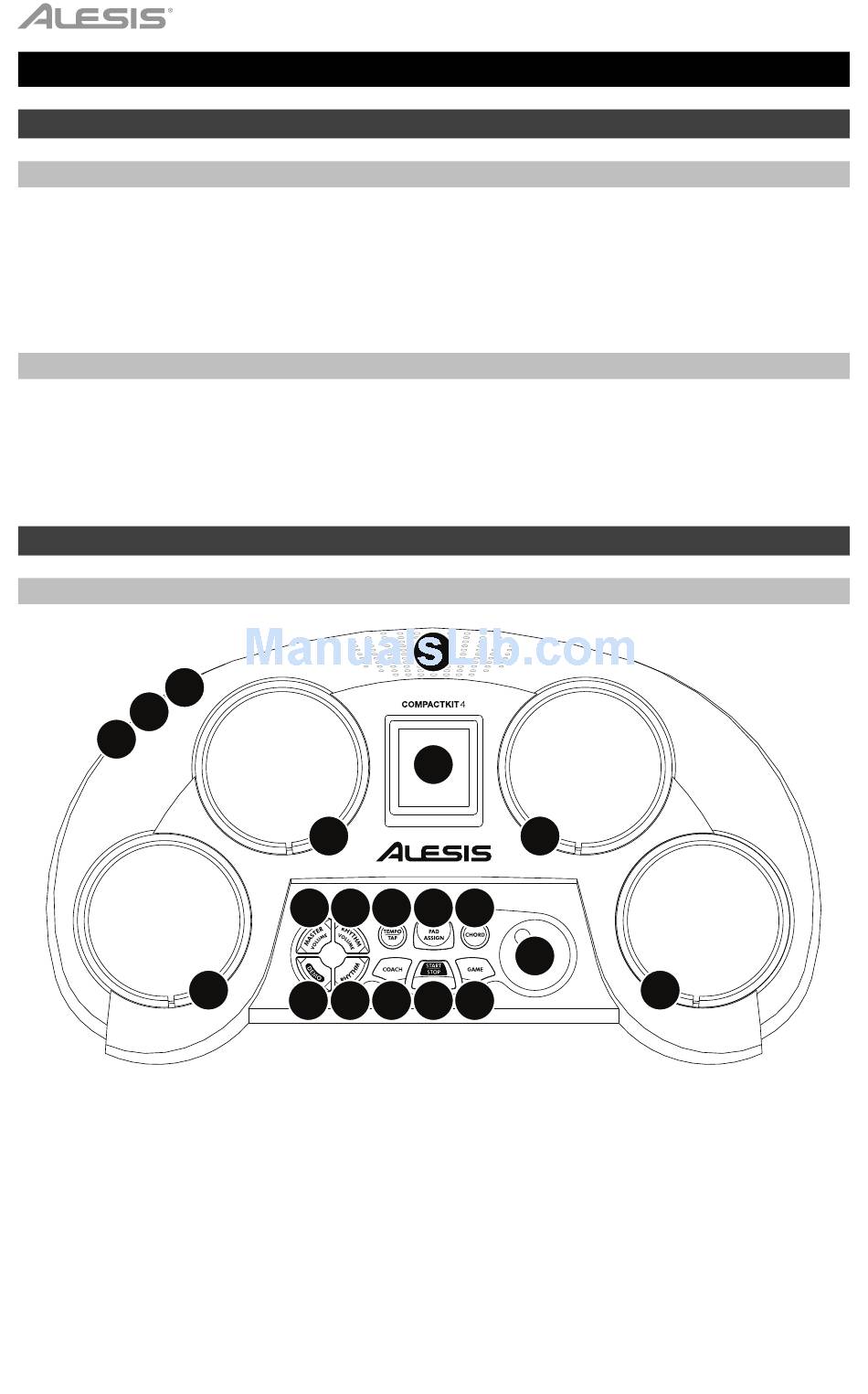

Top Panel
3
1
2
Pad 1
1. Power Input: Connect this input to a power outlet using the included power adapter.
2. Power Switch: Use this switch to power CompactKit 4 on or off.
3. Headphone Output: Connect 1/8" (3.5 mm) stereo headphones (optional, sold separately)
to this output. When headphones are connected, the speaker will be muted.
4. Speaker: The sound will play out of this speaker. When headphones are connected to the
headphone output, this speaker will be muted.
5. Pads: Hit these pads to play CompactKit 4.
6. Display: This LCD shows CompactKit 4's current operation.
7. Dial: Turn this dial to adjust the setting shown in the display.
2
User Guide
Safety & Warranty Manual
Pad 2
5
8 9
5
11 10
4
6
5
12 13 14
7
15 16 17
Pad 3
Pad 4
5
