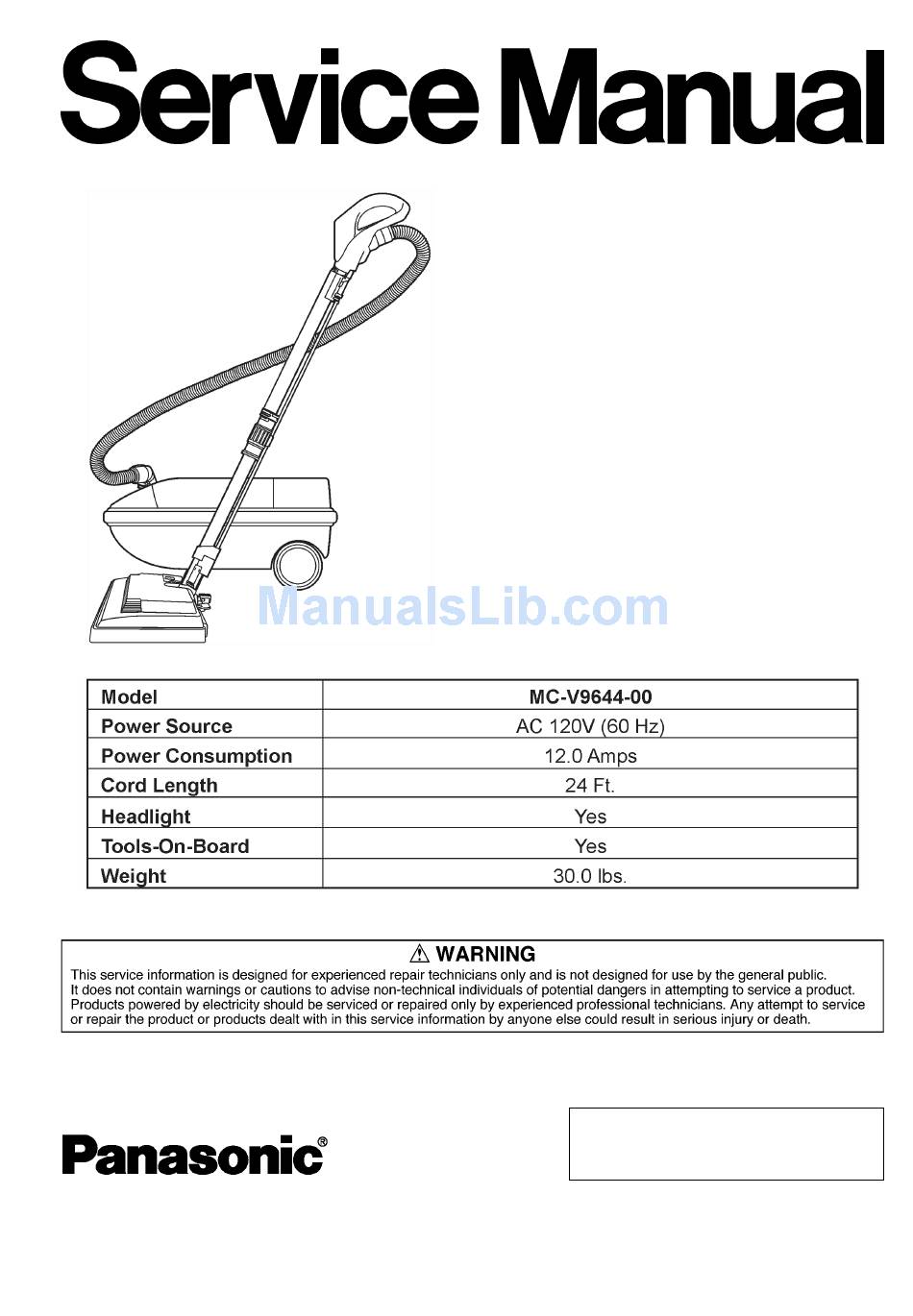

Order Number MAC0402003C1
E4

Vacuum Cleaner

MC-V9644-00
Specifications are subject to change without notice for further improvement.
© 2004 PANASONIC CONSUMER ELECTRONICS
COMPANY,
DIVISION
OF
MATSUSHITA
ELECTRIC CORPORATION OF AMERICA. All rights
reserved. Unauthorized copying and distribution is a
violation of law.

Advertisement

Table of Contents
loading

Related Manuals for Panasonic MC-V9644-00

Summary of Contents for Panasonic MC-V9644-00

  • Page 1: Vacuum Cleaner

    Order Number MAC0402003C1 Vacuum Cleaner MC-V9644-00 Specifications are subject to change without notice for further improvement. © 2004 PANASONIC CONSUMER ELECTRONICS COMPANY, DIVISION MATSUSHITA ELECTRIC CORPORATION OF AMERICA. All rights reserved. Unauthorized copying and distribution is a violation of law.

  • Page 2: Table Of Contents

    MC-V9644-00 CONTENTS Page Page 1 WIRING DIAGRAM 3.2. BELT 1.1. Wiring Schematic 3.3. POWER NOZZLE MOTOR 2 EXPLODED VIEW AND PARTS LIST 3.4. AGITATOR BRUSH 2.1. Power Nozzle 4 SERVICE PROCEDURES - CANISTER 2.2. Canister 4.1. HOOD 2.3. Hose 4.2. CANOPY COVER 2.4.

  • Page 3: Wiring Diagram

    MC-V9644-00 1 WIRING DIAGRAM 1.1. Wiring Schematic...

  • Page 4: Exploded View And Parts List

    MC-V9644-00 2 EXPLODED VIEW AND PARTS LIST 2.1. Power Nozzle 2.1.1. Exploded View...
  • Page 5 MC-V9644-00 2.1.2. Parts List (Power Nozzle) Ref. Part No. Part Name & Description Quantit Remarks AC97PAENZV06 Wand Assembly, Upper AC99PGJZV06 Wand Assembly, Lower AMC725-419 Lock, Spring Wand AC24HCHKZR0K Power Head Cover AMC744-119 Lens, Light Cover AMC744-237 Lens, Height Adjustment AC77FAXEZR01...

  • Page 6: Canister

    MC-V9644-00 2.2. Canister 2.2.1. Exploded View...
  • Page 7 MC-V9644-00 2.2.2. Parts List (Canister) Ref. Part No. Part Name & Description Quantit Remarks AC48HCHKZRUK Canopy Cover AC46NNJZV06 Brake Pedal AMC744-258 Spring, Cord Button AC38KARDZ000 Final Filter AC93FBMVZ010 Motor Shield AC14NATYZV06 Cord Cover AC30KGJZ000 Electrostatic Filter AC30EAWPZ000 Relay AXTN4+10BFY Screw...

  • Page 8: Hose

    MC-V9644-00 2.3. Hose 2.3.1. Exploded View 2.3.2. Parts List Ref. Part No. Part Name & Description Quantit Remarks AC94PCHKZV06 Hose Assembly Includes items 2-8 AC89PCFTZV06 Hose Unit AC31TBMVZ0U0 Ornamental Plate AC93BSTZV06 Handle Unit AC90ESTZ000 Switch AC99EAVKZVU7 Switch Button AC54PAPAZV06 Suction Control...

  • Page 9: Packing Materials

    MC-V9644-00 2.4. Packing Materials 2.4.1. Exploded View 2.4.2. Parts List Ref. Part No. Part Name & Description Quantit Remarks AC94ZCHKZOUO Individual Carton Includes 1 and items A-J AC01ZCHKZ000 Operating Instructions...

  • Page 10: Service Procedures - Power Nozzle

    MC-V9644-00 3 SERVICE PROCEDURES - POWER NOZZLE 3.1. HEADLIGHT BULB 3.1.1. Bulb Removal & Replacement 1. Press in and lift at the same time on one side of the light cover to release the locking tab, then remove cover and light lens.

  • Page 11: Power Nozzle Motor

    MC-V9644-00 3.3. POWER NOZZLE MOTOR 3.3.1. Specifications 1. 120V., 60Hz. 2. Amps 2.0/2.7 (max.) at 18,000/14,550 R.P.M. 3. Watts 225/298 (max.) at 18,000/14,550 R.P.M. 4. Torque 55/100 Nm at 18,000/14,550 R.P.M. 3.3.2. Motor Replacement 1. Remove light cover, nozzle cover and brush assembly.

  • Page 12: Agitator Brush

    MC-V9644-00 8. Reroute all wiring per original layout utilizing wire retainers provided, and proper placement of wires to prevent pinching of wires and interference when reinstalling the indicator block assembly. Connect wires and apply wire nuts, (reference WIRING DIAGRAM). 9. Install indicator block assembly. Holding the assembly at a...

  • Page 13: Service Procedures - Canister

    MC-V9644-00 4 SERVICE PROCEDURES - CANISTER 4.1. HOOD 4.1.1. Removal 1. Lift up on the hood release as the hood is raised. 2. With the hood all the way up, force it until the two ends pop out of place.

  • Page 14: Canister Motor

    MC-V9644-00 5. Replace canopy cover and brake pedal (see Canopy Cover 3. Replace the Phillips screw that was removed. Replacement). 4. Repeat steps in Removal & Replacement steps for the 6. Replace hood (see Hood Replacement). other brush assembly. NOTE: Do not drop screws into the motor.
