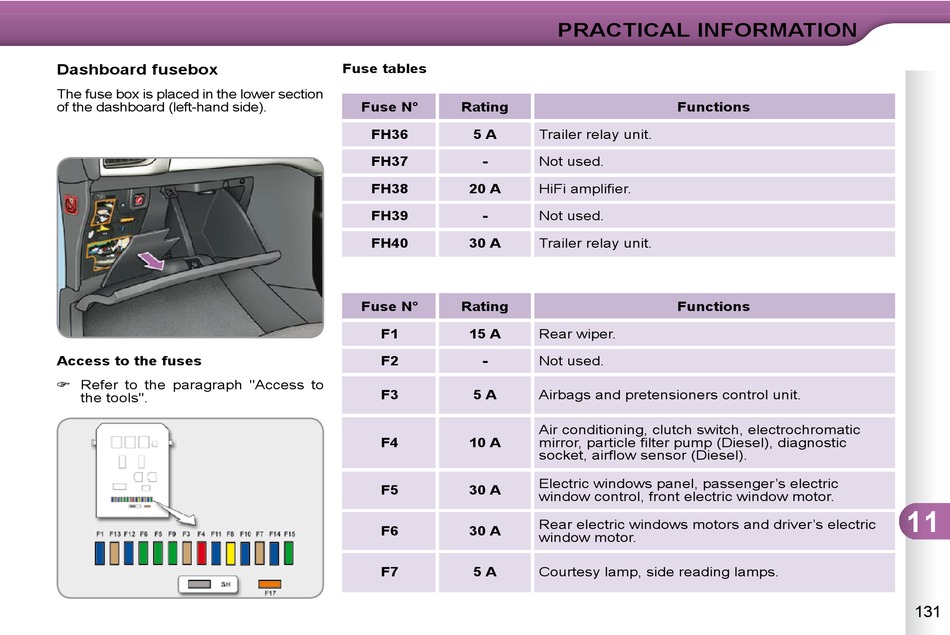

Dashboard fusebox
The fuse box is placed in the lower section
of the dashboard (left-hand side).
Access to the fuses
Refer to the paragraph "Access to
the tools".
Fuse tables
Fuse N°
Rating
FH36
5 A
FH37
-
FH38
20 A
FH39
-
FH40
30 A
Fuse N°
Rating
F1
15 A
F2
-
F3
5 A
F4
10 A
F5
30 A
F6
30 A
F7
5 A
PRACTICAL INFORMATION
Functions
Trailer relay unit.
Not used.
HiFi amplifi er.
Not used.
Trailer relay unit.
Functions
Rear wiper.
Not used.
Airbags and pretensioners control unit.
Air conditioning, clutch switch, electrochromatic
mirror, particle fi lter pump (Diesel), diagnostic
socket, airfl ow sensor (Diesel).
Electric windows panel, passenger's electric
window control, front electric window motor.
Rear electric windows motors and driver's electric
window motor.
Courtesy lamp, side reading lamps.
