SERVICE MANUAL
COMPACT DISC STEREO SYSTEM
SYSTEM

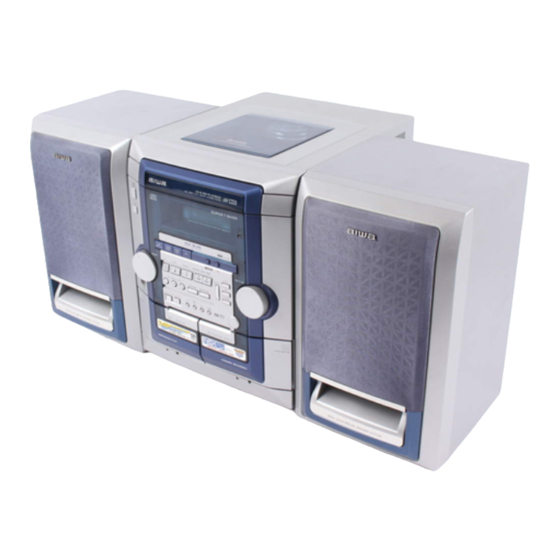

NSX–AJ24
NSX–BL24
NSX–BL34
• This Service Manual contains information about the difference between
NSX-AJ24 / BL24 / BL34 (VA model) and NSX-AJ24 / BL24 /BL34.
If requiring the other information, see Service Manual of
NSX-AJ24 / BL23 / BL24 / BL34 / BL24E / BL34E (U, LH, HS, HA),
(S/M Code No. 09-005-426-1R1).
• Refer to MAIN C.B parts number for difference of the model.
8A-NF9-701-01 is for NSX-AJ24 / BL24 / BL34 <LH, U> VA model.
• If requiring information about the CD mechanism, see Service Manual of
AZG-1, (S/M Code No. 09-001-335-3N8).
NSX-AJ24
NSX-BL24
NSX-BL34
BASIC TAPE MECHANISM : ZZM-3 YPR1NC
BASIC CD MECHANISM : AZG-1 ZD4RDC
CD
CASSEIVER
CX–NAJ24
CX–NBL24
CX–NBL34
S/M Code No. 09-011-426-1S2
REMOTE
SPEAKER
CONTROLLER
SX–NAJ25
SX–R140
SX–NBL25
RC–ZAS02
SX–NBL42
U
LH
LH
