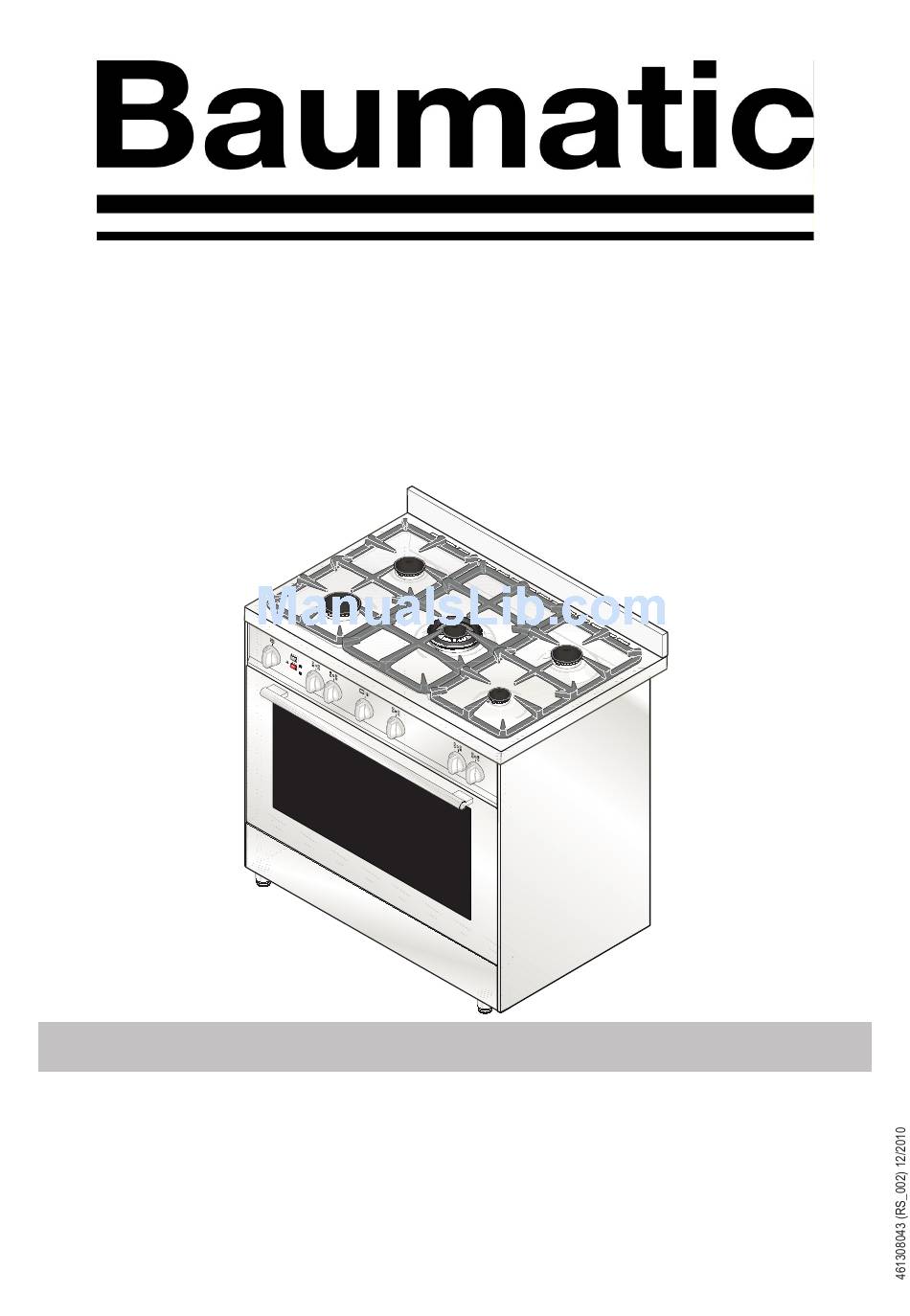

- Page 1 FREESTANDING DUAL FUEL COOKER DOMESTIC USE ONLY OPERATING AND INSTALLATION INSTRUCTIONS Model: BAU91GG...
-
Page 2: Table Of Contents
The appliance was designed and made in accordance with the European standards listed below: => EN 30-1-1, EN 30-2-1 and EN 437 plus subsequent amendments (gas) => EN 60 335-1 and EN 60 335-2-6 (electrical) plus relative amendments The appliance complies with the prescriptions of the European Directives as below: =>... -
Page 3: Assistance And Spare Part
ASSISTANCE AND SPARE PARTS the best functioning results. Any subsequent repairs or adjustments that may be necessary must be done with the maximum of care and attention by authorised personnel. For this reason we recommend you always contact us (refer below), specifying the brand, model, serial number and type of problem you are having with it. -
Page 4: Important Notes And Precautions For Use
IMPORTANT NOTES AND PRECAUTIONS FOR USE You have purchased one of our products for which we There are a few basic rules that must be observed thank you. We are confident that this new appliance, when using the appliance: modern, functional and practical, made with top quality =>... -
Page 5: Description Of The Appliance

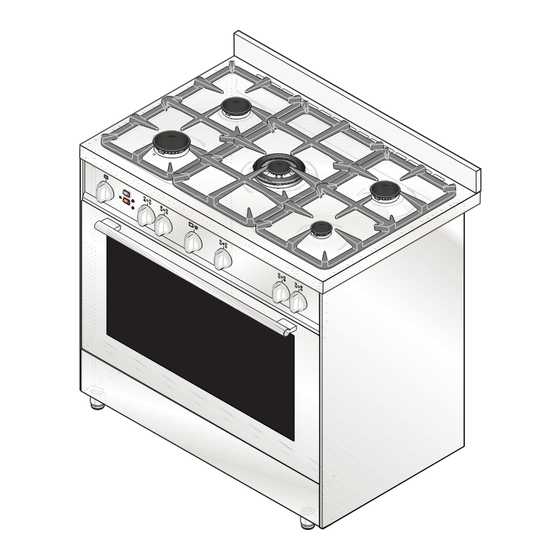

DESCRIPTION OF THE APPLIANCE PRESENTATION cooker is fi tted with a fully gas hotplate. The burners are equipped with safety thermocouples (Tc) (fig. 12). Each knob on the front panel has a diagram printed above it showing to which burner it refers. The combination of the different sized burners offers the possibility of various types of cooking. -
Page 6: Instructions For The User
INSTRUCTIONS FOR THE USER DESCRIPTION OF THE CONTROLS TIMER (C) To set cooking time, first wind the timer up by turning it HOB GAS BURNER KNOB (A) completely once from left to right and then back to the By rotating the knob in an anticlockwise direction, the number of minutes you want. -
Page 7: Instructions For The User
INSTRUCTIONS FOR THE USER HOB: GENERAL NOTES ON SAFETY ABNORMAL OPERATION Any of the following are considered to be abnormal • When using the burners, do not leave the appliance unsupervised. Ensure that children and the infirm do not play operation and may require servicing: with the appliance. - Page 8 INSTRUCTIONS FOR THE USER OVEN: GENERAL SAFETY INSTRUCTIONS • Do not leave the oven unsupervised during use. Ensure that children and the infirm do not play with ����������� the appliance. • Do not spray aerosols in the vicinity of this appliance indicated on the thermostat knob.
- Page 9 INSTRUCTIONS FOR THE USER HOW TO USE GAS OVEN HOW TO USE GAS OVEN AND ELECTRIC GRILL The appliance is equipped with an aluminium The oven burner can be fitted with a safety shield (B), which works in order to obtain a thermocouple so, once the burner has been lit, burnishing uniform above all during the baking keep the knob pressed for about 15 seconds.
- Page 10 INSTRUCTIONS FOR THE USER USEFUL COOKING TIPS Meat: • If, when cooking meat, the time needed is more than 40 minutes, turn the oven off 10 minutes Cakes and bread: before the end of cooking time to exploit the • Heat the oven for at least 15 minutes before you residual heat (energy saving).
- Page 11 INSTRUCTIONS FOR THE USER COOKING / BAKING TIMETABLE COOKING BY COOKING BY Position of the NATURAL CONVECTION FORCED CONVECTION (WITH FAN) Weight FOODS oven shelf from the Temperature Cooking Time Temperature Cooking Time bottom in °C in minutes in °C in minutes MEAT Roast veal...
- Page 12 INSTRUCTIONS FOR THE USER NEVER use sponges or abrasive products, and CLEANING AND MAINTENANCE aromatic or aliphatic solvents to remove stains or adhesives on the painted or stainless steel surfaces. • Prior to any maintenance work or cleaning, disconnect the appliance from the electricity OVEN CAVITY mains.
- Page 13 INSTRUCTIONS FOR THE USER OVEN DOOR REMOVAL The oven door can be removed to give easier access to the oven when cleaning. To remove, proceed as follows: • Open the oven door and move the release U-shape element (fig. A) forwards until it is over the tooth in the upper sector of the hinge (fig.
-
Page 14: Troubleshooting
TROUBLESHOOTING Some problems can be caused either as the results of simple maintenance operations or by incorrect selection of settings. Prior to contacting a Service Centre please check the following chart. PROBLEM REMEDY The appliance is not working • Make sure the gas cock is open •... -
Page 15: Instructions For The Installer
INSTRUCTIONS FOR THE INSTALLER TECHNICAL INFORMATION UNPACKING YOUR COOKER • Once the packaging has been removed, thoroughly The installations, conversions and maintenance check that the appliance is in perfect condition. If operations listed in this part must only be carried you have any doubts do not use the appliance and out by authorised personnel. - Page 16 INSTRUCTIONS FOR THE INSTALLER OUTSIDE COOKER DIMENSIONS (13) D = 600 mm h = 885 - 940 mm W = 900 mm H = 945 - 1000 mm ��������� � � � � � � LEVELLING THE COOKER • Adjustable feet, to be fitted to the appliance, which allow the height of the cooker to be aligned with other kitchen furniture This can be done by means of the terminal part of the leg themselves (fig.
-
Page 17: Assembly Instructions
INSTRUCTIONS FOR THE INSTALLER SECURING THE COOKER TO WALL (fig. 16) Assembly instructions Secure threaded pins into wall immediately behind • Note:- The installation of the chain provided and to the left-hand side about 770 mm from the is for safety reasons, it must be installed as floor. - Page 18 INSTRUCTIONS FOR THE INSTALLER GAS CONNECTION Installation using flexible connection As an option, the cooker may be installed with a This appliance shall be installed only by authorised flexible connection hose, which complies with AS/ personnel and in accordance with the manufacturer’s NZS 1869 (AGA Approved), 10 mm ID, class B or installation instructions, local gas fitting regulations, D, Minimum 1000 mm - Maximum 1200 mm, as an...
- Page 19 INSTRUCTIONS FOR THE INSTALLER ELECTRICAL CONNECTION TAPS (fig. 19) All gas taps are male cone type with only one way of The electrical connection must be carried out in passage. The adjustment screw (V) is on the side of accordance with the current standards and laws the stem.
- Page 20 INSTRUCTIONS FOR THE INSTALLER • If above cannot solve the problem, replace GAS CONVERSIONS thermocouple. Oven Ignition Failure REPLACING THE INJECTORS • Ensure that the electrode lead is not ”earthing” Our burners can be adapted to different types of gas by against cabinet.
-
Page 21: Instructions For The Installer
INSTRUCTIONS FOR THE INSTALLER MAINTENANCE �� Prior to any maintenance work or changing parts, disconnect the appliance from the gas �� and electricity power sources. Servicing must only be carried out by authorised personnel. REPLACING THE TAPS Proceed in the following way when replacing a tap: •... -
Page 22: Technical Features
Oven Natural 1.00 15.1 7.5 mm open ELECTRICAL COMPONENTS NOMINAL DATA DESCRIPTION BAU91GG Grill heating element 2000 W Oven lamp 15 W - E 14 - T 300 Fan of the rear heating element 25..29 W Power cable H05 RR-F 3 x1 mm...
