Model No.
• Initial Setup and Connection Procedures are on pages 8 and 9.
As an
Matsushita Electric Corporation of Amer i ca has de ter mined
that this prod uct or product mod el meets the
guide lines for en er gy ef fi cien cy.
Please read these instructions carefully before attempting to connect,
operate, or adjust this product. Please save this manual.
Spanish Quick Use Guide is included.
(Guía para rápida consulta en español está incluida.)

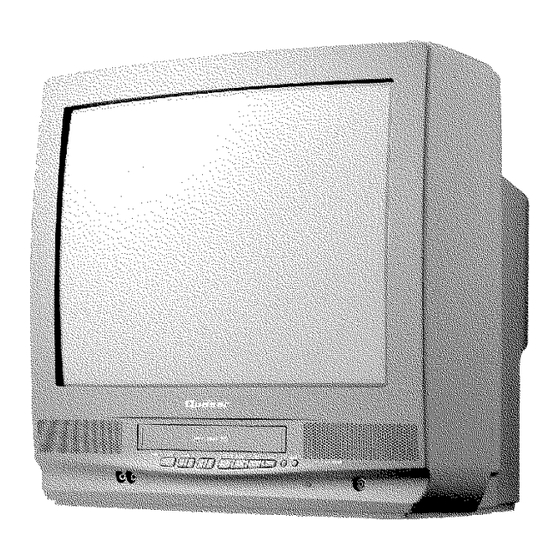

This operating instruction book is designed for use with models VV-1303 and
VV-2003. Illustrations in this manual show the VV-2003. Fea tures may vary, so
please read care ful ly.
For assistance, please call : 1-800-211-PANA(7262) or send e-mail to : consumerproducts@panasonic.com
Operating Instructions
VV-1303/VV-2003
®
E
S
NERGY
TAR
Partner,
Combination VCR
E
S
NERGY
TAR
®
Advertisement
Table of Contents
Related Manuals for Quasar Omnivision VV-1303
Summary of Contents for Quasar Omnivision VV-1303
- Page 1 Spanish Quick Use Guide is included. (Guía para rápida consulta en español está incluida.) This operating instruction book is designed for use with models VV-1303 and VV-2003. Illustrations in this manual show the VV-2003. Fea tures may vary, so please read care ful ly.
-
Page 2: Important Safeguards And Precautions
Important Safeguards and Pre cau tions READ AND RETAIN ALL SAFETY AND OPERATING INSTRUCTIONS. HEED ALL WARNINGS IN THE MANUAL AND ON UNIT INSTALLATION 1 POWER SOURCE CAUTION Operate only from power source indicated on unit or in this manual. If uncertain, have your Electric Utility Service Company or Video Products Dealer verify your home power source. -
Page 3: Safety Precautions/Mesures De Sécurité
Safety Precautions/Mesures de sécurité Warning : To prevent fi re or shock hazard, do not expose this equipment to rain or moisture. Caution : To prevent electric shock, match wide blade of plug to wide slot, fully insert. Avertissement : Afi n de prévenir tout risque d’incendie ou de chocs électriques, ne pas exposer cet appareil à... -
Page 4: Unit Information
Play) 2 Hours (Long Play) 3 Hours (Super Long Play) For assistance, please call : 1-800-211-PANA(7262) or send e-mail to : consumerproducts@panasonic.com Specifi cations Display Picture Tube V I DEO HEADS MAY NEED CLEAN I NG PL EASE I NSERT HEAD... -
Page 5: Table Of Contents
Table of Contents Important Safeguards and Precautions ... 2 Safety Precautions/Mesures de sécurité... 3 Unit Information... 4 Location of Controls ... 6 Connections/Initial Setup (Ready to Play) ... 8 Reset Language, Channels, Clock, Time Zone Adjust... 10 Playback a Tape... 12 Record On a Tape... -
Page 6: Location Of Controls
• When EJECT is pressed, the tape is ejected from Cassette Compartment. If EJECT is pressed during recording, the unit will not respond to the command. For assistance, please call : 1-800-211-PANA(7262) or send e-mail to : consumerproducts@panasonic.com NIGHT Color and picture intensity level are adjusted during night time use. - Page 7 Stops recording or playback. EJECT Ejects tape. ACTION Press together with REW. Rear View of the Unit <Model VV-1303 unit shown> AC Power Plug When plugged into an AC outlet, the unit consumes 2.5 W of electric power in OFF condition. POWER...
-
Page 8: Connections/Initial Setup (Ready To Play)
Settings are made automatically. When setup is done, this screen appears. For assistance, please call : 1-800-211-PANA(7262) or send e-mail to : consumerproducts@panasonic.com UNIT (rear view) UNIT (rear view) If AUTO CLOCK SET IS INCOMPLETE screen appears, set the clock using SET procedure on next page. -
Page 9: Manual Clock Set
Manual Clock Set If AUTO CLOCK SET was incomplete, manually set the clock as follows. Press ACTION on the remote to display SET CLOCK Menu screen. 1 / / SELECT : Press to select the month and press to set. In the same manner, select and set the date, year, time, and DST. -
Page 10: Reset Language, Channels, Clock, Time Zone Adjust
SELECT : : ACT I ON For English 3) Press to select “EXIT.” Press ACTION to exit. For assistance, please call : 1-800-211-PANA(7262) or send e-mail to : consumerproducts@panasonic.com to display Press ACTION MAIN MENU. Channels 1) Press select “CH.”... -
Page 11: Time Zone Adjust
Time Zone Adjust Time Zone Adjust (Only when Auto Clock is set.) 1) Press select “CLOCK.” M A I N MENU LOCK LANGUAGE CLOCK EX I T SELECT : : ACT I ON 2) Press ACTION. SET CLOCK AUTO CLOCK SET MANUAL T I ME ZONE ADJUST : 0 SELECT :... -
Page 12: Playback A Tape
VIDEO IN AUDIO IN AUDIO IN ■ Press to stop and/or eject tape. For assistance, please call : 1-800-211-PANA(7262) or send e-mail to : consumerproducts@panasonic.com Record On a Tape Record tab ■ Stop ➞ Press STOP ■ One Touch Recording (OTR) Notes •... -
Page 13: Copy Your Tapes (Dubbing)
Copy Your Tapes (Dubbing) Connections you’ll need to make. Playing (Source) VCR AUDIO Playback (Source) Insert pre-recorded tape. Press PLAY then PAUSE at starting point to put in Standby mode. (Perform operation of steps 4 and 5 on both units at same time.) Press PLAY to start dubbing. -
Page 14: Tv Operation
■ Phones Connect an earphone (not supplied) or headphones (not supplied) to the Phones Jack. For assistance, please call : 1-800-211-PANA(7262) or send e-mail to : consumerproducts@panasonic.com For assistance, please call : 1-800-211-PANA(7262) or send e-mail to : consumerproducts@panasonic.com Use CH... -
Page 15: Picture Adjustment
Picture Adjustment POWER 100 Key RAPID TUNE MUTE UP/DOWN Picture Adjustment ■ COLOR Control Adjust color intensity. ■ TINT Control Adjust for natural fl esh tones. ■ BRIGHTNESS Control Adjust picture brightness. ■ PICTURE Control Adjust picture intensity by adjusting both contrast and color level in the proper balance. -
Page 16: Tv Timer Features
3. Now, press PROG to end. “ON TIMER END” briefl y appears on-screen. For assistance, please call : 1-800-211-PANA(7262) or send e-mail to : consumerproducts@panasonic.com For assistance, please call : 1-800-211-PANA(7262) or send e-mail to : consumerproducts@panasonic.com 1) Press to select “ON... -
Page 17: Sleep Timer
SLEEP DISPLAY ADD/DLT SELECT/SET :CH UP :CH DOWN :VOL UP :VOL DOWN PROG 00:00 1:00 (one minute) 2:00 One-minute 3:00 increase until 10:00 9:00 10:00 15:00 Five-minute 20:00 increase until 30:00 25:00 30:00 40:00 Ten-minute increase until 60:00 50:00 60:00 (Max) Note •... -
Page 18: Closed Caption System
Closed Caption/ Text signal, if present, is recorded automatically. Playback: Start playback. Do above steps to select desired caption mode. For assistance, please call : 1-800-211-PANA(7262) or send e-mail to : consumerproducts@panasonic.com For assistance, please call : 1-800-211-PANA(7262) or send e-mail to : consumerproducts@panasonic.com 1) Press select “TV.”... -
Page 19: Caption On Mute Feature
Caption On Mute Feature Closed Caption narration, if available, is displayed when MUTE button is pressed. Press ACTION to display MAIN MENU. MUTE SELECT : SELECT/SET :CH UP :CH DOWN :VOL UP :VOL DOWN CAPT I ON I NPUT SELECT V I DEO ADJUST ACTION SELECT :... -
Page 20: Timer Recording
• PROG TIMER indicator lights on the unit. For assistance, please call : 1-800-211-PANA(7262) or send e-mail to : consumerproducts@panasonic.com For assistance, please call : 1-800-211-PANA(7262) or send e-mail to : consumerproducts@panasonic.com 1) Press... - Page 21 Cancel a Timer Recording: (Recording is in progress) Hold down STOP for a few seconds to cancel the Timer Recording. • Any future daily or weekly recordings will be performed as programmed. ADD/DLT SELECT/SET :CH UP :CH DOWN :VOL UP :VOL DOWN PROG STOP...
-
Page 22: Tape Operation
• If Index Search is started very close to an index mark, that index mark may not be counted in the search. For assistance, please call : 1-800-211-PANA(7262) or send e-mail to : consumerproducts@panasonic.com For assistance, please call : 1-800-211-PANA(7262) or send e-mail to : consumerproducts@panasonic.com... -
Page 23: Auto Operation Functions
Auto Operation Functions ■ Auto Shut Off No broadcast signal in TV (Only when Weak Signal Display is set to OFF), blank tape is Played for 5 minutes ➞ Power turns off • This feature is canceled if any button is pressed during above mode. -
Page 24: Commercial Skip
• Unit goes into FF or REW mode and stops at the last point the Counter was set to 0:00:00. For assistance, please call : 1-800-211-PANA(7262) or send e-mail to : consumerproducts@panasonic.com For assistance, please call : 1-800-211-PANA(7262) or send e-mail to : consumerproducts@panasonic.com... -
Page 25: Repeat Play
POWER POWER STOP/EJECT REW/ STOP/EJECT REW/ PLAY/REPEAT FF/ PLAY/REPEAT TIMER TIMER REC ON TIMER ON TIMER PROG TIMER PROG TIMER VIDEO IN VIDEO IN AUDIO IN AUDIO IN PLAY/REPEAT Repeat Play Set to see a recording over and over. In PLAY mode, PLAY REPEAT ON press... -
Page 26: Special Vcr Features
• VCR Lock is canceled automatically after about 24 hours if clock is set. For assistance, please call : 1-800-211-PANA(7262) or send e-mail to : consumerproducts@panasonic.com For assistance, please call : 1-800-211-PANA(7262) or send e-mail to : consumerproducts@panasonic.com 1) Press select “CH.”... -
Page 27: V-Chip Control Feature
V-Chip Control Feature Process of V-Chip Control Feature Enter Code Setup Enter Secret Code A 4-digit code must be entered to view a blocked program or change rating settings. Press ACTION to display MAIN MENU. 1) Press M A I N MENU 2) Press ACTION to LOCK LANGUAGE... - Page 28 Ratings Setup (this page). Or, press ACTION three times to exit. For assistance, please call : 1-800-211-PANA(7262) or send e-mail to : consumerproducts@panasonic.com For assistance, please call : 1-800-211-PANA(7262) or send e-mail to : consumerproducts@panasonic.com Process of V-Chip Control Feature...
-
Page 29: Blocking Message
Process of V-Chip Control Feature Enter Code Setup Blocking Message <When V-Chip Control is activated> • If a program or movie CH08 exceeds the ratings you have set, a message will appear on a black PROGRAM RAT I NG EXCEEDED background and sound is RAT I NG : PG-1 3 muted. -
Page 30: On-Screen Display (Osd)
TO MANUAL END: PLAY VCR LOCK ACTIVATED For assistance, please call : 1-800-211-PANA(7262) or send e-mail to : consumerproducts@panasonic.com For assistance, please call : 1-800-211-PANA(7262) or send e-mail to : consumerproducts@panasonic.com Blue Screen Display Whenever a blank section of a tape comes up in... -
Page 31: Before Requesting Service
If you cannot resolve the problem, please call the Customer Satisfaction Center for product assistance at 1-800-211-PANA(7262). To locate an authorized servicenter call toll free 1-800-211-PANA(7262) or send e-mail to : consumerproducts@panasonic.com. menu. (P.15) recorded. of more than 1 minute occurs before or during a Timer Recording, even after power is restored. -
Page 32: Limited Warranty
Panasonic/Quasar Video Products Limited Warranty Coverage If your product does not work properly because of a defect in materials or workmanship, Panasonic Consumer Electronics Company or Panasonic Sales Company (collectively referred to as “the warrantor”) will, for the length of the period indicated on the chart below, which starts with the date of original purchase (“warranty period”), at its option either (a) repair your product with new or refurbished parts, or... -
Page 33: Customer Services Directory
1-800-332-5368 (Customer Orders Only) For hearing or speech impaired TTY users, TTY : 1-866-605-1277 Panasonic Services Company 20421 84th Avenue South, Kent, WA 98032 (Monday-Friday 6 am-5 pm; Saturday 6 am-10:30 am, PST) (Visa, MasterCard, Discover Card, American Express, Check) Matsushita Electric of Puerto Rico, Inc. -
Page 34: Spanish Quick Use Guide/Guía Para Rápida Consulta
STOP para detener la confi guración y realice los ajustes manualmente. (Vea la p.10 de Libro de operaciones avanzadas). For assistance, please call : 1-800-211-PANA(7262) or send e-mail to : consumerproducts@panasonic.com For assistance, please call : 1-800-211-PANA(7262) or send e-mail to : consumerproducts@panasonic.com Si usa convertidor de... - Page 35 Operaciones básicas para la reproducción Inserte un casete. • El videograbador combinado se enciende automáticamente. Presione PLAY. • La reproducción comienza automáticamente si el casete no tiene la lengüeta para prevención de grabación. ■ Para encontrar una escena en particular Búsqueda hacia adelante ➞...
-
Page 36: Index
Limited Warranty ...32–33 Loading the Batteries...3 Location of Controls...6–7 Manual Clock Set ...9 NIGHT Mode ...14 Panasonic Consumer Electronics Company, Division of Matsushita Electric Corporation of America One Panasonic Way Secaucus, New Jersey 07094 Panasonic Sales Company (“PSC”), Division of Matsushita Electric of Puerto Rico, Inc.
