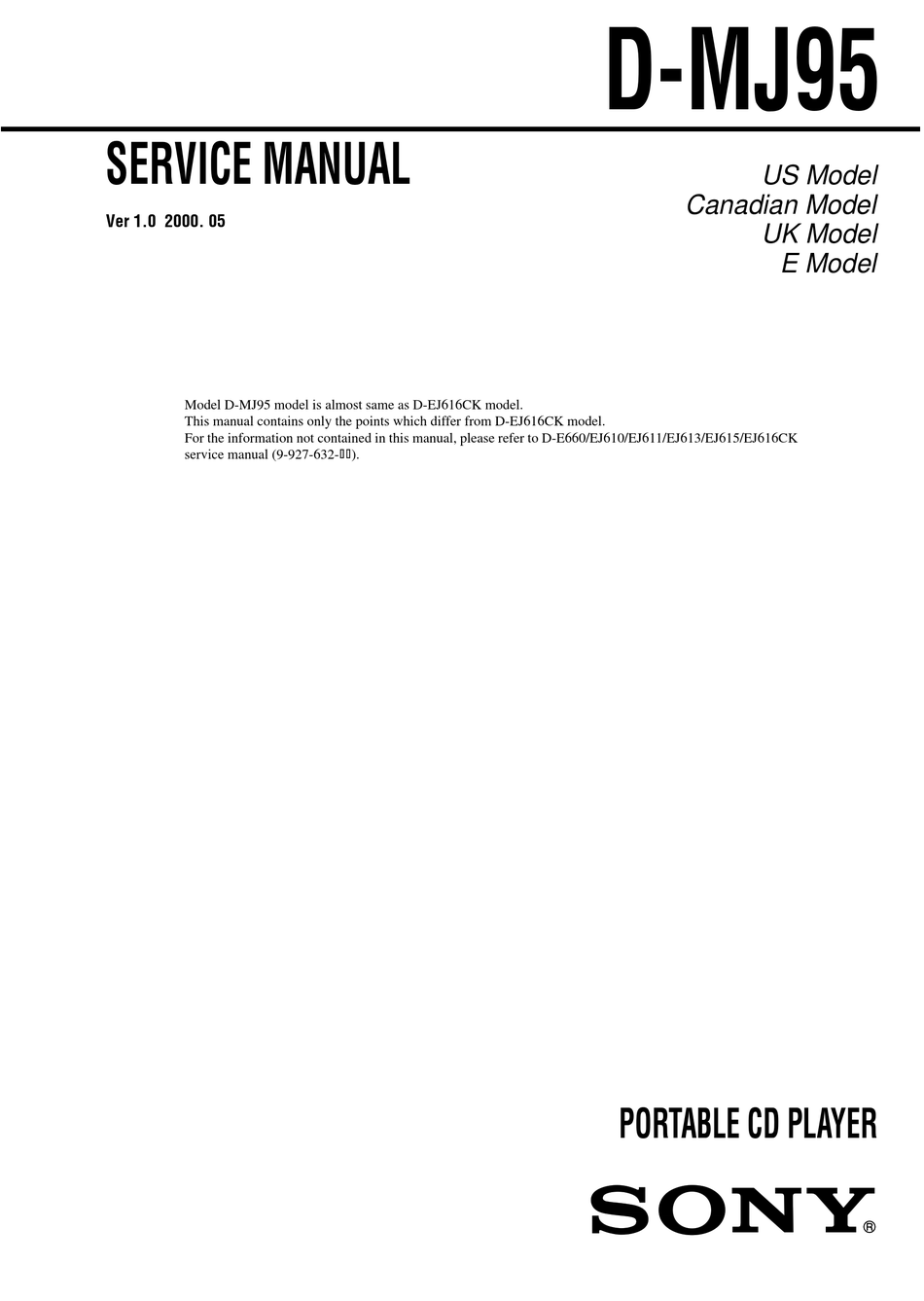

SERVICE MANUAL
Ver 1.0 2000. 05
Model D-MJ95 model is almost same as D-EJ616CK model.
This manual contains only the points which differ from D-EJ616CK model.
For the information not contained in this manual, please refer to D-E660/EJ610/EJ611/EJ613/EJ615/EJ616CK
service manual (9-927-632-S).
D-MJ95
PORTABLE CD PLAYER
– 1 –
US Model
Canadian Model
UK Model
E Model
Advertisement
Related Manuals for Sony D-MJ95
Summary of Contents for Sony D-MJ95
- Page 1 Ver 1.0 2000. 05 UK Model E Model Model D-MJ95 model is almost same as D-EJ616CK model. This manual contains only the points which differ from D-EJ616CK model. For the information not contained in this manual, please refer to D-E660/EJ610/EJ611/EJ613/EJ615/EJ616CK service manual (9-927-632-S).
- Page 2 SECTION 1 DISASSEMBLY • The equipment can be removed using the following procedure. Cabinet (Rear) Sub Assy, Switch Unit Cabinet (Front), Main Board MD Assy Motor Assy, Turn Table “Motor Assy, Sled (M902)”, (Spindle) (M901) Optical Pick-up (DAX-23E) Note : Follow the disassembly procedure in the numerical order given. 1-1.
-
Page 3: Exploded View
SECTION 2 EXPLODED VIEW NOTE: 1-3. MOTOR ASSY, 1-4. “MOTOR ASSY, SLED (M902)”, • Items marked “*” are not stocked since The components identified by • The mechanical parts with no reference TURN TABLE (SPINDLE) (M901) OPTICAL PICK-UP (DAX-23E) mark 0 or dotted line with mark they are seldom required for routine service. - Page 4 D-MJ95 Ref. No. Part No. Description Remark ACCESSORIES & PACKING MATERIALS ******************************** 1-251-696-11 CONNECTING PACK, CAR (CPA-11) 1-418-897-11 ROTARY COMMANDER (RM-WMC10) 1-467-195-11 ADAPTOR, AC (AC-E455A) (US,CND,E) 1-473-115-11 ADAPTOR, AC (AC-E455F) (UK) 1-475-969-11 ADAPTOR, AC (AC-E455) (AR) 1-756-035-11 BATTERY PACK (NC-WMAA) (E,AR)
