Dear customer
Thank you for purchasing this product.
Before connecting, operating or adjusting this product, please read these
instructions completely.
Please keep this manual for future reference.
Note:
"EB" on the packaging indicates the United Kingdom.
E
EB
GN
Operating Instructions
AV Control Receiver
Model No.

Table of contents

Caution for AC Mains Lead.................................................... 2
Safety precautions ................................................................. 2
Supplied accessories ............................................................ 3
The remote control ................................................................ 3
1
Other connections .................. 6
2
3
4
Operations
Control guide ........................................................................ 14
The radio ............................................................................... 16
RDS broadcasts.................................................................... 18
Audio settings....................................................................... 19
Other functions..................................................................... 21
Making a recording............................................................... 21
Advanced setup.................................................................... 22
Reference
Specifications ....................................................................... 23
Troubleshooting guide .......................................... Back cover
Maintenance........................................................... Back cover
SA-XR50
• Speakers
• Antennas
• Using speaker
terminal B
• Adjusting speaker
output level
RQT7492-B

Advertisement

Table of Contents
loading

Related Manuals for Panasonic SA-XR50

Summary of Contents for Panasonic SA-XR50

  • Page 1: Table Of Contents

    Dear customer Thank you for purchasing this product. Before connecting, operating or adjusting this product, please read these instructions completely. Please keep this manual for future reference. Note: “EB” on the packaging indicates the United Kingdom. Operating Instructions AV Control Receiver Model No.

  • Page 2: Before Use

    Caution for AC Mains Lead (For United Kingdom) (“EB” area code model only) For your safety, please read the following text carefully. This appliance is supplied with a moulded three pin mains plug for your safety and convenience. A 5-ampere fuse is fitted in this plug. Should the fuse need to be replaced please ensure that the replacement fuse has a rating of 5-ampere and that it is approved by ASTA or BSI to BS1362.

  • Page 3: Supplied Accessories

    For Republic of Ireland customers: 01 289 8333 Technical Support For UK customers: 0870 1 505610 This Technical Support Hot Line number is for Panasonic PC software related products only. For Republic of Ireland, please use the Customer Care Centre number listed above for all enquiries.

  • Page 4: Home Theater Connections

    Step Home Theater connections Before connecting Stereo phono cable White (L) Video connection cable Turn off all components before making any connections. Note • Use a digital connection to enjoy Dolby Digital or DTS and record digital sources (á pages 12 and 21).

  • Page 5: Ac Mains Lead

    Speakers/ AC mains lead Front speakers (  left  right) Place on the left and right of the TV at seated ear height so that there is good coherency between the picture and sound. Center speaker (  ) Place underneath or above the center of the TV.

  • Page 6: Other Connections

    Step Other connections Stereo phono cable White (L) Speaker cable Turn off all components before making any connections. Note • Do not sharply bend the optical fiber cable. • Use a digital connection to enjoy Dolby Digital or DTS and record digital source (á...

  • Page 7: Cable Box Or Satellite Receiver Etc

    Cable box or satellite receiver etc. LOOP ANT LOOP CENTER SUBWOOFER FM ANT AM ANT REC(OUT) PLAY(IN) SURROUND TAPE DVD/DVD 6CH AUDIO Enjoy even higher picture quality S VIDEO Use this connection for better picture quality than with the VIDEO terminals.

  • Page 8: Cd Player

    Step Other connections Turn off all components before making any connections. CD player LOOP CENTER SUBWOOFER FM ANT AM ANT REC(OUT) PLAY(IN) SURROUND TAPE AUDIO CD recorder LOOP CENTER SUBWOOFER FM ANT AM ANT REC(OUT) PLAY(IN) SURROUND TAPE Tape deck LOOP CENTER SUBWOOFER FM ANT...

  • Page 9: Using Speaker Terminal B

    Antennas LOOP CENTER SUBWOOFER FM ANT AM ANT FM outdoor antenna • Disconnect the FM indoor antenna. • The antenna should be installed by a competent technician. (For continental Europe and the United Kingdom) REC(OUT) PLAY(IN) SURROUND TAPE DVD/DVD 6CH AUDIO FM ANT Antenna plug (included for the United Kingdom)

  • Page 10: Step 3 Settings

    Step Settings Multi control basic setup settings Change the settings to suit your equipment to the environment in which you are using it. Before making any changes, read the descriptions of the settings, note the factory settings and ranges, and refer to the equipment’s instructions. Turn on.
  • Page 11 2. Select. 3. Select the speakers. INPUT SELECTOR INPUT SELECTOR SUBW YES LCR S SB 3. Change the setting. 2. Select the input position. INPUT SELECTOR INPUT SELECTOR TV, DVR, DVD, CD 2. Select the input 3. Change the setting. position.

  • Page 12: Sound Modes

    Step Basic operations 6.1CH DECODING SPEAKERS 6.1CH DECODING VCR 2 VIDEO IN AUDIO IN Turn on. Turn SPEAKERS A SPEAKERS Select input. INPUT SELECTOR TUNER FM TUNER AM TAPE VCR 2 DVR/VCR1 Start play of the source. The unit sets the sound mode (stereo or multi-channel) to suit the input signal.
  • Page 13 You can adjust the effect of MUSIC and PANORAMA with the center width and dimension controls. Center Width Control – C-WDTH This adjustment helps you realize a more natural sound image when listening to music. Move sound out into the front speakers to improve the overall front image, or add sound to the center speaker to fix the center image.

  • Page 14: Control Guide

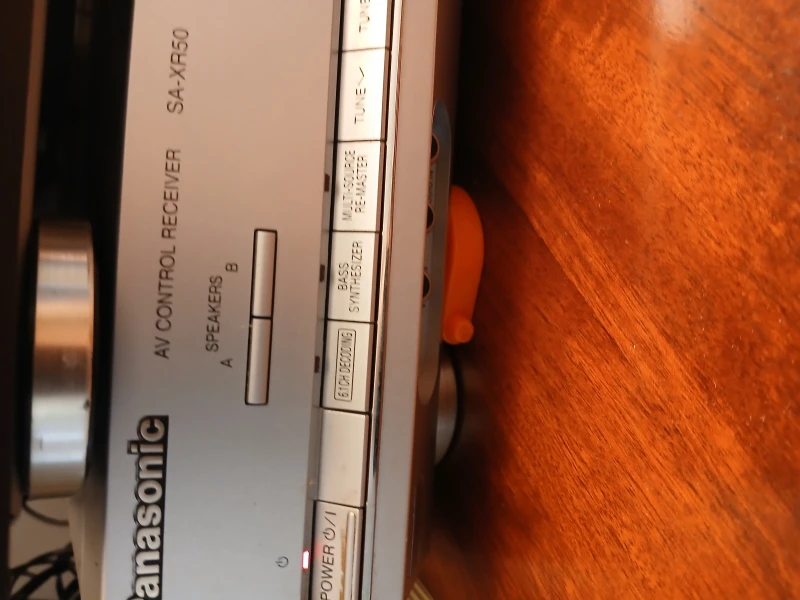

    Control guide Main unit Standby indicator [^] When the unit is connected to the AC mains supply, this indicator lights up in standby mode and goes out when the unit is turned Standby/on switch [8] Press to switch the unit from on to standby mode or vice versa.
  • Page 15 Remote control Buttons not explained on this page are used only to operate other equipment. Refer to the separate booklet, “Remote Control Operation Guide”, for remote control operation details. [^, RECEIVER] Standby/on button. [1, 2, 3, 4, 5, 6, 7, 8, 9, 0] To enter radio frequencies and channels.

  • Page 16: The Radio

    The radio Manual tuning TUNE 2 TUNE 1 SPEAKERS 6.1CH DECODING VCR 2 VIDEO IN AUDIO IN Select “TUNER FM” or “TUNER AM”. Select MANUAL tuning mode. (á below, “Select MANUAL or PRESET tuning mode”) Tune to the station. TUNE 2 Automatic tuning Hold down [TUNE 2 or 1] until the frequency begins to scroll.

  • Page 17: Presetting Stations

    Preset tuning TUNE 2 TUNE 1 SPEAKERS 6.1CH DECODING VCR 2 AUDIO IN VIDEO IN Presetting stations. (á below, “Automatic presetting” or “Manual presetting”) Select PRESET tuning mode. (á page 16, “Select MANUAL or PRESET tuning mode”) Select the preset channels. TUNE 2 TUNE 1 Hold down the button to change channels faster.

  • Page 18: Rds Broadcasts

    RDS broadcasts SPEAKERS POWER 8 6.1CH DECODING VCR 2 VIDEO IN Multi control tuner settings Enter Multi Change the display control mode. MULTI CONTROL PUSH ENTER Main menu is displayed. This unit can display the text data (Multi control mode menus transmitted by the radio data and factory settings á...

  • Page 19: Audio Settings

    Audio settings BASS MULTI-SOURCE 6.1CH DECODING SYNTHESIZER RE-MASTER SPEAKERS 6.1CH DECODING VCR 2 AUDIO IN VIDEO IN Bass synthesizer Provides depth of bass for audio play with impact. • When input signal is Dolby digital stereo or DTS stereo, this mode cannot be used.
  • Page 20 Audio settings SPEAKERS 6.1CH DECODING VCR 2 VIDEO IN Multi control audio settings Enter Multi Tone control mode. You can adjust the level of the bass and treble. • The STEREO mode must be on MULTI CONTROL PUSH ENTER Balance Main menu is displayed.

  • Page 21: Other Functions

    Other functions SPEAKERS 6.1CH DECODING VCR 2 VIDEO IN AUDIO IN Other Multi control function settings Enter Multi Dimmer control mode. Dim the display for better viewing MULTI CONTROL in a darkened room. Choose a level between 1 (bright) and 3 (dim). PUSH ENTER Main menu is displayed.

  • Page 22: Advanced Setup

    Advanced setup You can adjust the settings to match the setup environment and performance of the connected speakers. 6.1CH DECODING VCR 2 Multi control advanced setup settings Enter Multi SPEAKERS control mode Set the size to suit your speakers. LARGE: MULTI CONTROL SMALL: PUSH ENTER...

  • Page 23: Specifications

    Specifications (DIN 45 500) n AMPLIFIER SECTION Power output (at AC 230-240 V) DIN 1 kHz (T.H.D. 1 %) 20 Hz-20 kHz continuous power output both channels driven Total harmonic distortion rated power at 20 Hz-20 kHz Power bandwidth both channels driven, –3 dB Power output each channel driven (at AC 230-240 V) DIN 1 kHz (T.H.D.

  • Page 24: Troubleshooting Guide

    • Never use alcohol, paint thinner or benzine to clean this unit. • Before using chemically treated cloth, read the instructions that came with the cloth carefully. Matsushita Electric Industrial Co., Ltd. Web Site: http://www.panasonic.co.jp/global/ Causes include: − Shorting (bare wires touching) of positive and negative speaker wires.
