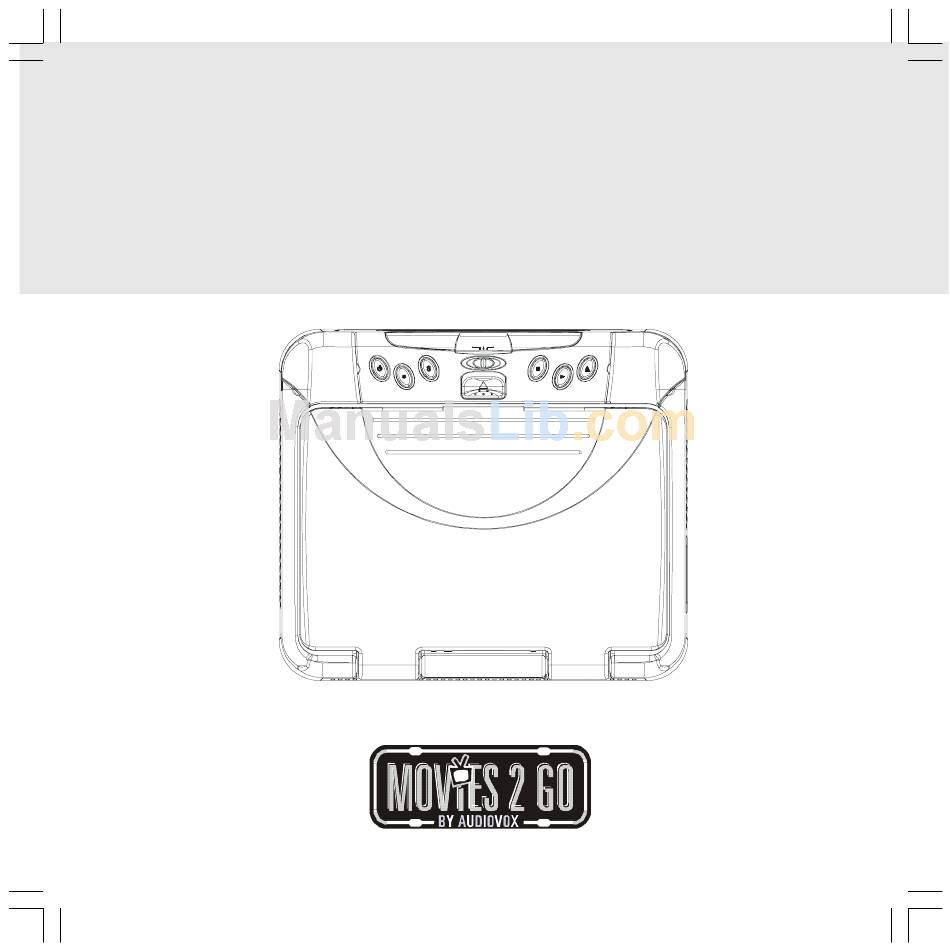

- Page 1 MMD85A 8.5” OVERHEAD LCD MONITOR WITH DVD PLAYER O F F A U T O PO WER SO U RCE STO P EJEC T SC REEN PL AY MO D E OPERATION MANUAL 128-7460 1287460.P65 7/22/05, 4:00 PM...
-
Page 2: Important Notice
An LCD panel and/or video monitor may be installed in a motor vehicle and visible to the driver if the LCD panel or video monitor is used for vehicle information, system control, rear or side observation or navigation. If the LCD panel or video monitor is used for television reception, video or DVD play, the LCD panel or video monitor must be installed so that these features will only function when the vehicle is in “park”... - Page 3 Congratulations on your purchase of the Movies 2 Go MMD85A drop-down Video Monitor with DVD Player. The MMD85A has been designed to give you and your family many years of video entertainment in the mobile environment. Please read the directions that follow to familiarize yourself with the product and to ensure that you obtain the best results from your equipment.
-
Page 4: Controls And Indicators Diagram
CONTROLS AND INDICATORS DIAGRAM POWER SCR EEN 1287460.P65 OF F A UT O SOU RCE STO P EJEC T PLAY MO DE MMD85A 7/22/05, 4:00 PM... -
Page 5: Main Function Descriptions
Dome Lights – Provide additional interior illumination. Infrared Transmitter and Sensor – Used to transmit audio to wireless headphones. Also allows the remote control to operate the MMD85A and to control other accessories in the system. Source Button – Source select DVD, AV1, AUX. -
Page 6: Remote Control Operation
(+ or -) is observed. Align the cover tabs with the remote control and press until the cover clicks. The remote control will operate the MMD85A. It is not a universal remote control and will not control equipment from other manufacturers. - Page 7 * Function control is available on the unit and the Remote Control. * POWER Press this button to turn “ON” and “OFF” the MMD85A. DISPLAY Press to display current disc information while the disc is playing. Press cursor ( buttons to select from:...
- Page 8 Picture is returned to original size DVD player Repeat A- Mark beginning of the section to repeat (Set point A) Repeat AB Mark the end of the section to repeat (Set point B) AB Off Deactivate the A-B repeat function 7/22/05, 4:00 PM MMD85A...
- Page 9 3 times 4 times 5 times 6 times 7 times 8 times 9 times MMD85A 1287460.P65 Press Volume Up (+) button Increase picture contrast To brighten the picture Increase the reddish skin tones Increase the color intensity DVD Player Perform...
- Page 10 Video signals from video equipment connected to the AV1 or AUX inputs can be displayed on the monitor by pressing this button. Each time the button is pressed, the audio/video source will switch between DVD, AV1 and AUX. 1287460.P65 MMD85A 7/22/05, 4:00 PM...
- Page 11 2, 4, 8, 20 times the normal speed. 30. * PLAY Press to activate the play mode while a disc is loaded in the disc compartment. * Function is available on the remote and the front panel. MMD85A 1287460.P65 7/22/05, 4:00 PM...
-
Page 12: Settings And Adjustments
O SD M en u E nglish until the highlight moves back to the top part of 7/22/05, 4:00 PM R a ting E nglish Fre nc h Span is h Italia n G erm a n to the MMD85A... -
Page 13: Language Setup
This displays a wide picture with black bands on the upper and lower portion of the screen. The bandwidth will vary, depending on the aspect ratio of the disc. MMD85A 1287460.P65 L an g ua g e V id e o... -
Page 14: Rating Setup
A d ult R e s et L an g ua g e V id e o R a ting P ass w o rd R a tin g A d ult R e s et MMD85A 7/22/05, 4:00 PM... - Page 15 LOAD FACTORY The Load Factory Reset allows you to reset all options to factory settings. * This function will not affect the Parental Rating control settings. MMD85A 1287460.P65 L an g ua g e V id e o R a ting...
-
Page 16: Playing Dvds
As you toggle through the options, the repeat option changes at that time. The track, for example, repeats once that track has ended. The selected repeat option loops repeatedly until you turn it off. 1287460.P65 Repeat the chapter that is playing. Repeat the title that is playing. 7/22/05, 4:00 PM MMD85A... -
Page 17: Playing Mp3 Discs
ENTER to display the songs in the folder. Press to move the highlight to the desired song and press ENTER to begin playback of the highlighted song. MMD85A 1287460.P65 S to p1 C D-R MEN U ROOT 879069... - Page 18 Plays the songs in a folder in random order (from within the selected folder). Plays the songs in a folder in random order. Plays a selected song. Repeat the song that is playing. Repeat the folder that is playing. MMD85A 7/22/05, 4:00 PM...
- Page 19 TURNING THE MMD85A ON OR OFF 1. Sliding the screen release lock forward will unlock the LCD screen and it will drop down slightly. Pivot the screen downward until a comfortable viewing angle is reached. The hinge friction will hold the screen in position while the system is in use.
-
Page 20: Overhead Dome Lights
OVERHEAD DOME LIGHTS The Dome Lights integrated into the MMD85A are controlled by a three position slide switch. Sliding the switch to the ON position will turn the lights ON. The OFF position will prevent the lights from turning ON with the vehicle’s interior lighting, and the auto position will allow the lights to turn ON and OFF with the vehicle’s interior lighting. - Page 21 Movies 2 Go wireless headphones for more detailed information. Wired Headphones (Optional) There are two 1/8” headphone jacks on the MMD85A that can be used with any standard wired stereo headphones. These jacks are controlled by the volume up/down buttons on the MMD85A remote control.
-
Page 22: Source Feature
To access the A/V inputs, turn the MMD85A on, press the source button on the MMD85A or the Source button on the remote control until “AV1” is displayed on the screen. Turn the video source component on with its power button or remote control. - Page 23 CD-1, CD-ROM, DVD-ROM, Super Audio CD (SACD), DVD Audio To load and Play a Disc Press the Power button to turn the unit ON. Select DVD mode and insert the disc (Label Up) into the disc compartment. MMD85A 1287460.P65 7/22/05, 4:00 PM...
-
Page 24: Troubleshooting
Make sure all cables are securely inserted into the appropriate jacks. • If you are using the IR headphones, make sure you turn on the IR headphone power. • Make sure the Modulator is ON and the proper Frequency has been selected. 7/22/05, 4:00 PM MMD85A... - Page 25 The icon ( appears on screen Picture is distorted No forward or reverse scan MMD85A 1287460.P65 SOLUTION • You can’t advance through the opening credits and warning information that appears at the beginning of movies because the disc is programmed to prohibit that action.
-
Page 26: Replacement Parts
Edge Light Tube 1440 x 234 336,960 32-140°F ( 0-60°C ) -4-176°F (-20-80°C) 10,000 Hours NTSC/PAL 0.03W@32 ohms 1.0Vp-p @ 75 ohms 12V DC H x W x D Inches 1.8 x 10.2 x 8.8 (45.7 x 260 x 223.5mm) MMD85A... - Page 27 12 M O NTH LIM ITED WAR RANTY AU D IOV O X ELE CT RO N ICS CO R P. (the C om pany) w arrants to the original retail purchaser of this product that should this product or any part thereof, under norm al use and conditions, be proven defective in m aterial or w orkm anship within 12 m onths from the date of original purchase, such defect(s) w ill be repaired or replaced w ith reconditioned p roduct (at the C om pany's option) w ithout charge for parts and repair labor.
