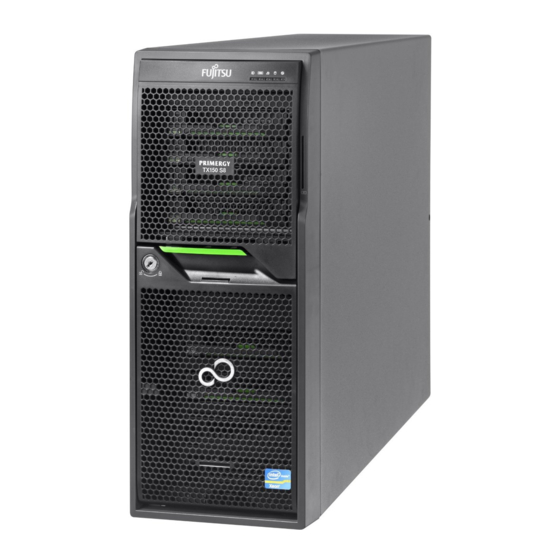

PRIMERGY TX150 S8
System configurator and order-information guide
March 2016
Contents
Instructions
Configuration diagram
Configurator
I
Basic unit
II
III
IV
Graphics
V
VI
VII
External SAS or SCSI Disk Array
VIII Internal Disk Array
IX
Fiberchannel
X
XI
System Management Products (RemoteView)
XII
PRIMERGY Server

Advertisement

Table of Contents
loading

Related Manuals for Fujitsu PRIMERGY TX150 S8

Summary of Contents for Fujitsu PRIMERGY TX150 S8

  • Page 1: Table Of Contents

    PRIMERGY TX150 S8 System configurator and order-information guide March 2016 Contents Instructions Configuration diagram Configurator Basic unit Processor Memory Graphics Accessible drives Hard disk drives External SAS or SCSI Disk Array VIII Internal Disk Array Fiberchannel Communication/Network System Management Products (RemoteView)
  • Page 2 System configurator and order-information guide PRIMERGY TX150 S8 Status 2016-02-29 Instructions This document contains basic product and configuration information that will enable you to configure your system via PC-/System-Architect Only these tools will ensure a fast and proper configuration of your PRIMERGY server or your complete PRIMERGY Rack system.

  • Page 3: Processor

    System configurator and order-information guide PRIMERGY TX150 S8 Status 2016-02-29 Configuration diagram PRIMERGY TX150 S8 SATA LFF (3.5") System Unit System unit ( I ) SIDE VIEW FRONT VIEW red. Fan / PSU Kit 3 x 5.25" bays available 3 x HH 5.25" free 2 x HH 5,25"...
  • Page 4 System configurator and order-information guide PRIMERGY TX150 S8 Status 2016-02-29 Configuration diagram PRIMERGY TX150 S8 SFF (2.5") System Unit System unit ( I ) SIDE VIEW FRONT VIEW red. Fan / PSU Kit 3 x 5.25" bays available 3 x HH 5.25" free or 1.
  • Page 5 System configurator and order-information guide PRIMERGY TX150 S8 Status 2016-02-29 Start PRIMERGY TX150 S8 Section Basic unit System unit, Rack and Floorstand, including: * Two lockable front covers in floorstand version Door #1 for accessible drive bays Door #2 for hot plug HDD bays Both doors may be locked or door #1 may be left open while door #2 is still locked * backplane with 4 (LFF) or 8 (SFF) bays for hot-plug HD's.
  • Page 6 System configurator and order-information guide PRIMERGY TX150 S8 Status 2016-02-29 Floorstand System Rack System without CPU, Memory and hot plug PSU without CPU, Memory and hot plug PSU - No Rackmount Kit included ! - a CPU has to be configured...
  • Page 7 For later conversion the following kits are available: 1.) Conversion kit 2 Floor -> Rack S26361-F1729-L260 Conversion PRIMERGY TX150 S8 base unit floorstand into base unit rack. Only conversion, no mounting kit. Mounting kit has to be ordered seperatly. Fujitsu PRIMERGY Server...

  • Page 8: Country Specific Power Cord

    System configurator and order-information guide PRIMERGY TX150 S8 Status 2016-02-29 1x mandatory for redundant base units S26113-F575-E10 For redundant Base Units only (V201, V401, V601 and V801) Power supply 450W (hot plug) occupies one bay for For redundant floorstand versions only...
  • Page 9 System configurator and order-information guide PRIMERGY TX150 S8 Status 2016-02-29 Section Memory - There are 6 memory slots for max. 96GB using RDIMM (6x 16GB 2R) 24GB using UDIMM (6x 4GB) - The memory area is divided into 3 channels with 2 slots per channel...
  • Page 10 System configurator and order-information guide PRIMERGY TX150 S8 Status 2016-02-29 S26361-F3694-E10 Independent Mode Independent Channel Mode allows all channels to be populated in any order. No specific Memory RAS features are defined Requires min 1 memory Module per CPU S26361-F3695-E1 Rank Sparing Mode Installation BIOS Setup factory preinstalled to this mode.
  • Page 11 PRIMERGY TX150 S8 Status 2016-02-29 Memory Configuration PRIMERGY TX150 S8 The CPU offers 6 Slots for DDR3 Memory Modules organised in 2 Banks and 3 Channels. Depending on the amount of memory configured you can decide between 4 basic modes of operation (see explanation below).

  • Page 12: Independent Channel Mode

    System configurator and order-information guide PRIMERGY TX150 S8 Status 2016-02-29 1. Independent Channel Mode required Bank I Data Data Data optional, same type in Bank per CPU (black sockets) Bank II Data Data Data optional, any type (blue sockets) 1st XEON CPU...
  • Page 13 System configurator and order-information guide PRIMERGY TX150 S8 Status 2016-02-29 Section Grafik S26361-F2748-E538 PGRA CP NVS 1GB VGA PCIe x16 The high end optional NVIDIA NVS315 graphic card offers dual head operation NVIDIA NVS315 and fully 3D video support. 1024 MB PCIe-x16 The cables for either two times DVI-I or VGA connections are part of the delievery.
  • Page 14 System configurator and order-information guide PRIMERGY TX150 S8 Status 2016-02-29 USB 3.0 adapter and RDX USB3.0 drive as soon as available S26361-F3749-E1 The adapter is also available as optional (loose) delivery USB3.0 PCIe x1 adapter card with FH and LP bracket included...
  • Page 15 System configurator and order-information guide PRIMERGY TX150 S8 Status 2016-02-29 Section Hard disks drives SAS RAID Controller for up to 4 SAS HDDs S26361-F3674-E1 Onboard 4 port SAS Controller If the onboard 4 port SATA or SAS Controller is used for HDD, it is not possible to implement a LTO drive later Patsburg B replaces 4 onb.
  • Page 16 System configurator and order-information guide PRIMERGY TX150 S8 Status 2016-02-29 2.5" HDDs for SFF base units; SAS or more than 4 SATA HDDs require a RAID Controller! See section VIII internal Disk Array Up to 8 SFF (2.5") hard disks can be configured.
  • Page 17 System configurator and order-information guide PRIMERGY TX150 S8 Status 2016-02-29 S26361-F4541-E100 S26361-F4541-E400 **) High Endurance 100GB: max 9PB***, SSD SAS 100GB, SLC SSD SAS 400GB, SLC random write Solid State Disk, SAS 6Gb/s Solid State Disk, SAS 6Gb/s Enterprise Performance...
  • Page 18 System configurator and order-information guide PRIMERGY TX150 S8 Status 2016-02-29 Section External SAS Disk Array & Backup Drives Controller depends on I/O-Module SAS RAID controller for JBOD subsystems IOM available: - SAS/SATA; - USB S26361-F3593-E1 RAID Ctrl SAS 6G 8port external...
  • Page 19 System configurator and order-information guide PRIMERGY TX150 S8 Status 2016-02-29 VIII Section internal Disk Array All Base Units contain a 6-port on-board SATA controller supporting RAID Levels 0, 1, 10 If a SAS Backup drive is configured, then the 4 SATA HDD boards are not available any more...
  • Page 20 System configurator and order-information guide PRIMERGY TX150 S8 Status 2016-02-29 Section Communication / Network 2x1Gb on-board LAN Controller Fast Ethernet Controller on-board Teaming: Failover, Load Balancing 2x 1 Gbit Intel Hartwell The Intel LAN Controllers 1000TX and 1000SX Server Adapter can be used with the on-board controller in Teaming Mode.
  • Page 21 2x per controller max. 2x per controller separate orderable 10Gb Ethernet cables S26361-F3989-L102 SFP+ active Twinax Cable Fujitsu 2m The controller D755 is delivered without SFP+ modules for optical S26361-F3989-L105 SFP+ active Twinax Cable Fujitsu 5m cables, these must be ordered separately.
  • Page 22 - once per basic unit and additional a second power cord - if an additional hot plug, redundant power supply modul is ordered PRIMERGY TX150 S8 Floorstand PRIMERGY TX150 S8 19" Rack Hint: No country specific powercord configurable with Certification for India Power cord options (1x per PSU) Power cord options (1x per PSU) 1.8m, black...
  • Page 23 RAID Ctrl. SAS 6G 5/6 512 MB (D2616) S26361-F3554-E512 max. 1x each per system LAN Controller max. 1x each per system S26361-F2571-E27 Service LAN Option max. 1x each per system End PRIMERGY TX150 S8 floor Fujitsu PRIMERGY Server 23 of 24...

  • Page 24: Change Report

    System configurator and order-information guide PRIMERGY TX150 S8 Status 2016-02-29 Change Report Date Order number Changes changed color to black 2016-03-14 T26139-Y1742-E10 USB mouse portfolio S26381-K457-E101/*-L101 mouse option removed (EOL) 2015-12-10 USB mouse portfolio USB mouse order codes updated 2015-10-27 S26361-F2748-E537 NVS300 deleted and NVS315 available.
