Front panel

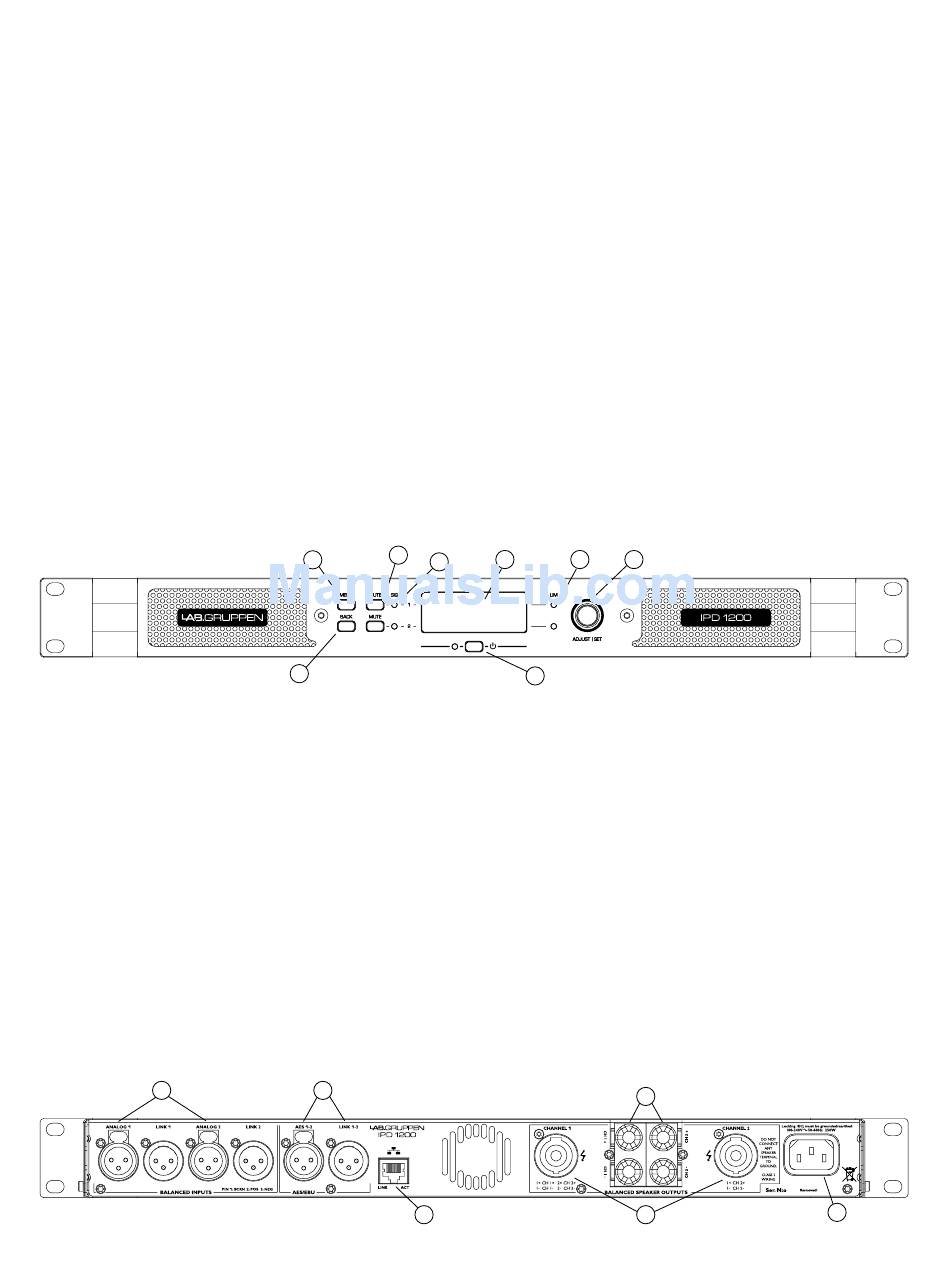

The following indicators and controls are available on the front panel:
1 MENU – Selects MENU mode and confirms a given preset name.
2 BACK – Moves backward through menu layers in MENU mode.
3 MUTE – Mutes corresponding channel as indicated.
4 SIG – Illuminates green when signal is present. Illuminates red when
signal is clipping (pre input mixer)
5 POWER – Indicates STANDBY (red)
6 LIM (limit) – Illuminates when the amplifier limits the signal.
Limiting is engaged when the channel:
• Reaches the selected voltage limit
• Rail voltage sags below the selected threshold (both LEDs flash
rapidly for 1.5 sec)
• Maximum current output reached
• Mains voltage cannot maintain full rail voltage
Rear panel
The following connectors are available on the rear panel:
1 ANALOG INPUTS and LINK - XLR-F input connectors provided for
each channel, with XLR-M link output connectors.
2 AES3 INPUT and LINK – AES3 digital inputs are on an XLR-F
connector with a link output on an XLR-M connector.
3 NETWORK (Ethernet) – An RJ45 jack is supplied for connection
to an Ethernet network for external control and monitoring, either by
a direct wired connection or via an external WiFi router to an iPad or
tablet. LEDs below the connector indicate valid network connection
(LINK) and network activity (ACT).
1
3
1
4
2
2
3
4
7 ADJUST/SET (Rotary Encoder) – Rotation moves through the menu
and adjusts the currently selected parameter when in setup mode.
Pressing down on the knob selects a given parameter or advances
further into the menu.
In operating mode, rotation of the ADJUST/SET encoder adjusts
output gain (outputs ganged).
8 BACKLIT DISPLAY
In operating mode, the display shows the following values and status
indicators:
• Level – Horizontal VU meters for each channel
• Device name and Preset name
In setup mode, the display shows currently selected menu locations
and parameters. For more information on DSP setup procedures,
please refer to the Operation Manual.
8
6
7
5
4 speakON OUTPUT CONNECTORS – Both channel outputs are
available on a four-pole connector at the left; either channel 1 or both
channels 1 and 2 may be connected. Only channel 2 is available on
the connector to the right.
5 BINDING POST CONNECTORS – Connectors for channel 1 and
channel 2.
6 AC LINE INPUT – A locking IEC receptacle accepts the AC line
input, 50 Hz or 60 Hz, 100 V – 240 V. Use an IEC cable with the proper
connector for country of use.
5
4
6
