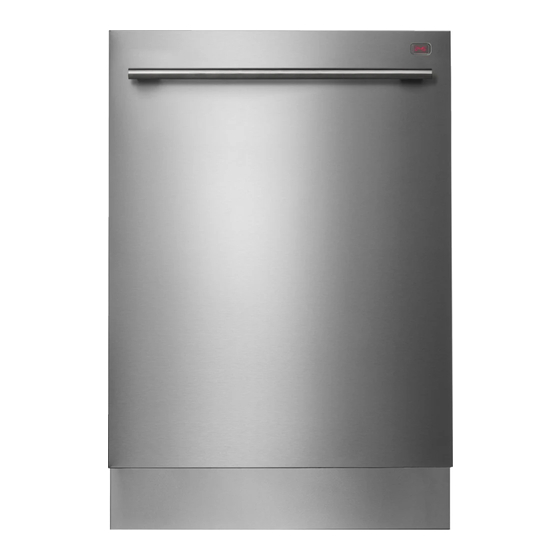

Asko D5654XXLHS Operating Instructions Manual

Hide thumbs Also See for D5654XXLHS:
Table of Contents

Advertisement

Quick Links

See also: Instruction and Installation Manual
Dear Customer,
Thank you for choosing this quality product from ASKO.
We hope it will meet your expectations and fulfill your needs for many years to
come. Scandinavian design combines clean lines, everyday functionality, and
high quality. These are key characteristics of all our products and the reason
they are greatly appreciated throughout the world.
To get the most out of your new dishwasher, we recommend that you read the
operating instructions before using it. The operating instructions also include
information on how you can help protect the environment.
Do you need this Use&Care Guide in spanish? Log onto
www.askona.com/customer-care to download.
¿Necesita esta Instrucciones de uso y cuidado en español? Entre en
www.askona.com/customer-care y descárguesela.

Operating Instructions

Dishwasher
ASKO D5654XXLHS

Advertisement

Table of Contents
loading

Related Manuals for Asko D5654XXLHS

Summary of Contents for Asko D5654XXLHS

  • Page 1: Operating Instructions

    Dear Customer, Thank you for choosing this quality product from ASKO. We hope it will meet your expectations and fulfill your needs for many years to come. Scandinavian design combines clean lines, everyday functionality, and high quality. These are key characteristics of all our products and the reason they are greatly appreciated throughout the world.

  • Page 2: Table Of Contents

    Contents Front panel Care and maintenance instructions Important safety instructions Troubleshooting Before washing for the first time Technical information Loading the dishwasher Service Using the dishwasher Program chart Settings Notes Front panel The panel is fitted with touch buttons with audible feedback (see the chapter Settings). On/Left-on mode Rinse aid indicator Delayed start...

  • Page 3: Important Safety Instructions

    Important safety instructions SAVE THESE INSTRUCTIONS FOR FUTURE REFERENCE Should a child swallow dishwasher detergent or rinse aid, give plenty to drink immediately, i.e., one or two glasses of milk or water. Do not try to induce vomiting. Seek medical WARNING! advice immediately: Call the National Capital Poison Center at 1-800-222-1222.

  • Page 4: Before Washing For The First Time

    Before washing for the first time Water supply Refill rinse aid indicator The machine can be connected to either a hot (max. 160 °F, 70 When the rinse aid needs topping up, the above symbol lights °C) or cold water supply. We recommend a cold water supply. on the display.

  • Page 5: Loading The Dishwasher

    Loading the dishwasher Economic dishwashing Typical load for 10 place settings Run programs only with a full load Wait until the dishwasher is fully loaded before running a program, this way you save energy. Use the Rinse & Hold program to rinse the dishes if there are any unpleasant odors while you wait for the dishwasher to become fully loaded.

  • Page 6: Lower Basket

    Middle basket The middle basket's wire basket with spray pipes is suitable for short objects. The middle basket's utensil basket has space for ladles, whisks, serving cutlery, and similar items. Wire basket Utensil basket Washing larger items The two baskets in the middle basket can be removed, or the entire middle basket can be removed, to create more space between the upper and lower baskets if larger items are being Foldable tines...

  • Page 7: Cutlery Basket

    NOTE! Do not place cutlery made of different materials, such as silver and stainless steel, in the same place (risk of discoloration). WARNING! Knives and other pointed items must be placed with the points down in the cutlery basket or horizontally in other baskets. Fold-down section for small items The cutlery basket has a fold-down section in the middle for small items, or small shafts, such as electric whisk attachments.

  • Page 8: Using The Dishwasher

    Using the dishwasher Add detergent Recommended detergent amounts based on water hardness Water hardness Detergent amounts Soft Prewash 1 teaspoon (0-3 grains per gallon) Main wash 1 to 1-1/2 tablespoons Medium Prewash 1 teaspoon (4-8 grains per gallon) Main wash 1 to 2 tablespoons Hard Prewash 1 teaspoon (9+ grains*)

  • Page 9: Selecting Options

    Sanitation wash Rinse & Hold A program with the ability to help with most household germs Use to rinse dishes while you wait for the dishwasher to become and extra dirty dishware. This program will have a high final rinse fully loaded.

  • Page 10: Time Remaining

    NOTE! NOTE! Remember to press the Start/Stop button to start the program. During the first run of each program, the remaining time displayed can be slightly misleading, as the dishwasher is estimating the time. When you run the program a second time, the dishwasher will calculate the remaining time based on the Set time previous duration of the program.

  • Page 11: Settings

    Settings Do as follows to open the settings menu: First, open the door. Turn off the dishwasher using the On/Left-on mode button (press and hold). Release the button. Press and hold the On/Left-on mode button until the display lights up. Within five seconds, press and hold the Program selector and the Long dry button.
  • Page 12 Button press Options Settings Description Operation volume This sound is used to confirm each button press. (Off) (Low) (High) Press Start/Stop to save the setting value and continue to the next setting. LCD contrast For adjusting the contrast of the display on the front (Display on the front of the door) door.

  • Page 13: Care And Maintenance Instructions

    Care and maintenance instructions Coarse filter NOTE! The coarse filter traps larger food particles, which cannot get The dishwasher must not be used without the filters in place! past the drain pump. Empty the coarse filter as necessary. Dishwashing results may be affected if the coarse filter is 1 Lift the coarse filter by the handle.

  • Page 14: Upper Spray Arm

    Cleaning the middle basket 1 Pull out the basket. 2 Check the holes in the spray pipe. Upper spray arm 1 Pull out the basket. 2 Unscrew the spray arm bearings as illustrated to remove the spray arm from the upper basket. Spray pipes 3 Clean with a needle or similar pointed object.

  • Page 15: Troubleshooting

    Troubleshooting Display Type of fault Action Overfilling Call the Customer Care Center. Water outlet fault See "Water remains in the dishwasher above the filters" in the table below. Water inlet fault Check that the water supply valve is on. Inlet valve leakage Turn off the water supply valve and call the Customer Care Center.
  • Page 16 Problem Possible causes Action Rattling sound when dishwashing. The dishes are not correctly placed or the Check that the dishes are placed securely. spray arms are not rotating. Spin the spray arms to make sure they can rotate. The dishwasher does not start. The Start/Stop start button has been pressed Press and hold Start/Stop until the display for too short a time.
  • Page 17 Problem Possible causes Action Cannot close door. The baskets are not correctly positioned. Check that the baskets are correctly posi- tioned horizontally, and that the middle bas- ket's water connector is in line with its spray pipe. Check that the dishes are not blocking the baskets from sliding properly into place.

  • Page 18: Technical Information

    Technical information Technical data Height: 34-3/8" - 36-1/2" (873-927 mm) Width: 24" (610 mm) Depth: 22-7/8" (581 mm) Weight: 110 lb (50 kg) Water pressure: 4.2–140 psi Electrical connection: See serial number tag and rating plate. Rated power: See serial number tag and rating plate. Weight can vary due to different specifications.

  • Page 19: Service

    AS PROVIDED HEREIN. This Limited Warranty is valid only when by any person other than an authorized ASKO service company the ASKO Product is used in the country in which it was will void this Limited Warranty. purchased. Proof of original purchase date is required to obtain service under this Limited Warranty.

  • Page 20: Program Chart

    Program chart Customer Care Center 1-800-898-1879 www.askona.com...

  • Page 21: Notes

    Notes Customer Care Center 1-800-898-1879 www.askona.com...
  • Page 22 Notes Customer Care Center 1-800-898-1879 www.askona.com...
  • Page 23 Notes Customer Care Center 1-800-898-1879 www.askona.com...
  • Page 24 Quick guide Load the baskets (see page 5) Do not rinse dishes under running water before loading them in the dishwasher. Simply scrape off large food particles before loading the dishwasher. Check that the spray arms can rotate freely Check also that the water supply valve is on. Add detergent (see page 8) The detergent compartment has one smaller compartment for the prewash and one for the main wash.
