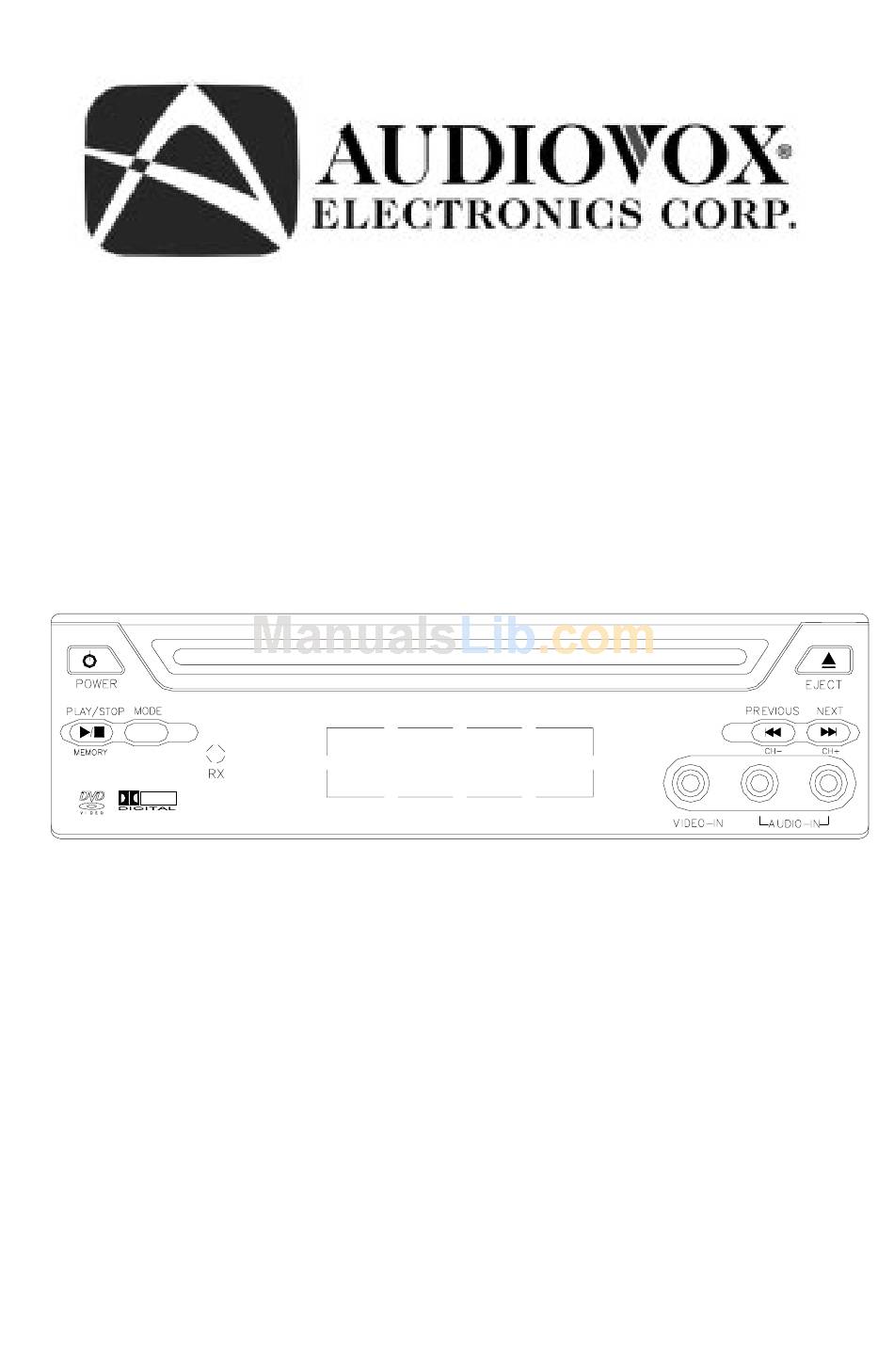

- Page 1 AVD400TA SLOT-IN DVD PLAYER WITH BUILT-IN TV TUNER AVD400TA DVDPLAYER DOLBY Owner’s Manual...
-
Page 2: Explanation Of Graphic Symbols
A . Welcome Thank you for choosing the AVD400TA DVD Player. The AVD400TA is designed to optimize the enjoyment of your favorite DVDs in the mobile environment. This DVD Player is constructed to provide years of reliable, trouble-free service. Please read this manual thoroughly prior to operating the player and save it for future reference. -
Page 3: Safety Precaution
For safety reasons do not allow children to unfasten seat-belts to change video media or make any adjustments to the system. Enjoy your enter- tainment system but always remember the safety of all passengers is the number one priority. It is unlawful in most states for a person to drive a motor vehicle which is equipped with a television viewer or screen that is located in the motor vehicle at any point forward of the back of the driver’s seat, or that is visible, directly or indirectly, to the driver while operating the vehicle. - Page 4 When the temperature rises dramatically from a very low tempera- ture, moisture may condense inside the AVD400TA and cause the DVD player to malfunction. If the AVD400TA does not operate prop- erly under these conditions leave the AVD400TA turned on for at...
- Page 5 C. Contents 1 Main Unit 1 Remote control with one Battery 1 12VDC Power Harness 2 Brackets with 4 Screws 1 Remote IR Receiver 1 AV cable (RCA to RCA) 1 Owner's Manual (not shown) AVD400TA DVDPLAYER DOLBY AUDIOVOX...
- Page 6 13. Audio R Output Jack 14. Audio L Output Jack 15. Video Output Jack 16. S-Video Output Jack 17. External Remote Eye Input 18. Digital Audio Output 19. DC In 12V Power Supply Connector AVD400TA DVDPLAYER DOLBY Figure 1 DOLBY...
- Page 7 DISPLAY Button EJECT Button SETUP Button PAUSE Button STOP MEMORY Button NEXT CH+ Button PREVIOUS CH- Button SCAN FORWARD Button SCAN REVERSE Button MUTE Button GOTO Button ZOOM Button A-B REPEAT Button ANGLE Button SLOW Button AUDIOVOX Figure 2 (Ref)
- Page 8 F. Connections AVD400TA DOLBY (GND) Black (ACC) Red 1. Powering your DVD Player ( Refer to Figure 3) Connect the black wire (-) to the vehicle ground. Connect the red wire (+) to a switched (Accessory) 12VDC source. Plug the other end into the 12VDC input jack on the back of the unit.
-
Page 9: Basic Operation
4. Connecting an External Video Source ( Refer to Figure 3) To connect a video game or another audio/video source, plug the A/V cable into the A/V input jacks on the front of the DVD player. 5. Connecting a TV Antenna (Refer to Figure 3) Connect an optional TV antenna to the “TV ANTENNA”... - Page 10 1. BASIC OPERATION (CONTINUED) NUMBERS RETURN MENU REPEAT DISPLAY ANGLE SUBTITLE AUDIO ZOOM SETUP 2. MENU A DVD is divided into sections called titles and chapters. When you play a DVD, a root menu of the disc will appear on the screen of your TV or Monitor.
- Page 11 3. DISPLAY 1) Display mode During playback press DISPLAY once to display items 5, and 7. Press DISPLAY twice to display the current disc playback information. Press display again to remove the display. 1. The type of disc. 2. The number of current title. 3.
- Page 12 4. ANGLE During playback press ANGLE to change the current angle of discs contain- ing multi-angles. (You can see item 8 in the display change) If the disc has only one angle, you will see ing that no other angles are available. 5.
-
Page 13: Playing Audio Cds
Repeat mode sequence:Repeat Chapter/Repeat Title/Off. 9. PLAYING AUDIO CDS When playing an audio CD the AVD400TA will automatically display the disc playback information. The options below show you what information is displayed. Press the ‘DISPLAY’ button to remove the display. -
Page 14: Playing Mp3 Discs
As you toggle through the options, the repeat option changes. The selected repeat option loops repeatedly until its turned off. 10. PLAYING MP3 DISCS MP3 is a digital audio format. An audio CD-quality song is compressed into the MP3 format with no significant loss of audio quality. CD-R / RW discs that have been encoded in MP3 format are compatible with this device. - Page 15 USING THE REPEAT FEATURE The default mode for the Repeat feature is OFF. Pressing REPEAT consecutively changes the repeat options: • Repeat Single(repeat playback of a song) • Repeat All (repeat playback of all folder) • Off (normal playback) Pressing REPEAT a 3rd time will resume normal playback. As you toggle through the options, the repeat option changes.
- Page 16 4. Direct access any channel by using the numeric keypad on the remote control. 5. Pressing the PLAY/ENTER/ADD button on the remote control will alternately ADD or DELETE channels from memory. 12. SETUP Press STOP and then Press ‘SETUP’ to display the Main screen of the SETUP Menu on the screen.
- Page 17 b. Select ‘Subtitle’ using the UP/DOWN buttons, then press ENTER to enter the submenu. Select the ‘Subtitle’ language you desire using the UP/DOWN buttons, then press ENTER to confirm the setting. c. Select “Audio” using the UP/DOWN buttons, then press ENTER to enter the submenu.
- Page 18 2) Select ‘Video’ by using the LEFT/RIGHT buttons, press ENTER to enter the Video set up page. a. Select ‘TV Shape’ using the UP/DOWN buttons, then press ENTER to enter the submenu. Select the aspect ratio you desire using the UP/DOWN buttons, then press ENTER to confirm the setting.
- Page 19 b. Select ‘TV System’ using the UP/DOWN buttons, then press ENTER to enter the submenu. Select the TV System you desire using the UP/ DOWN buttons, then press ENTER to confirm the setting. 3) Select ‘AUDIO’ using the LEFT/RIGHT buttons. a.
- Page 20 b. Select ‘LPCM 48k DS’ using the UP/DOWN buttons, then press ENTER to enter the submenu. Select the LPCM output you desire using the UP/DOWN buttons, then press ENTER to confirm the setting. 4) Select ‘Rating’ by using the LEFT/RIGHT buttons, press ENTER to enter the Rating set up page.
- Page 21 NOTE: For 1st time use the default password is 3308. NOTE: The Default Password is 3308 . This password is always effective even after you have selected your own password and changed it. To avoid the possibility of others using the default password to set the parental level and change the password, you can record this default password in another area and delete it from this manual.
- Page 22 H. Specification Supported media Signal format system TV System DVD Video format Video output Audio output Signal-to-noise ratio Harmonic distortion Dynamic range Wow and flutter Power source Power consumption Operating temperature Storage temperature Operating humidity Dimensions (W x H x D) Weight DVD/CD/MP3/JPEG/CD-R NTSC/PAL...
- Page 23 AUDIOVOX ELECTRONICS CORP. (the Company) warrants to the original retail purchaser of this product that should this product or any part thereof, under normal use and conditions, be proven defective in material or workmanship within 36 months from the date of original purchase, such defect(s) will be repaired or replaced with reconditioned product (at the Company's option) without charge for parts and repair labor.
- Page 24 © 2005 Audiovox Electronics Corp., 150 Marcus Blvd., Hauppauge, N.Y. 11788 128-7394...
