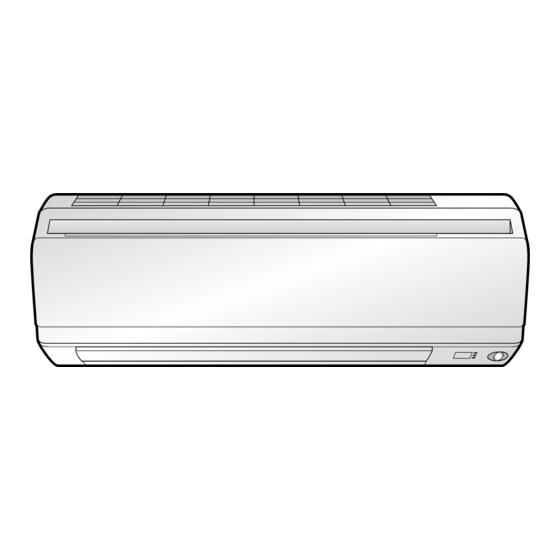

Daikin FTXL35G2V1B Installation Manual
Hide thumbs
Also See for FTXL35G2V1B:
- Service manual (294 pages) ,
- Operation manual (35 pages) ,
- Technical data manual (35 pages)
Table of Contents
Advertisement
Quick Links
R410A Split Series
DAIKIN ROOM AIR CONDITIONER
INSTALLATION MANUAL
Installation manual
Installationsmanual
Installationshandbok
Installasjonshåndbok
Asennusohje
Paigaldusjuhend
Montavimo vadovas
Installierungshandbuch
Manuel d'installation
óêîâîäñòâî ïî ìîíòàæó
Instrukcja montazu
Installatie Handleiding
MODELS
FTXL20G2V1B
FTXL25G2V1B
FTXL35G2V1B
Advertisement
Table of Contents
Related Manuals for Daikin FTXL35G2V1B
Summary of Contents for Daikin FTXL35G2V1B
- Page 1 R410A Split Series DAIKIN ROOM AIR CONDITIONER INSTALLATION MANUAL Installation manual Installationsmanual Installationshandbok Installasjonshåndbok Asennusohje Paigaldusjuhend Montavimo vadovas Installierungshandbuch Manuel d’installation óêîâîäñòâî ïî ìîíòàæó Instrukcja montazu Installatie Handleiding MODELS FTXL20G2V1B FTXL25G2V1B FTXL35G2V1B...
- Page 2 3SB64417-1...
-
Page 3: Safety Precautions
Safety Precautions • The precautions described herein are classified as WARNING and CAUTION. They both contain important information regarding safety. Be sure to observe all precautions without fail. • Meaning of WARNING and CAUTION notices WARNING ..Failure to follow these instructions properly may result in personal injury or loss of life. CAUTION .. -
Page 4: Choosing An Installation Site
Accessories – ndoor unit Mounting plate Remote controller holder. Operation manual Titanium Apatite Dry batteries AAA. LR03 Installation manual Photocatalytic (alkaline) Air-Purifying Filter Indoor unit fixing screws Wireless remote controller (M4 × 12L) Choosing an Installation Site • Before choosing the installation site, obtain user approval. Indoor unit. -
Page 5: Installation Tips
Installation Tips Removing and installing front panel. • Removal method Hook fingers on the panel protrusions on the left and right of the main body, and open until the panel stops. Slide the front panel sideways to disengage the rotating shaft. Then pull the front panel toward you to remove it. -
Page 6: How To Set The Different Addresses
How to set the different addresses. When 2 indoor units are installed in 1 room, the 2 wireless remote controllers can be set for different addresses. 1) Remove the metal plate electrical wiring cover. (Refer to the Removal/attachment methods of metal plate electrical wiring covers.) ADDRESS 2) Cut the address jumper (JA) on the printed circuit board. - Page 7 Installation Tips Attachment methods of metal plate electrical wiring covers Attach the metal plate electrical wiring covers as shown below. Type A 1) Lean the metal plate electrical wiring cover as shown in the figure and attach tab (1) on the lower side to the electrical wiring box.
-
Page 8: Indoor Unit Installation Drawings
Indoor Unit Installation Drawings How to attach the indoor unit. Mounting Hook the claws of the bottom frame plate to the mounting plate. If the claws are difficult to hook, A Mounting plate remove the front grille. Clip How to remove the indoor unit. Push up the marked area (at the lower part of the front grille) to Bottom frame... -
Page 9: Indoor Unit Installation
Indoor Unit Installation Installing the mounting plate. • The mounting plate should be installed on a wall which can support the weight of the indoor unit. 1) Temporarily secure the mounting plate to the wall, make sure that the panel is completely level, and mark the boring points on the wall. -
Page 10: Boring A Wall Hole And Installing Wall Embedded Pipe
Boring a wall hole and installing wall embedded pipe. • For walls containing metal frame or metal board, be sure to use a wall embedded pipe and wall cover in the feed-through hole to prevent possible heat, electrical shock, or fire. Inside Outside •... - Page 11 Indoor Unit Installation 3-2. Left-side, left-back, or left-bottom piping. Remove pipe 1) Attach the drain hose to the underside of the refrigerant pipes port cover here for left- with adhesive vinyl tape. side piping. Left-side piping Left-back Remove pipe port cover here for left-bottom piping. piping Left-bottom piping 2) Be sure to connect the drain hose to the drain port in place of a...
-
Page 12: Drain Piping
Wiring. 1) Strip wire ends (15mm). 2) Match wire colours with terminal numbers on indoor and outdoor unit’s terminal blocks and firmly screw wires to the corresponding terminals. 3) Connect the earth wires to the corresponding terminals. 4) Pull wires to make sure that they are securely latched up, then retain wires with wire retainer. 5) In case of connecting to an adapter system. -
Page 13: Refrigerant Piping Work
Refrigerant Piping Work Flaring the pipe end. (Cut exactly at 1) Cut the pipe end with a pipe cutter. right angles.) Remove burrs 2) Remove burrs with the cut surface facing downward Flaring so that the chips do not enter the pipe. Set exactly at the position shown below. -
Page 14: Pump Down Operation
2-1. Caution on piping handling. Wall Be sure to 1) Protect the open end of the pipe against dust and moisture. place a cap. 2) All pipe bends should be as gentle as possible. Use a pipe bender Rain If no flare cap is available, cover for bending. -
Page 15: Trial Operation And Testing
Trial Operation and Testing Trial operation and testing. 1-1 Measure the supply voltage and make sure that it falls in the specified range. 1-2 Trial operation should be carried out in either cooling or heating mode. • In cooling mode, select the lowest programmable temperature; in heating mode, select the highest programmable temperature. - Page 16 Two-dimensional bar code is a code for manufacturing. 3P232538-1 M08B045 (0809) HT...
