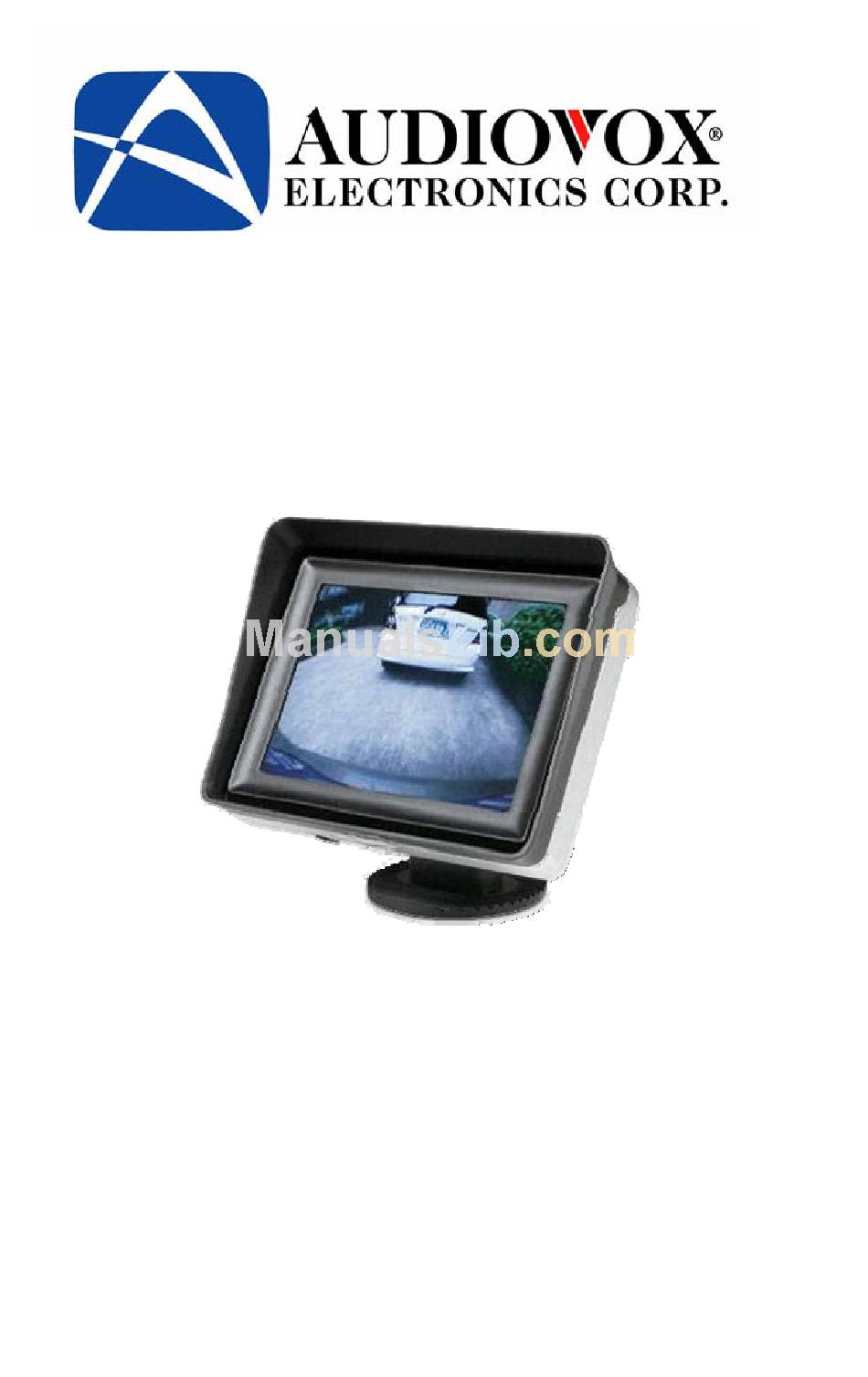

Installation/User’s Manual Features: • 2.5” TFT color LCD display • Flexible mounting pad with 3M tape monitor mounts on either vehicle windshield or dashboard • Rearview camera input • Automatically displays backup camera image when vehicle is in reverse Model: ACAM250...
Your first priority while driving should always be the safe operation of your vehicle. Audiovox Electronics Corporation cannot accept any responsibility whatsoever for accidents resulting from failure to observe these precautions or safety instructions.
TABLE OF CONTENTS Warnings Product description Packing list Installation Instructions Operation Maintenance Troubleshooting Warranty card Product Description This Rearview Mirror/Monitor, when used with a backup camera, is designed to assist the driver by providing a clear and wide image of the area behind the vehicle whenever the vehicle is shifted into reverse.
Installation Instructions Mounting the Monitor The monitor with flexible mounting pad and 3M tape mounts on either the vehicle windshield or dashboard. 1. Choose a monitor location in your vehicle that does not block your view for safe driving. 2. Clean the monitor mounting area with the alcohol wipe provided. 3.
Page 6
Wiring the Monitor 1. Wire the Power Cable to the vehicle’s reverse lamp. a) Locate the reverse lamp in the tail light assembly. Using the tap connector supplied, perform the following steps: Place the un-stripped positive lead wire on the run channel. Insert the un-stripped red power wire completely.
Operation The monitor will automatically display the rear observation camera image whenever the vehicle is engaged in reverse. Maintenance Though your Monitor requires little care, you can still maintain its condition and performance following the procedures below. • Keep your system away from excessive moisture, extreme heat or cold and magnetic fields.
Troubleshooting Symptoms The ON/OFF signal light <D> is not on after the car is started No video signal appears while reversing the car Video image is not sharp enough Solutions Ensure that the parallel red and black line from the control box is connected properly. 1.
