Connections

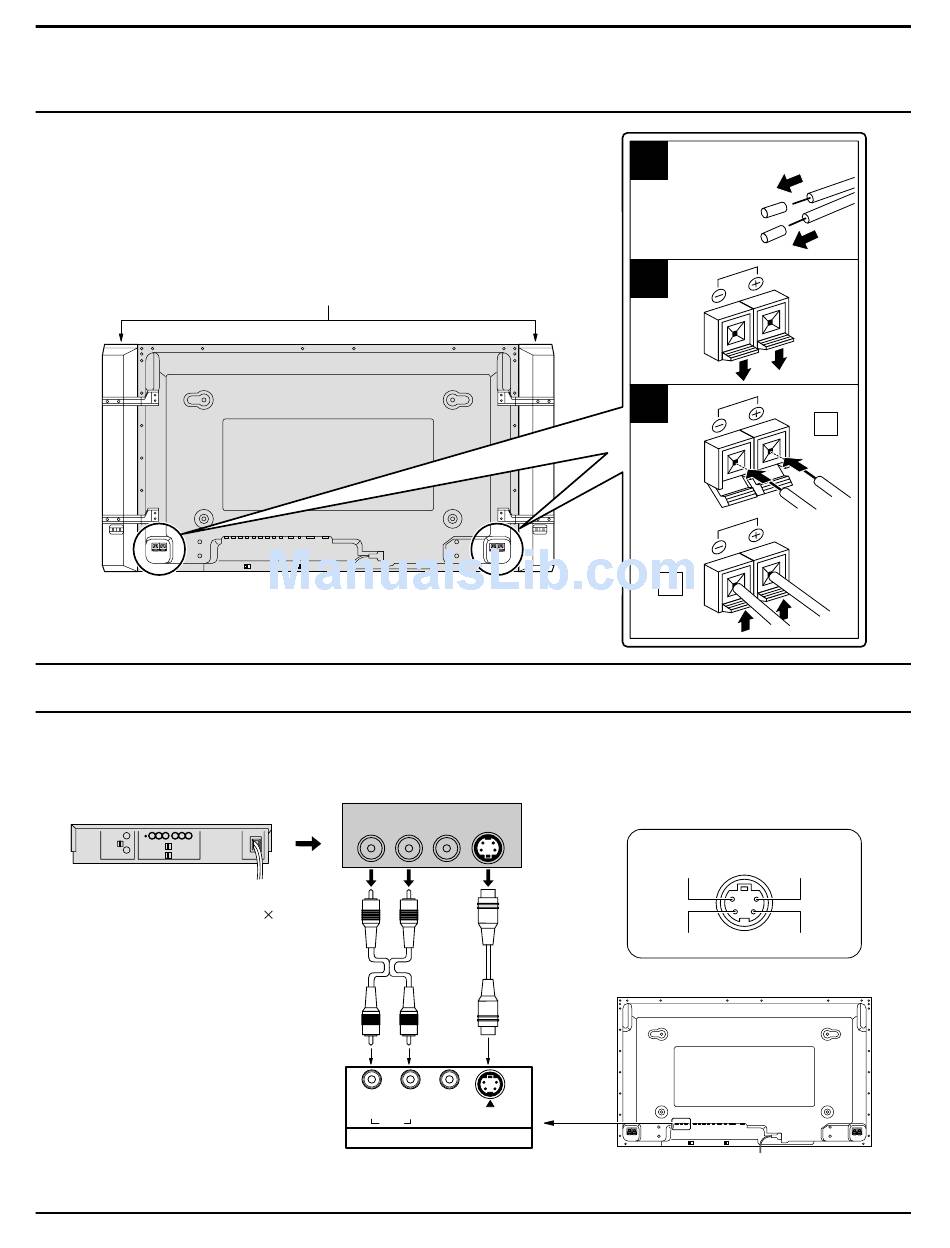

Speakers connection

When connecting the speakers, be sure to use only the optional accessory
speakers.
Refer to the speaker's Installation Manual for details on speaker installation.
Speakers (Optional accessories)

AV Input Terminals connection

Connect the signal source equipment.
An S VIDEO VCR connection
(S VIDEO VCR)
Note:
Additional equipment and cables shown are not supplied with this set.
12
Audio
OUT
R L
2 RCA audio
cables
AUDIO
Audio input to
L/R sockets
R L
AUDIO
AV IN
Video S Video
OUT OUT
S VIDEO
Video input to
S VIDEO
socket
VIDEO S VIDEO
1
Remove the
tubes from the
ends of the
speaker wires.
2
3
1
2
S VIDEO 4 pin socket
Luminance earth Chrominance earth
Luminance in Chrominance in
