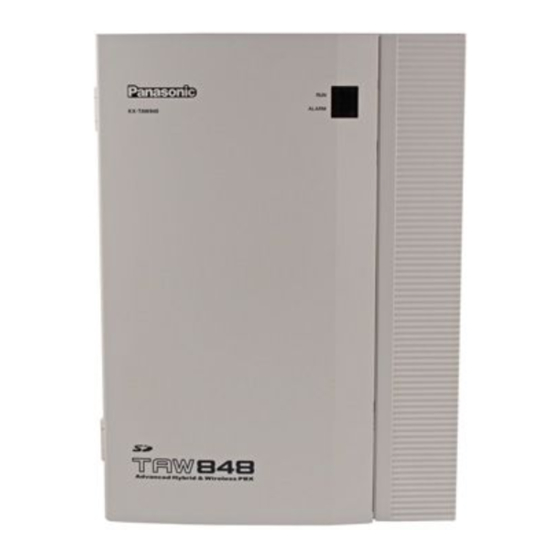

Advanced hybrid & wireless pbx
Hide thumbs Also See for kx-taw848:
Table of Contents

Advertisement

Quick Links

See also: Feature Manual , Programming Manual
Advanced Hybrid & Wireless PBX
PT Programming Manual
KX-TAW848
Model No.
Thank you for purchasing a Panasonic Advanced Hybrid & Wireless PBX.
Please read this manual carefully before using this product and save this manual for future use.
PSMPR Software File Version 4.0000 or later
Document Version: 2007-02

Advertisement

Table of Contents
loading

Related Manuals for Panasonic kx-taw848

Summary of Contents for Panasonic kx-taw848

  • Page 1 PT Programming Manual KX-TAW848 Model No. Thank you for purchasing a Panasonic Advanced Hybrid & Wireless PBX. Please read this manual carefully before using this product and save this manual for future use. PSMPR Software File Version 4.0000 or later...
  • Page 2 Introduction About this Programming Manual The PT Programming Manual is designed to serve as a reference to programming the Panasonic Advanced Hybrid & Wireless PBX using a Panasonic proprietary telephone (PT) with display. The PT Programming Manual is divided into the following sections: Section 1, Overview Provides an overview of programming the PBX.
  • Page 3 NOTES • The contents of this manual apply to PBXs with a certain software version, as indicated on the cover of this manual. To confirm the software version of your PBX, see [190] Main Processing (MPR) Software Version Reference. • Some optional service cards, PTs, and features are not available in some areas.

  • Page 4: Table Of Contents

    Table of Contents Overview....................7 Introduction ........................8 1.1.1 Introduction ........................8 1.1.2 Password Security......................8 1.1.3 Entering Characters ......................9 PT Programming................... 11 PT Programming ......................12 2.1.1 Programming Instructions ....................12 2.1.2 Entry Values ........................14 2.1.3 Basic Programming ......................15 [000] Date & Time............................15 [001] System Speed Dialing Number ......................
  • Page 5 [331–346] ARS Routing Plan Table (1–16) ......................22 [350] ARS Carrier Name ..........................22 [351] ARS Trunk Group for Carrier Access ......................22 [352] ARS Removed Number of Digits for Carrier Access ................22 [353] ARS Carrier Access Code ........................22 2.1.7 CO Line Programming ..................... 23 [400] LCOT CO Line Connection ........................23 [401] LCOT CO Line Name..........................23 [402] LCOT Trunk Group Number ........................23...
  • Page 6 Card Programming ......................38 [900] Slot Card Type Reference ........................38 [901] Slot Card Deletion ..........................38 [902] Slot Card Reset ............................38 Appendix ....................39 Revision History......................40 3.1.1 KX-TAW848 PSMPR Software File Version 4.0xxx............40 Feature Programming References ................41 PT Programming Manual...

  • Page 7: Overview

    Section 1 Overview This section provides an overview of programming the PBX. PT Programming Manual...

  • Page 8: Introduction

    These programming instructions are designed to serve as an overall system programming reference for the Panasonic Advanced Hybrid & Wireless PBX. Each feature in the PBX has default settings that can be changed to customize the PBX to your requirements. These settings control the functions of the PBX, and changing them is referred to as "system programming".

  • Page 9: Entering Characters

    If a system password is forgotten, it can be found by loading a backup of the system data into a PC, and checking the password using the KX-TAW848 Maintenance Console software. If you do not have a backup of the system data, you must reset the PBX to its factory defaults and reprogram it.
  • Page 10 1.1 Introduction Notes • To erase the character on the cursor, press CLEAR. • To move the cursor to the left, press • To move the cursor to the right, press . When entering two or more characters that use the same button consecutively (e.g.

  • Page 11: Pt Programming

    Section 2 PT Programming This section serves as reference operating instructions when using a display PT to program the PBX. PT Programming Manual...

  • Page 12: Pt Programming

    2.1 PT Programming PT Programming 2.1.1 Programming Instructions Required Telephone/Extension PBX settings can be customized through system programming by using a proprietary telephone (PT) with a display, such as the KX-T7737. To access system programming, the Class of Service (COS) assigned to the PT's extension must be programmed to allow system programming, or the PT must be connected to the lowest numbered port on the card installed in the lowest numbered slot.
  • Page 13 2.1 PT Programming Entering System Programming Mode Using a PT to perform system programming allows an authorized extension user to set a wide range of PBX features and parameters. There are two levels of system programming that can be performed with a PT: administrator level programming and user level programming.

  • Page 14: Entry Values

    2.1 PT Programming 2.1.2 Entry Values Throughout this manual, maximum entry values are shown for each programming item, as shown in the example below. [351] Carrier Table No. Trunk Group No. 01–10 01–64 SELECT STORE STORE Disable/ Enable Slot and Port Values Available Slot Entry Values Slot Number Supported Cards...

  • Page 15: Basic Programming

    2.1 PT Programming 2.1.3 Basic Programming [000] Date & Time [000] Date Year Month 01–31 00–99 01–12 STORE STORE Minute Hour 00–59 01–12 SELECT STORE NEXT AM/PM [001] System Speed Dialing Number [001] Telephone No. Speed Dialing No. 000–999 Max. 32 digits STORE STORE To the Next Speed Dialing No.

  • Page 16: Operator Assignment

    2.1 PT Programming WARNING There is a risk that fraudulent telephone calls will be made if a third party discovers a personal identification number (PIN) (verification code PIN or extension PIN) of the PBX. The cost of such calls will be billed to the owner/renter of the PBX. To protect the PBX from this kind of fraudulent use, we strongly recommend: Keeping PINs secret.

  • Page 17: Time Service Switching Mode

    2.1 PT Programming For default values, see "1.6.4 Flexible Numbering/Fixed Numbering" in the Feature Manual. [101] Time Service Switching Mode [101] STORE SELECT STORE Manual/Automatic [102] Time Service Starting Time [102] Day No. Time No. 0 Sun/1 Mon/ 1 Day-1/2 Lunch/ STORE 2 Tue/3 Wed/ 3 Day-2/4 Night...

  • Page 18: Manager Password

    2.1 PT Programming [112] Manager Password [112] Password 4–10 digits STORE STORE 1234 [120] Verification Code [120] Location No. Verification Code 0001–1000 1–4 digits STORE STORE [121] Verification Code Name [121] Location No. Name 0001–1000 Max. 20 characters STORE STORE [122] Verification Code Personal Identification Number (PIN) [122] Location No.

  • Page 19: Main Processing (Mpr) Software Version Reference

    2.1 PT Programming [190] Main Processing (MPR) Software Version Reference [190] MPR Version Reference only STORE 2.1.5 Timer Programming [200] Hold Recall Time [200] Time 0–240 s STORE STORE 60 s [201] Transfer Recall Time [201] Time 1–240 s STORE STORE 60 s [203] Intercept Time...

  • Page 20: Disa Delayed Answer Time

    2.1 PT Programming [209] DISA Delayed Answer Time [209] Time 0–30 s STORE STORE [210] DISA CO-to-CO Line Call Prolong Time [210] Time 0–7 min STORE STORE 3 min [211] DISA Intercept Time [211] Time No. Time Time No. 1 Day/2 Lunch 0–60 s STORE STORE...

  • Page 21: Special Carrier Access Code

    2.1 PT Programming [303] Special Carrier Access Code [303] Location No. Carrier Access Code 01–20 Max. 16 digits STORE STORE [304] Emergency Number [304] Location No. Emergency No. 01–10 Max. 32 digits STORE STORE [320] ARS Mode [320] STORE SELECT STORE Off/Idle Line/ All Access...

  • Page 22: Ars Routing Plan Time Table

    2.1 PT Programming [330] ARS Routing Plan Time Table [330] ARS Time No. Day No. Plan Table No. 0 Sun/1 Mon/2 Tue/ 1 TimeA/2 TimeB/ 01–16 STORE 3 Wed/4 Thu/5 Fri/6 Sat 3 TimeC/4 TimeD Hour:Minute 01–12/00–59 SELECT STORE AM/PM [331–346] ARS Routing Plan Table (1–16) [331–346] Day No.

  • Page 23: Co Line Programming

    2.1 PT Programming 2.1.7 CO Line Programming [400] LCOT CO Line Connection [400] Slot No. Port No. 02–04 01–04 STORE SELECT STORE No Connect/ Connect To the Next Port No. NEXT [401] LCOT CO Line Name [401] Name CO Line No. 3 digits Max.

  • Page 24: Lcot Dtmf Minimum Duration

    2.1 PT Programming [412] LCOT DTMF Minimum Duration [412] Slot No. Port No. 02–04 01–04 STORE SELECT STORE 80/160 ms [413] LCOT CPC Signal Detection Time—Outgoing [413] Slot No. Port No. Mode No. 0: None/1: 6.5/ 02–04 01–04 STORE STORE 2–113: (N–1)×8 ms 051 (400 ms) [414] LCOT CPC Signal Detection Time—Incoming...

  • Page 25: Dil 1:1 Destination

    2.1 PT Programming [450] DIL 1:1 Destination [450] Slot No. Port No. Time No. Destination No. 1 Day/2 Lunch/ 02–04 01–04 1–5 digits STORE 3 Break/4 Night STORE [471] Host PBX Access Code [471] Trunk Group No. Location No. 01–64 01–10 STORE Host PBX Access Code...

  • Page 26: Disa Cyclic Signal Detection

    2.1 PT Programming [477] DISA Cyclic Signal Detection [477] Trunk Group No. 01–64 STORE SELECT STORE No Detect/ Detect [490] Caller ID Signal Type [490] Slot No. 02–04 STORE SELECT STORE FSK/FSK with Visual Caller ID/DTMF 2.1.8 COS Programming [500] Trunk Group Number [500] Time No.

  • Page 27: Call Transfer To Co Line

    2.1 PT Programming [503] Call Transfer to CO Line [503] COS No. 01–64 SELECT STORE STORE Disable/ Enable [504] Call Forwarding to CO Line [504] COS No. 01–64 STORE SELECT STORE Disable/ Enable [505] Executive Busy Override [505] COS No. 01–64 SELECT STORE...

  • Page 28: Trs Level For System Speed Dialing

    2.1 PT Programming [509] TRS Level for System Speed Dialing [509] COS No. TRS Level 01–64 1–7 STORE STORE [510] TRS Level for Extension Dial Lock [510] COS No. TRS Level 01–64 1–7 STORE STORE [511] Manager Assignment [511] COS No. 01–64 STORE SELECT...

  • Page 29: Programming Mode Limitation

    2.1 PT Programming [516] Programming Mode Limitation [516] COS No. 01–64 STORE SELECT STORE Disable/ Personal/ System&Personal 2.1.9 Extension Programming [601] Terminal Device Assignment [601] Slot No. Port No. 01–08 01–06 STORE SELECT STORE Telephone/Console 1–4/ Voice Mail 1–(1–4) [602] Class of Service [602] Extn.

  • Page 30: Incoming Call Distribution Group Member

    2.1 PT Programming [620] Incoming Call Distribution Group Member [620] Incoming Call Location No. Extn. No. Distribution STORE 01–32 1–5 digits Group No. Location No. 01–24: 101–124; Location No. 25–32: Not stored 001–128 STORE [621] Incoming Call Distribution Group Delayed Ringing Incoming Call [621] Location No.

  • Page 31: Destination For Overflow Time Expiration

    2.1 PT Programming [625] Destination for Overflow Time Expiration [625] Incoming Call Destination No. Time No. Distribution Max. 32 digits 1 Day/2 Lunch/ STORE 3 Break/4 Night Group No. 001–128 STORE [626] Overflow Time Incoming Call [626] Overflow Time Distribution ( None/1–125)×10 s STORE STORE...

  • Page 32: Queuing Time Table

    2.1 PT Programming [630] Queuing Time Table [630] Incoming Call Time No. Table No. Distribution 1 Day/2 Lunch/ None/01–64 STORE 3 Break/4 Night Group No. 001–128 STORE [631] Sequences in Queuing Time Table [631] Table No. Location No. 01–16 01–64 STORE SELECT None/Overflow/...

  • Page 33: External Pager Of A Paging Group

    2.1 PT Programming [641] External Pager of a Paging Group [641] Paging Group No. External Pager No. 01–32 STORE SELECT No/ Yes STORE [650] Extension User Groups of a Pickup Group [650] Pickup Group No. Extn. User Group No. 001–032 01–64 STORE SELECT...

  • Page 34: Ps Registration

    2.1 PT Programming [690] PS Registration [690] PS No. Extn. No. To the PS operation 001–028 1–4 digits below STORE STORE KX-TD7690 Push F3 Push power C.Tone key for 2 button for 2 seconds. seconds. Note Please refer to section "2.7.7 Connecting a Cell Station to the PBX" in the Installation Manual for details about Portable Station (PS) registration.

  • Page 35: Audio Source Selection For Bgm

    2.1 PT Programming [710] Audio Source Selection for BGM [710] STORE SELECT STORE External/ Internal1/ Internal2 [711] Music on Hold [711] Audio Source Beep/BGM STORE STORE [712] Music for Transfer [712] STORE SELECT STORE Hold Music/ Ring back [720] Doorphone Call Destination [720] Time No.

  • Page 36: Outgoing Message (Ogm) Name

    2.1 PT Programming [731] Outgoing Message (OGM) Name [731] Message No. Name 01–32 Max. 20 characters STORE STORE [732] DISA Security Mode [732] STORE SELECT STORE None/ CO Line/All 2.1.11 SMDR & Maintenance Programming [800] RS-232C Parameter—New Line Code [800] Location SELECT STORE...

  • Page 37: Rs-232C Parameter-Stop Bit Length

    2.1 PT Programming [800] RS-232C Parameter—Stop Bit Length [800] Location STORE SELECT STORE 1 bit/2 bits [801] External Modem Control [801] Command No. 1–5 STORE STORE [802] SMDR Page Length [802] Page length 4–99 lines STORE STORE [803] SMDR Skip Perforation [803] Skip Perforation 0–95 lines...

  • Page 38: Remote Programming

    2.1 PT Programming [810] Remote Programming [810] STORE SELECT STORE Disable/ Enable [811] Modem Floating Extension Number [811] Extn. No. 1–5 digits STORE STORE 2.1.12 Card Programming [900] Slot Card Type Reference [900] Slot No. Card Name 01–11 Reference only STORE [901] Slot Card Deletion [901]...

  • Page 39: Appendix

    Section 3 Appendix PT Programming Manual...

  • Page 40: Revision History

    3.1 Revision History Revision History 3.1.1 KX-TAW848 PSMPR Software File Version 4.0xxx Changed Contents • [003] Extension Number • [004] Extension Name • [005] Extension Personal Identification Number (PIN) • [006] Operator Assignment • [007] DSS Console Paired Telephone •...

  • Page 41: Feature Programming References

    3.2 Feature Programming References Feature Programming References Absent Message • [008] Absent Message Feature Manual Reference 1.1.1 Absent Message Account Code Entry • [508] Account Code Mode Feature Manual Reference 1.1.2 Account Code Entry ARS (Automatic Route Selection) • [320] ARS Mode •...
  • Page 42 3.2 Feature Programming References 1.3.6 Call Pickup Call Transfer • [201] Transfer Recall Time • [503] Call Transfer to CO Line • [712] Music for Transfer Feature Manual Reference 1.3.8 Call Transfer CLI (Calling Line Identification) Distribution • [001] System Speed Dialing Number •...
  • Page 43 3.2 Feature Programming References Dial Mode Selection • [410] LCOT Dialing Mode • [411] LCOT Pulse Rate • [412] LCOT DTMF Minimum Duration Feature Manual Reference 1.4.2 Dial Mode Selection DIL (Direct In Line) • [450] DIL 1:1 Destination Feature Manual Reference 1.4.5 DIL (Direct In Line) DISA (Direct Inward System Access) •...
  • Page 44 3.2 Feature Programming References EFA (External Feature Access) • [417] LCOT Flash/Recall Time Feature Manual Reference 1.5.1 EFA (External Feature Access) Emergency Call • [304] Emergency Number Feature Manual Reference 1.5.2 Emergency Call Executive Busy Override • [505] Executive Busy Override •...
  • Page 45 3.2 Feature Programming References Floating Extension • [623] Incoming Call Distribution Group Name • [660] VM Group Floating Extension Number • [700] External Pager Floating Extension Number • [730] Outgoing Message (OGM) Floating Extension Number • [731] Outgoing Message (OGM) Name •...
  • Page 46 3.2 Feature Programming References • [632] Maximum Number of Agents Feature Manual Reference 1.9.1 ICD GROUP FEATURES ICD Group Features—Group Call Distribution • [621] Incoming Call Distribution Group Delayed Ringing • [624] Incoming Call Distribution Group Distribution Method • [632] Maximum Number of Agents Feature Manual Reference 1.9.2 ICD Group Features—Group Call Distribution ICD Group Features—Overflow...
  • Page 47 3.2 Feature Programming References 1.9.10 Intercept Routing—No Destination Intercom Call • [003] Extension Number • [004] Extension Name Feature Manual Reference 1.9.11 Intercom Call Line Preference—Outgoing • [103] Idle Line Access (Local Access) • [500] Trunk Group Number Feature Manual Reference 1.10.3 Line Preference—Outgoing Manager Features •...
  • Page 48 3.2 Feature Programming References Paging • [640] Extension User Groups of a Paging Group • [641] External Pager of a Paging Group Feature Manual Reference 1.13.1 Paging Pause Insertion • [416] LCOT Pause Time Feature Manual Reference 1.13.4 Pause Insertion PS Connection •...
  • Page 49 3.2 Feature Programming References • [800] RS-232C Parameter—Stop Bit Length • [802] SMDR Page Length • [803] SMDR Skip Perforation • [804] SMDR Outgoing Call Printing • [805] SMDR Incoming Call Printing Feature Manual Reference 1.16.1 SMDR (Station Message Detail Recording) Special Carrier Access Code •...
  • Page 50 3.2 Feature Programming References • [302] TRS Exception Code • [501] TRS Level • [509] TRS Level for System Speed Dialing • [602] Class of Service Feature Manual Reference 1.17.5 TRS (Toll Restriction) Upgrading the Software • [190] Main Processing (MPR) Software Version Reference Feature Manual Reference 1.18.1 Upgrading the Software Verification Code Entry...
  • Page 51 3.2 Feature Programming References 1.20.1 Walking COS Walking Extension • [007] DSS Console Paired Telephone Feature Manual Reference 1.20.2 Walking Extension Wireless XDP Parallel Mode • [515] Wireless XDP Parallel Mode for Paired Telephone Feature Manual Reference 1.20.3 Wireless XDP Parallel Mode PT Programming Manual...
  • Page 52 Copyright: This material is copyrighted by Panasonic Communications Co., Ltd., and may be reproduced for internal use only. All other reproduction, in whole or in part, is prohibited without the written consent of Panasonic Communications Co., Ltd. © 2006 Panasonic Communications Co., Ltd. All Rights Reserved.
