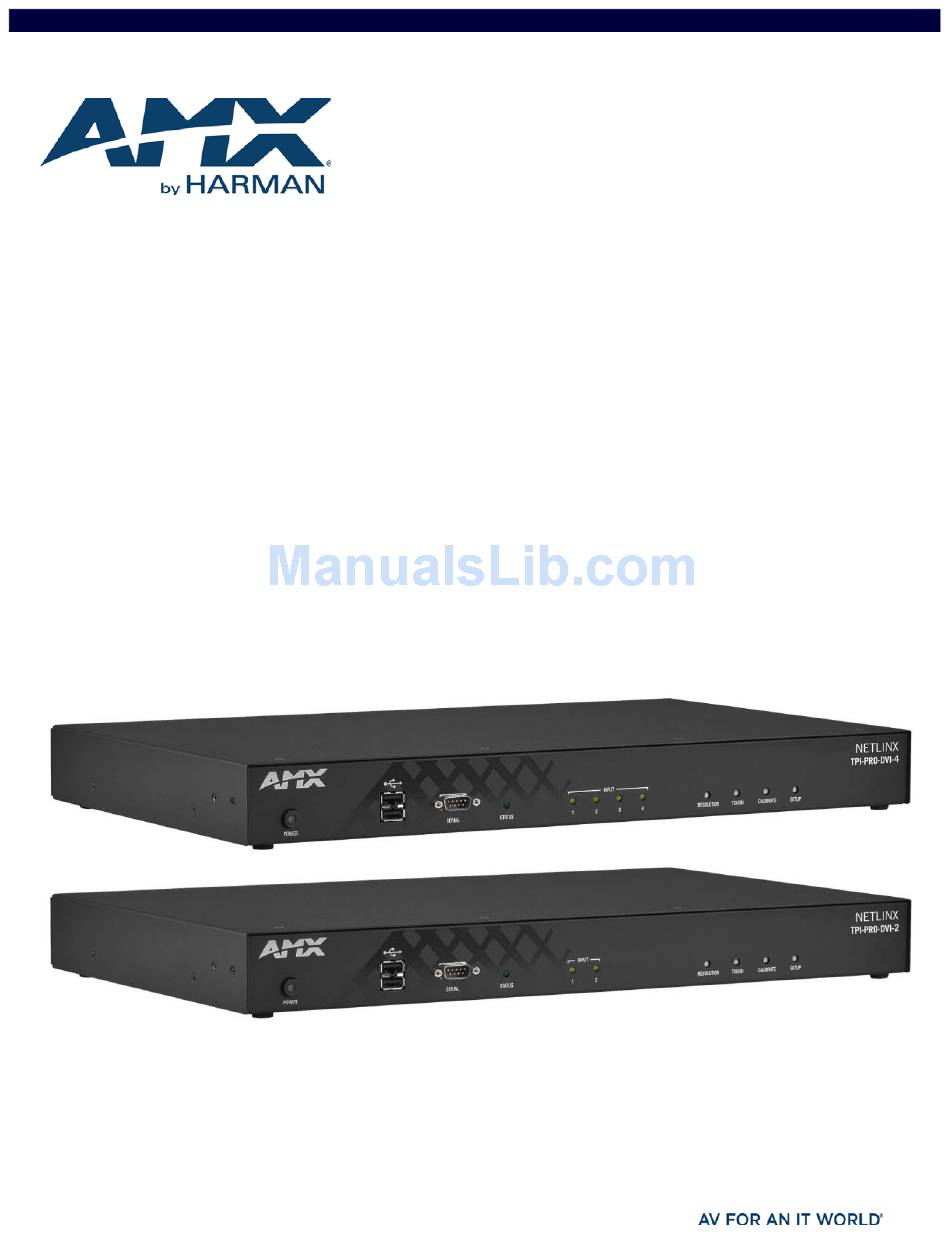

- Page 1 IN STR U CT IO N MAN U AL T PI - P R O - DV I TO T A L P RES E N T AT I O N I N TE R F A C E W I T H DV I TPI- PRO- DVI- 2 TPI- PRO- DVI- 4...
-
Page 2: Important Safety Instructions
COPYRIGHT NOTICE AMX© 2015, all rights reserved. No part of this publication may be reproduced, stored in a retrieval system, or transmitted, in any form or by any means, electronic, mechanical, photocopying, recording, or otherwise, without the prior written permission of AMX. Copyright protection claimed... -
Page 3: Weee Notice
Anyone performing field maintenance on AMX equipment should use an appropriate ESD field service kit complete with at least a dissipative work mat with a ground cord and a UL listed adjustable wrist strap with another ground cord WARNING: Do Not Open! Risk of Electrical Shock. -
Page 4: Table Of Contents
Table of Contents Table of Contents TPI-PRO-DVI (Total Presentation Interface-DVI) ...........13 Overview ......................... 13 TPI-PRO-DVI Specifications ................... 13 Supported Input and Output Modes..................... 16 Supported Touch Monitors and USB Touch Drivers ................16 A Note About Wall and Rack Installation ............... 16 Installation Recommendations ...................... - Page 5 Table of Contents 12VDC PWR (Power) Connector ......................30 Connecting USB Input Touch Devices................31 Type A & Type B USB Ports ........................31 Notes on USB Connections ........................31 System Installation ..................32 Overview .......................... 32 Touch Input via Touch Monitor ..................32 Configuring the TPI for Touch Monitor Input..................
- Page 6 Table of Contents TPI Configuration Pages .................52 Overview .......................... 52 Resolution Setup Page ....................52 Panel Information Page....................53 Calibrate Page ........................ 54 Setup Page ........................54 Setup - Protected Setup Page ..................55 Setup - Project Information Page ................... 56 Setup - Time &...
- Page 7 Table of Contents Slider/Cursor Names ..........................78 Border Styles By Name ......................... 78 Border Styles By Numbers........................80 Text Effects Names ..........................80 SEND_COMMANDs ......................81 Page Commands......................81 @APG..................................... 81 @CPG..................................... 81 @DPG ..................................... 81 @PDR ..................................... 81 @PHE ...................................... 82 @PHP ......................................
- Page 8 Table of Contents ^BSF......................................95 ^BSM....................................... 95 ^BSO ....................................... 95 ^BVL......................................95 ^BVN ....................................... 96 ^BVP ....................................... 96 ^BVT ....................................... 96 ^BWW ..................................... 96 ?BWW...................................... 96 ^CPF ...................................... 97 ^DPF....................................... 97 ^ENA ...................................... 97 ^FON ...................................... 97 ?FON......................................98 ^GDI......................................98 ^GIV......................................
- Page 9 Table of Contents ^TPO ....................................110 Input Commands......................111 ^CAL ....................................111 ^KPS ....................................111 ^TPS ....................................111 WAKE ....................................111 ^MPS....................................112 ^PPS ....................................112 ^SLT..................................... 113 Embedded Codes......................114 ^VKS ....................................114 Panel Setup Commands ....................115 ^MUT ....................................115 @PWD ....................................
- Page 10 Table of Contents TakeNote Commands ....................121 TAKENOTE-ENABLE................................121 TAKENOTE-DISABLE ................................121 TAKENOTESERVER-ENABLE ..............................121 TAKENOTESERVER-DISABLE..............................121 ^TNA-AUTOEXPOSE................................121 ?TNA-AUTOEXPOSE ................................122 ^TNA-AUTOHIDE ................................. 122 ?TNA-AUTOHIDE.................................. 122 ^TNA-CANVASCOLOR ................................122 ?TNA-CANVASCOLOR................................122 ?TNB-CANVASCOLOR................................122 ^TNA-CLEAR ..................................122 ^TNA-FLUSH ..................................122 ^TNA-HIDE...................................
- Page 11 Table of Contents Input Mask Literals ..........................130 Input Mask Output Examples......................130 URL Resources ............................ 130 Special Escape Sequences ......................... 130 Terminal/Telnet Commands .................132 Overview ........................132 Upgrading Firmware ..................133 Overview ........................133 Prepare the TPI for Ethernet Communication ............. 133 Upgrade the TPI Firmware ...................
- Page 12 Hiding the TakeNote Menu Bar ......................150 Hiding TakeNote Annotations......................150 Using The TakeNote Web Application ................150 Launching the AMX TakeNote Web Application ................. 150 The AMX TakeNote Web Application User Interface................151 Menu Bar............................. 151 Thumbnail Images..........................152 Toolbar..............................
-
Page 13: Tpi-Pro-Dvi (Total Presentation Interface-Dvi)
HDCP or audio. TPI-PRO-DVI Specif ications The following table lists the specifications for the TPI-PRO-DVI-4 and TPI-PRO-DVI-2. Note that the primary difference between the TPI-PRO-DVI-4 and TPI-PRO-DVI-2 is in the number of inputs. In terms of functionality and specifications, they are otherwise identical. - Page 14 • Flashing Yellow: Power to the unit is within nominal voltage limits (between 10VDC and 19VDC, approximately), but one or more of the internal power supplies are not operating correctly. The unit needs to be serviced. Contact AMX Technical Support for further instructions. • USB Type-A 2 USB Type A ports for connecting up to one annotation touch monitor and up to one keyboard/mouse.
- Page 15 2 or 4 USB Type-B device ports, one per source computer—for source USB Touch Monitor, mouse/keyboard KEYBOARD/MOUSE control (1-4 on the TPI-PRO-DVI-4, 1-2 on the TPI-PRO-DVI-2). USB ports: Note: Do not use a USB hub to connect multiple USB devices to the TPI.
-
Page 16: Supported Input And Output Modes
In FIG. 2, the diagram displays an AMX device in a typical rack mounting, with full air circulation around the front and back of the device. In this case, the main concern is with heat building up between components, possibly to levels that may affect device operation. -
Page 17: Rack-Mounting The Tpi-Pro-Dvi
TPI-PRO-DVI (Total Presentation Interface-DVI) Rack-Mounting the TPI-PRO-DVI NOTE: Read the Safety Instructions before rack-mounting the TPI. Safety Instructions Connect the unit only to a properly-rated supply circuit. DO NOT stand other units directly on top of the TPI when it is rack mounted, as this will place excessive strain on the ... -
Page 18: Cable Details And Pinout Information
DVI-I Input 3 DVI-I Input 2 DVI-I Input 1 Note: The TPI-PRO-DVI-4 (shown here) has four DVI-I Inputs, the TPI-PRO-DVI-2 has two DVI-I Inputs VIDEO/VGA/DVI Inputs FIG. 4 In order to connect non-DVI input source devices (S-Video, Composite, VGA, and Component) to the DVI Input connectors, the... -
Page 19: Dvi-D Male To Dvi-D Male Single-Link Cable
Cable Details and Pinout Information DVI-D Male to DVI-D Male Single-Link Cable NOTE: This cable corresponds to the CC-DVI-DVI DVI-to-DVI adapter cable (FG10-2170-06), available from AMX. Cable to be composed of: Four UL20276 (28AWG twisted pair + drain wire + aluminum foil/mylar shield) for TMDS signals and shields ... -
Page 20: Dvi-A Male To 5-Bnc Male Cable
Cable Details and Pinout Information DVI-A Male to 5-BNC Male Cable NOTE: This cable type corresponds to the CC-DVI-5BNCM DVI-to-Component cable (FG10-2170-08), available from AMX. Cable to be composed of: Five 75ohm 28 AWG mini-coax cables for the Red, Green, Blue, VSync and HSync signals and returns ... -
Page 21: Dvi-A Male To Triple Rca Male Cable
Cable Details and Pinout Information DVI-A Male to Triple RCA Male Cable NOTE: This cable type corresponds to the CC-DVI-RCA3M DVI-to-Component/Composite cable (FG10-2170-09), available from AMX. Cable to be composed of: Three 75ohm 28 AWG mini-coax cables for the Red, Green and Blue signals and returns ... -
Page 22: Dvi-A Male To S-Video Male Cable
Cable Details and Pinout Information DVI-A Male to S-Video Male Cable NOTE: This cable corresponds to the CC-DVI-SVID DVI-to-S-Video adapter cable (FG10-2170-10), available from AMX. Cable to be composed of: Two 75ohm 28 AWG mini-coax cables for the Luminance (Y) and Chrominance (C) signals and returns ... -
Page 23: Dvi-A Male To Hd15 (Vga) Male Cable
Cable Details and Pinout Information DVI-A Male to HD15 (VGA) Male Cable NOTE: This cable type corresponds to the CC-DVIM-VGAF DVI-to-VGA cable (FG10-2170-13), available from AMX. Cable to be composed of: Three 75ohm 28 AWG mini-coax cables for the Red, Green and Blue signals and returns ... -
Page 24: Wiring And Device Connections
Overview The only physical differences between the TPI-PRO-DVI-4 and TPI-PRO-DVI-2 are the number of VIDEO/VGA/DVI Inputs on the rear panel (and their associated Input LEDs on the front panel), and the number of USB Source Interface ports on the rear panel. -
Page 25: Connections Overview
Wiring and Device Connections Connections Overview FIG. 7 illustrates how all of the basic connections on the TPI-PRO-DVI are used in a basic installation: TOUCH INPUT DB-9 connector allows you to connect one Serial-controlled touch device (i.e. RS232 Touch Screen) OUTPUT 1 - video output to display device #1 OUTPUT 2 - video output to display device #2 INPUT 4 - Video input from PC #4... -
Page 26: Serial Port
NOTE: The TPI and the adapter cables listed above utilize industry-standard pinouts. The only adapter cable that is unique to AMX is the CC-DVI-SVID (DVI-to-S-Video) cable. The others are generally available to purchase from other vendors, assuming that they also utilize industry standard (or equivalent) pinouts. -
Page 27: Video/Vga/Dvi Inputs
Note: The TPI-PRO-DVI-4 (shown here) has four DVI-I Inputs, the TPI-PRO-DVI-2 has two DVI-I Inputs VIDEO/VGA/DVI Inputs FIG. 10 These numbered inputs (1-2 on the TPI-PRO-DVI-2, 1-4 on the TPI-PRO-DVI-4) correspond to the numbered USB (Type B) Device ports (labeled "SOURCE KEYBOARD/MOUSE"). DVI-I Input Ports - Pinouts and Signals NOTE: The DVI Input connectors on the TPI are DVI-I (integrated digital/analog) connectors. -
Page 28: Source Keyboard/Mouse (Usb-Type B) Device Ports 1-4
FIG. 12 NOTE: The TPI requires that the host PC uses USB v2.0. The TPI-PRO-DVI-2 has two USB-Type B Device Ports (corresponding with DVI Inputs 1-2) The TPI-PRO-DVI-4 has four USB-Type B Device Ports (corresponding with DVI Inputs 1-4) ... -
Page 29: Touch Input (Db-9) Port
Wiring and Device Connections The following table lists the pinouts, signals, and pairing associated with the ETHERNET 10/100 connector. ETHERNET 10/100 (RJ-45) Port - Pinouts and Signals Signals Connections Pairing Color TX + 1 --------- 1 1 --------- 2 Orange-White TX - 2 --------- 2 Orange... -
Page 30: Audio Out Connector
Wiring and Device Connections AUDIO OUT Connector The AUDIO OUT connector provides analog line-level stereo audio output, via a 3.5mm mini-stereo jack (FIG. 14). AUDIO OUT Connector ETHERNET 10/100 (RJ-45) Port FIG. 18 The TPI supports WAV and MP3 audio types, at the following sample rates: Supported WAV / MP3 Audio Sample Rates •... -
Page 31: Connecting Usb Input Touch Devices
Wiring and Device Connections Connecting USB Input Touch Devices Insert the input device USB connectors into the appropriate USB connector on the TPI. After the splash-screen disappears: If a USB mouse has been connected, a mouse cursor appears on the screen and its location corresponds to the mouse ... -
Page 32: System Installation
System Installation System Installation Overview FIG. 24 illustrates a typical TPI-PRO-DVI installation: document camera DVD player Apple notebook NI-700 Laptop PC NXA-ENET24 TPI-PRO-DVI projector display screen projection screen System Diagram FIG. 24 The following System Diagrams illustrate common applications for the TPI-PRO-DVI. For detailed pinout descriptions for each connector on the TPI, refer to the Rear Panel Connectors section on page 26. -
Page 33: Configuring The Tpi For Touch Monitor Input
System Installation DVI output from PC connects to TPI INPUT 1 NetLinx Master Touch Monitor Touch input USB connector on touch monitor TPI OUTPUT 1 connects to VGA touch monitor connects to KEYBOARD/MOUSE USB Port on TPI (via DVI-to-VGA adapter cable) (via USB cable) Example 1: TOUCH INPUT (USB Touch Monitor) FIG. -
Page 34: Configuring The Tpi For Pass-Through Control
System Installation NOTE: If you experience problems introducing new devices, install the drivers on the remote PC according to manufacturer suggestions with the device connected directly to the remote PC. Conf iguring the TPI for Pass-Through Control You can control a PC by routing the mouse control through the TPI and displaying the results on a non-touch enabled monitor. In this scenario, the TPI is virtually non-existent as it is akin to connecting the monitor and mouse directly to the rear of the computer, thus the term "pass-through control". -
Page 35: Enabling Video Pass-Through Control On A Touch Monitor
System Installation Enabling Video Pass-Through Control on a Touch Monitor To enable a touch response on a panel page being routed through a computer, you must establish pass-thru control. Pass-thru control allows the TPI to act as a control bridge between a PC and a touch monitor. The touch monitor control option is available only if a Video Fill has been applied to the panel page (in the TPDesign4 (Touch Panel Design software application). - Page 36 System Installation Toggling this coded panel button can enable/disable the pass-thru feature. NOTE: You must set the TPI to match the resolution of the touch monitor’s video output resolution, then select a touch driver. The video should automatically f ill-in the available screen area on the touch monitor. If the image generated from the TPI is slightly "off", adjust the image using the monitor’s on-board video adjustment buttons.
-
Page 37: Configuring The Tpi
The TPI has been factory setup with specific touch panel pages. The first splash screen that appears indicates the TPI is receiving power, loading firmware, and preparing to display the default touch panel page. When the panel is ready, the AMX Splash Screen is replaced by the Initial Panel Setup page. -
Page 38: Setting The Output Resolution
Double-push the RESOLUTION button to return to the previous setting. Go to to view/download the most recent List of http://www.amx.com//assets/manuals/TPI-PRO.Supported.Touch.Monitors.zip Touch Monitors and USB / Serial Touch Drivers Tested with the TPI (including the most current listing of tested USB touch panel drivers). -
Page 39: Calibrating The Tpi
After the "Calibration Successful." message appears, press anywhere to return to the Setup page. If the calibration fails, attempt to calibrate again. If unsuccessful, call AMX Tech Support. NOTE: It is recommended that you calibrate the TPI before its initial use, after completing a f irmware download, and after switching Touch Input Drivers (and touch devices.) -
Page 40: Calibrating The Tpi Using A Serial Touch Monitor
Configuring the TPI Protected Setup page FIG. 33 Enter 1988 in the Password field and press Done when finished. Press the on-screen Reboot button to cycle power to the TPI and incorporate the new settings. The touch monitor goes blank for a few seconds during the reboot process. -
Page 41: Configuring Communication Settings
Configuring Communication Settings Conf iguring Communication Settings Overview Communication between the TPI and the NetLinx Master consists of using an Ethernet connection (DHCP or Static IP). Conf iguring TPI Communication Settings Press the SETUP pushbutton on the front panel (FIG. 34) to open the Setup page. Press to open the Setup page Setup Pushbutton (front panel) FIG. -
Page 42: Assigning A Device Number To The Tpi
Configuring Communication Settings Assigning a Device Number to the TPI Press the front panel SETUP pushbutton to open the Setup page (FIG. 36). Press to access the Protected Setup page (password-protected) Setup page - Protected Setup button FIG. 36 Press the Protected Setup button to open the Protected Setup page. This page is password-protected: Use the on-screen keypad to enter the default password - 1988. -
Page 43: Setting The Serial Port Baud Rate
NOTE: Until you conf igure the System Settings parameters, the Connection Status icon remains red, indicating there is no current connection to a Master. Launch NetLinx Studio and establish communication with the target NetLinx Master. NetLinx Studio is available to download from www.amx.com. This program assists in developing a System Number, Master IP/URL, and Master Port number. -
Page 44: Configuring Ip Settings
Configuring Communication Settings Conf iguring IP Settings Configure the IP Settings for the TPI via options in the System Settings page. IP Settings for the TPI can be configured via either DHCP or a reserved Static IP Address, as described in the following sub-sections: Conf iguring a DHCP Address Press the System Settings button on the Protected Setup page (FIG. -
Page 45: Choosing The Master Connection Mode
Configuring Communication Settings Press the IP Address button to open an on-screen keypad, and enter the static IP address provided by your System Administrator. Press Done to close the keypad. Repeat this process for Subnet Mask and Gateway. Press the Host Name button to open an on-screen keyboard, and enter an alpha-numeric string for the Host Name (optional). If the Host Name is left blank, it will automatically resort to the default - "localhost". -
Page 46: Configuring The Ethernet Connection On The Netlinx Master
NetLinx Studio or your System Administrator. NOTE: Verify that you are using the latest NetLinx Master f irmware (available at www.amx.com). Before you start, verify that the NetLinx Master is receiving power and is communicating via Ethernet with the PC running NetLinx Studio. -
Page 47: Netlinx Master Ip Address - Listen Mode
Configuring Communication Settings NetLinx Studio - Device Addressing dialog FIG. 44 Press the Master IP/URL button to open the on-screen keyboard, and enter the Master’s IP address or URL. This information can be obtained from the Networking Addresses dialog in NetLinx Studio: In NetLinx Studio, select Diagnostics >... -
Page 48: Netlinx Master Ethernet Ip Address - Auto Mode
In NDP (UDP) mode, a connection is established via the NetLinx Master’s on-board WebConsole to bind the TPI to the Master. NOTE: Refer to the NI Series NetLinx Integrated Controllers - WebConsole & Programming Guide (available at www.amx.com) for a full description of the on-board WebConsole. - Page 49 Configuring Communication Settings Press Enter to connect to the Master and open the WebConsole. The initial view is the WebControl page, as shown in FIG. 48. System/Device info: System (read-only): indicates the name of the System currently connected Device: click the down-arrow to select from a list of all devices connected to this Master Refresh: Click to refresh the Device list.
- Page 50 Configuring Communication Settings System - Manage NetLinx tab FIG. 50 The table on this page consists of five columns: NetLinx Device Details Column Description System: Displays the System value being used by the listed NetLinx Master. Device: Displays the assigned device value of the listed unit. This Device entry applies to both the Master and those NDP-capable devices currently connected to that Master.
-
Page 51: Netlinx Master Ethernet Ip Address - Url (Udp) Mode
Configuring Communication Settings NetLinx Master Ethernet IP Address - URL (UDP) Mode In this mode, enter the System Number (zero for an unknown System Number) and the IP/URL of the Master (Master Port Number is defaulted to 1319). Press the Mode field until the option cycles to URL (UDP). By selecting URL (UDP), the System Number field becomes read- only because the panel pulls this value directly from the communicating target Master. -
Page 52: Tpi Conf Iguration Pages
TPI Configuration Pages TPI Conf iguration Pages Overview This section describes each of the configuration pages available on the TPI, and the options contained in each. The main pages are accessed via the four pushbuttons on the front panel (FIG. 52), while several secondary setup pages are accessed via buttons contained in the Main Pages. -
Page 53: Panel Information Page
TPI Configuration Pages Panel Information Page Press the TOUCH pushbutton on the front panel (see FIG. 52 on page 52) to access the Panel Information Page (FIG. 54). Panel Information Page FIG. 54 The Panel Information Page displays various properties of the TPI (read-only): Panel Information Page Back: Saves the changes and returns to the previously active touch panel page. -
Page 54: Calibrate Page
TPI Configuration Pages Calibrate Page Press the CALIBRATE pushbutton on the front panel (see FIG. 52 on page 52) to access the Calibrate Page (FIG. 55). Calibrate Page FIG. 55 The options on this page allow you to calibrate the input touch device (touch monitor) using the selected touch driver. NOTE: Alternatively, the Calibrate Page can be accessed via options on the Protected Setup Page (see Protected Setup Page section on page 64). -
Page 55: Setup - Protected Setup Page
TPI Configuration Pages Setup Page (Cont.) • Setup Page The navigation buttons displayed along the left of the Setup Page provide access to several additional configuration Navigation pages: Buttons: • Protected Setup - Press to access the main Protected Setup Page. Refer to the Protected Setup Page section on page 64. -
Page 56: Setup - Project Information Page
TPI Configuration Pages Setup - Project Information Page Press the Information button on the Setup Page (see FIG. 56 on page 54) to access the Project Information Page (FIG. 58). Setup - Project Information Page FIG. 58 The Project Information page displays various properties of the TPDesign4 project file currently loaded on the TPI (read-only). The items on this page reflect the items on the Project Information tab of the Project Properties dialog in TPDesign4: Setup - Project Information Page •... -
Page 57: Setup - Time & Date Settings Page
TPI Configuration Pages Setup - Time & Date Settings Page Press the Time button on the Setup Page (see FIG. 56 on page 54) to access the Time & Date Settings Page (FIG. 59). Setup - Time & Date Settings Page FIG. -
Page 58: Setup - Audio Settings Page
TPI Configuration Pages Setup - Audio Settings Page Press the Audio button on the Setup Page (see FIG. 56 on page 54) to access the Audio Settings Page (FIG. 60). Setup - Audio Settings Page FIG. 60 The options on the Audio Settings page allow you to adjust the master volume and default panel sounds on the TPI: Setup - Audio Settings Page Master Volume: This section allows you to adjust the current sound level on the unit’s internal speaker:... -
Page 59: Setup - Video Settings Page
TPI Configuration Pages Setup - Video Settings Page Press the Video button on the Setup Page (see FIG. 56 on page 54) to access the Video Settings Page. The options in the Video Settings page allow you to configure the properties of the incoming video signal(s). This page features up to four tabs (SLOT 1 - SLOT 4) - one for each source input on the TPI. -
Page 60: Configuring Incoming Video Signals
TPI Configuration Pages Setup - Video Settings Page Input: Press to cycle through the options for video input types: Composite 1/2/3, S-Video, Computer (VGA), Component (YPrPb), and DVI. Composite 1/2/3: • Composite 1 = Corresponds to a signal connected to the Red connector on the DVI-to-3RCA Male adapter cable. •... -
Page 61: Video Parameters
TPI Configuration Pages When using a touch monitor, the TOUCH DRIVER selected should compensate for the visible area. If not, continue with these steps. Open the tab (Slot 1 - Slot 4) that corresponds to the Input that you want to adjust. Press Input to cycle through the available Input Type options: Composite 1, Composite 2, Composite 3 ... -
Page 62: Configuring The Input Resolution (Vga & Component Only)
TPI Configuration Pages Video Parameters (Cont.) • Phase: Use the UP/DN buttons to adjust the phase (RGB tracking/signal) level of the incoming signal. • This option only appears if you select Computer (VGA) or Component (YPrPb) as the input type. •... - Page 63 TPI Configuration Pages Position the slider to it’s left-most position to set Input Resolution to "auto" Input Resolution popup page FIG. 66 Use the slider on this page to select a known input resolution (use the Up/Down arrows to adjust). ...
-
Page 64: Protected Setup Page
Protected Setup Page Protected Setup Page Overview Select Protected Setup on the Setup page to access the Protected Setup page (FIG. 67). Protected Setup page FIG. 67 NOTE: This page is password-protected. Enter the factory default password (1988) into the on-screen keypad to access this page. Protected Setup Page Back: Saves the changes and returns to the previously active touch panel page. - Page 65 • Remove User Pages - press to remove all TPD4 touch panel pages currently loaded on the TPI (including the pre- installed AMX Demo pages). Pressing this button launches the Conf irmation dialog which prompts you to confirm your selection.
-
Page 66: Protected Setup - System Settings Page
• The choices are: Auto (default), 10 Half Duplex, 10 Full Duplex, 100 Half Duplex, or 100 Full Duplex. • Default = Auto. This setting is recommended for most situations. • MAC Address: Displays a read-only field that is factory set by AMX for the built-in Ethernet interface. TPI-PRO-DVI - Instruction Manual... -
Page 67: Protected Setup - Calibrate Page
Protected Setup Page Protected Setup - System Settings Page (Cont.) Master Connection: • Ethernet Type: Sets the NetLinx Master to communicate to the TPI via Ethernet. Ethernet uses a CAT-5 cable (10/100Base T terminated in an RJ-45 connector) to network computers together and is used in most LAN (local area networks). This description is also used to refer to both wired and wireless communication. -
Page 68: Protected Setup - G4 Web Control Page
Protected Setup Page Protected Setup - G4 Web Control Page Select G4 Web Control on the Protected Setup Page (see FIG. 67 on page 64) to access the G4 Web Control Page (FIG. 70). Protected Setup - G4 Web Control Page FIG. -
Page 69: Protected Setup - Other Settings
Protected Setup Page Protected Setup - Other Settings Select Other Settings on the Protected Setup Page (see FIG. 67 on page 64) to open a slider with the following options (FIG. 71): Cache - Press to access the Cache Page (FIG. 72) ... -
Page 70: Enabling Image Cache
Protected Setup Page Protected Setup (Other Settings) - Cache Page Image Cache Settings • Flash Cache Size: Press the Up and Down arrows to add and remove Flash memory. • Flash memory allocation cannot exceed the amount of Flash memory on the panel. •... -
Page 71: Protected Setup (Other Settings) - Password Settings Page
Protected Setup Page Protected Setup (Other Settings) - Password Settings Page Select Passwords from the Other Settings slider (see FIG. 71 on page 69) to access the Password Settings Page (FIG. 73): Protected Setup (Other Settings) - Password Settings Page FIG. -
Page 72: Protected Setup - Tools
Protected Setup Page Protected Setup - Tools Select Tools on the Protected Setup Page (see FIG. 67 on page 64) to open a slider with the following options (FIG. 71): Panel Logs - Press to access the Panel Connection Logs page (FIG. 75) ... -
Page 73: Protected Setup (Tools) - Panel Statistics Page
Protected Setup Page Protected Setup (Tools) - Panel Statistics Page Select Panel Statistics from the Tools slider (see FIG. 74) to access the Panel Statistics Page (FIG. 76): Protected Setup (Tools) - Panel Statistics Page FIG. 76 The options on the Panel Statistics page allow you to track the connection status (including ICSP messages, Blink messages, Ethernet connection statistics, and Wireless connection statistics) for the panel. -
Page 74: Protected Setup (Tools) - Connection Utility Page
Protected Setup Page Protected Setup (Tools) - Connection Utility Page Select Connection Utility from the Tools slider (see FIG. 74) to access the Connection Utility Page (FIG. 77): Protected Setup (Tools) - Connection Utility Page FIG. 77 The options on the Connection Utility page allows you to view query and response statistics for your connection. Connection Utility Page Connection Information •... -
Page 75: Protected Setup - Takenote Control Page
TPI. The TPI supports up to eight external TakeNote clients simultaneously, in addition to the internal connection. A remote client can be any other AMX G4 touch panel using either a Computer Control button with TakeNote enabled, or a TakeNote button. - Page 76 Protected Setup Page Protected Setup - TakeNote Control Page (Cont.) Web Server Settings • Enable/Enabled: The Enable/Enabled button toggles between the two Web Server activation settings: • Enable - deactivates the Web Server feature on the TPI. • Enabled - activates the Web Server feature on the TPI. Default = Disabled.
-
Page 77: Netlinx Programming
NetLinx Programming NetLinx Programming Overview You can program the TPI using the commands described in this section to perform a wide variety of operations. NOTE: Verify you are using the latest NetLinx Master f irmware as well as the latest versions of NetLinx Studio and TPDesign. Button Assignments •... -
Page 78: Fixed Fonts And Id Numbers
You cannot use the following number values for programming purposes when changing border styles. TPD4 border styles can ONLY be changed by using the name. Border Styles By Name None Menu Bottom Rounded 15 AMX Elite -L Menu Bottom Rounded 25 AMX Elite -M Menu Bottom Rounded 35 AMX Elite -S... - Page 79 NetLinx Programming Border Styles By Name (Cont.) Circle 25 Menu Bottom Rounded 95 Circle 35 Menu Bottom Rounded 105 Circle 45 Menu Bottom Rounded 115 Circle 55 Menu Bottom Rounded 125 Circle 65 Menu Bottom Rounded 135 Circle 75 Menu Bottom Rounded 145 Circle 85 Menu Bottom Rounded 155 Circle 95...
-
Page 80: Border Styles By Numbers
NetLinx Programming Border Styles By Name (Cont.) Oval H 100x50 Menu Left Rounded 115 Oval H 150x75 Menu Left Rounded 125 Oval H 200x100 Menu Left Rounded 135 Oval V 30x60 Menu Left Rounded 145 Oval V 50x100 Menu Left Rounded 155 Oval V 75x150 Menu Left Rounded 165 Oval V 100x200... -
Page 81: Send_Commands
NetLinx Programming SEND_COMMANDs New command format starts with a '^' '^' commands have the capability of assigning a variable text address range and button state range. Variable text address ranges allow the user to target 1 or more variable text channels in a single command. ... -
Page 82: Phe
NetLinx Programming Page Commands (Cont.) @PHE Set the hide effect for the specified pop-up page to the named hide effect. Syntax: "'@PHE-<popup page name>;<hide effect name>'" Variables: • popup page name = Name of the page on which the pop-up is displayed (1 - 50 ASCII characters). •... -
Page 83: Ppk
NetLinx Programming Page Commands (Cont.) @PPK Kill a specific pop-up page from all pages. Kill refers to the deactivating (Off) of a pop-up window from all pages. If the pop-up page is part of a group, the whole group is deactivated. This command works in the same way as the 'Clear Group' command in TPDesign4. -
Page 84: Pse
NetLinx Programming Page Commands (Cont.) @PSE Set the show effect for the specified pop-up page to the named show effect. Only 1 coordinate is ever needed for an effect, however the command will specify both. This command sets the location at which the effect will begin at. Syntax: "'@PSE-<popup page name>;<show effect name>'"... -
Page 85: Button Commands With Embedded Codes
NetLinx Programming Page Commands (Cont.) PPON Activate a specific pop-up page to launch on either a specified page or the current page. If the pop-up page is already On, do not re-draw it. This command works in the same way as the ’Show Popup’ command in TPDesign4. Note: If the page name is empty, the current page is used (see example 2). - Page 86 NetLinx Programming Button Commands With Embedded Codes (Cont.) Embedded Codes (Cont.): '%CF<on fill color>' Set Fill Color. '%CB<on border color>' Set Border Color. '%CT<on text color>' Set Text Color. '%SW<1 or 0>' Show/Hide button. '%ST<style>' Button Style. '%SO<sound>' Set Button Sound '%EN<1 or 0>' Enable/Disable button.
-
Page 87: Button Commands
NetLinx Programming Button Commands NOTE: A device must f irst be def ined in the NetLinx programming language with values for the Device: Port: System (in all programming examples - Panel is used in place of these values and represents all compatible G4 devices). These Button Commands are not case sensitive. -
Page 88: Apf
NetLinx Programming Button Commands (Cont.) ^APF Add page flip action to a button if it does not already exist. Syntax: "'^APF-<vt addr range>,<page flip action>,<page name>'" Variables: • variable text address range = 1 - 4000. • page flip action = Stan[dardPage] - Flip to standard page Prev[iousPage] - Flip to previous page Show[Popup] - Show Popup page... -
Page 89: Bcb
NetLinx Programming Button Commands (Cont.) ?BCB Get the current border color. Syntax: "'?BCB-<vt addr range>,<button states range>'" Variables: • variable text address range = 1 - 4000. • button states range = 1 - 256 for multi-state buttons (0 = All states, for General buttons, 1 = Off state and 2 = On state). •... -
Page 90: Bct
NetLinx Programming Button Commands (Cont.) ^BCT Set the text color to the specified color. Only if the specified border color is not the same as the current color. Note: Color can be assigned by color name (without spaces), number or R,G,B value (RRGGBB or RRGGBBAA). Syntax: "'^BCT-<vt addr range>,<button states range>,<color value>'"... -
Page 91: Bim
NetLinx Programming Button Commands (Cont.) ^BIM Set the input mask for the specified address. Syntax: "'^BIM-<vt addr range>,<input mask>'" Variables: • variable text address range = 1 - 4000. • input mask = Refer to the Text Area Input Masking section on page 9 for character types. Example: SEND_COMMAND Panel,"'^BIM-500,AAAAAAAAAA'"... -
Page 92: Bmf
NetLinx Programming Button Commands (Cont.) ^BMF Set any/all button parameters by sending embedded codes and data. Syntax: "'^BMF-<vt addr range>,<button states range>,<data>'" Variables: • variable text address char array = 1 - 4000. • button states range = 1 - 256 for multi-state buttons (0 = All states, for General buttons, 1 = Off state and 2 = On state). •... -
Page 93: Bnc
NetLinx Programming Button Commands (Cont.) ^BNC Clear current TakeNote annotations. Syntax: "'^BNC-<vt addr range>,<command value>'" Variables: • variable text address range = 1 - 4000. • command value = (0= clear, 1= clear all). Example: SEND_COMMAND Panel,"'^BNC-973,0'" Clears the annotation of the TakeNote button with variable text 973. ^BNN Set the TakeNote network name for the specified Addresses. -
Page 94: Bor
SEND_COMMAND Panel,"'^BOR-500.504&510,AMX Elite -M'" Sets the border by name (AMX Elite) to those buttons with the variable text range of 500-504 & 510-515. The border style is available through the TPDesign4 border-style drop-down list. Refer to the Border Styles By Name section on page 78 for more information. -
Page 95: Brd
NetLinx Programming Button Commands (Cont.) ?BRD Get the current border name. Syntax: "'?BRD-<vt addr range>,<button states range>'" Variables: • variable text address range = 1 - 4000. • button states range = 1 - 256 for multi-state buttons (0 = All states, for General buttons, 1 = Off state and 2 = On state). •... -
Page 96: Bvn
NetLinx Programming Button Commands (Cont.) ^BVN Set the network name for the specified address. Syntax: "'^BVN-<vt addr range>,<network name>'" Variables: • variable text address range = 1 - 4000. • network name = 1 - 50 ASCII characters. Example: SEND_COMMAND Panel,"'^BVN-500,191.191.191.191'" Sets the network name to ’191.191.191.191’... -
Page 97: Cpf
NetLinx Programming Button Commands (Cont.) ^CPF Clear all page flips from a button. Syntax: "'^CPF-<vt addr range>'" Variable: • variable text address range = 1 - 4000. Example: SEND_COMMAND Panel,"'^CPF-500'" Clears all page flips from the button. ^DPF Delete page flips from button if it already exists. Syntax: "'^DFP-<vt addr range>,<actions>,<page name>'"... -
Page 98: Fon
NetLinx Programming Button Commands (Cont.) ?FON Get the current font index. Syntax: "'?FON-<vt addr range>,<button states range>'" Variables: • variable text address range = 1 - 4000. • button states range = 1 - 256 for multi-state buttons (0 = All states, for General buttons, 1 = Off state and 2 = On state). •... -
Page 99: Gll
NetLinx Programming Button Commands (Cont.) ^GLL Change the bargraph lower limit. Syntax: "'^GLL-<vt addr range>,<bargraph low>'" Variables: • variable text address range = 1 - 4000. • bargraph limit range = 0 - 65535 (bargraph lower limit range). Example: SEND_COMMAND Panel,"'^GLL-500,150'" Changes the bargraph lower limit to 150. -
Page 100: Ico
NetLinx Programming Button Commands (Cont.) ^ICO Set the icon to a button. Syntax: "'^ICO-<vt addr range>,<button states range>,<icon index>'" Variable: variable text address range = 1 - 4000. button states range = 1 - 256 for multi-state buttons (0 = All states, for General buttons 1 = Off state and 2 = On state). icon index range = 0 - 9900 (a value of 0 is clear). -
Page 101: Jsb
NetLinx Programming Button Commands (Cont.) ?JSB Get the current bitmap justification. Syntax: "'?JSB-<vt addr range>,<button states range>'" Variables: • variable text address range = 1 - 4000. • button states range = 1 - 256 for multi-state buttons (0 = All states, for General buttons, 1 = Off state and 2 = On state). •... -
Page 102: Jst
NetLinx Programming Button Commands (Cont.) ^JST Set text alignment using a numeric keypad layout for those buttons with a defined address range. The alignment of 0 is followed by ',<left>,<top>'. The left and top coordinates are relative to the upper left corner of the button. Syntax: "'^JST-<vt addr range>,<button states range>,<new text alignment>'"... -
Page 103: Sho
NetLinx Programming Button Commands (Cont.) ^SHO Show or hide a button with a set variable text range. Syntax: "'^SHO-<vt addr range>,<command value>'" Variables: • variable text address range = 1 - 4000. • command value = (0= hide, 1= show). Example: SEND_COMMAND Panel,"'^SHO-500.504&510.515,0'"... -
Page 104: Tec
NetLinx Programming Button Commands (Cont.) ^SLT Example: (Cont.) SEND_COMMAND TP,"'^SLT-1,?input'" If input 1 is set to composite 1, the Command response will be: ^SLT-1,input=comp1 If input 1 is set to composite 2, the Command response will be: ^SLT-1,input=comp2 If input 1 is set to composite 3, the Command response will be: ^SLT-1,input=comp3 If input 1 is set to svideo, the Command response will be: ^SLT-1,input=svideo If input 1 is set to RGB, the Command response will be: ^SLT-1,input=rgb If input 1 is set to component, the Command response will be: ^SLT-1,input=component... -
Page 105: Tec
NetLinx Programming Button Commands (Cont.) ?TEC Get the current text effect color. Syntax: "'?TEC-<vt addr range>,<button states range>'" Variables: • variable text address range = 1 - 4000. • button states range = 1 - 256 for multi-state buttons (0 = All states, for General buttons, 1 = Off state and 2 = On state). •... -
Page 106: Txt
NetLinx Programming Button Commands (Cont.) ^TXT Assign a Non-Unicode text string to those buttons with a defined address range. Syntax: "'^TXT-<vt addr range>,<button states range>,<new text>'" Variables: • variable text address range = 1 - 4000. • button states range = 1 - 256 for multi-state buttons (0 = All states, for General buttons, 1 = Off state and 2 = On state). •... -
Page 107: Run Time Operation Commands
NetLinx Programming Run Time Operation Commands NOTE: A device must f irst be def ined in the NetLinx programming language with values for the Device: Port: System (in all programming examples - Panel is used in place of these values and represents all compatible G4 devices). Serial Commands are used in the AXCESSX Terminal Emulator mode. -
Page 108: Akr
NetLinx Programming Run Time Operation Commands (Cont.) @AKR Remove keyboard or keypad that was displayed using 'AKEYB', 'AKEYP', 'PKEYP', @AKB, @AKP, @PKP, @EKP, or @TKP commands. Syntax: "'@AKR'" Example: SEND COMMAND Panel,"'@AKR'" Removes the Keyboard/Keypad. BEEP Output a beep. Syntax: "'BEEP'"... -
Page 109: Ores
NetLinx Programming Run Time Operation Commands (Cont.) ORES Changes the output resolution at run time. The description is optional and is used for certain resolutions. Standard output modes are: Horizontal Vertical Refresh Description Command ‘ORES-640x480@60’ ‘ORES-640x480@72’ ‘ORES-640x480@75’ ‘ORES-800x600@60’ ‘ORES-800x600@72’ ‘ORES-800x600@75’ ‘ORES-848x480@60’... -
Page 110: Setup
NetLinx Programming Run Time Operation Commands (Cont.) SETUP Send panel to Setup page. Syntax: "'SETUP'" Example: SEND COMMAND Panel,"'SETUP'" Sends the panel to the Setup Page. SLEEP Force the panel into screen saver mode. Syntax: "'SLEEP'" Example: SEND COMMAND Panel,"'SLEEP'" Forces the panel into screen saver mode. -
Page 111: Input Commands
NetLinx Programming Run Time Operation Commands (Cont.) ^TPS Selects Serial Touch data pass through. Syntax: SEND_COMMAND <DEV>,"'^TPS-<pass data>'" Variables (pass data): • 0 = Disables the touch pass-thru feature from the rear touch serial port through the front panel config serial port. •... -
Page 112: Mps
NetLinx Programming Input Commands (Cont.) ^MPS Set the mouse pass-thru. Note: This command can be overridden by a ^PPS command (see page 112). Syntax: SEND_COMMAND <DEV>,"'^MPS-<pass data>'" Variables: • pass data = <blank/empty> = Disables the mouse and clears the cursor from the display. 0 = Clears the pass through. -
Page 113: Slt
NetLinx Programming Input Commands (Cont.) ^SLT Send a command to a given slot. Only available with VG-Series and TPI-PRO panels. These commands are directed at the video card subsystems. Slot commands contain a series of name/value pairs separated by commas. These commands are case insensitive. -
Page 114: Embedded Codes
NetLinx Programming Input Commands (Cont.) ^SLT (Cont.) ?Resolution: Query the detected resolution for an input. Syntax: ?resolution The TPI will respond with a DATA COMMAND event from port 1 of the panel. The DATA.TEXT of the event will be in the following format. -
Page 115: Panel Setup Commands
NetLinx Programming Embedded Codes Decimal numbers Hexidecimal values Virtual keystroke ($9D) Windows ($9E) Menu ($9F) Up Arrow ($A0) Down Arrow ($A1) Left Arrow ($A2) Right Arrow ($C0) CTRL key up ($C1) ALT key up ($C2) Shift key up Panel Setup Commands NOTE: A device must f irst be def ined in the NetLinx programming language with values for the Device: Port: System (in all programming examples - Panel is used in place of these values and represents all compatible G4 devices). -
Page 116: Listbox Commands
NetLinx Programming Listbox Commands Listboxes provide flexibility to remote pages once constrained by physical display areas. Both static and dynamic tables can display multiple devices and items when used with proper navigation tools. List Box commands can be used in conjunction with the application TPDesign4 to create both static and dynamic commands. -
Page 117: List View Commands
NetLinx Programming Data List Commands (Cont.) ^LDD Deletes the data list Syntax: "'^LDD-<list address>'" Variables: • list address = address where data resides Example: SEND_COMMAND Device, "'^LDD-1'" Deletes the data list located at address 1. ^LDT Set the column type for a data list by modifying its column type. Column is the index of the first type to set. Additional types sent will be set in this order: 0 - Text 1 - Reserved... -
Page 118: Lvf
NetLinx Programming List View Commands (Cont.) ^LVF Filter a list by setting what column to use and what string to compare. Note that setting column to zero or data to none makes the filtered ordering the same as sorted ordering. Update must be called for changes to take effect. Syntax: SEND_COMMAND <DEV>,"'^LVF-<view address>,<uniflag>,<column>,<search data>'"... -
Page 119: Dynamic Image Commands
Adds a new resource. • The resource name is ’New Image’ • %P (protocol) is an HTTP • %H (host name) is AMX.COM • %A (file path) is Lab/Test_f ile • %F (file name) is test.jpg. Note that the %%5F in the file path is actually encoded as %5F. -
Page 120: Raf, ^Rmf - Embedded Codes
NetLinx Programming Dynamic Image Commands (Cont.) ^RFR Force a refresh for a given resource. Syntax: "'^RFR-<resource name>'" Variable: resource name = 1 - 50 ASCII characters. Example: SEND_COMMAND Panel,"'^RFR-Sports_Image'" Forces a refresh on ’Sports_Image’. ^RMF Modifies any and all resource parameters by sending embedded codes and data. Since the embedded codes are preceded by a '%' character, any '%' character contained in the URL must be escaped with a second '%' character (see example). -
Page 121: Escape Sequences
Level port X Resolution of Current button Y Resolution of Current button Name of Button For instance, http://www.amx.com/img.asp?device=$DV would become http://www.amx.com/img.asp?device=10001. TakeNote Commands NOTE: ^TNA commands control the local TakeNote client (client/server same physical box), while ^TNB commands control the remote TakeNote clients. -
Page 122: Tna-Autohide
NetLinx Programming TakeNote Commands (Cont.) ?TNA-AUTOEXPOSE Queries the status of the TakeNote control autoexpose feature. Syntax: SEND_COMMAND <DEV>,"'?TNA-CANVASCOLOR'" Example response: "Custom Event: ID: 1, Type: 1500, Flag 10, Value1: <0|1> Text: autoexpose <enabled|disabled>" ^TNA-AUTOHIDE Enables the TakeNote control autohide feature. When enabled, the TakeNote control window is automatically minimized when the drawing is started. -
Page 123: Tna-Pencolor
NetLinx Programming TakeNote Commands (Cont.) ^TNA-PENCOLOR Sets the pen color for a remote TakeNote client. Valid values are predefined NetLinx color names or hex coded Alpha + RGB (ARGB) values. The LSB of ARGB are always reserved. Note that if you request a color that has a reserved bit set, the bit will be ignored. -
Page 124: Tna-Session
Variable: text = The string to create and display onscreen. It is ready for placement using the current pen color and text size. Example: SEND_COMMAND Panel,"'^TNA-TEXT,AMX makes presentations fun!'" ^TNA-TEXTSIZE Sets the size of the text onscreen. Syntax: SEND_COMMAND <DEV>,"'^TNA-TEXTSIZE,<size>'"... -
Page 125: Tnb-Pencolor
NetLinx Programming TakeNote Commands (Cont.) ^TNB-PENCOLOR Sets the pen color for a remote TakeNote client. Valid values are predefined NetLinx color names or hex coded Alpha + RGB (ARGB) values. The LSB of ARGB are always reserved. Note that if you request a color that has a reserved bit set, the bit will be ignored. -
Page 126: Tnb-Penstyle
NetLinx Programming TakeNote Commands (Cont.) ?TNB-PENSTYLE Queries the current pen style. Syntax: SEND_COMMAND <DEV>,"'?TNA-<addr>,PENSTYLE'" Example: SEND_COMMAND Panel,"'?TNB-5,PENSTYLE'" Example Response: "Custom Event: ID: 1, Type: 1500, Flag 1, Value1: <0-2> Text: <solid(0), dotted(1), dashed(2)>" ^TNB-PENWIDTH Sets the pen width. Valid values are 1-50. Syntax: SEND_COMMAND <DEV>,"'^TNB-<addr>,PENWIDTH,<width>'"... -
Page 127: Tnb-Textsize
NetLinx Programming TakeNote Commands (Cont.) ?TNB-TEXTSIZE Queries the current text size. Syntax: SEND_COMMAND <DEV>,"'?TNB-<addr>,TEXTSIZE'" Example: SEND_COMMAND Panel,"'?TNB-5,TEXTSIZE'" Example response: "Custom Event: ID: 1, Type: 1500, Flag 8, Value1: 50 Text: TextSize" ^TNB-TOOLTYPE Sets the tool type for drawing. Some of the commands are simple aliases for convenience. For instance, diamond is the same as polygon, 4. -
Page 128: Programming - Button Properties
Programming - Button Properties The following sections describe various button properties, which are set within the TPDesign4 Touch Panel Design program. TPDesign4 is available to download from www.amx.com. Refer to the TPDesign4 online help for detailed instructions on setting button. -
Page 129: Input Mask Character Types
NetLinx Programming With this feature, it is NOT necessary to: • Limit you to a choice of selections • Handle complex input tasks such as names, days of the week, or months by name • Perform complex validation such as Subnet Mask validation Input Mask Character Types These character types define what information is allowed to be entered in any specific instance. -
Page 130: Input Mask Literals
(Hyper Text Transport Protocol) and that the information resides on a host machine named www.amx.com. The image on that host machine is given an assignment (by the program) name of company-info-home.asp (Active Server Page). The exact meaning of this name on the host machine is both protocol dependent and host dependent. The information normally resides in a file, but it could be generated dynamically. - Page 131 NetLinx Programming Other used escape sequences include: Escape Sequences Sequence Panel Information Device Number System Number IP Address Host Name Mac Address Neuron ID X Resolution of current panel mode/file Y Resolution of current panel mode/file X Resolution of current button Y Resolution of current button Name of button Current state...
-
Page 132: Terminal/Telnet Commands
Terminal/Telnet Commands Terminal/Telnet Commands Overview The following telnet/terminal commands are supported by the TPI, via the SERIAL (DB-9) port on the front panel (see the SERIAL Port section on page 26). Terminal/Telnet Commands Show the amount of free space on the disk. disk free Show the DNS configuration of a device. -
Page 133: Upgrading Firmware
Upgrading Firmware Upgrading Firmware Overview The process of updating firmware requires a communicating NetLinx Master. The steps for updating firmware to a TPI are virtually identical to those necessary for updating .KIT files to a NetLinx Master, except that the target device is a "panel" instead of a Master. Refer to either your Master’s literature or NetLinx Studio online help for those instructions. -
Page 134: Upgrade The Tpi Firmware
Sending Firmware to the TPI (via NetLinx Studio) NOTE: Check www.amx.com for the latest f irmware (*.KIT f ile) for the TPI. Firmware updates are available for registered AMX Dealers to download from the Tech Center section of the website. - Page 135 Master Controllers use Kit files for firmware upgrades. A Kit file (*.kit) is a package of several files, all of which are required to upgrade the firmware, and are available online via www.amx.com. The Online Tree (Online Tree tab of the Workspace Bar) displays information about each online device, including the current ...
-
Page 136: Using G4 Web Control
® Overview G4 Web Control allows you to use a PC to interact with an AMX G4 Touch Panel (including the TPI) via the web. The TPI can support up to four simultaneous G4 Web Control connections. Refer to the Protected Setup - G4 Web Control Page section on page 68 for descriptions of all of the options on the G4 Web. -
Page 137: Using The Netlinx Master To Control The Tpi
Both HTTP and HTTPS Ports are enabled by default. If the Master has been configured for secured communication, click OK to accept the AMX SSL certificate (if SSL is enabled) and then enter a valid Username and Password into the fields in the Login dialog. - Page 138 Using G4 Web Control® Connection Details dialog FIG. 87 NOTE: This is not the IP address of the Master, but the IP address of the target touch panel. You can f ind the IP address in the Wired Ethernet - System Connection > IP Settings section. If you setup a WebControl password on the G4 WebControl page, a G4 Authentication dialog appears in the secondary browser window (FIG.
-
Page 139: Using Takenote
Using Takenote™ Using Takenote™ Overview The TakeNote application allows you to create on-screen annotations over the displayed video sources, using a Pointing device (i.e. USB mouse or touch screen) connected to a TPI. Refer to the Protected Setup - TakeNote Control Page section on page 75 for descriptions of all of the options on the ... -
Page 140: Takenote Menu Bar
Using Takenote™ TakeNote Menu Bar The options in the TakeNote Menu Bar (FIG. 91) are described below: Undo last annotation Redo last annotation Draw freehand curved line Draw straight line Draw a rectangle Draw an oval Pointer Select Object tool Delete selected object Save Access the Shape Menu Bar... -
Page 141: Drawing Annotation Tools
Using Takenote™ Drawing Annotation Tools The top portion of the TakeNote Menu Bar contains the main annotation tool set (FIG. 92): Undo last annotation Redo last annotation Draw freehand curved line Draw straight line Draw a rectangle Draw an oval Select Object tool Pointer Save... -
Page 142: Using The Select Object Tool
Using Takenote™ Use the options in the Shape Menu Bar (see FIG. 99 on page 144) to draw triangles, diamonds and hexagons (see the Shape Options Menu Bar section on page 144 for details). Using the Select Object Tool All lines, shapes and text annotations are treated as Objects in TakeNote. Once they are on-screen, each line can be selected to move or delete, using the Select Object tool. -
Page 143: Using The Pointer
Using Takenote™ Using the Pointer Select the Pointer tool to place a "pointer" on the screen, in the form of a colored dot that can be moved on-screen via the pointing device (i.e. the mouse). The pointer is displayed only when the primary select button on the pointing device is enabled (i.e. the left mouse button is clicked, or the touchscreen is touched). -
Page 144: Changing The Storage Location For Captured Takenote Screen Images
Using Takenote™ Changing the Storage Location For Captured TakeNote Screen Images The screen image will be saved according to the settings specified in the TakeNote Control (Protected Setup) page: Open the TakeNote Control page (FIG. 89): Press to cycle through the Storage Location options: USB Priority (default) Local Disk... -
Page 145: Drawing A Shape
Using Takenote™ Drawing a Shape Select one of the shape icons (triangle, diamond or hexagon), then click-and-drag to draw the selected shape: Triangles - The triangle tool draws isosceles triangles, with a straight line at the bottom relative to the cursor position ... -
Page 146: Inserting An Arrow Icon
Using Takenote™ Inserting an Arrow Icon Select an Arrow button and click on the screen to draw an arrow icon at the cursor location (FIG. 104): Use the color options in the Click to place Arrow Pen Options Menu Bar to set icons on the screen the color of each Arrow Icon before adding it to the screen... -
Page 147: Creating Text Annotations
Using Takenote™ Press Clear to clear all characters. Press Delete to delete the character at the cursor position. Press Home to place the cursor at the beginning of the text line; press End to jump to the end of the line. ... -
Page 148: Pen Options Menu Bar
Using Takenote™ Pen Options Menu Bar Click the Pen button in the TakeNote Menu Bar (see FIG. 91 on page 140) to access the Pen Options Menu Bar FIG. 108: Draw a solid line Draw a dotted line Draw a dashed line Click and drag to set the line width (1-50) Current color selection is... -
Page 149: Canvas Options Menu Bar
Using Takenote™ Canvas Options Menu Bar Press the Canvas button on the TakeNote Menu Bar to access the Canvas Options Menu Bar (FIG. 109): Show white canvas Show black canvas Show screen only (no visible canvas layer) Close the Canvas Options Menu Bar (return to the main TakeNote Menu Bar) Canvas Options Menu Bar FIG. -
Page 150: Hiding Takenote
TakeNote Control page) to Local Disk - see the Changing the Storage Location For Captured TakeNote Screen Images section on page 144 for details. Launching the AMX TakeNote Web Application Verify that the Web Server is enabled in the TakeNote Control page, as shown in FIG. 113. -
Page 151: The Amx Takenote Web Application User Interface
The AMX TakeNote application is opened in the browser window. The AMX TakeNote Web Application User Interface FIG. 114 shows the AMX TakeNote Web Application, and identifies the main features of the user interface: Menu Bar Download selected file(s) -
Page 152: Thumbnail Images
Using Takenote™ Thumbnail Images Each image currently saved on the TPI’s Local Disk is represented in the AMX TakeNote application with a thumbnail image (FIG. 115). Thumbnail Image Thumbnail Image Thumbnail Image (not selected) (selected for preview) (checked for deletion) Thumbnail Images FIG. -
Page 153: Downloading Captured Takenote Image Files To A Local Directory
Downloading Captured TakeNote Image Files To a Local Directory Launch the AMX TakeNote Web application. If the application is already open, select File > Refresh to refresh the image list. In the Thumbnail Images window, select a file that you want to save to a local directory on your PC or LAN. -
Page 154: Deleting Captured Takenote Image Files
Deleting Captured TakeNote Image Files Launch the AMX TakeNote Web application. If the application is already open, select File > Refresh to refresh the image list. In the Thumbnail Images window, place a check in the checkbox of each image file that you want to permanently delete from the TPI’s local disk (FIG. -
Page 155: Appendix A: Supported Input And Output Modes
Appendix A: Supported Input and Output Modes Appendix A: Supported Input and Output Modes Overview This section lists the supported Input and Output modes for the TPI-PRO-DVI. Supported Input Modes Use the ^SLT Input Command to manually specify the input mode (see ^SLT on page 103). Supported Input Modes - DVI and RGB The following table lists the supported input modes for DVI and RGB: Supported Input Modes for DVI and RGB... -
Page 156: Supported Input Modes - Component
Appendix A: Supported Input and Output Modes Supported Input Modes - Component The following table lists the supported input modes for Component: Supported Input Modes for Component Resolution Standard 720x240@60 CEA 770.2 720x288@50 720x480@60 ITU-R BT.1358 / SMPTE 296M 720x576@50 ITU-R BT.1358 1280x720@25 SMPTE 296M... - Page 157 Appendix A: Supported Input and Output Modes Additional output modes for TPI-PRO-DVI are: Standard output modes for TPI-PRO-DVI Resolution Standard Command 720x480@60 CEA861 ‘ORES-720x480@60 CEA’ 720x576@50 CEA861 ‘ORES-720x576@50 CEA’ 1280x720@50 CEA861 ‘ORES-1280x720@50 CEA’ 1280x720@60 CEA861 ‘ORES-1280x720@60 CEA’ 1920x1080@50 CEA861 ‘ORES-1920x1080@50 CEA’ 1920x1080@60 CEA861 ‘ORES-1920x1080@60 CEA’...
-
Page 158: Appendix B: Using Netlinx Studio To Connect To A Netlinx Master
Appendix B: Using NetLinx Studio to Connect to a NetLinx Master Appendix B: Using NetLinx Studio to Connect to a NetLinx Master Overview The options in the NetLinx Studio Workspace Communication Settings and Communications Settings dialogs allow you to define various communication settings, to allow you to connect NetLinx Studio to NetLinx Masters. - Page 159 Appendix B: Using NetLinx Studio to Connect to a NetLinx Master Communications Settings Dialog - Network Tab List of Addresses: This table lists all TCP/IP Addresses that have been configured and saved in NetLinx Studio. This table presents the following information for each address in the list (as entered in the New TCP/IP Setting dialog when each address is defined.
-
Page 160: Manually Entering The Master's Ip Address Information
Appendix B: Using NetLinx Studio to Connect to a NetLinx Master In the Online Tree, right-click and select Refresh System from the context menu to attempt to establish the specified connection. If the connection is successful, the connection information is indicated in the Status Bar and highlighted in green/yellow ... -
Page 161: Listening For Masters On The Network
Appendix B: Using NetLinx Studio to Connect to a NetLinx Master Click OK to close the Communications Settings dialog and return to the Workspace Communication Settings dialog, with the selected communication configuration displayed (FIG. 133). Workspace Communication Settings dialog indicating the selected Master connection FIG. - Page 162 Appendix B: Using NetLinx Studio to Connect to a NetLinx Master New TCP/IP Setting dialog FIG. 137 Click OK to save changes, close this dialog and return to the Communications Settings dialog (Network tab). The new Master’s IP Address is now indicated in the List of Addresses. With the newly added Master selected, click Select.
-
Page 163: Editing A Tcp/Ip Address
Appendix B: Using NetLinx Studio to Connect to a NetLinx Master 10. Refresh the Online Tree (select Refresh System Online Tree from the Online Tree context menu) to connect to the Master. Editing a TCP/IP Address In the Communications Settings dialog, select an address in the List of Addresses, and click Edit to open the Edit TCP/IP Setting dialog (FIG. -
Page 164: Appendix C: Troubleshooting
• Panel will not boot, or gets stuck on "AMX" splash screen. • Other problems also started after downloading to a new panel or a panel with a TPD4 file that takes up a considerable amount of the available disk space. - Page 165 TPI’s setup pages, the images • Previous versions of TPD4 did not fully support copying and pasting TPI-PRO setup pages appear over-sized on my pages. components into Panel designs. • TPDesign4 is available to download from www.amx.com. TPI-PRO-DVI - Instruction Manual...
- Page 166 © 2015 Harman. All rights reserved. TakeNote, WebControl, NetLinx, AMX, AV FOR AN IT WORLD, HARMAN, and Last Revised: their respective logos are registered trademarks of HARMAN. Oracle, Java and any other company or brand name 10/05/2015 referenced may be trademarks/registered trademarks of their respective companies.
