TCL 21M62S Service Manual

TCL 21M62S Service Manual

Chassis: m123sp
Hide thumbs
Table of Contents

Advertisement

Quick Links

SERVICE MANUAL
MODEL: 21M62S
CHASSIS: M123SP

Advertisement

Table of Contents
loading

Related Manuals for TCL 21M62S

Summary of Contents for TCL 21M62S

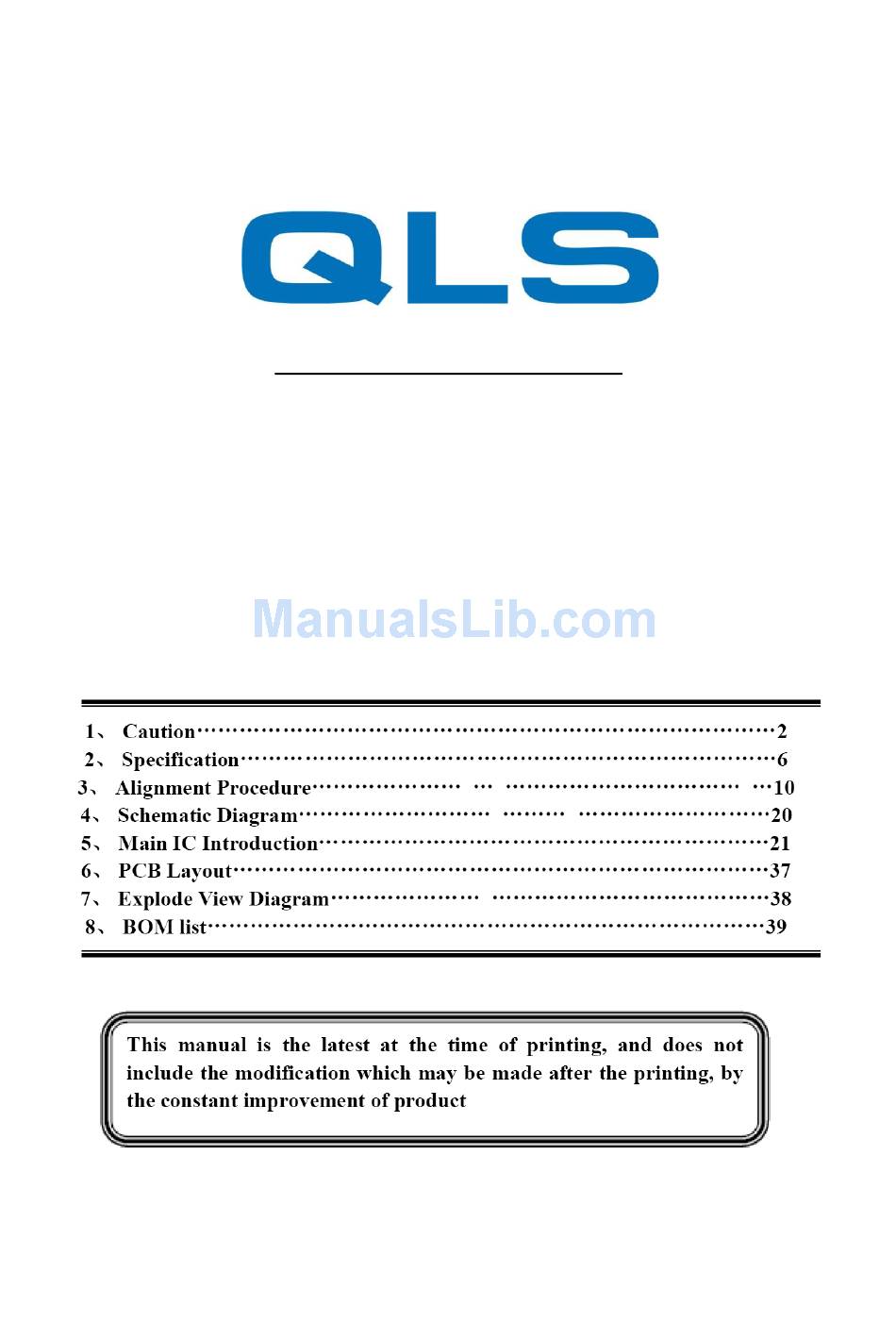

  • Page 1 SERVICE MANUAL MODEL: 21M62S CHASSIS: M123SP...
  • Page 2 1、 CAUTION: Use of controls, adjustments or procedures other than those specified herein may result in hazardous radiation exposure. CA UTION: TO REDUCE THE RISK OF CAUTION ELECTRICAL SHOCK, DO NOT REMOVE COVER (OR BACK). NO USER SERVICEABLE RISK RISK OF OF ELECTRI ELECTRIC C PARTS INSIDE.
  • Page 3 IMPORTANT SAFETY INSTRUCTIONS CAUTION: Read all of these instructions. Save these instructions for later use. Follow all Warnings and Instructions marked on the audio equipment. 1. Read Instructions- All the safety and operating instructions should be read before the product is operated. 2.
  • Page 4 PROTECTION AND LOCATION OF YOUR SET Do not use this television set near water ... for example, near a bathtub, washbowl, kitchen sink, or laundry tub, in a wet basement, or near a swimming pool, etc. Never expose the set to rain or water. If the set has been exposed to rain or water, unplug the set from the wall outlet and refer servicing to qualified service personnel.
  • Page 5 OPERATION OF YOUR SET 18. This television set should be operated only from the type of power source indicated on the marking label. If you are not sure of the type of power supply at your home, consult your television dealer or local power company. For television sets designed to operate from battery power, refer to the operating instructions.
  • Page 6 2、 Specification Model 机型 Item 内容 主要数据 Master Data -Customer ID -顾客ID 南美 -Destination SOUTH AMERICA -目的地 -Brand -牌子 -BOM NO. -BOM号 -Assembling Way Unit -走货方式 -Chassis M123SP -机芯号 接收 Reception -Tuning [Channels Amt.] -频道数量 -Tuning [Technology] -调谐技术 -Tuning [Indication] --------- -搜台指示...
  • Page 7 TCL-Thomson Electronics R D Center (Shen’Zhen Lab) Model 机型 Item 内容 -America SAP -美国SAP -Korea Stereo -韩国立体声 -Thai Bilingual -泰国双语 -Super Woofer -超重低音 -AVL -自动音量平衡 -Sound Control [General] -声音控制（普通的） Volume 音量 静音 Mute -Sound Control [Special] -声音控制（特殊的） 高音 Treble 低音...
  • Page 8 TCL-Thomson Electronics R D Center (Shen’Zhen Lab) Model 机型 Item 内容 -Number of Local Control(incl.Mains) -本机控制按键孔数量(包括主开关) -Number of Indicator Control(incl.Mains) -本机指示灯数量(包括主开关上的灯) Local Controls Front -正面的控制孔数量 电源开关 -Mains Switch -CH+ CH- VOL+ VOL- 频道+-，音量+- -TV/AV TV / AV -Menu 菜单 -Auto Search 自动搜台...
  • Page 9 TCL-Thomson Electronics R D Center (Shen’Zhen Lab) Model 机型 Item 内容 Carton Color 纸箱颜色 -Documents and Manuals -文件和手册 说明书 Instruction Book 屏幕贴纸 Screen Sticker 塑料袋 Plastic Bag 保修卡 Warranty Card Guarantee Doc. 保证书 警告标签 Warning Label Approbation Label 认证标签 其他...
  • Page 10 3、 Alignment Procedure Table of Content Ⅰ. SUMMARIZE........................... 5 Ⅱ. ALIGNMENT CONTENTS： ....................6 1. A ....................6 DJUSTMENT OF VOLTAGE 2. RF AGC ......................6 ADJUSTMENT 3. S & F ................7 CREEN OCUS VOLTAGE ADJUSTMENT 4. 1 A NSTC DJUSTMENT OF CONTRAST...
  • Page 11 M123SP Alignment Procedure Ⅰ. Summarize M123SP，is NTSC-PAL system model developed for TCL market specially. In trial run, burn the software to TMPA8873PSNG IC by OTP method. After the trial run, make the mask，please take care in production.     T o solve the probable problems in production, for the workers participate in alignment, please be familiar with the Alignment Procedure, and be master of the features.
  • Page 12 TCL-THOMSON Electronics R&D Center (Shen’Zhen Lab) Ⅱ. Alignment contents： 1. Adjustment of B+ voltage Receive Philips standard testing pattern to RF input. If the VR800 exists in the board, adjust it in STANDARD mode until voltage at following value： Model B+ (v) 110±2.0...
  • Page 13 TCL-THOMSON Electronics R&D Center (Shen’Zhen Lab) 3. Screen & Focus voltage adjustment ① Apply pattern signal in normal status, enter Factory mode，press“INPUT” button to stop vertical scan. Note：(the RC/GC/BC is preset to be 40，GD/BD is 40） Adjust the SCRREEN switch on the flyback transformer to make a horizontal shining ②...
  • Page 14 TCL-THOMSON Electronics R&D Center (Shen’Zhen Lab) equipment, white balance can be adjusted automatically as following: Press “BUS OFF” button under factory mode, the TV set will adjust automatically. standard： Warm X=310+8, Y=314+8 Cool X=278+8, Y=282+8 Remark: 1) Provided the production line is equipped with the self- White balance adjusting equipment, white balance of M123SP chassis can be adjusted automatically as following: Press “I2C BUS”...
  • Page 15 TCL-THOMSON Electronics R&D Center (Shen’Zhen Lab) 8. PS line polartities test : Connect follow the graphic below： DC PS Sound reminder 2.2k PS socket M TO F801 Plug the PS line onto the PS socket M, then touch any pin of F801 with the probe, the LED DX will shine at the moment, with sound reminder, or it is disqualification.
  • Page 16 TCL-THOMSON Electronics R&D Center (Shen’Zhen Lab) 10. High voltage and Ib value limit test( random test ) Instruments： High voltage meter， Ib meter. Input signal pattern： White vertical Input signal intensity： 60dBuv (1 Mv rms) Test means： Connect High voltage meter and Ib meter. Test voltage of different Ib separately, It should meet the requirements below：...
  • Page 17 TCL-THOMSON Electronics R&D Center (Shen’Zhen Lab) FAC 03 Data STRAP Model BLACK* BLACK* STRAP F0 SIF FREQ HL QG PIF FREQ HPOS6 HPOS5 南美 M123SP 20E10 Data FAC 04 Model CNTX CNTN BRTX BRTN COLX COLN TNTX TNTN 南美 M123SP...
  • Page 18 TCL-THOMSON Electronics R&D Center (Shen’Zhen Lab) Data FAC 10 Model CURTCEN VOLX PWTM MODE4 MODE5 MODE6 MODE7 MODE8 MODE9 南美 M123SP 20E10 Data FAC 11 Model CON1 CON2 CON3 STSADJ ALI 1 ALI 2 ALI3 南美 M123SP 20E10 Data FAC 12...
  • Page 19 TCL-THOMSON Electronics R&D Center (Shen’Zhen Lab) Data FAC 18 FAC 19 Model S-COL S-BRI S-CON S-SHP M-COL M-BRI M-CON M-SHP 南美 M123SP 20E10 Data FAC 20 Model SEG-POINT1 SEG-POINT2 DATA-VL DATA-VH DATA-UF SPE-POS1 SPE-DATA1 SENSI-ON SENSI-OFF 南美 M123SP 20E10 Data...
  • Page 21 5、 IC Brief Introduction TOSHIBA Integrated Circuit TMPA8873PSNG TMPA8873CMNG /CPNG /CRNG /CSNG MCU and Signal Processor for a PAL/NTSC TV The TMPA8873CPNG is an integrated circuit for a PAL/NTSC TV. A MCU and a TV signal processor are integrated in a 64-pin shrink DIP package.
  • Page 22 Confidential TMPA8873PSNG /CMNG /CPNG /CRNG /CSNG Features CCD Decoder • High speed 8-bit CPU (TLCS-870/X series) • Digital data slicer for NTSC Instruction execution time: 0.5 µs (at 8 MHz) • (TMPA8873CPNG) • Clock generation for OSD display • 48-Kbytes ROM, 2-Kbytes RAM •...
  • Page 23 Confidential TMPA8873PSNG /CMNG /CPNG /CRNG /CSNG Block Diagram P61/LED1/ADC8bit P63/LED2 P60/ADC8bit P30/Int3/RXIN P53/ADC8bit/TC1/Int2 P31/Int4/TC3 uP DVss P20/Int5/Stop Reset P40/PWM14bit P50/PWM7bit/TC2/Int0 P51/SCL TEST P52/SDA uP DVDD 5V uP VVss uP AVdd 5V TV DEF GND uP MPAGND TV Dig GND Hout Bout HAFC 1 Gout...
  • Page 24 Confidential TMPA8873PSNG /CMNG /CPNG /CRNG /CSNG Basic Structure 1. Internal Connections TMPA8873 has two pieces of IC chip in one package, using Multi-Chip-Package (MCP) technology. One is a micro controller (MCU) and the other one is a signal processor (SP) for a color TV. There are some internal connections between these two ICs for handling below signals.
  • Page 25 Confidential TMPA8873PSNG /CMNG /CPNG /CRNG /CSNG TERMINAL INTERFACE MCU BLOCK Pin Name Function Interface Circuit Key-on Wake-up 5kΩ (/KWU5) (Input) Key on wake up input (AIN5) (Input) A/D converter analog input Initial"Hi-Z" (LED1) (Output) LED output Disable Key-on Wake-up 5kΩ (/KWU4) (Input) Key on wake up input...
  • Page 26 Confidential TMPA8873PSNG /CMNG /CPNG /CRNG /CSNG Pin Name Function Interface Circuit Osc.enable 500Ω Xout Output X’tal connecting pins Input 1.2MΩ 1kΩ TEST Input Test pin for out-going test CPU core Power up DVdd Digtal curcuit Supply Supply 5V Slicer Power ⎯...
  • Page 27 Confidential TMPA8873PSNG /CMNG /CPNG /CRNG /CSNG Pin Name Function Interface Circuit Initial"Hi-Z" Open drain (SCL) (I/O) IIC bus serial clock input / output output enable SIO serial data input (SI1) (Input) Disable Initial"Hi-Z" (/PWM8) (Output) 7-bit D/A conversion (PWM) output (TC2) (Input) Timer/Counter input...
  • Page 28 Confidential TMPA8873PSNG /CMNG /CPNG /CRNG /CSNG Pin Name Function Interface Circuit Initial"Hi-Z" External interrupt input (INT3) (Input) Remote control signal (RXIN) (Input) preprocessor input Disable (LED2) (Output) LED output Initial"Hi-Z" Disable 2005/03/29...
  • Page 29 Confidential TMPA8873PSNG /CMNG /CPNG /CRNG /CSNG SIGNAL PROCESSOR BLOCK Pin Name Function Interface Circuit I/O Signal TV DEF GND terminal for TV DEF ⎯ ⎯ AGND block. FBP in Input terminal for FBP. 200Ω 10kΩ Output terminal for 50Ω H out Horizontal driving pulse.
  • Page 30 Confidential TMPA8873PSNG /CMNG /CPNG /CRNG /CSNG Pin Name Function Interface Circuit I/O Signal 1.5kΩ Y in Input terminal for Y signal. 1.5kΩ 11kΩ 5kΩ Cr in Input terminal for Cr signal. 5kΩ 35kΩ Input terminal for Audio Ext Au1 signal 1. 1.5kΩ...
  • Page 31 Confidential TMPA8873PSNG /CMNG /CPNG /CRNG /CSNG Pin Name Function Interface Circuit I/O Signal Output terminal 1 for Audio Au out 1 signal. Output terminal 2 for Audio Au out 2 signal. Output terminal for detected TV out PIF signal. 1bit DAC Output terminal for 1bit /SIF out DAC or detected SIF signal.
  • Page 32 Confidential TMPA8873PSNG /CMNG /CPNG /CRNG /CSNG Pin Name Function Interface Circuit I/O Signal Terminal to be connected 5kΩ Reg Fil capacitor for stabilizing 5kΩ internal bias. Output terminal for External AUDIO audio signal or TV audio Monitor out signal selected by BUS (Audio SW).
  • Page 33 Confidential TMPA8873PSNG /CMNG /CPNG /CRNG /CSNG Pin Name Function Interface Circuit I/O Signal Vcc terminal for Y/C circuit. ⎯ ⎯ YC Vcc 5V Supply 5V. Output terminal for Sync pulse. A pull up resister is required 5kΩ Sync out because of its open collector output.
  • Page 34 Confidential TMPA8873PSNG /CMNG /CPNG /CRNG /CSNG Signal Processor Descriptions 1. Tank-Coil-Less PIF VCO TMPA8873 adopts a tank-coil-less PIF VCO circuit, which has advantages of cost, performance of weak IF input and easy to design PCB layout. The PIF PLL system has self-alignment circuit, so that the micro controller needs only to order the PIF PLL system to start self-alignment through the IIC bus.
  • Page 35 Confidential TMPA8873PSNG /CMNG /CPNG /CRNG /CSNG 6. AV Switch The audio switch has two inputs for an external audio, and one for internal demodulated audio signal. The two external audio inputs can use as audio stereo input. The switched audio signal goes into the audio attenuator, which has controllability of audio gain from 0dB to –80dB or less with near log curve characteristic.
  • Page 36 Confidential TMPA8873PSNG /CMNG /CPNG /CRNG /CSNG 13. Signal Detection Flags There are some flags on the READ BUS registers. They indicate that a certain signal is detected at the moment. But reliability of a detection result is not so accurate if checking only one flag, so that confirming several flags, which means similar result by each other, at the same time is recommended.
  • Page 37 6、 PCB Layout...
  • Page 39 03-DM62SGP-BO23S B - PAL M/N NTSC-M AV.ST/RCA-2/S.AV IN/Y PART NO. SEPC LOCATION T8-HS36R3-M123 11-0BC337-0BX TRANSISTOR (NPN) BC337-40 Q1501 T8-HS36R3-M123 13-00AS12-13B IC AS1213B IC1501 T8-HS36R3-M123 14-IRE05B-XX0 IR EMITTING DIODE TSAL6200 D1501 T8-HS36R3-M123 18-CB0221-JNX RES. C.F. 220 OHM 1/6W +/-5% R1502 T8-HS36R3-M123 18-CB0229-JNX RES.
  • Page 40 T8-0021GPS-MA1 11-SC1815-YBX TRANSISTOR 2SC1815-Y (NPN) Q615 T8-0021GPS-MA1 18-CB0101-JNX RES. C.F. 100 OHM 1/6W +/-5% R009 T8-0021GPS-MA1 18-CB0102-JNX RES. C.F. 1K OHM 1/6W +/-5% R007 T8-0021GPS-MA1 18-CB0102-JNX RES. C.F. 1K OHM 1/6W +/-5% R415 T8-0021GPS-MA1 18-CB0103-JNX RES. C.F. 10K OHM 1/6W +/-5% R406 T8-0021GPS-MA1 18-CB0103-JNX...
  • Page 41 T8-0021GPS-MA1 25-BCB101-M1X CAP. ELEC 100 UF 16V +/-20% C311 T8-0021GPS-MA1 25-BCB101-M1X CAP. ELEC 100 UF 16V +/-20% C211 T8-0021GPS-MA1 25-BCB101-M1X CAP. ELEC 100 UF 16V +/-20% C101 T8-0021GPS-MA1 25-BCB101-M1X CAP. ELEC 100 UF 16V +/-20% C616 T8-0021GPS-MA1 25-BCB220-M1X CAP. ELEC 22 UF 16V +/-20% C614 T8-0021GPS-MA1 25-BCB221-M1X...
  • Page 42 T8-0021GPS-MA1 41-WJ0075-B00 WIREBAREJUMPER7.5MM J924 T8-0021GPS-MA1 41-WJ0075-B00 WIREBAREJUMPER7.5MM J101 T8-0021GPS-MA1 41-WJ0075-B00 WIREBAREJUMPER7.5MM J604 T8-0021GPS-MA1 41-WJ0075-B00 WIREBAREJUMPER7.5MM J021 T8-0021GPS-MA1 41-WJ0075-B00 WIREBAREJUMPER7.5MM J313 T8-0021GPS-MA1 41-WJ0075-B00 WIREBAREJUMPER7.5MM J606 T8-0021GPS-MA1 41-WJ0075-B00 WIREBAREJUMPER7.5MM J301 T8-0021GPS-MA1 41-WJ0075-B00 WIREBAREJUMPER7.5MM J303 T8-0021GPS-MA1 41-WJ0075-B00 WIREBAREJUMPER7.5MM J402 T8-0021GPS-MA1 41-WJ0075-B00 WIREBAREJUMPER7.5MM J403 T8-0021GPS-MA1 41-WJ0075-B00 WIREBAREJUMPER7.5MM...
  • Page 43 T8-0021GPS-MA1 41-WJ0125-B00 WIREBAREJUMPER12.5MM J028 T8-0021GPS-MA1 41-WJ0125-B00 WIREBAREJUMPER12.5MM J029 T8-0021GPS-MA1 41-WJ0125-B00 WIREBAREJUMPER12.5MM J033 T8-0021GPS-MA1 41-WJ0125-B00 WIREBAREJUMPER12.5MM J213 T8-0021GPS-MA1 41-WJ0125-B00 WIREBAREJUMPER12.5MM J216 T8-0021GPS-MA1 41-WJ0125-B00 WIREBAREJUMPER12.5MM J026 T8-0021GPS-MA1 41-WJ0125-B00 WIREBAREJUMPER12.5MM J914 T8-0021GPS-MA1 41-WJ0125-B00 WIREBAREJUMPER12.5MM J010 T8-0021GPS-MA1 41-WJ0125-B00 WIREBAREJUMPER12.5MM J015 T8-0021GPS-MA1 41-WJ0125-B00 WIREBAREJUMPER12.5MM J014 T8-0021GPS-MA1 41-WJ0125-B00 WIREBAREJUMPER12.5MM...
  • Page 44 T8-0021GPS-PWN 10-1N4148-ABX DIODE 1N4148 (SWITCHING) D805 T8-0021GPS-PWN 10-1N4148-ABX DIODE 1N4148 (SWITCHING) D819 T8-0021GPS-PWN 10-79C18V-DBX DIODE ZENER 18V 1/2W 5% D821 TCL10-79C7V5-DBX= DIODE ZENER T8-0021GPS-PWN 10-79C7V5-DBX D844 7V5 1/2W 5 T8-0021GPS-PWN 11-SA1015-YBX TRANSISTOR ST2SA1015Y (PNP) Q801 T8-0021GPS-PWN 13-000TL4-31T IC-REGSPECKT TL431ACLP R=N IC803 T8-0021GPS-PWN 18-CB0222-JNX...
  • Page 45 RES. C.F. 47 OHM 1/6W +/-5% R1103 T8-0DM62GP-IR2 26-EBP104-ZFS CAP. CER 0.1UF 50V +80%/-20% C1102 T8-0DM62GP-IR2 40-A21M62-IRA1XG TV PCB IR BD R=Y T8-0DM62GP-SI1 40-21M62S-SID1XG TV PCB SI BD R=Y T8-0DM62GP-SI1 41-WJ0075-B00 WIREBAREJUMPER7.5MM J001 T8-0DM76GP-KE1 18-CB0124-JNX RES. C.F. 120K OHM 1/6W +/-5% R1006...
  • Page 46 T8-21123GP-DPN 18-CB0223-JNX RES. C.F. 22K OHM 1/6W +/-5% R1114 T8-21123GP-DPN 18-CB0223-JNX RES. C.F. 22K OHM 1/6W +/-5% R1122 T8-21123GP-DPN 18-CB0223-JNX RES. C.F. 22K OHM 1/6W +/-5% R1121 T8-21123GP-DPN 18-CB0273-JNX RES. C.F. 27K OHM 1/6W +/-5% R1109 T8-21123GP-DPN 18-CB0302-JNX RES. C.F. 3K OHM 1/6W +/-5% R1102 T8-21123GP-DPN 18-CB0333-JNX...
  • Page 47 T8-DE10SGP-CRY 18-CB0561-JNX RES. C.F. 560 OHM 1/6W +/-5% R509 T8-DE10SGP-CRY 18-CB0561-JNX RES. C.F. 560 OHM 1/6W +/-5% R503 T8-DE10SGP-CRY 18-CB0561-JNX RES. C.F. 560 OHM 1/6W +/-5% R506 T8-DE10SGP-CRY 18-CB0681-JNX RES. C.F. 680 OHM 1/6W +/-5% R525 T8-DE10SGP-CRY 18-CB0681-JNX RES. C.F. 680 OHM 1/6W +/-5% R523 T8-DE10SGP-CRY 18-CB0681-JNX...
  • Page 48 BATTERY 7# (R03P AAA SUM-4) TV PRI LABEL LABEL OF SERIAL T8-0DM62GP-PA1 71-ECD800-041B3 ECD800041B-0001起 NO. WHITE&B TV PRI LABEL LABEL OF BARCODE T8-0DM62GP-PA1 71-LQBOLI-BAR9A TV IB INSTRUCTION BOOK TCL CHS T8-0DM62GP-PA1 72-DM62GP-X239B DEC BAG PE 220X320X0.06MM -- T8-0DM62GP-PA1 74-022032-6WE1A 00 00 R=N T8-0DM62GP-PA1 74-120120-80H1A...
  • Page 49 S/T SCREW W 3 X 10 AB MTG SIDE AV PCB MTG SUPPORTER & T8-0DM62GP-RC1 63-W30100-AB4G S/T SCREW W 3 X 10 AB REAR CABINET T8-DM62SGP-OT2 51-DC0180-0CN04G POWER CORD TCL-CB-192-A00 03-DM62SGP-BO23S V8-TSM123-06E06 SOFTWARE CODE FOR IC001 T8-0021GPS-MA1 10-0BY228-F0X DIODE BY228...
  • Page 50 T8-0021GPS-MA1 26-AIC391-KBX CAP. CER 390 PF 500V +/-10% B C412 T8-0021GPS-MA1 27-AGR304-J0X CAP. M.PP 0.3 UF 250V +/-5% C421 T8-0021GPS-MA1 27-AHQ393-JSX CAP. M.PP 0.039 UF 400V +/-5% C405 TCL27-ALR103-J0X= CAP. M.PP T8-0021GPS-MA1 27-ALR103-J0X C406B 0.01 UF 1.6K T8-0021GPS-MA1 27-ALR432-J0X CAP. M.PP 0.0043UF 1.6KV +/-5% C402 T8-0021GPS-MA1 27-ALR432-J0X CAP.
  • Page 51 FUSE HOLDER FOR F801 T8-0021GPS-PWN 67-H10918-4M2 HEAT SINK FOR Q843 T8-0021GPS-PWN 67-H41341-2A0 HEAT SINK FOR Q815 TV RAW BRACKET TCL CRT -- 00 00 T8-0021GPS-PWN 67-M40068-1E4 FOR Q815 T8-0021GPS-PWN 71-DYP000-WX2 LABEL STICK ON HEAT SINK T8-0021SGP-YUY 47-RCA040-XX0G RCA SOCKET AV-3.2-9W-H...
  • Page 52 T8-0021GPS-MA1 12-BC847A-0BX SMD TRANSISTOR BC847A (NPN) Q006 T8-0021GPS-MA1 12-BC847A-0BX SMD TRANSISTOR BC847A (NPN) Q208 T8-0021GPS-MA1 12-BC847A-0BX SMD TRANSISTOR BC847A (NPN) Q907 T8-0021GPS-MA1 12-BC847A-0BX SMD TRANSISTOR BC847A (NPN) Q905 T8-0021GPS-MA1 12-BC857A-0BX SMD TRANSISTOR BC857A (PNP) Q210 T8-0021GPS-MA1 12-BC857A-0BX SMD TRANSISTOR BC857A (PNP) Q207 T8-0021GPS-MA1 12-BC857A-0BX...
  • Page 53 T8-0021GPS-MA1 19-AB0103-JTX RES SMD 10K OHM 1/10W 0603 R908 T8-0021GPS-MA1 19-AB0103-JTX RES SMD 10K OHM 1/10W 0603 R052 T8-0021GPS-MA1 19-AB0104-JTX SMD. RES 100K OHM 1/10W 0603 R031 T8-0021GPS-MA1 19-AB0104-JTX SMD. RES 100K OHM 1/10W 0603 R232 T8-0021GPS-MA1 19-AB0105-JTX RES SMD 1M OHM 1/10W 0603 R221 SMD.
  • Page 54 SMD. CAP 0.01 UF 50V +/-10% T8-0021GPS-MA1 28-AB0103-KBX C233 0603 SMD. CAP 0.01 UF 50V +/-10% T8-0021GPS-MA1 28-AB0103-KBX C239 0603 SMD. CAP 0.01 UF 50V +/-10% T8-0021GPS-MA1 28-AB0103-KBX C019 0603 SMD. CAP 0.01 UF 50V +/-10% T8-0021GPS-MA1 28-AB0103-KBX C228 0603 SMD.
  • Page 55 SMD. RES 2K OHM 1/10W +/-1% T8-0021GPS-PWN 19-AB0202-FTX R838 0603 T8-0021GPS-PWN 19-AB0222-JTX RES SMD 2.2K OHM 1/10W 0603 R848 T8-0021GPS-PWN 19-AB0222-JTX RES SMD 2.2K OHM 1/10W 0603 R824C SMD. RES 22K OHM 1/10W +/-5% T8-0021GPS-PWN 19-AB0223-JTX R846 0603 T8-0021GPS-PWN 19-AB0272-JTX RES SMD 2.7K OHM 1/10W 0603 R835 SMD.
  • Page 56 CAP. M.PP 0.056 UF 400V +/-5% C1115 T8-21123GP-DPN 36-WID301-XX2 COIL WIDTH 300 UH L1101 T8-21123GP-DPN 36-WID361-XX1 COIL WIDTH 360 UH LC-361-TCL L1102 T8-21123GP-DPN 46-33079W-02XG PIN BASE *2 TJC3-2A P1101 FOR M DB P403 P1102 TO P1102 T8-21123GP-DPN 46-CD014T-07J01G CONNECTOR LCSAP001TL0132 (M.BD)
