Planet UP-100 Quick Installation Manual

Usb phone

Download this manual

PLANET UP-100

Quick Installation Guide

Thank you for purchasing PLANET USB Phone. In this provided documentation, we'll

introduce how to use and configure the UP-100.

Hardware Installation

STEP1

Please plug the UP-100 to the USB port on the PC. Your PC will find the UP-100, and all the

installation will be completed automatically without driver installation.

STEP2

To verify the hardware installation, please browse to Control panel > System > Hardware >

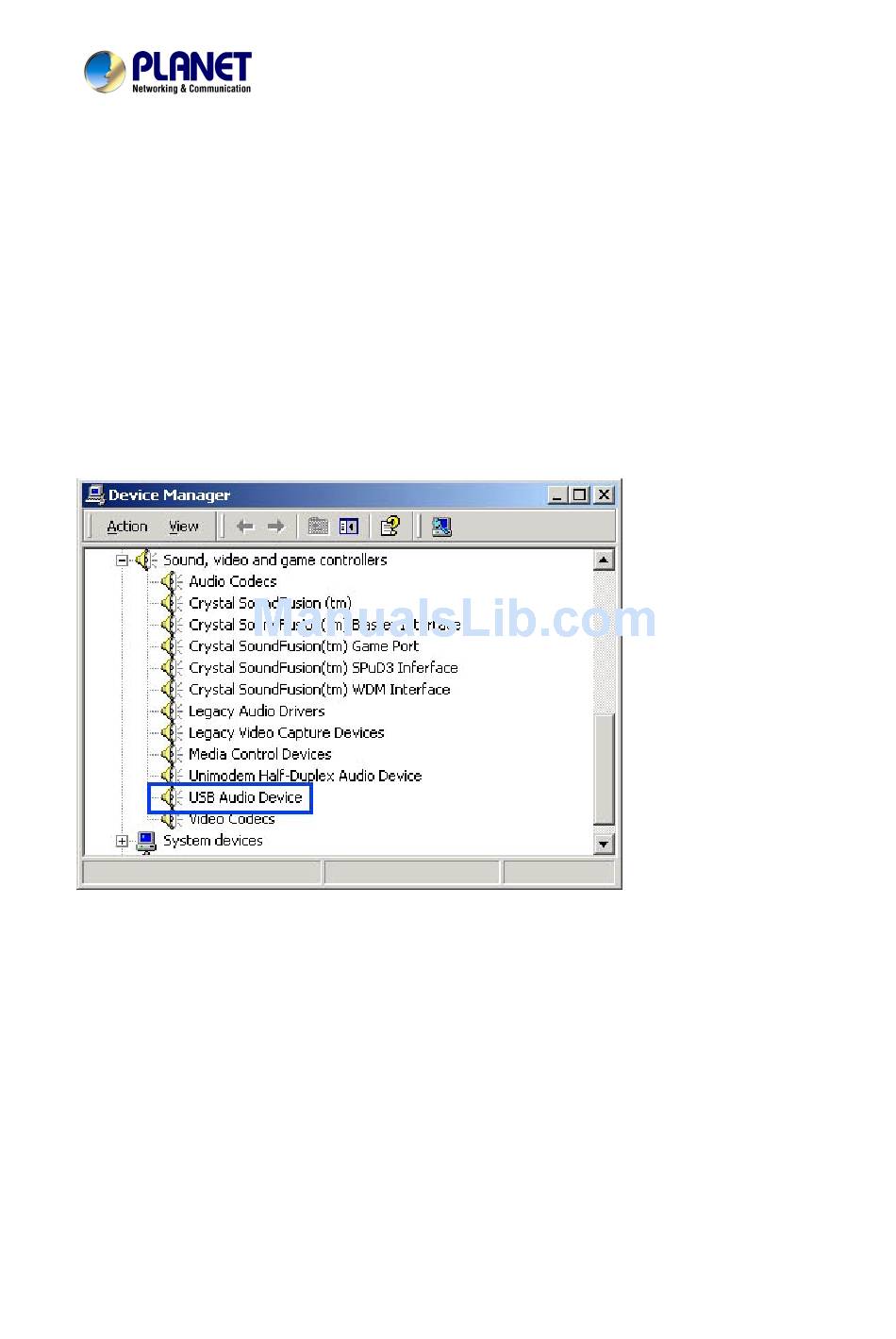

Device Manager. Once completed, a menu screen would appear as follow:

It is suggested to verify the "USB Audio Device" at device manager on your PC.

USB phone dialer Installation

STEP1

Please find the USB phone dialer utility in the "Utility" folder in the UP-100 installation CD.

There are two softphone dialers for the UP-100:

usbdialer_skype.exe: designed for Skype users

usbdialer.exe: support X-Lite, Net2Phone, Skype, MSN Messenger, X-PRO, eyeBeam.

Please choose the proper softphone dialer for your UP-100.

You may find the USB dialers in the home page of UP-100 installation CD (autorun should be

enabled on your CD-ROM drive), please choose the proper dialer for your softphone

installation.

Page 1: Hardware Installation
UP-100. Hardware Installation STEP1 Please plug the UP-100 to the USB port on the PC. Your PC will find the UP-100, and all the installation will be completed automatically without driver installation. STEP2 To verify the hardware installation, please browse to Control panel >...
Page 2 STEP2 Double-click the USB Dialer program and the installation screen will be shown. If you don’t want to change the default destination folder, press “Install”, files would be copied. STEP3 When finished, press the “Close” button.
Page 3 Button Definitions The following are the introductions of UP-100 front panel buttons. The definitions of the front panel are show below: Front Panel of UP-100 UP-100 works with Skype STEP1 Please executing the program of Skype and the screen will be shown below: In order to make the software to work with Skype, please select the first item “Allow this...
Page 4 After running Skype, if the Skype isn't active on the screen, please press “# - Show Skype” or “Dial/Accept” button on the UP-100 USB phone , Skype will come to the foreground and the pressed digits will be sent to Skype at the same time.
