Planet ICF-1700 User Manual

Touch screen internet multimedia phone
Hide thumbs Also See for ICF-1700:
Table of Contents

Advertisement

Quick Links

Download this manual

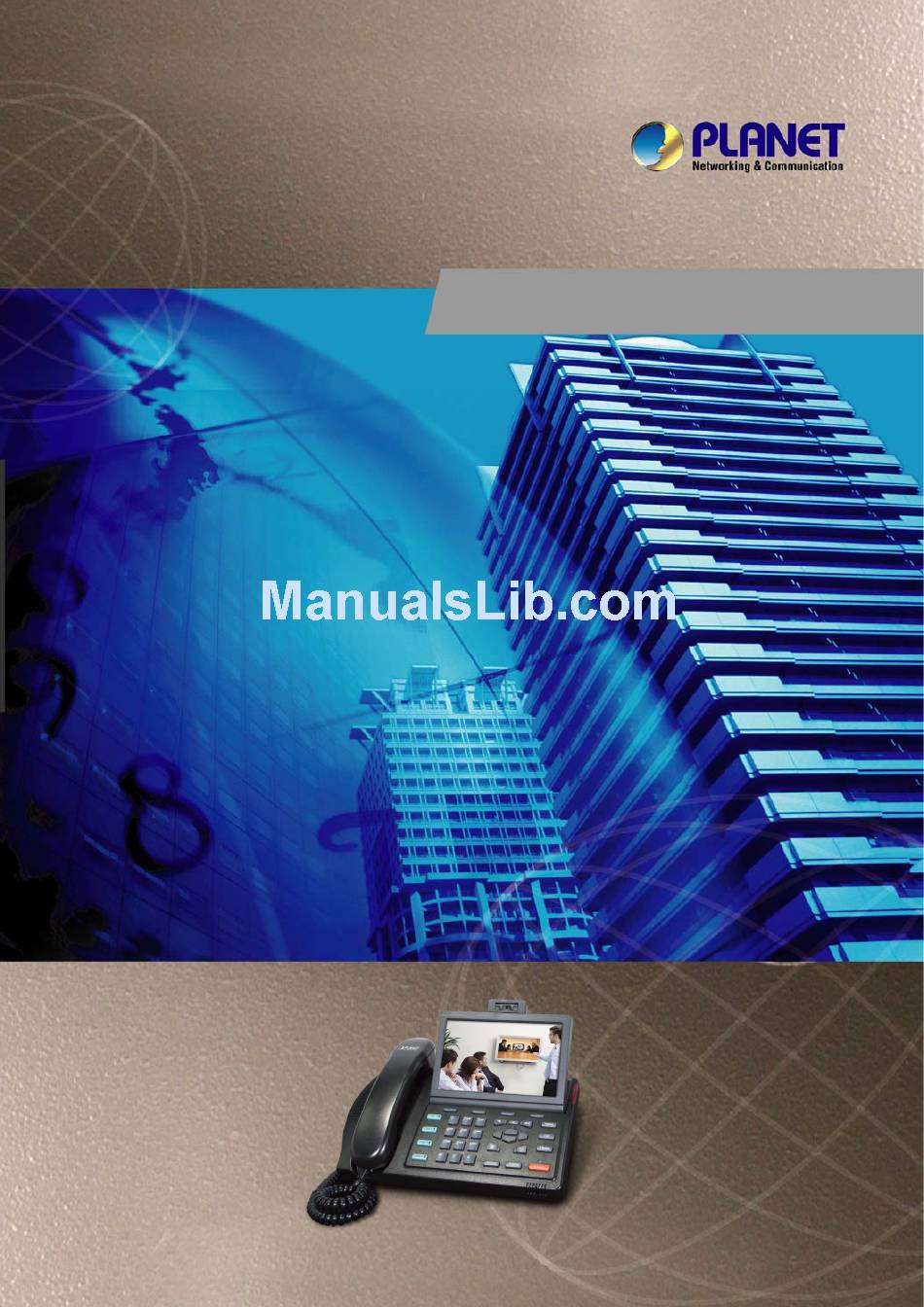

User's Manual
ICF-1700
Touch Screen Internet Multimedia
Phone
1

Advertisement

Table of Contents
loading

Related Manuals for Planet ICF-1700

Summary of Contents for Planet ICF-1700

  • Page 1 User’s Manual ICF-1700 Touch Screen Internet Multimedia Phone...
  • Page 2 PLANET Technology. Disclaimer PLANET Technology does not warrant that the hardware will work properly in all environments and applications, and makes no warranty and representation, either implied or expressed, with respect to the quality, performance, merchantability, or fitness for a particular purpose.
  • Page 3 In most, if not all cases, their respective companies claim these designations as trademarks or registered trademarks Revision User’s Manual for PLANET Touch Screen Internet Multimedia Phone Model: ICF-1700 Rev: 1.0 (2012, January) Part No. EM-ICF-1700v1_v1.0...

  • Page 4: Table Of Contents

    Table of Contents Chapter 1 Introduction ..................6 1.1 O ..................................6 VERVIEW 1.2 F ..................................6 EATURES 1.3 P ..............................7 ACKAGE ONTENT 1.4 P ...............................8 HYSICAL ETAILS Chapter 2 Installation ..................13 2.1 G ................................13 ETTING TART Chapter 3 LCD Menu ..................
  • Page 5 6.1 E ..................................68 MAIL 6.2 C ................................71 ALCULATOR 6.3 N ...................................73 OTE PAD 6.4 B ..................................74 ROWSER 6.5 R ..................................74 ECORDER 6.6 A ................................76 LARM LOCK 6.7 G ..................................76 ALLERY 6.8 F ................................78 ANAGER 6.9 C ..................................80 AMERA 6.10 M ..................................81 USIC 6.11 S...

  • Page 6: Chapter 1 Introduction

    The ICF-1700 has the multiple language features and it base on based on Android OS 2.1 which can provide the friendly operation interface for which user. It also can connect with the external USB disk to manage the media file or input the photograph to show the media information.

  • Page 7: Package Content

    Voice Gain Setting, VAD, CNG Support SIP domain, SIP authentication (none, basic, MD5), DNS name of server, Peer to Peer/ IP call DTMF Relay Customized music rings Support STUN SMS based on SIP Professional Speaker/HD Voice Phone book records export/import XML phone book Media player(mp3, wav, wma) USB disk &...

  • Page 8: Physical Details

    1.4 Physical Details The following figure illustrates the components of ICF-1700 Front Panel Item Item Handset Handset Cord LCD Display Video Camera Soft Key 1 to 4 Numeric Keypad Line button 1 to 4 Volume button(down/Mute/Up) Navigation key Menu key Return key Headset key.
  • Page 9 Keypad Icon Description Telephone four keys are respectively corresponding to the screen of the four Soft key keys, different window representing the different attribute. Line button on the dial pad corresponding agreement with the Sip. Digital keyboard. Entering the function menu. You can browse through the menu all functions of the system are applied, and the execution of the application.
  • Page 10 Return key. Click on this button will jump out the current window. The hands-free key. Home key. Click on this button will return to idle screen. Volume control key. You can be in the player program or call ringing using this key to adjust the volume size.
  • Page 11 Rear Panel...
  • Page 12 Icon Description DC Power Interface,12 V DC input Bridge interface Network interface, connect with computer. Wan interface, connect with internet. Specification RJ9, Used to connect the handle when calling Specification RJ9, connect with hand-set. USB port for insert the external storage to manage the file.

  • Page 13: Chapter 2 Installation

    Chapter 2 Installation 2.1 Getting Start This chapter illustrates basic installation of ICF-1700, the processes is shown as below. Step1: Connecting Handset Plug in the Handset cable into the back of the base station. Put the cable into the cable groove.
  • Page 14 Mounting the stand at the media phone rear panel, make sure the latch on the stand and the hole on the media phone matched. Hold the stand and pull down gently. Step3: Connecting AC Power and Network Connect an Ethernet cable from your desktop computer to the PC port on the Media Phone.

  • Page 15: Chapter 3 Lcd Menu

    Chapter 3 LCD Menu 3.1 Main Menu The controls of multimedia touch screen will changed dynamically, it depends on your executing task. Open Applications: Click icon “Application”, and the menu will appeared. Scroll: Drag up or down to scroll screen. In some screens (such as webpage), you can scroll from one side to the other side.

  • Page 16: Basic Function

    3.2 Basic Function 3.2.1 Screen Keyboard If the Android in some places needs to input, click on the input box will automatically pop-up screen keyboard （Installed input method with the on-screen keyboard, different input method is not the same） , such as follow: Item Description...
  • Page 17 3.2.2 Status Bar The status bar on the right standby desktop is given information about Multimedia Video Phone: Icon Item Description Network Displays the network connection is normal. Tap status (normal) the icon directly into the network settings. Shows no network connection. Need to check the Network network settings and connections are correct.

  • Page 18: Notification Panel

    3.2.3 Notification Panel Notification panel which shows the default content was that the network connection status, click the drop-down panel can view network status; when there is a new call, notification panel will display to view the current call, you can tap to enter the call interface; if there is a missed call, it will display missed call icon, you can click the icon to view the details;...
  • Page 20 Icon Item Description Phone You can dial a phone call, hotline on call, also can through the digital keyboard for manual dialing With e-mail functions, set the account contact will automatically Email synchronize to a mailbox account, you can view the message directly on the phone.
  • Page 21 File You can easily manage the files. Manager Through the camera you can take High-definition pictures and Camera make other operations. Message Like the mobile phone, with messages to write, read and send function. Song music player. You can be using other applications while Music using the music player.
  • Page 22 3.2.5 Desktop Widgets Long press the desktop, pop-up "Add to Home Screen" list, tap the “Widgets”, tap the widgets you want to display on the desktop, the desktop will show you the required widgets. This easy to operate and quick, which saves the time and look beautiful. Icon Item Description...
  • Page 23 Manual mode; Telephone registration form: if not registered lines showed that grey lamp; If primary server registered successfully showed that "green light, telephone number and the main server" address； If backup server registered successfully showed that "yellow light, phone number and backup server" address;...
  • Page 24 Long press the desktop, pop-up "Add to Home Screen" list, tap ”Folders” and enter to the “Select folder” list, select the appropriate file to add to the desktop: Icon Item Description New folder: You can move the application shortcuts on the desktop to the new folder.

  • Page 25: Chapter 4 Video Phone Setting

    Chapter 4 Video Phone Setting 4.1 System info Tap “Settings” can directly enter into the default window “System”. It displays the current system information state. Item Description PPPoE Display connection status of the PPPoE, there are three display state: Disable、connection and the IP address. Display the selected network mode, dynamic mode or static mode.

  • Page 26: Network

    Version Displays the current version number of the phone. Local Display the current configuration of the local number, in the desktop number widget display detailed information. 4.2 Network 4.2.1 Network Tap “Network”, enter into “Network” interface, default interface is “DHCP”: At each interface configuration completed click the "save"...
  • Page 27 Item Description DHCP You can select whether to use DHCP assigned DNS server to connect network. Manual IP: Input your assigned IP address. NetMask: Input your assigned subnet mask. Gateway: Input your assigned gateway. Primary DNS: Input your assigned DNS address. Backup DNS: Input your assigned backup DNS address.
  • Page 28 4.2.3 QoS Touch “Network”--> “QoS”, Select or modify the default settings and click interface, complete the bottom of the "Save" successful configuration information. Item Description DiffServ enable: Set whether to enable Differentiated Services. DiffServ value: Set Differentiated Services configuration parameter values, if you set normal level, the value are 0x00.
  • Page 29 Item Description Port Media initial port(10000-60000): Set the phone to open media initial port, this port assignment is dynamic allocation. (Size 10000--60000) Media port quantial: Set the maximum number of allocated RTP port, default value is 200. 4.2.5 Stun Tap “Network” --> “Stun” to configure info, after configuration click “Save” button to save successfully. Item Description Stun server: Input Stun server address.

  • Page 30: Account

    4.3 Account On the “Account” settings screen, you will see“Account1”screen, and on the right there is a "Advanced Settings" button, the first page of the configuration is done you can click on the "Advanced Settings" jump to the second page, then click Next Jump three, and so on, a total of five, and each page has a "Basic settings"...
  • Page 31 More Setting Item Description First page Display name: Configure the display name, when called to do the calling party (caller name not given) shows that this configuration parameter. Allow the English alphabet input (does not support Chinese). Server Name: Configure the SIP registration server name. Server port: Configure the SIP register server signal port.
  • Page 32 Third page Enable prack: Configure whether to support SIP-PRACK function (mainly ring tones will be used) recommends using the default configuration Enable uri convert: Convert # to %23 when send URI Enable DNS SRV: Configure whether to support RFC2782 protocol edition.

  • Page 33: Call

    4.4 Call Incoming call settings for each interface in finishing configuring parameters after click "save", you can save the success. 4.4.1 General Light on “call” -->"General" interface. After configure, tap "Save" button to save successfully. Item Description Phone Do not disturb: Enabled the “Do not disturb”, the phone will not allow incoming phone calls, but in the missed calls will be prompt.
  • Page 34 4.4.2 Dial Plan Tap "Call"-->" Dial" into the closing number of rules interface can be configured after clicking the "Save" button prompts "Save successful." Item Description Dial Plan Use E164: Enabled accord with E164 rules, will directly out of number. Use # as dial key: Enabled, in the non-pre-dial mode, enter the number the "#", will be in direct exhaled number.
  • Page 35 4.4.3 Account Tap "Call "-->" Account 1, 2, 3, 4" into the service interface can be configured after clicking the "Save" button prompts "Save successful” Item Description Service Call forward: Set the call forwarding feature is enabled (“Always”, “No answer” and “Busy” and “Close forward”) Forward number: Set forwarding number for each sip line.

  • Page 36: Display

    4.5 Display Tap “Display settings”, then select “Display” to switch to display interface configuration parameters. Click Save to complete. 4.5.1 Screen saver Tap “Display”, then select “Screen saver” to switch to display interface configuration parameters, click “Save” to complete. Item Description Screen Screen saver mode: Choose the screen saver mode;...
  • Page 37 4.5.2 Hibernate Tap “Display settings”, then select “Hibernate” to switch to display interface configuration parameters, Click “Save” to complete. Item Description Hibernate Enable hibernate: Enable, The phone after the specified time enter a state of dormancy. Hibernate timeout: he input phone enters a dormant state waiting time, The unit is a minute.
  • Page 38 4.5.3 Display Tap “Display settings”, then select “Display” to switch to display interface configuration parameters, Click “Save” to complete. Item Description Display Animation: Set the window animation mode, There are No animations, Some animations and All animations 3 kinds of mode selection.

  • Page 39: Sound

    4.6 Sound Tap “Sound” then select “Tone” to switch to Sound interface configuration parameters, click Save to complete. 4.6.1 Tone Tap “Sound settings”, and then select “Tone” to switch to Tone interface configuration parameters, click Save to complete. Item Description Sound Phone ringtone: Set of incoming process bell play.
  • Page 40 4.6.2 Volume Tap “Sound”, then select “Volume” to switch to Volume interface configuration parameters, clicks Save to complete. Item Description Incoming call volume: Regulation of incoming calls volume size. Number receiving Notification volume: Regulation of notification volume size. rules Media volume: Regulation of media volume size. Silent mode: Set whether to enable silence, If you enable the mute, Will come into effect in addition to alarm and media outside of all sound.

  • Page 41: Language

    4.7 Language Tap “Phone settings” then select “Language” to switch to language interface. Set phone language environment. The default selection of English. Item Description Select Click the drop-down menu to select the language as below: English, French , Arabic, German, Italian, Korean, Portuguese, your Russian, Spanish ,Turkish and Chinese (Traditional/Simplified) language...

  • Page 42: Date Time

    4.8 Date time Lightly press the" phone settings" -- >" Date time" to switch to a time setting interface. After configuration by clicking the "save" button successfully saved. Item Description Date time NTP server: Configuring the phone to get the NTP server address for the current time.

  • Page 43: Maintain

    4.9 Maintain Tap “Setting”--> “Maintain” to enter into the “Update” interface. 4.9.1 Update Tap “Maintain”, then select “Update” to switch to update page. Input password to configuration parameters and click Save to complete Item Description Update Server: The input to upgrade the server address. File name: Input the need to upgrade the file name.
  • Page 44 Item Description Next User: Input the upgrade server by use of the account. Password: Input the upgrade server by use of the password. Back: click “Back” to switch to previous page. 4.9.2 Menu password Tap “Maintain”——>“Menu password” enter into password, then click “save” to save successfully. Item Description Menu...
  • Page 45 4.9.3 Reset factory Tap " Maintenance" -- >" Reset factory " into the factory settings interface, in the input box password input menu, click the "reset button" telephone", will pop up whether to restore the factory settings" dialog box, click "confirm" that will restore the factory settings, click" Cancel" does not make any operation.

  • Page 46: Audio

    4.10 Audio Touch “Phone” --> “Audio”, enter the detailed screen. 4.10.1 Audio Touch “Audio”--> “Audio”, enter audio settings screen. After configuration, click the "Save" button to save successfully. Item Description Audio Voice encoding: Set voice encoding type in the process of the communication.
  • Page 47 4.10.2 Audio param Touch “Audio”--> “Audio param”, enter audio param settings screen, after configuration, click the "Save" button to save successfully. Item Description Audio G729 payload length: Set G729 payload length of the voice coding. param DTMF payload type: Set DTMF payload type , values between 96 and 127 base.

  • Page 48: Video

    4.11 Video Touch “Phone Set” --> “Video”, enter the settings screen. 4.11.1 Video param Touch “Video”--> “Video param”, enter audio settings screen, after configuration, click the "Save" button to save successfully. Item Description Video Video encoding: Set video encoding type in the process of the communication.
  • Page 49 4.11.2 Bandwidth Touch “Video”--> “Bandwidth”, enter Bandwidth settings screen, after configuration, click the "Save" button to save successfully. Item Description Bandwidth Media Bandwidth: Set the video frame rate of receiving during a video call. You can choose “64Kbps”, “192Kbps”, “256Kbps”, “384Kbps”, “512Kbps”, “768Kbps”, “1Mbps”, “1.6Mbps”, “2Mbps nine kinds of video encoding options.

  • Page 50: Call Firewall

    4.12 Call firewall Tap "Phone Settings "-->" Call firewall" into the Call firewall interface. After configuration, click "Save" can be successfully saved. Call firewall interface Delete selected status interface Item Description Call firewall Enable the firewall: Enabled, there is a notification hints in the notification bar.
  • Page 51 Previous page: When added to the incoming call firewall number more than one page and need to flip up and down will show" a page" button. Next page: When adding “Call firewall” number more than one page will display "Previous page" button. M/N: Where M represents the current number of pages, N represents the total number of pages.

  • Page 52: Chapter 5 Phone Application

    Chapter 5 Phone Application 5.1 Phone Dialing on the dialer view You can directly dial a phone number. Press the phone icon in the launcher. Select the line to dialing (SIP1, SIP2, SIP3, and SIP4). Enter telephone number on the keypad, if it is wrong, you can select to delete.
  • Page 53 Use the contacts Touch the Contacts icon in the launcher, or enter the dialer view, tap the “Contacts” tab, select a contact you want to call, a context menu will be shown, select the “Call contact” and select a line to dial.
  • Page 54 When you receive an incoming call is not from a stored contact, the call will appear on the screen of default contact picture, phone numbers and the location (need be opened in the Call settings), the name will be displayed as Unknown. In the ringing view, you can choose a "forward", "Video", "Audio" or "Reject", by simply pressing the corresponding button or the soft key.

  • Page 55: Call Options

    5.2 Call options Video call You can make a video call by the following way: If the remote terminal supports video calls, you can tap the “Video” button to enter the video call. Video calling interface Video talking interface Tap the video button to start a video invite in the audio talking, waiting for the “Accept”...

  • Page 56: Call Recording

    video call. In the video talking, press button to switch the different views of video. If you want go back to the audio talking, tap the button If you want to enter the tripartite conference from video talking, the video will be stop Note first.

  • Page 57: Contacts

    Three-ways conference If there are two or more talking calls, tap the “Conference” button and select a number to enter the tripartite conference with the current call. Three-way conference interface Multi-line calls This phone supports multi-line calls. When there are two or more calls, you can tap “Transfer” or “Conference”...
  • Page 58 2. Press the Search button 3. Start entering the name of the contact you’re searching for. As you type, contacts with matching names appear below the search box. Such as contact name for the Planet, number 123456, then enter P, you will see in the text field below Planet, when multiple pieces of information match, the information will bed is played.
  • Page 59 Figure: Contacts interface1 Contacts interface2 Delete a contact 1. Open your contacts or favorites. 2. Press Menu and touch Delete Manager. 3. Select the contact you want to delete, then tap the "Picture Trash" to delete or you can bulk delete, tap the contact you want to delete button to the right, making the state checked 4.
  • Page 60 1. Open your contacts 2. Touch the name of a contact in the list to view its details. 3. Press Menu and touch Options. 4. In the scrolling list of ringtones that opens, touch the one to play when the contact calls. The ringtone plays a sample.

  • Page 61: Edit Group

    Import You can copy individual or group contacts in vCard/CSV format onto your SD card or USB storage and then import them into your phone. You may also have contacts stored on an SD card from another device. Refer to your phone’s owners’ guide for details about working with SD cards. Touch Import from SD card or Import from USB storage (depending on your model of phone).
  • Page 62 Delete Group Long touch & hold the group you want, Touch Delete this group, when you are finished, touch OK...

  • Page 63: Call Log

    5.4 Call log The Call log is a list of all the calls you’ve placed, received, or missed. It offers a convenient way to redial a number, return a call, or add a number to your Contacts. The figure: Interface of all calls 1 Interface of all calls 2 To view missed calls When you have a missed call, the Notification bar will appear on the missed call icon...
  • Page 64 most recent at the top. The missed call would be marked with icon . You also can press Menu and touch Missed Calls to view all missed calls. Other actions on a Call log entry Touch a Call log entry to open a screen where you can call the contact again, send the contact a message, add the number to your Contacts, and learn more about the original call.

  • Page 65: Memory Key

    5.5 Memory Key You can pre-set speed dial buttons for quick dial. View Speed Dial Information Touch "speed dial", the terminal will display the current speed dial information interface 16; the default button on the display is empty. You can tap the screen at the top of the "1,2,3" to switch to another interface.

  • Page 66: Network Phonebook

    5.6 Network Phonebook Multimedia Video Phone terminal can be downloaded from the Internet users of the stored contact information, if you use Network Phonebook, you can follow these steps: 1. Set of configuration parameters related to the network phone book. Touch Application Contacts Network phonebook to configuration the server, file name and...

  • Page 67: Mwi

    5.7 MWI Easily view voice messages, quickly listen in voice messages. Touch the MWI icon on the home screen or in the Launcher, you can view voice messages information. Set the number to listen in voice messages Touch “Settings”—> “Call”—> “Account”—>, then touch”Voicemail” enter the number to listen in voice messages.

  • Page 68: Chapter 6 Other Application

    Chapter 6 Other Application 6.1 Email Press the E-mail, the phone will skip to the email interface. The first time used to configure users a usable account and user name. As shown in the following image: Click next, and you will enter the interface of account type selecting. You can choose among the following three options: POP3, IMAP and Exchange.
  • Page 69 QQ account From web log on QQ mailbox, in the mailbox "Settings"-" experience room "" Exchange mobile terminal synchronization service "-" I want to open" 1. In the Contact interface you can press and select "more" ---->"account" ----> "add account" (or you can directly tap "Email"...
  • Page 70 After the completion of the configuration click next to account options interface: In the interface can choose email "Email checking frequency" for "Automatic (Push)", "Never", "Every 5 minutes", " Every 10 minutes" ," Every 15 minutes" ," Every 30 minutes" and " Every hour"...

  • Page 71: Calculator

    6.2 Calculator The use of calculators In "calculator" touch of digital and function, as you use the same standard calculator. Touch the addition, subtraction, multiplication, and division button, box will appear in the show the corresponding operation symbols, to let you know executing operation. Basic panel Touch "Calculator", you will enter the calculator basic panel.

  • Page 72: View History

    fingers from right to left sliding can also enter the" advanced panel "; In the advanced panel , you can touch "menu" button, select "basic panel”, or with your finger from left to right, also can return to slide" basic panel ". Item Description A numerical calculation of the triangle function values...

  • Page 73: Note Pad

    6.3 Note pad You can write down memo anywhere at any time, in order to you the complete information needs, or memory of things. Add memo record You can touch "Add note", or press the "menu" button, select the "Add note", to the edit notepad interface, at this time you need to input information recorded, and then press the return key save, or press the "menu"...

  • Page 74: Browser

    6.4 Browser Terminal can let you surf the Internet and web browsing, use a computer with the same. The default page is Google search home page; you can make changes to the set home page. Open web For the first time, touch "Browser" into the browser, the default page is Google search home page, if you set the default page, jump into the home page of the set.
  • Page 75 Play the recorder You can use the navigation key up and down the sound recording, touch choose "Play" button into the tape recorder playing interface, touch "Play" began to play the tape, played on the process can touch "Pause" temporarily stopped play the tape, so can realize the play and pause switch. You can also use finger directly touch a recording documents into play interface, and then recorded playing Delete the recorder...

  • Page 76: Alarm Clock

    6.6 Alarm Clock Use system comes with alarm clock Open the alarm after application, press the Menu button can add alarm, then can set the alarm time, the bell, vibration, the number of repetitions and set the alarm remind events Press the Menu button can also display and hidden on the left of the clock Press the Menu button can also to alarm for advance Settings, in mute still rang the bell, alarm, 6.7 Gallery...
  • Page 77 Slideshow settings Item Description Slideshow Select how long each slide displays in the show. interval Slideshow Select the effect used when moving from one slide to the next. transition Repeat Play slideshow more than once. Slideshow Show pictures in random order. Shuffle slideshow Batch choose delete and batch to share...

  • Page 78: File Manager

    6.8 File Manager With the File Manager can easily organize multiple files. The view of the File Manager as the Figure 1 and Figure 2: Figure 1 Figure 2 “Figure 1”is showing files as icon, “Figure 2”is showing files as a list, the views as list can present the modified time of the files(need to be checked in the settings).
  • Page 79 Long press a file will show a context menu has operations like “Open”, “Copy”, “Cut”, “Paste”, “Delete”, “Rename”, “Select/Cancel” and “Properties”. Item Description Tap the “Multiple” button, multiple files can be selected. Multiple Tap the “Up” button, can return to the parent directory. History Tap the “History”...

  • Page 80: Camera

    Item Description New Folder Create a new folder. Create a new file. New File Paste It will past the copied and cut file. Search You can choose “Case sensitive” or “Exact match” to search the files that match the input. Tap "APK Manager"-->tap -->...

  • Page 81: Music

    Shooting Settings The user can light press the "menu" button, select "Settings", into the camera Settings interface, store location and photo quality Settings. Browse photos After taking the picture, you can tap the upper right corner of the small photo icon to view photos. Users can use finger touch photos, photo below shows amplifier and narrow button, the user can through the amplifier or narrow button to set the picture as wallpaper or contact icon The user taps the "Done"...
  • Page 82 Music files playing Press the option button, according to the different option item; you can "Party Shuffle" or "Shuffle all". Long press an artist in the “Artists” content, select “Play” in the context menu, you can play all the songs of the artist. Long press an album in the “Albums”...

  • Page 83: Screen Calibration

    Delete music from playlist Enter the playlist view, long press the song, select “Delete” in the context menu to delete it from this playlist. Difference between the default playlist and the list of user-defined The default playlist only can be Played and Edited, but the user-defined can be Played, Deleted and Renamed.

  • Page 84: Chapter 7 Android Setting

    Chapter 7 Android Setting 7.1 Android settings Tap “Settings” to enter settings interface to configure. Tap “Settings”, the default selection is" Basic settings", select “WAN” to switch to “WAN” interface. Item Description Status Display telephone’s currently using IP, gateway, subnet mask, and the primary DNS backup DNS.
  • Page 85 DNS 2: Input the secondary DNS address. PPPoE set Username: Input your assigned PPPoE account name. Password: Input your assigned PPPoE password. Connect when Boot complete: Whether PPPoE connection is turned on automatically when boot. After the configuration parameters, if you click “Connect” button, if can connect to the network using PPPoE mode at once；If you click “ok”...
  • Page 86 Screen Saver Enable screen saver: Enable, The phone after the specified time will enter the screen saver mode. Screen saver timeout: The input phone into the state of the screen saver waiting time, The unit is a minute. Screen saver mode: Choose the screen saver mode; There are Close LCD, Album and Clock 3 kinds of mode selection.

  • Page 87: Configuration Management

    Configuration management Tap “Settings”, and then select “Configuration management” to switch to Configuration management interface. Item Description Server: The input to upgrade the server address. Auto provision Protocol: Select the protocol used by the automatic upgrade, Include: ftp, http and tftp. Account: Input the upgrade server by use of the account.
  • Page 88 Item Description Select locale Settings phone language environment, The default selection of English. Text settings Set the phone by the use of the Android keyboard, Google input method、Meng Tian input method etc. Users through the Android market to install third party input method will be automatically Note added to the language and keyboard settings.

  • Page 89: Oip Settings

    7.2 VoIP Settings Tap “Settings” and select “VoIP Settings” to switch to VoIP setup interface. Item Description Set each sip account parameters related to registration, such as SIP set sip server address, the configuration is complete click "OK" button. Set the phone line key on the keyboard corresponding to each sip Line set line.
  • Page 90 SIP registration parameters: Item Description Server Set SIP registration server address, support for the domain name in the form of address. Set SIP registration account. Account Set SIP registration password. Password Configure the number registered to the SIP server. If Phone Number empty, no registration launched.
  • Page 91 Ban anonymous call Configure whether to banned anonymous call. Enable strict proxy Compatible with special server, using source address of opposite side when return message, no longer using address in the via field. After successful registration, subscription information, Enable subscribe you can subscribe to the state of someone else or voice mail, etc.
  • Page 92 call. Fourth codec Set the fourth priority using voice coding during a voice call. Set the fifth priority using voice coding during a voice Fifth codec call. Set the sixth priority using voice coding during a voice Sixth codec call. Seventh codec Set the seventh priority using voice coding during a voice call.

  • Page 93: Call Settings

    base Video resolution Set video encoding resolution during a video call, There are four ways for choice: QCIF, QVGA, CIF and 4CIF. Media Bandwidth Set the video frame rate of receiving during a video call. 7.3 Call settings Tap "Settings" and select "Call Settings" switch to the Call interface. Item Description Default dialing...
  • Page 94 Item Description Call forward: Set whether to enable “Call forwarding” Call forward feature. Forward mode: You can choose “Always”, “No answer” and “Busy”. Forward number: Set forwarding number for each sip line. Auto answer: Set whether to enable “Auto answer” Auto answer feature.
  • Page 95 call directly. Digital with fixed length(1-30): Enter the number of fixed length(1-30) Use time out: Enabled, in the non-pre-dial mode, Input number after the specified time will be automatic exhale the number. Dial time out (3-99): Enter the number of overtime income effect of time in seconds.

  • Page 96: Advanced Settings

    7.4 Advanced settings Location & security Tap "Advanced Settings" and then select "location and security" switch to the location and security settings interface. Item Description Set menu password Set the password to enter the configuration items. Visible password Show password as you type. Allow applications to access secure certificates and Use secure credentials other credentials.
  • Page 97 Privacy Tap "Advanced Settings" and then select "Privacy" switch to the privacy settings interface. Item Description Factory data reset Clear all user information on the phone, and the entire configuration to the default configuration. Click to restart the phone. Reboot Applications Tap "Advanced Settings"...

  • Page 98: About Phone

    Search Tap "Advanced Settings" and then select search" switch to search settings interface. Tap “search” to switch to search settings interface. Item Description Google search settings Show page proposal: When enabled, input display Google advice. You can choose to search for content on the phone, Searchable items include: browser, contacts, applications and music.
  • Page 99 Firmware version Shows the android version number. Kernel version Display system of Linux kernel version. Build number Display phone version information.

  • Page 100: Chapter 8 Web Page Configuration Description

    Chapter 8 Web page configuration description When both of the ICF-1700 phone and your PC are successfully connected to the network, enter the IP address and the web browser port about your phone as the URL such as http://xxx.xxx.xxx.xxx means the IP address for the media phone)， then you can see the login page shows as the (xxx following picture.

  • Page 101: Basic

    8.1 Basic 8.1.1 Status Item Description Network Shows the configuration information on WAN: Including the IP address and the MAC address. Phone Number Shows the phone numbers provided by the SIP LINE 1-4 servers. The last line shows the version number and issued date.

  • Page 102: Voip

    8.2 VOIP 8.2.1 SIP Item Description SIP Line Select Choose line to set info about SIP, there are 4 lines to choose. You can switch by [Load] button. Shows whether the phone has been registered the SIP Register Status server, if not, show Unapplied. Server Name Set the server name.
  • Page 103 Input your Proxy SIP server account. Proxy Username Proxy Password Input your Proxy SIP server password. Domain Realm Set the sip domain if needed, otherwise this VoIP phone will use the Register server address as sip domain automatically. (Usually it is same with registered server and proxy server IP address).
  • Page 104 Signal Key Set the key for signal encryption. Media Key Set the key for RTP encryption. Local port Set sip port of each line. Enable Subscribe Enable the option, the phone will receive the notify from the server. Enable or Disable. Keep Authentication. If it is enabled, Enable Keep system will take the last authentication field which is Authentication...
  • Page 105 * DTMF_SIP_INFO. Different service providers may provide different mode. Transport Protocol Set transport protocols, TCP or UDP. Overtime of resending subscribe packet. Suggest Subscribe Expire Time using the default configuration. Is the highest authority on the system? Enable user=phone Enable/Disable Signal Encrypt. Signal Encode Enable/Disable RTP Encrypt.
  • Page 106 Item Description Shows STUN NAT Transverse estimation, true means STUN NAT Transverse STUN can penetrate NAT, while False means not. STUN Server Addr Set your SIP STUN Server IP address. STUN Server Port Set your SIP STUN Server IP port. Set STUN Effective Time.

  • Page 107: Phone

    8.3 PHONE 8.3.1 DSP Item Description The fist preferential DSP codec: First Codec G.711A/u,G.722,G.723,G.729,iLBC,ARM,ARM-WB The second preferential DSP codec: Second Codec G.711A/u,G.722,G.723,G.729,iLBC,ARM,ARM-WB The third preferential DSP codec: Third Codec G.711A/u,G.722,G.723,G.729,iLBC,ARM,ARM-WB The fourth preferential DSP codec: Fourth Codec G.711A/u,G.722,G.723,G.729,iLBC,ARM,ARM-WB The fifth preferential DSP codec: Fifth Codec G.711A/u,G.722,G.723,G.729,iLBC,ARM,ARM-WB The sixth preferential DSP codec:...

  • Page 108: Maintenance

    Configure a dual - tone multi-frequency’s effective DTMF payload Type payload. ILBC Payload Type Set the ILBC load type, value based on 96-127. Set the ILBC payload length. ILBC Payload Length Set the ARM payload type. ARM Payload Type ARM-WB Payload Type Set the ARM-WB payload type.
  • Page 109 Domain name with subdirectory. 8.4.2 Account You can add or delete user account, and change the authority of each user account in this web page. Item Description User Set User Name, User User-set Six configuration items. Level, admin, Root, guest, General Add User User Name Set account user name.

  • Page 110: System Logout

    8.5 System Logout 8.5.1 Logout Item Description Click "logout" and you will exit web page. If you want to enter it next time, you need input user Logout name and password again.

  • Page 111: Appendix A Specifications

    Appendix A Specifications Model ICF-1700 Hardware 1 x 10/100Base-T RJ-45 for LAN (IEEE 802.3af POE compliant) 1 x 10/100Base-T RJ-45 for PC 1 x RJ9 Handle Port 1 x RJ9 Headset 1 x USB 2.0 Video Output 1 x Mini HDMI...
  • Page 112 MD5 authentication Network tools in telnet server: including ping, trace route, telnet client 4 SIP servers, and 3 backup SIP servers Voice Gain Setting, VAD, CNG Support jitter buffer Support SIP domain, SIP authentication (none, basic, MD5), DNS name of server, Peer to Peer/ IP call DTMF Relay：support Inband, SIP info, RFC2833 Basic Feature Customized music rings...
  • Page 113 Human voice num keypad indication Predial Voice recording during talking/auto answer/local Incoming calls /outgoing calls / missing calls. Each support100 records. Support Phonebook 2000 records Phone book records export/import XML phone book Photo frame Media player(mp3, wav, wma) USB disk file management System files management Support VoIP(SIP/RTP) encryption (e.g.

  • Page 114: Appendix B Firmware Upgrade

    Appendix B Firmware Upgrade Please follow the step to upgrade the firmware as below 1. Create a directory named implinux in the USB disk, and copy the update file to this directory, and then insert the USB into the phone. 2.

  • Page 115: Appendix C Auto Provision

    Appendix C Auto provision Here are some notices for the auto provision as below: 1. Automatic upgrade application must be made before a version of the file version.txt as follow: version: 1.0.837.35.64 server: 192.168.1.249 image: planet.tar.gz protocol: ftp user: planet password: planet version: Phone version, this version can be arbitrarily fill, But the version number cannot be same as telephone version number, Otherwise do not upgrade.
