T

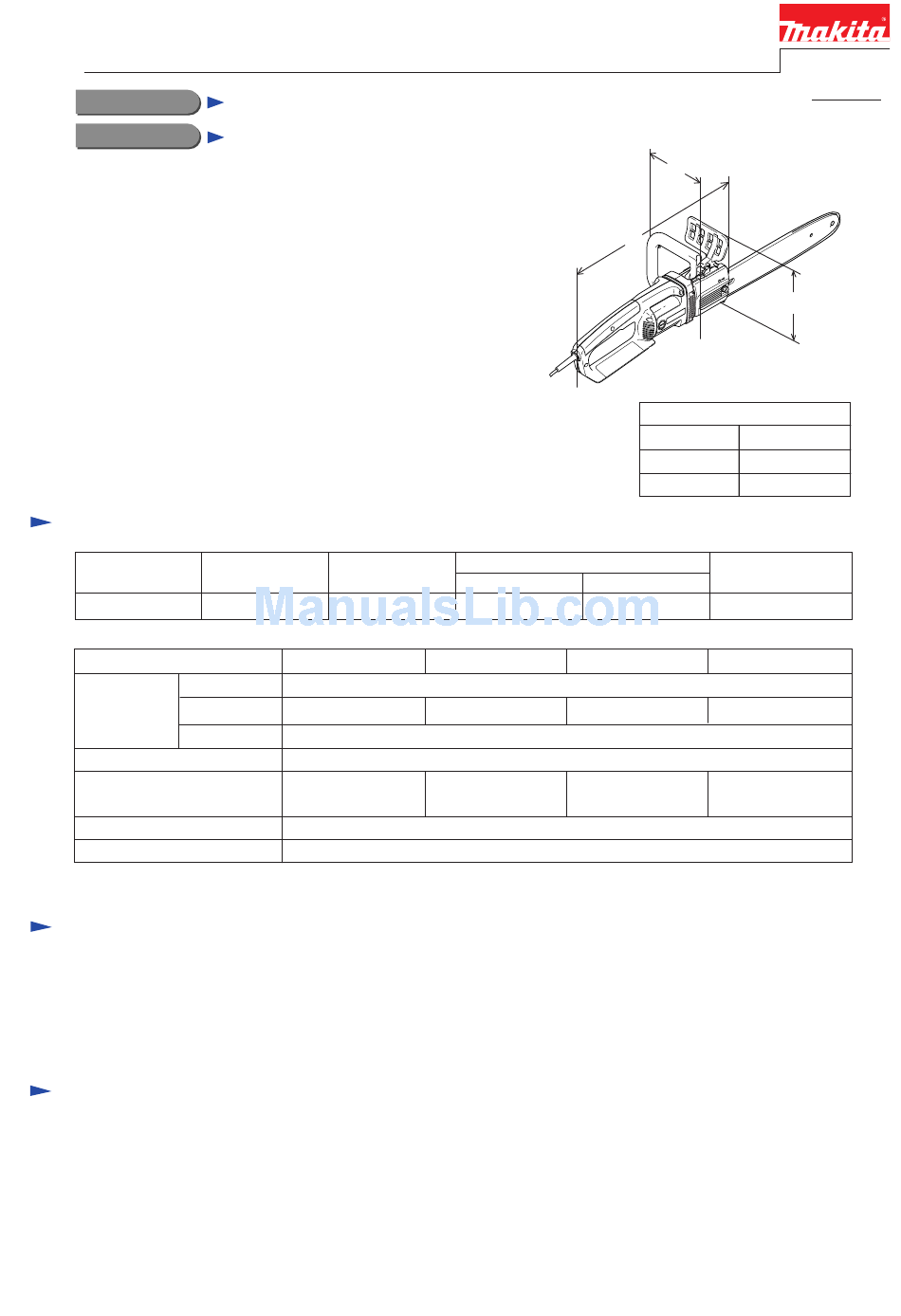

ECHNICAL INFORMATION

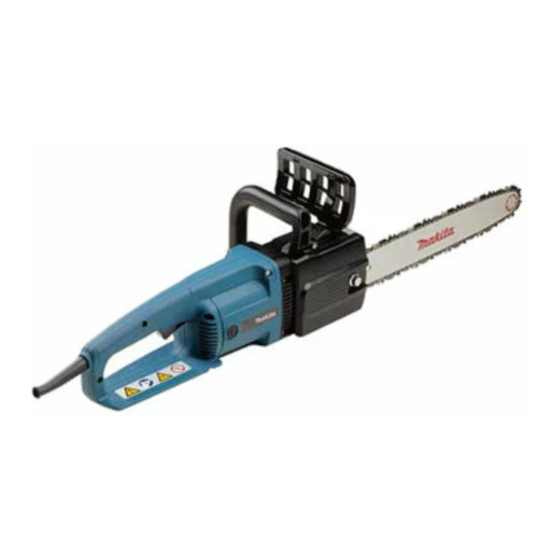

Models No.
Description
C
ONCEPT AND MAIN APPLICATIONS
For European market, the above models have been developed
as upgraded chain saws of the current UC3001A series models.
The new UC3003A seies models feature contnuous rating input
of 2000W while the UC3001A series 1800W.
Additionally, the new series includes Model UC4503A,
450mm (18") chain saw which is not in the lineup of UC3001A
series.
S
pecification
Voltage (V)
230 - 240
Model No.
Chain type
Pitch
Chain blade
Gauge
No load chain speed: m/s
Guide bar length: mm (")
Electric brake
Clutch
S
tandard equipment
* Guide bar scabbard .................... 1 pc.
* Wrench ....................................... 1 pc.
< Note > The standard equipment for the tool shown may differ from country to country.
O
ptional accessories
* Chain blade
* Guide bar
UC3003A, UC3503A, UC4003A, UC4503A
Chain saws 300mm, 350mm, 400mm, 450mm
Cycle (Hz)
Current (A)
8.8
50 / 60
UC3003A
3/8" 46 drive links
300
(12)
Continuous Rating (W)
Input
2,000
UC3503A
91VG
3/8" 52 drive links 3/8" 56 drive links 3/8" 62 drive links
0.050"
13.3
350
(14)
Yes
Yes
W
L
Dimensions: mm ( " )
Length ( L )
470 (18-1/2)
Width ( W )
179 (7)
Height ( H )
215 (8-1/2)
Max. Output (W)
Output
1,100
2,200
UC4003A
UC4503A
400
450
(16)
(18)
PRODUCT
P 1 / 8
H
