TILT CLOSE ASPECT OPEN / CLOSE CQ-VD7005U TILT O / C TEXT P·MODE CQ-VD7001U ENTER MUTE MENU NAVI ¡Please read these instructions (including “Limited Warranty” and “Customer Services Directory”) carefully before using this product and keep this manual for future reference.
They contain instructions about how to use the system in a safe and effective manner. Panasonic assumes no responsibility for any problems resulting from failure to observe the instructions given in this manual.
Page 3
Installation of this unit requires special skills and experi- ence. For maximum safety, have it installed by your dealer. Panasonic is not liable for any problems resulting from your own installation of the unit. Follow the instructions to install and wire the prod- uct.
Page 4
Notice This product contains a CR Coin Cell Lithium Battery which contains Perchlorate Material - special handling may apply. See www.dtsc.ca.gov/hazardouswaste/perchlorate. CQ-VD7005U (continued) This system is designed so that you cannot see moving pictures while you are driving. ¡Park your car in a safe place and pull the side brake (parking brake) lever before watching the monitor.

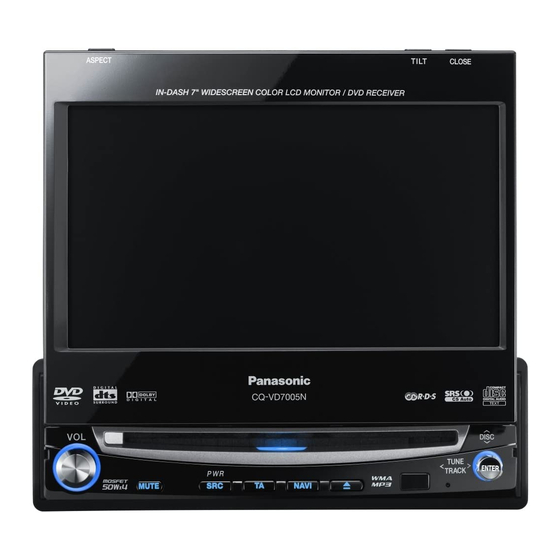

Components TILT OPEN / CLOSE 1. Main Unit (LCD monitor/DVD player) ASPECT OPEN / CLOSE CQ-VD7005U TILT O / C TEXT P·MODE CQ-VD7001U DISC TUNE / ENTER...
For hearing or speech impaired TTY users, TTY : 1-877-833-8855 Accessory Purchases: Purchase Parts, Accessories and Instruction Books online for all Panasonic Products by visiting our Web Site at: http://www.pasc.panasonic.com or, send your request by E-mail to: npcparts@panasonic.com You may also contact us directly at: 1-800-332-5368 (Phone) 1-800-237-9080 (Fax Only) (Monday- Friday 9 am to 8 pm, EST.)
5770 Ambler Drive, Mississauga Ontario L4W 2T3 PANASONIC PRODUCT LIMITED WARRANTY Panasonic Canada Inc. warrants this product to be free from defects in mate- rials and workmanship and agrees to remedy any such defect for a period as stated below from the date of original purchase.
Features Panasonic welcomes you to our constantly growing family of electronic products owners. We endeavor to give you the advantages of precise electronic and mechanical engineering, manufactured with carefully selected components, and assembled by people who are proud of the reputation their work has built for our company.
¡Improper use of a battery may cause overheating, an explosion or ignition, resulting in injury or a fire. Note: ¡Battery Information: Battery Type: Panasonic lithium battery (CR2025) Battery Life: Approximately 6 months under normal use (at room temperature) Notice This product contains a CR Coin Cell Lithium Battery which contains Perchlorate Material - special handling may apply.
If the operation is not executable with the Main Unit, “––” is displayed. Disc Marks The following pictographs are used for the descriptions of disc operation. page 19-23) : DVD : VCD (Video CD) : CD : CD-R/RWs containing MP3 files : CD-R/RWs containing WMA files CQ-VD7005U...
[ASP], [MENU], [u], [OPEN], [TILT] are available only on the main unit. ¡ : This book refers to connections to the Panasonic car navigation system that will come onto the market in the future. Descriptions regarding the car navigation system are boxed with a dotted line.
¡Selects (vertically) or adjusts an operation or item. ¡Selects a band. ¡Shows OSD. ¡Searches for broadcast stations and memorizes them automatically. ¡Determines an operation or item. ¡Displays the DVD/title menu. (Operations vary according to the media.) CQ-VD7005U...
Note : ¡The screen above appears when no external device is connected to AV1, AV2, and the Expansion Module (CY-EM100U, option). CQ-VD7005U ¡Do not use a pen or other sharp implements to page 47) operate the touch panel. ¡Do not bump the front panel.
¡ Refer to the description of each mode for how to operate the operation screen. Showing the hidden part of the screen. Some items have continued parts. You can see the continued parts by pressing DVD mode Standard Screen Standard Screen Operation Screen OSD OFF * CQ-VD7005U...
Preparation: Turn your car’s ignition key to the ACC or ON position. General Operations Operations Power ON : Power OFF : Display Open/Close Source selection …… Touch/Press and hold for more than 2 seconds CQ-VD7005U [TILT] ASPECT P·MODE CQ-VD7005U MUTE MUTE MENU NAVI [MUTE] [SRC] (PWR: power) –...
Page 17
To cancel, press again. q Press and hold for more than 2 sec- onds. w Press to adjust. Setup is the same as from MENU. Refer to DISPLAY UNIT for details. page 32) page 34) To raise the display, press again. CQ-VD7005U...
DVDs with a region number other than “1” or ¡ “ALL” Playing back a photo CD disc with this unit could ¡ damage the data that is recorded on the disc. CQ-VD7005U Symbols used on jackets (Examples of such symbols include) CD-R/RW ¡ ¡...
Page 19
Refer to the disc jacket for further details. ¡This unit does not support DVD and VCD (Video CD) karaoke functions. TILT TILT CLOSE CLOSE OPEN / CLOSE OPEN / CLOSE CQ-VD7005U CQ-VD7005U TILT O / C TILT O / C TEXT TEXT CQ-VD7001U CQ-VD7001U [u] (eject) lights.
To resume normal playback, touch/press / [5]. To cancel, touch again. To cancel, touch and hold for more than 2 seconds again. To cancel, touch again. To cancel, touch again. To cancel, touch and hold again. {F= FOLDER (folder)} CQ-VD7005U...
Page 22
¡When the current disc is not ready for the on-screen direct operation, perform operations with the buttons on the remote control or the unit. ¡The on-screen direct operation of the DVD menu is not available in the DVD changer mode. CQ-VD7005U (continued) Operations Discs Discs...
Page 23
: the right channel audio is output on both the left and MONO.R right speakers. is touched, the operation buttons disappear. Return Audio Language/ Angle/ Subtitle Language ¡ Touch during playback. ¡ Touch during playback. ¡ Touch during playback. page 38) ANGLE MARK previous page) or is at the DVD CQ-VD7005U...
¡Never assign the “.mp3”, or “.wma” file name extension to a file that is not in the MP3/WMA format. This may not only produce noise from the speaker damage, but also damage your hearing. CQ-VD7005U Display Information Displayed items ¡ CD-TEXT Disc title Track title ¡...
Page 25
Sampling frequency 32, 44.1, 48 kHz 16, 22.05, 24 kHz 32, 44.1, 48 kHz Root Folder (Root Directory) Folder Selection In the order – File Selection In the order – Tree 2 Tree 3 Tree 4 Tree 8 (Max.) CQ-VD7005U...
FM SETUP Tuning Operations Band Selection List Selection Refer to the next page. Station Selection Seek Tuning …… Touch/Press and hold CQ-VD7005U Source Button w Touch Band (RADIO) on the selection Source Selection Screen. List selection page 40) AUTO PRESET...
– – page 40) RADIO FM SETUP AUTO PRESET The preset station selected in the step q is – – interchanged with the targeted preset chan- nel selected in the step w (Preset Swap). blinks once EACH EACH EACH CQ-VD7005U...
INPUT is not skipped even if ¡If no operation is performed for 10 seconds or touched, the operation buttons disappear. ¡AV terminal is not used for the Panasonic car navigation system (available in future). Refer to for setting. NAVI SETUP...
AM SETUP Setting for AM stations XM SETUP Setting for XM radio SIRIUS SETUP Setting for Sirius satellite radio (*1) Please refer to the System Upgrade Guidebook. CQ-VD7005U (Language setting). MENU DISPLAY page 33) page 32) page 32) page 32)
Operation Screen. (Example: setting screen of “DISPLAY UNIT” Note : ¡ The display returns to the previous status if there is no operation for more than 60 seconds after changing to the setting menu. ASPECT CQ-VD7005U P·MODE CQ-VD7001U MUTE MENU MENU...
(Fill in the ID code memo page 46).) If you forget it, you will be unable to use the unit. In case you forget the ID code, please / [SRC]. consult your nearest Panasonic Servicenter. MINUTE ADJUST: 0 4 digits numeric code default: none...
Page 33
: sets to OFF if your car has no ACC posi- tion. default: (Remote control setting) : main unit-specific remote control : rear monitor (option)-specific remote control default: FRONT (Language setting) : displays the menu in English. : displays the menu in French. default: ENGLISH CQ-VD7005U...
: lightens the depth of color on the display. : deepens the depth of color on the display. TINT (Adjust the image tone or tint) : emphasizes red in the color image. : emphasizes green in the color image. CQ-VD7005U INPUT/OUTPUT RADIO USER SOUND SETUP Sound Set Up...
Page 35
(Applies to the Sub-woofer) Setting range: off, +1 to +10 default: off (Adjusts the SRS effect) (Adjusts the SRS effect (front) on rear speakers) (Adjusts the SRS effect (center) on rear speakers) Setting range: off, +1 to +10 default: +5 CQ-VD7005U...
Page 36
* A subwoofer (option, CJ-SW3003 recommended) is required. A power amplifier (option) is also required for connecting a subwoofer. Note: ¡While the private mode is active, only adjusted. CQ-VD7005U PHASE : subwoofer phase 0 degree 0° 180° : subwoofer phase 180-degree inverted Note: ¡...
: up Setting range: 63 Hz to 200 Hz default: 125 Hz (High Pass Filter) : up Setting range: off, 63 Hz to 200 Hz default: off is set to CS Auto is enabled only on the front speakers CQ-VD7005U...
Page 38
¡ These adjustments being executed, playback will start from the beginning of a disc. : English : French : Spanish OTHER : other language. Input the language code. page 49) CQ-VD7005U INPUT/OUTPUT RADIO DISPLAY Display aspect and DVD software mode DVD ASPECT NARROW WIDE...
INPUT SELECT OUTPUT SELECT H-F SETUP default: default: INPUT/OUTPUT RADIO (Navigation set up) System Upgrade Guidebook) System Upgrade Guidebook) (AV1 skip) default: (AV2 skip) default: is not enabled because the con- System Upgrade Guidebook) System Upgrade Guidebook) System Upgrade Guidebook) CQ-VD7005U...
WIDE received to prioritize sound quality. XM SETUP System Upgrade Guidebook) SIRIUS SETUP System Upgrade Guidebook) CQ-VD7005U RADIO Aspect Ratio Default: NORMAL Mode: 4 types Press and hold [ASP] on the main unit to change the aspect ratio as follows.
Page 41
TIME ALIGNMENT (speaker delay) page 37) on the sound setting menu while private mode is active. Private mode Private mode Radio Radio It is recommended to use optional Over-head Monitor (CY-VHD9401U) and headphones Radio Mute supplied to CY-VHD9401U. CS Auto CQ-VD7005U...
Servicenter. The product should be serviced only by qualified per- sonnel. Please refer checking and repair to professionals. Panasonic shall not be liable for any accidents arising out of neg- lect of checking the unit or your own repair after your checking.
Page 43
The power of the unit The safety device works. aConsult your dealer, or your nearest Panasonic Servicenter. fails unintentionally. Radio Antenna installation or wiring of antenna cable is faulty.
The picture is light in color. The display does not go back into the unit. CQ-VD7005U (continued) The disc has unplayable formatted data. aRefer to the description about MP3/WMA for playable sound data except CD- DA (i.e.
FRONT for the remote control setting. is selected for the ACC selection. for the ACC selection. NONE in the speaker setting. aSet subwoofer to aSet private mode to aSet Pro Logic to CQ-VD7005U...
¡ There may be cases when the disc numbers affected by an error are displayed before “NON PLAYABLE DISC”. In case you forget the ID code... In case you forget the ID code, please consult your nearest Panasonic Servicenter. ID code memo Copy the memo below, fill in the ID code, and keep it in a secure location.
Product Servicing If the suggestions in the charts do not solve the problem, we recommend that you take it to your nearest authorized Panasonic Servicenter. The product should be serviced only by a qualified technician. Replacing the Fuse Use fuses of the same specified rating (15 A). Using dif-...
Discs with burrs Please remove the burrs before use. CQ-VD7005U Disc insert The surfaces of new discs tend to be slippery. Therefore, when using such a disc for the first time, it may not load satisfactorily even when it has been inserted into the unit.
This refers to a screen on which the playback picture of wide-screen DVDs or VCD (Video CD)s is cut off at the left and right sides. CQ-VD7005U Playback control (VCD (Video CD)) If the VCD (Video CD) has “With Playback Control”...
” x 3 ” x 6 ”} : 336 960 pixels (234 vertical x 480 horizontal x 3) : Over 99.99% : Transparent color filter for- : TFT (Thin Film Transistor) active matrix format : Internal light (Built-in small fluorescent lamp) CQ-VD7005U...
