Planet HDP-1100PT User Manual

720p sip door phone with poe
Hide thumbs Also See for HDP-1100PT:
Table of Contents

Advertisement

Quick Links

720p SIP Door Phone with PoE
HDP-1100PT

Advertisement

Table of Contents
loading

Related Manuals for Planet HDP-1100PT

Summary of Contents for Planet HDP-1100PT

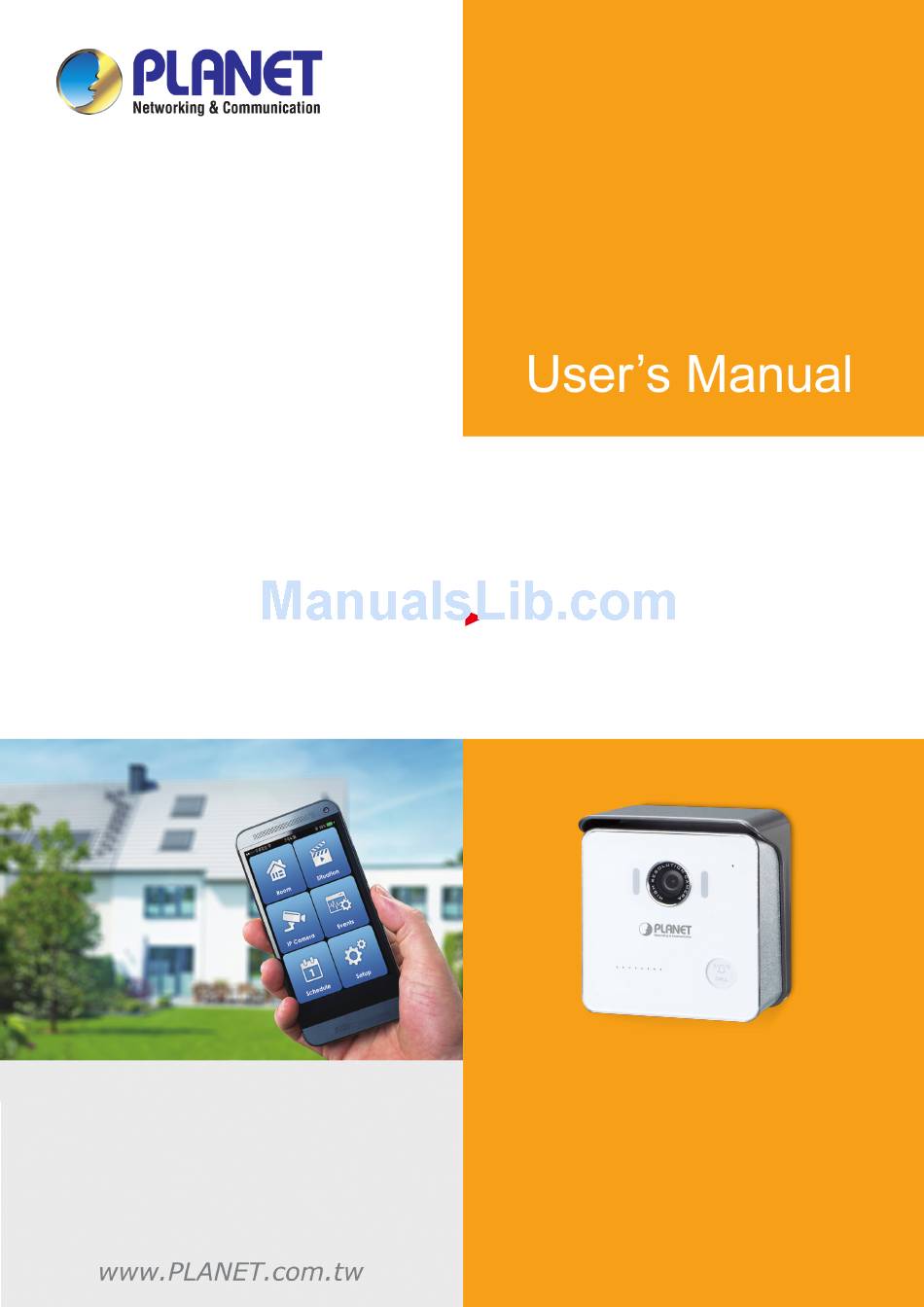

  • Page 1 720p SIP Door Phone with PoE HDP-1100PT...
  • Page 2 Further, PLANET reserves the right to revise this publication and to make changes from time to time in the contents hereof without obligation to notify any person of such revision or changes.
  • Page 3 Do not dispose of WEEE as unsorted municipal waste and have to collect such WEEE separately. Revision User’s Manual of 720p SIP Door Phone with PoE Model: HDP-1100PT Rev: 1.00 (August, 2015) Part No. EM-HDP-1100PT_v1.0...

  • Page 4: Table Of Contents

    3.5.5 Reboot ..................23   Appendix A:   Door Phone SIP Configuration ..........24   Appendix B:   Control HDP-1100PT by Smart Phone ........25   Appendix C:   Open Door by VoIP Phone ............31   Appendix D:   Troubleshooting & Frequently Asked Questions....... 36...

  • Page 5: Chapter 1. Product Introduction

    Automation Control Gateway. Easy Communication via Intercom The two-way intercom function provided by the HDP-1100PT allows you to see the visitors and also communicate with them. The HDP-1100PT includes inputs/outputs for connecting to external devices such as door lock or door sensors. When the visitors press the call button at your door, you can press the unlock button on your mobile phone or PLANET HTS-1000P touch screen control pad to open the door for your visitors.
  • Page 6 720p SIP Door Phone with PoE HDP-1100PT White LED x 6, effective up to 0.6 meters Video Video Compression H.264 / M-JPEG H.264: 720p / 640 x 480 / 320 x 240 Video Resolution MJPEG: 720p / 640 x 480 / 320 x 240...

  • Page 7: Chapter 2. Hardware Interface

    White LED Speaker Call Button Interface Description The HDP-1100PT door phone has a built-in IP camera supporting a CMOS sensor high-resolution video of up to 1280 x 720 pixels. White LED Emits white light to provide light source in dark places.
  • Page 8 720p SIP Door Phone with PoE HDP-1100PT I/O Control Instruction Green: NO Brown: COM Blue: NC Orange: DI Yellow: DI Black: GND Red: +DC12V Electric deadbolt for door entry system Connect to RJ45 cable Interface Description DC Power (red) The input power is 12V DC, 1A DI connects to the sensor for notifying the status, so that the CPU can do the appropriate action.

  • Page 9: Hardware Installation

    Step 4. Press the Open door button to open door by mobile phone. 2.2 Hardware Installation Step 1: Surface-mount the HDP-1100PT SIP IP video door phone in a desired location. Step 2: Put the Ethernet cable through the square hole, measuring 35 x 35mm.
  • Page 10 720p SIP Door Phone with PoE HDP-1100PT Unzip the file and run the program “ SmartDiscoveryLite”. Step 2: The window below will show the network information of control gateway. Step 3: Before searching the IP, please make sure your PC is in the same IP segment as door phone.
  • Page 11 720p SIP Door Phone with PoE HDP-1100PT admin Enter the password: . After clicking Step 5: “OK”, the information will be changed.

  • Page 12: Chapter 3. Web-Based Management

    720p SIP Door Phone with PoE HDP-1100PT Chapter 3. Web-based Management Your door phone is ready to put you in control of your home. Please take a few minutes to read through this guide to familiarize yourself with the steps required to set up your door phone.

  • Page 13: Service Status

    720p SIP Door Phone with PoE HDP-1100PT Hardware Version The current hardware version of the door phone. Firmware Version The current firmware version of the door phone. Uptime The operating time from boot time till now. 3.2.2 Service Status This section provides the information of network status and phone status.

  • Page 14: Sip

    720p SIP Door Phone with PoE HDP-1100PT 3.3.1 SIP This section includes SIP information, SIP registration, and intercom with control pad and advanced settings. You can register door phone to your IP PBX on this page and intercom with control settings.

  • Page 15: Calls

    720p SIP Door Phone with PoE HDP-1100PT Parameters Description SIP Information Account and password of registration information in your IP PBX. IP address, port and expiry of your IP PBX. SIP Registrar Dial Button needs to be filled in IP address of control pad for intercom.

  • Page 16: Video

    720p SIP Door Phone with PoE HDP-1100PT 3.3.3 Video You can modify the pixel of the door phone. Parameters Description Defines the targeted frame rate of this video. For example, set the frame rate to 15 fps, then the image will be updated for 15 frames per Video Frame Rate second.

  • Page 17: Rtsp Server

    720p SIP Door Phone with PoE HDP-1100PT 3.3.4 RTSP Server RTSP command of the door phone Parameters Description RTSP Server Enable To enable or disable the RTSP server MJPG URL Set the MJPG output connecting route. To select alaw or acc for MJPEG audio coding...

  • Page 18: Device

    720p SIP Door Phone with PoE HDP-1100PT Parameters Description Account Account of login to the door phone. Password Password of login to the door phone. HTTP Port Default is 80. 3.4 Device This section is about volume control and camera, and relay settings.

  • Page 19: Camera

    720p SIP Door Phone with PoE HDP-1100PT 3.4.2 Camera There are Brightness, Contrast, Flicker and Night Mode of the door phone. Parameters Description Brightness Brightness of the door phone. Contrast Contrast of the door phone. Wrong power line frequency makes images flicker. Make sure it Flicker comes with the 50 or 60Hz format of your device.

  • Page 20: Network

    720p SIP Door Phone with PoE HDP-1100PT 3.5.1 Network Network setting of the door phone Parameters Description Network Type Select your network type: Ethernet or PPPoE. Select your Boot Protocol: DHCP or Static. DHCP: IP camera will get all the network parameters automatically.

  • Page 21: Date &Time

    720p SIP Door Phone with PoE HDP-1100PT Internet. 3.5.2 Date & Time You can set up the current time, time zone and NTP Server on this page. Parameters Description Current Time Time of the door phone. Date Date of the door phone.

  • Page 22: Reset

    720p SIP Door Phone with PoE HDP-1100PT 3.5.4 Reset You can reset configurations to default here. If you forget login password, change the password or reset it to default by using the hardware reset. Within 5 seconds after the adapter is connected to the door phone, press and hold the call button on the door phone for 40 seconds.

  • Page 23: Reboot

    720p SIP Door Phone with PoE HDP-1100PT 3.5.5 Reboot Click the “Reboot” button to reboot and try to reconnect.

  • Page 24: Appendix A: Door Phone Sip Configuration

    720p SIP Door Phone with PoE HDP-1100PT Appendix A: Door Phone SIP Configuration Please refer to the following steps to configure door phone. Make sure you have already finished hardware and utility installation. Step 1. Go to “System”>”Network”, Select Static IP and fill out your static IP.

  • Page 25: Appendix B: Control Hdp-1100Pt By Smart Phone

    Appendix B: Control HDP-1100PT by Smart Phone The HDP-1100PT can be used on iOS and Android operating system; can be online at Google Play and App store search Cloud Home download. Please refer to the following steps to install Cloud Bell App.
  • Page 26 720p SIP Door Phone with PoE HDP-1100PT If you forget password, you can click “Forget Password” to resend a new password to your e-mail. 1. Input your account (e-mail) and click OK 2. Login to your e-mail account to receive the to resend a new password.
  • Page 27 720p SIP Door Phone with PoE HDP-1100PT c. Scan QR code d. There is an action code in the blank, and press “Send” to add the door phone. e. Add success. Click gear to change the name of the door phone.
  • Page 28 720p SIP Door Phone with PoE HDP-1100PT Share the door phone with your family. Step 3. a. Click “Share Setting. b. Click “Add Sharer”. c. Add by “Scan QR Code”. d. Add by “input account to share”.
  • Page 29 720p SIP Door Phone with PoE HDP-1100PT e. Add sharer e-mail address Finish added share If you want to add sharer by scan QR code, you can click “My QR Code” to get the QR code of your account. 1. Click “My QR Code”...
  • Page 30 720p SIP Door Phone with PoE HDP-1100PT Advanced setting. Intercom. Step 4. Step 5. a. If you don’t want to receive the a. When visitor presses call button on notification about door phone, you door phone, your Cloud Bell app will can enable “do not disturb”...

  • Page 31: Appendix C: Open Door By Voip Phone

    Appendix C: Open Door by VoIP Phone How to open door via IP phone. Door phone: HDP-1100PT IP phone & IP PBX: Example on PLANET PoE Video Phone - ICF-1800 and PLANET PoE PBX - IPX-330 Electric door lock: Anode lock Step 1.
  • Page 32 720p SIP Door Phone with PoE HDP-1100PT...
  • Page 33 720p SIP Door Phone with PoE HDP-1100PT b. HDP-1100PT registration setting. c. DTMF code: 1234. This can be defined by yourself. Make sure DTMF code is the same as ICF-1800.
  • Page 34 720p SIP Door Phone with PoE HDP-1100PT d. Registration of ICF-1800. e. DTMF code of ICF-1800. ICF-1800 calls to door phone and door is locked.
  • Page 35 720p SIP Door Phone with PoE HDP-1100PT g. During the call, ICD-1800 presses DTMF button to unlock the electric deadbolt lock.

  • Page 36: Appendix D: Troubleshooting & Frequently Asked Questions

    720p SIP Door Phone with PoE HDP-1100PT Appendix D: Troubleshooting & Frequently Asked Questions Feature Can HDP-1100PT connect to No, door phone cannot connect to internet via wireless. internet via wireless? Can HDP-1100PT be used No, it is only for indoor use.
