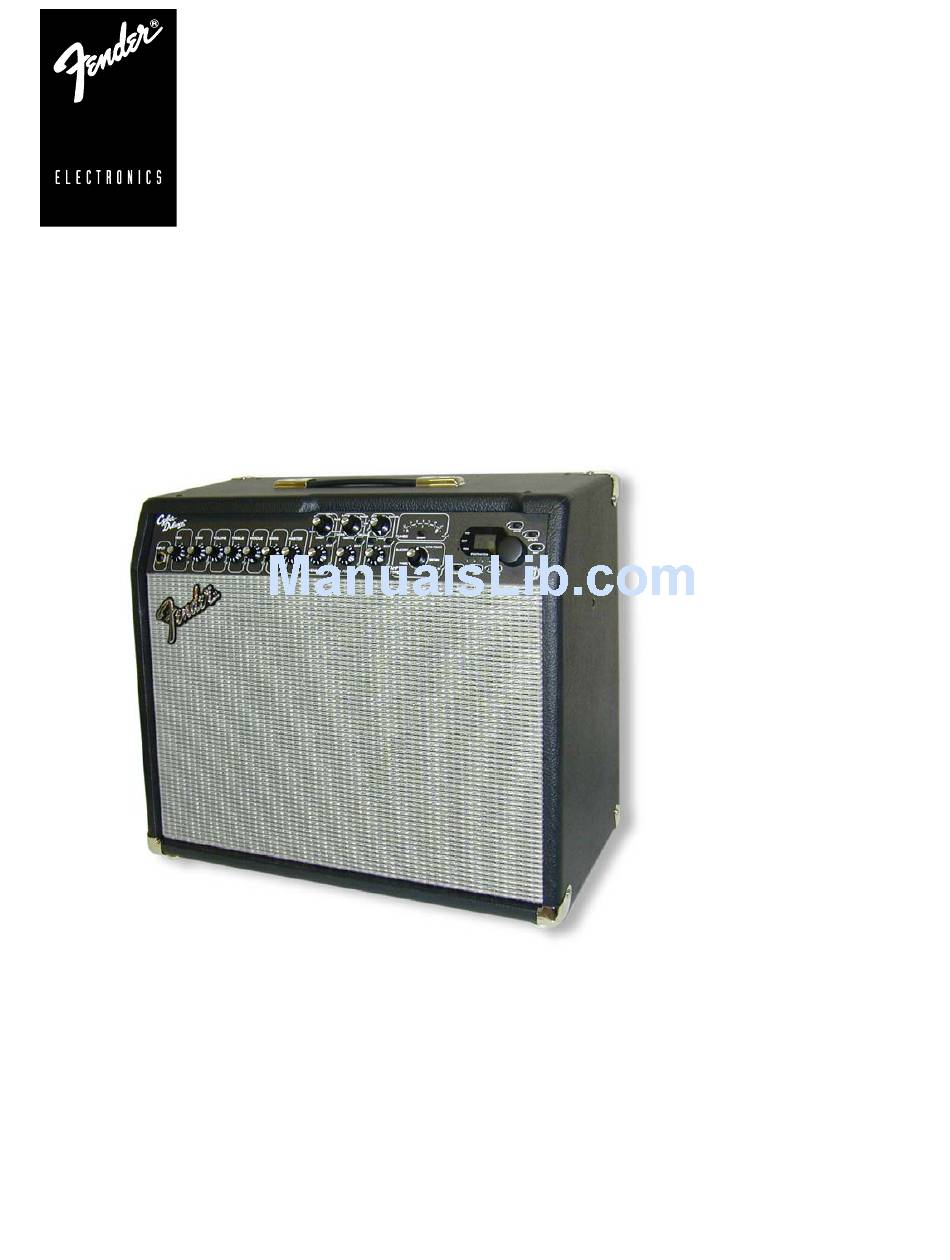

Page 1: Service Manual
Notices Specifications Service notes Troubleshooting guide Troubleshooting flow charts Preset/Parameter charts Parts lists: Main PCB assembly FP/RP/PA PCB assembly Chassis assembly Cabinet assembly End item assembly Schematics/diagrams Fender Musical Instruments Corp. 8860 East Chaparral Road Suite 100 Scottsdale, AZ 85250... -
Page 2: Important Notice
Fender Musical Instruments Co. All specifications subject to change without notice. Only Fender specified part numbers are to be used for warranty repair service. It is recommended they also be used for post-warranty maintenance and repair. -
Page 3: Specifications
CYBER DELUXE SPECIFICATIONS Product Release No.: PR 444 (This is not a model number) Part Number: 120V,60Hz USA: 22-9001 110V,60Hz TW: 22-9011 240V,50Hz AUS: 22-9031 230V,50Hz UK: 22-9041 220V,50Hz ARG: 22-9051 230V,50Hz EUR: 22-9061 100V,50Hz JPN: 22-9071 220V,60Hz ROK: 22-9091... - Page 4 CYBER DELUXE SERVICE NOTES Fender Cyber-Deluxe Step by Step Troubleshooting Guide for Hardware Problems NO AUDIO Setup: Follow the instructions as stated under notes 8, on the Cyber-Deluxe Main Schematics (0056389000 Sheet1). 1. Turn on the power to the Cyber-Deluxe and press the Manual button.
- Page 5 CYBER DELUXE Fender Cyber-Deluxe Step by Step Troubleshooting Guide for Hardware Problems (cont) MIDI IS NOT WORKING Setup: Follow the Midi Test instructions described on the Rear Panel Board Section Schematics (0056392000 Sheet 2). 1. Check for Midi activity on the Midi test points TP18 & TP20.
- Page 6 CYBER DELUXE Power-up Problems and Power-up Self-test Errors At power-up, display is blank. Probable Host Processor (U28) boot/operation problem. 1. Check Host EPROM Socket and chip (U34) for wear, damage, or poor pin contact. 2. First check regulator devices and voltages. Inspect U17, U27, U19, U25 and associated parts. U17 pin 6 should be 0v (RESET).
- Page 7 Items whose parts numbers are marked with a single asterisk (*) in the itemized parts lists are not field replaceable. If a failure due to one of these components is detected, please contact a Fender Customer Service Representative for authorization to exchange the failed PCB Assembly. Replacement PCB...
- Page 14 CYBER DELUXE PARTS LIST NOTE: SHADED ITEMS ARE FOR REFERENCE ONLY MAIN PRINTED CIRCUIT BOARD ASSEMBLY PART # DESCRIPTION REFERENCE DESIGNATION CAP 0805 CER 750pF 25V 5% CAP 0805 CER .0022uF 25V 5% CAP 0805 CER .0033uF 25V 5% CAP 0805 CER .015uF 25V 5% CAP 0805 CER .01uF 25V 5%...
- Page 15 CYBER DELUXE MAIN PRINTED CIRCUIT BOARD ASSEMBLY (cont) PART # DESCRIPTION REFERENCE DESIGNATION IC SMT 3-TO-8 DECODER 74HC138 IC SMT 8-BIT A/D TLC542 IC SMT 8-BIT MICRO CONTROLLER 80C251G2D IC SMT 8BIT SHFT REG 74HC595 U29 U33 U36-38 IC SMT CODEC AK4528...
- Page 16 CYBER DELUXE MAIN PRINTED CIRCUIT BOARD ASSEMBLY (cont) PART # DESCRIPTION REFERENCE DESIGNATION RES 0805 MF 1/10W 5% 5.6k R112 RES 0805 MF 1/10W 5% 56k R18 R99 RES 0805 MF 1/10W 5% 6.8k R45 R113 RES 0805 MF 1/10W 5% 680ohm R55 R67 RES 0805 MF 1/10W 5% 8.2k...
- Page 17 CYBER DELUXE FP/RP/PA PRINTED CIRCUIT BOARD ASSEMBLY (CONT) PART # DESCRIPTION REFERENCE DESIGNATION CAP MPF .1Uf 63V 10% CAP MPF .33Uf 63V 10% C52-53 C63 C69 0051931000 CONNECTOR DIN 5 PIN FEMALE J402 J404 J501 0027940000 CONTROL SNAPIN 50k 15A TAPER...
-
Page 18: Chassis Assembly
CYBER DELUXE FP/RP/PA PRINTED CIRCUIT BOARD ASSEMBLY (CONT) PART # DESCRIPTION REFERENCE DESIGNATION XSTR PNP 2N4403 TO-92 HEAT SINK PLATE CYBER-DELUXE 0054657000 SPACER LED VERTICAL .1X.2" @ D1-4 D6 D9-24 D27-28 D31-32 SCREW 4-40x3/8 HWHS ZI .1” HD @ U1 & HS1 INSULATOR MICA TDA7294 @ U1 &... - Page 19 TAPE ALUM 7-1/2" X 60 YD 0037788000 GRILLE CLOTH BLK / SILVER END ITEM ASSEMBLY PART # DESCRIPTION REFERENCE DESIGNATION 0029906000 NAMEPLATE FENDER GENERIC SMALL 0054420000 SPEAKER CELESTION G12T-100 0036199000 SCRW M 8-32x1-3/16 OHP BLX CP @CHS (PEM) 0018113000 SCRW SMA 4X1/2 OHP BLX...
