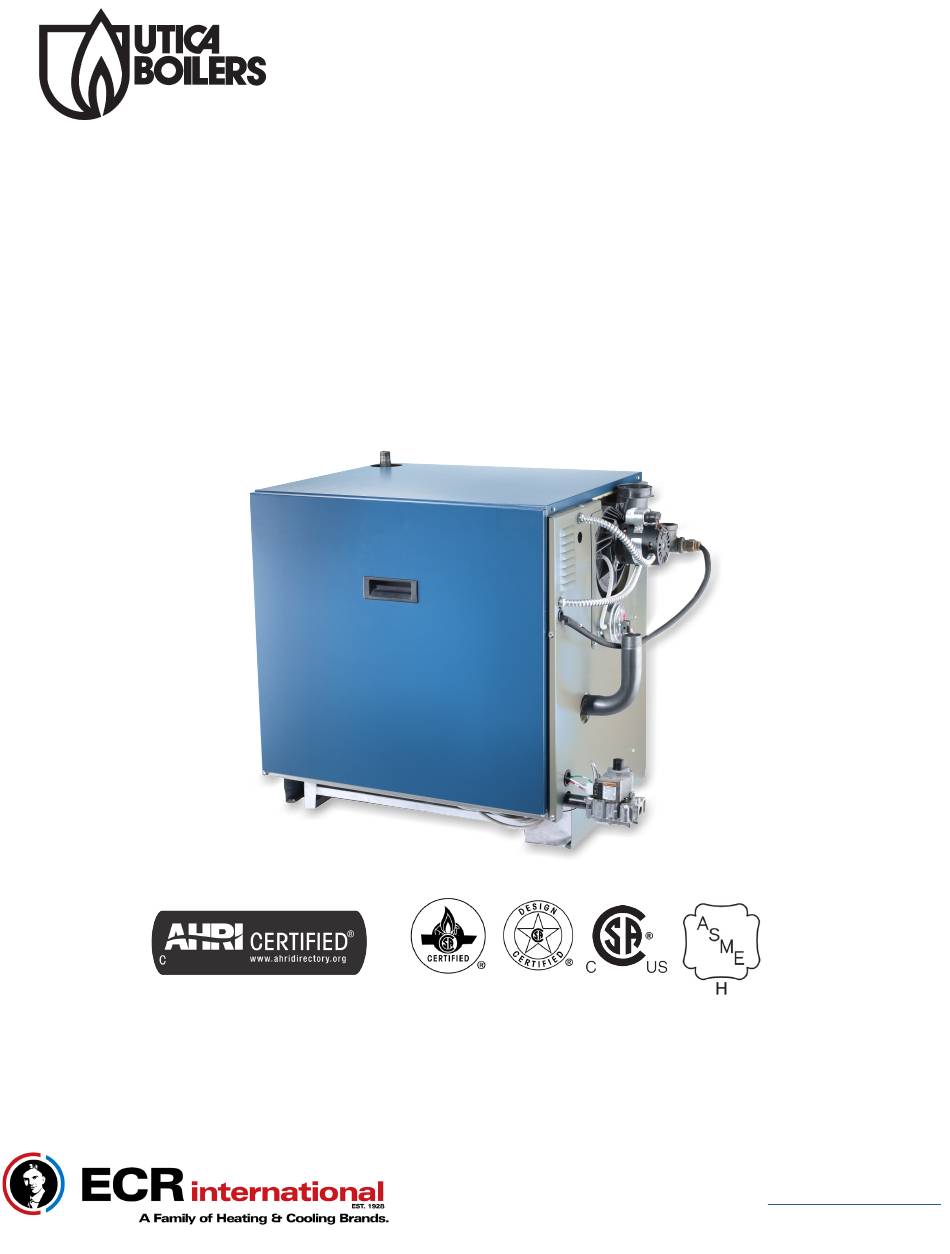

SVB SERIES
Gas-Fired Hot Water
Induced Draft Boilers
INSTALLATION, OPERATION &
MAINTENANCE MANUAL
C.S.A. Certified
For Natural Gas Or Propane
II
Tested For 50 psi.
ASME
Working Pressure
Manufactured by:
ECR International, Inc.
2201 Dwyer Avenue, Utica NY 13501
web site:
www.ecrinternational.com
240011589
P/N
, Rev. A [08/03/2016]
Advertisement
Table of Contents
Related Manuals for UTICA BOILERS SVB-2
Summary of Contents for UTICA BOILERS SVB-2
- Page 1 SVB SERIES Gas-Fired Hot Water Models Induced Draft Boilers SVB-2 SVB-3 SVB-4 INSTALLATION, OPERATION & SVB-5 MAINTENANCE MANUAL SVB-6 SVB-7 C.S.A. Certified For Natural Gas Or Propane Tested For 50 psi. ASME Working Pressure Manufactured by: ECR International, Inc. 2201 Dwyer Avenue, Utica NY 13501 web site: www.ecrinternational.com...
-
Page 2: Table Of Contents
TABLE OF CONTENTS Safety Messages ......................3 Dimensions ........................4 Boiler Ratings & Capacities ....................5 Installation Procedure ..................... 6 Ventilation & Combustion Air .................... 7 Installation System Piping ....................8 Vent Installation ......................11 Horizontal Venting Instructions ..................14 Optional Horizontal Venting Instruction ................ -
Page 3: Safety Messages
SAFETY MESSAGES KEEP THIS MANUAL NEAR BOILER IMPORTANT: Read the following instructions RETAIN FOR FUTURE REFERENCE COMPLETELY before installing!! Safety Symbols & Warnings WARNING The following defined symbols are used throughout this Fire, explosion, asphyxiation and electrical shock manual to notify the reader of potential hazards of varying hazard. -
Page 4: Dimensions
DIMENSIONS Model Width (A) SVB-2 SVB-3 14-1/4 SVB-4 17-1/2 SVB-5 20-3/4 SVB-6 SVB-7 27-1/4 240011589 , Rev. A [08/03/2016]... -
Page 5: Boiler Ratings & Capacities
Table 1 - RATINGS NATURAL AND PROPANE GASES Vent Diameter (Inches) **Net Heating Model AFUE Input Capacity AHRI Rating Water To Chimney Horizontal Vent *Mbh *Mbh *Mbh (Category I) (Category III) SVB-2 42.5 84.4 SVB-3 75.0 83.4 SVB-4 112.5 83.0 SVB-5 150.0 82.7 SVB-6 187.5 82.3 SVB-7 225.0... -
Page 6: Installation Procedure
INSTALLATION PROCEDURE WARNING NOTICE Follow local regulations with respect to installation Improper installation, adjustment, alteration, service of CO detectors. or maintenance could result in death or serious injury FOR INSTALLATION ON NON-COMBUSTIBLE FLOORS ONLY - For installation on combustible The installation must conform to the requirements of the authority having jurisdiction or, in the absence flooring special base must be used. -
Page 7: Ventilation & Combustion Air
VENTILATION & COMBUSTION AIR x All Outdoor Air. Provide permanent opening(s) Provide combustion air and ventilation air in accordance communicating directly or by ducts with outdoors. with the section “Air for Combustion and Ventilation,” of the National Fuel Gas Code, ANSI Z223.1/NFPA 54, or Sections о... -
Page 8: Installation System Piping
INSTALLATION SYSTEM PIPING WARNING Figure 2 - Safety Relief Valve Discharge Piping Burn and scald hazard. Safety relief valve could discharge steam or hot water during operation. RELIEF VALVE Install discharge piping per these instructions. DISCHARGE PIPING Refer to local codes and appropriate ASME Boiler and Pressure Vessel Code for additional installation requirements. - Page 9 INSTALLATION SYSTEM PIPING Figure 4 - Forced Hot Water Typical Piping Figure 3 - Forced Hot Water Typical Piping With Zone Control Valve MINIMUM HEIGHT FOR LOW WATER CUTOFF PROBE LIMIT SENSOR MINIMUM HEIGHT FOR LOW WATER CUTOFF PROBE LIMIT SENSOR 240011589 , Rev.
- Page 10 INSTALLATION SYSTEM PIPING x Install radiation units (panels, radiators or cabinets) and Low Design Water Temperature Systems (Below supply and return mains first then make connections at 140°F) And Large Water Content Systems boiler. x Verify clean water supply is available when connecting Condensation is corrosive and can eventually cause severe cold water supply to water valve.
-
Page 11: Vent Installation
VENT INSTALLATION Check Your Chimney Fasten sections of vent pipe with sheet metal screws to make piping rigid. Use stovepipe wires to support pipe Chimney must be clean, right size, properly constructed from above. and in GOOD CONDITION. Do not connect to fireplace flue. Installation must conform to requirements of the authority having jurisdiction or, in absence of such Do not install damper on this boiler. - Page 12 VENT INSTALLATION Figure 7 - Type B Gas Vent Vent pipe must be: At lease 2 ft. (610mm) higher than any part of the roof, but not Liner less than 3 ft. (915mm) tall, and within a 10 ft. within a 10 ft. (3m) radius of the Chimney apex.
- Page 13 VENT INSTALLATION Removing Existing Boiler From Common Venting Test for spillage at the draft hood relief opening after 5 minutes of main burner operation. Use flame of a match System or candle, or smoke from a cigarette, cigar, or pipe. When an existing boiler is removed from a common After it has been determined that each appliance venting system, the common venting system is likely to be...
-
Page 14: Horizontal Venting Instructions
HORIZONTAL VENTING INSTRUCTIONS INDUCED DRAFT HIGH EFFICIENCY BOILERS Horizontal (Category III) venting systems must be installed CHOICE OF VENT PIPE MATERIAL in accordance with these instructions. x U. L. Listed Z-Flex Z-Vent Stainless Steel Vent Pipe. Maximum Horizontal Vent Length For Stainless Steel Vent x U. - Page 15 HORIZONTAL VENTING INSTRUCTIONS These boilers may be vented horizontally as shown in Vent Termination Fitting: For all vent pipe materials, Figure 8, Page 13. The vent pipe is pitched down you may use either: from the boiler to the vent termination. Do not connect A.
- Page 16 HORIZONTAL VENTING INSTRUCTIONS Figure 9 - Horizontal Venting Clearances D. Vent Termination о Venting system shall terminate at least 3 feet о Canada - Terminate vent system at least 6 (0.9m) above any forced air inlet located within feet (1.83m) horizontally from, and in no case 10 feet (3m).
- Page 17 HORIZONTAL VENTING INSTRUCTIONS Joining and Sealing the Vent Pipe: B. For Heat-Fab Saf-T-Vent stainless steel vent pipe The vent pipe needs to be both watertight and gas use a high temperature silicone sealant rated for tight. Seal all joints and seams as follows: 550°F The outside of the male end and inside A.
- Page 18 HORIZONTAL VENTING INSTRUCTIONS D. For ProTech Systems FasNSeal stainless steel C. For Flex-L StaR-34 stainless steel vent pipe use vent pipe no cleaning fluid is required. For 3” a high temperature silicone sealant rated for vent pipe runs on 2, 3, 4 and 5 section boilers, 550°F.
-
Page 19: Optional Horizontal Venting Instruction
HORIZONTAL VENTING INSTRUCTIONS Support Spacing: If the horizontal vent must go through a crawl space or other unheated space, the cool temperatures will likely Do not restrict thermal expansion movement of the cause the flue gases to continuously condense inside vent. -
Page 20: Gas Supply Piping
GAS SUPPLY PIPING Connecting Gas Piping CAUTION Gas line enters boiler from right side. Flexible gas WHAT TO DO IF YOU SMELL GAS connectors must never breach any boiler openings. x Do not try to light any appliance. x Use piping materials and joining methods acceptable to authority having jurisdiction. - Page 21 GAS SUPPLY PIPING Table 6 - NATURAL GAS Table 7 - PROPANE GAS Pipe Capacity - BTU Per Hour Input Pipe Capacity - BTU Per Hour Input Length of Includes Fittings Length Includes Fittings Pipe - Ft. Copper Tubing* Iron Pipe ½"...
-
Page 22: Electrical Wiring
ELECTRICAL WIRING WARNING LWCO kit 550002998 wiring includes wiring instructions and diagrams. Electrical shock hazard. Turn OFF electrical power Connect 115 volt power supply to terminals L1 (HOT) and supply at service panel before making electrical L2 inside J box. connections. -
Page 23: Sequence Of Operation
SEQUENCE OF OPERATION Sequence of Operation -Figure 12, Page 23. Thermostat calls for heat, control relay contacts. Circulator pump is powered through terminals C1 and C2. Control holds off burner and attempts to satisfy thermostat with residual boiler heat. Induced draft blower and transformer primary are powered. -
Page 24: Wiring Diagrams
WIRING DIAGRAMS Figure 12 - Control Module Damper is not an option. 240011589 , Rev. A [08/03/2016]... -
Page 25: Starting Your Boiler
STARTING YOUR BOILER NOTICE Do not add water into hot empty boiler. Filling System With Water x Close air vents on all radiation units. Open valves to these units. x Verify boiler and expansion tank drain valves are closed. Air bleed screw on tank drain fitting should be closed. x Open valve in line from boiler to expansion tank. - Page 26 STARTING YOUR BOILER Operating Instructions. WARNING STOP! Read Safety Information on previous page. If you do not follow these instructions Set the thermostat to lowest setting. exactly, a fire or explosion may result Turn off all electric power to the appliance. causing property damage, personal injury This appliance is equipped with an ignition device which or loss of life.
-
Page 27: Checking And Adjusting
CHECKING AND ADJUSTING Gas Valve Safety Shutdown Test Figure 14 - Automatic Gas Valve WARNING Electrical shock hazard. Follow instructions to turn off electric power. Failure to do so could result in death or serious injury. Ignition system safety shutoff device must be tested after placing boiler in operation. - Page 28 CHECKING AND ADJUSTING Adjust Thermostat Heat Anticipator Figure 16 - Main Burner Flame Instruction for final adjustment of thermostat are packaged with thermostat. Set Heat anticipator at .2. Check thermostat operation. When set above temperature indicated on thermometer, boiler burners should ignite.
-
Page 29: Maintaining Your Boiler
MAINTAINING YOUR BOILER Burners Cleaning Your Boiler And Burners Beginning of heating season visually check pilot end main Flue passages between sections should be examined yearly burner flames. See Figures 13, and 15. and cleaned if necessary. To clean: Safety Relief Valve x Remove burners, pilot, and vent pipe. -
Page 30: Service Hints
SERVICE HINTS You may avoid inconvenience and service calls by checking these points before you call for service: CAUTION WHAT TO DO IF YOU SMELL GAS x Do not try to light any appliance. x Do not touch any electrical switch; do not use any phone in your building. -
Page 31: Equipment & Optional Accessories
EQUIPMENT & OPTIONAL ACCESSORIES AIR ELIMINATING FITTING (AIR PURGER) WARNING Air purger is used to remove excess air from system. It Burn and scald hazard. Safety relief valve could is installed in supply line. It will eliminate air from water discharge steam or hot water during operation. - Page 32 EQUIPMENT & OPTIONAL ACCESSORIES PRESSURE SWITCH Air pressure switch works on negative pressure. When blower comes on air pressure switch operates intermittent pilot and gas valve. Air pressure switch is factory set and will only work when blower operates properly. It will not allow boiler to come on if blower does not generate enough pressure or if venting system is blocked.
-
Page 33: Appendix A - Control Module
APPENDIX A - CONTROL MODULE A.1 Installation Environment Considerations A.3 Adjusting Settings To discourage unauthorized changing of settings, procedure WARNING to enter adjustment mode is required. If you do not follow these instructions To enter adjustment mode, press UP, DOWN, and I buttons exactly, a fire or explosion may result (see Figure 1) simultaneously for three seconds. -
Page 34: Operation
APPENDIX A - CONTROL MODULE A.5 Operation Control determines burner operation is required, module proceeds to start burner (see state codes list) Module continuously monitors boiler water temperature and and heats water in boiler until setpoint temperature is fires or shuts off burner based on this temperature data. achieved or thermostat is satisfied. - Page 35 APPENDIX A - CONTROL MODULE Table 8 - Operation Error Codes Error display clearing (once error condition has disappeared) Error Error Clears itself Up/down Code Description Cycle when Push any key when Power Explanation Things to look for root status is problem displayed resolved...
- Page 36 APPENDIX A - CONTROL MODULE Table 9 - Induced Draft Models State Codes 1. State code sequence through a normal heat cycle. State Order Definition Explanation code Idle There is no call for heat; and/or: Thermostat has called for heat. Control activated system circulator pump and is waiting Circulator to see if there is enough heat stored in the boiler to satisfy the t'stat without firing the burners.
-
Page 37: Boiler High Limit Temperature Controller
APPENDIX A - CONTROL MODULE A.6 Boiler High Limit Temperature Controller A.7 Troubleshooting x When water temperature reaches setpoint, controller x Following service procedures are provided as general ends heating cycle. guide. x When water temperature drops below setpoint minus x On lockout and retry models, meter readings between differential, controller restarts heat cycle to re-heat gas control and ignition module must be taken within... -
Page 38: Intermittent Pilot
APPENDIX A - CONTROL MODULE A.9 Intermittent Pilot STEP 3: Check spark ignition circuit. Disconnect ignition cable at SPARK terminal on module. Ignition System Checks WARNING STEP 1: Check ignition cable. Electrical shock hazard. Ignition circuit generates x Verify ignition cable does not run in contact with metal over 10,000 volts. - Page 39 APPENDIX A - CONTROL MODULE x Recheck ignition sequence as follows. Figure 19 - Pilot Flame — Reconnect main valve wire. — Adjust thermostat above room temperature. — Verify ignition sequence at burner. — If spark does not stop after pilot lights, replace module.
- Page 40 This boiler is part of a modular or multiple boiler system having a total input of 300,000 BTU/hr or greater. x This boiler is equipped with a tankless coil. UTICA BOILERS 2201 Dwyer Avenue Utica NY 13501 web site:...
