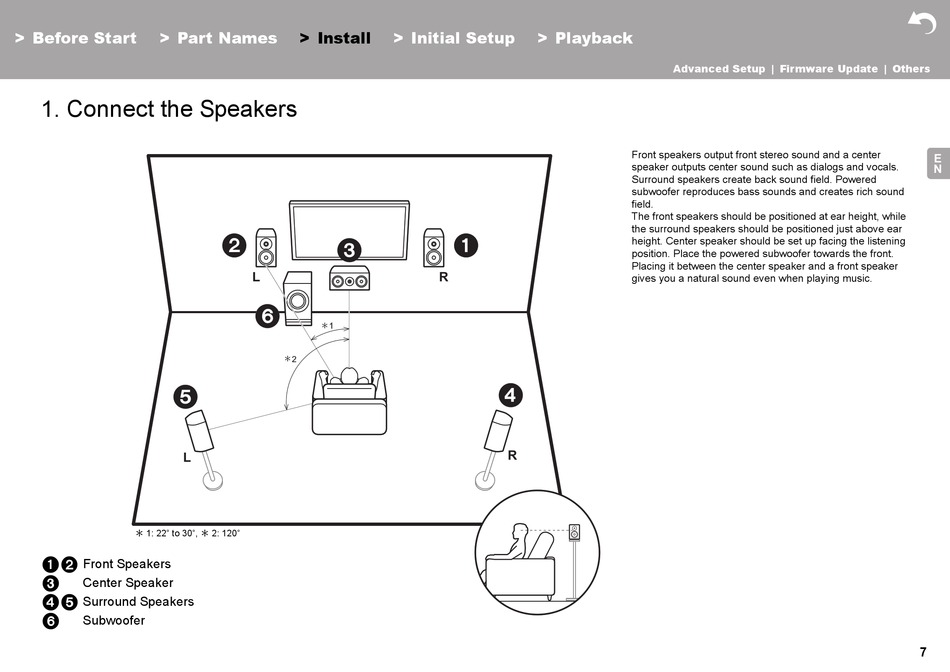

1. Connect the Speakers

Install

L
＊ 1: 22e to 30e, ＊ 2: 120e
1 2 Front Speakers
3 Center Speaker
4 5 Surround Speakers
6 Subwoofer
> Install > Initial Setup
L
＊1
＊2
> Playback
R
R
Advanced Setup | Firmware Update | Others
Front speakers output front stereo sound and a center
speaker outputs center sound such as dialogs and vocals.
Surround speakers create back sound field. Powered
subwoofer reproduces bass sounds and creates rich sound
field.
The front speakers should be positioned at ear height, while
the surround speakers should be positioned just above ear
height. Center speaker should be set up facing the listening
position. Place the powered subwoofer towards the front.
Placing it between the center speaker and a front speaker
gives you a natural sound even when playing music.
