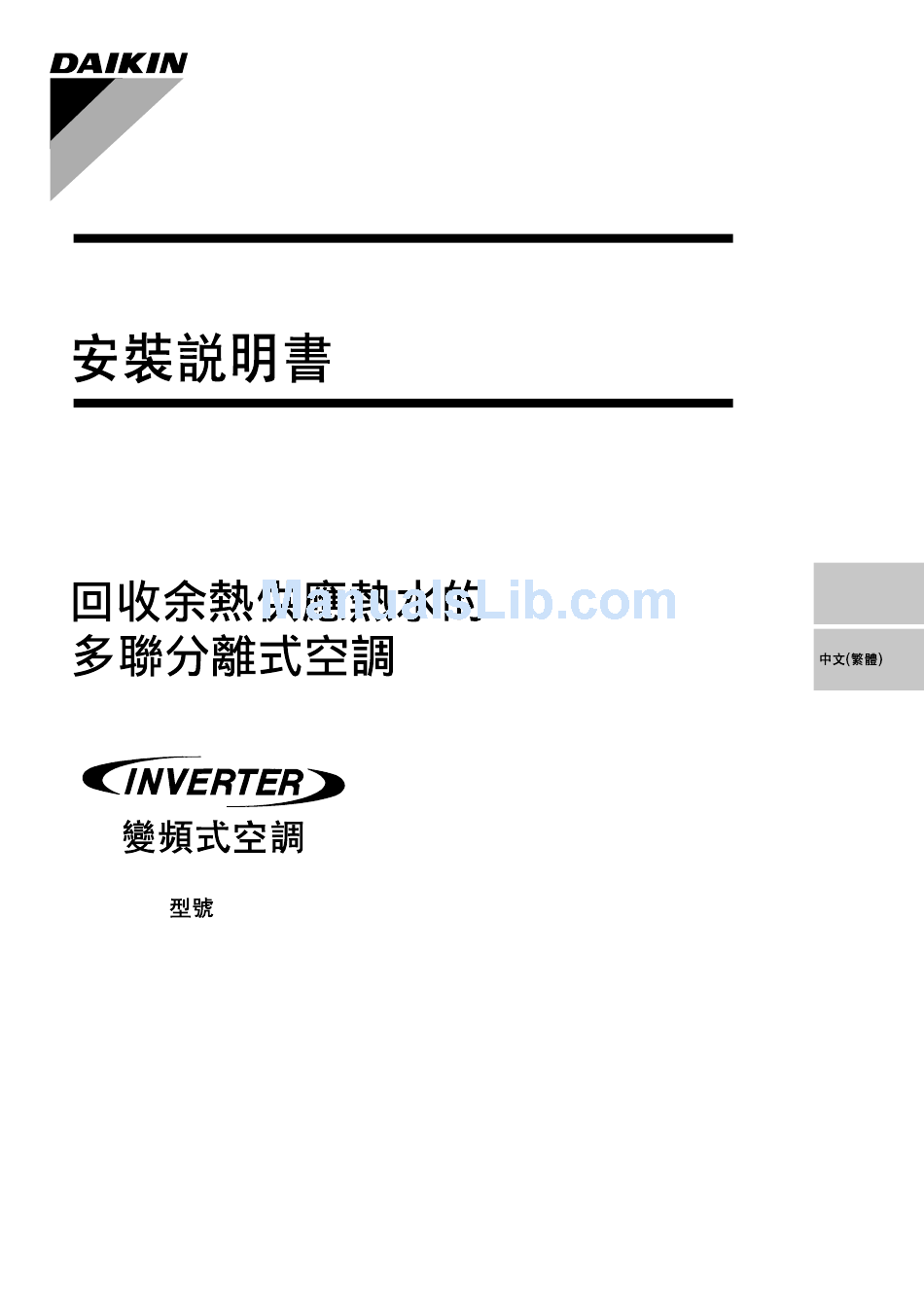

INSTALLATION MANUAL Multi-Split Type Air Conditioners with Waste Heat Utilisation for Hot Water English Model 3MWKS80KV1 3MWKS80LV1... -
Page 2: Safety Precautions
Safety Precautions • The precautions described herein are classifi ed as WARNING and CAUTION. They both contain important information regarding safety. Be sure to observe all precautions without fail. • Meaning of WARNING and CAUTION notices WARNING ..Failure to follow these instructions properly may result in personal injury or loss of life. CAUTION .. -
Page 3: Precautions For Selecting The Location
Safety Precautions CAUTION • Do not install the air conditioner at any place where there is a danger of fl ammable gas leakage. In the event of a gas leakage, build-up of gas near the air conditioner may cause a fi re to break out. •... - Page 4 Indoor/Outdoor Unit and Water Heater Installation Drawings For installation of the indoor units and water heater, refer to the installation manual which was provided with the units. (The diagram shows a wall-mounted indoor unit.) CAUTION • Do not connect the embedded branch piping and the outdoor unit when only carrying out piping work without connecting the indoor unit in order to add another indoor unit later.
-
Page 5: Outdoor Unit
Indoor/Outdoor Unit and Water Heater Installation Drawings • Location of connection ports for indoor unit and water heater Outdoor unit Water heater Refrigerant outlet from water heater Gas side Room A Liquid side Gas side Room B Liquid side Gas side Room C Liquid side Refrigerant inlet... -
Page 6: Outdoor Unit Installation Guidelines
Precautions on Outdoor Unit Installation • Check the strength and level of the installation ground so that the unit will not cause any operating vibration or noise after installed. • In accordance with the foundation drawing in fi x the unit securely by means of the foundation bolts. (Prepare 4 sets of M8 or M10 foundation bolts, nuts and washers each which are available on the market.) •... -
Page 7: Refrigerant Piping Work
Refrigerant Piping Work Installing outdoor unit • When installing the outdoor unit, refer to precautions for selecting the location and the indoor/outdoor unit and water heater installation drawings. • If drain work is necessary, follow the procedures below. Drain work •... -
Page 8: Purging Air And Checking Gas Leakage
Purging air and checking gas leakage • When piping work is completed, it is necessary to purge the air and check for gas leakage. NOTE • First, purge the air from the indoor unit connection pipe, and then purge the air from the water heater connection pipe. The air must be purged from both sets of piping. - Page 9 Refrigerant Piping Work Water heater connection pipe Connect projection side of charging hose (which comes from gauge manifold) to water heater inlet stop valve’s service port. Fully open gauge manifold’s low-pressure valve (Lo) and completely close its high-pressure valve (Hi). (High-pressure valve subsequently requires no operation.) Do vacuum pumping and make sure that the compound pressure gauge reads –0.1MPa (–76cmHg).*1 Close gauge manifold’s low-pressure valve (Lo) and stop vacuum pump.
-
Page 10: Charging With Refrigerant
Charging with refrigerant • If the total length of the indoor unit connection pipe exceeds 30m, charge the pipe with an additional 20g of refrigerant per 1m. NOTE • The length of the water heater connection pipe has no effect. CAUTION •... -
Page 11: How To Use Reducers
How to Use Reducers No.3 No.4 No.1 No.2 No.5 No.6 15.9 12.7 15.9 12.7 15.9 15.9 12.7 12.7 Gasket (1) Gasket (2) Reduce and gasket Use the reducers in the reducer assy as described below. Connecting a pipe of φ12.7 to a gas pipe connection port for φ15.9: No. -
Page 12: Pump Down Operation
Pump Down Operation In order to protect the environment, be sure to pump down when relocating or disposing of the unit. Remove the valve cap from liquid stop valve, gas stop valve, water heater inlet stop valve, and water heater outlet stop valve. Carry out forced cooling operation. - Page 13 Wiring Electrical wiring connection with indoor unit WARNING • Do not use tapped wires, stranded wires, extension cords, or starburst connections, as they may cause overheating, electrical shock, or fi re. • Do not use locally purchased electrical parts inside the product. (Do not branch the power for the drain pump, etc., from the terminal block.) Doing so may cause electric shock or fi...
- Page 14 Connection of water heater thermistor • With this system, a water heater thermistor must be installed between the outdoor unit and water heater to enable detection of the water heater’s water temperature. Outdoor unit Water heater C Water heater thermistor extension cable Joining of connectors Water heater thermistor...
- Page 15 Wiring When there is a short distance between the outdoor unit and water heater and the water heater thermistor extension cable is too long Remove the water heater thermistor connected to the S402 connector on the C Water heater thermistor printed wiring board.
- Page 16 Pass the thermistor sensor through the central hole in the • Pass the thermistor Thermistor cap thermistor cap (water heater accessory). sensor through the (water heater Insert the thermistor into the water heater thermistor central hole in the accessory) thermistor cap (water installation channel.
-
Page 17: Night Quiet Mode Setting
Water Heater Piping Length Setting To ensure effi cient operation Ensure setting is performed for the water heater piping length setting switch (SW4) based on the length of the refrigerant piping connecting the outdoor unit and water heater. • Use the drawing below to perform setting of the switch based on the length of the refrigerant piping connecting the outdoor unit and water heater. -
Page 18: Trial Operation And Testing
Trial Operation and Testing • Before starting the test run, measure the voltage at the primary side of the safety breaker. • Check that the stop valves of all liquid, gas, and water heater pipes are fully open. • Check that piping and wiring all match. The wiring error check can be conveniently used for underground wiring and other wiring that cannot be directly checked. -
