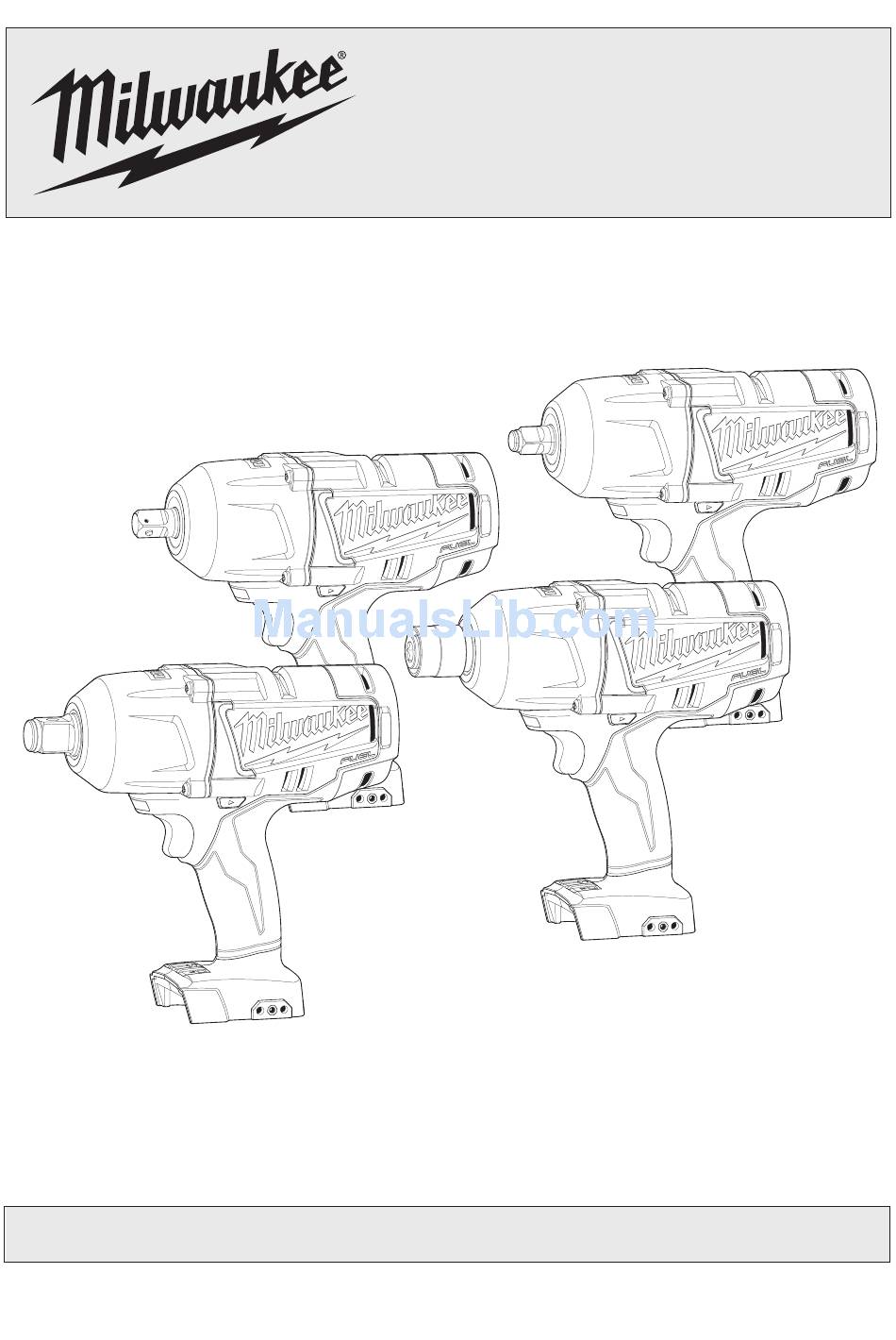

- Page 1 OPERATOR'S MANUAL Cat. No. M18CHIWP12 M18CHIWF12 M18CHIWF34 M18CHIDH716 M18™ FUEL™ 7/16" HEX IMPACT WRENCHES, 1/2" IMPACT WRENCHES & 3/4" IMPACT WRENCH TO REDUCE THE RISK OF INJURY, USER MUST READ AND UNDERSTAND OPERATOR'S MANUAL.
-
Page 2: General Power Tool Safety Warnings
general poWer Tool safeTy Warnings Warning read all safeTy Warnings and all insTrucTions. Failure to follow the warnings and instructions may result in electric shock, fire and/or save all warnings and instructions for future reference. serious injury. The term "power tool" in the warnings refers to your mains-operated (corded) power tool or battery-operated (cordless) power tool. attached to a rotating part of the power tool may Work area safeTy result in personal injury. • K eep work area clean and well lit. -
Page 3: Specific Safety Rules
Other sockets and accessories might shatter or break causing injury. SYMBOLOGY Volts Direct Current 1. 1/2" Square drive anvil with pin (M18CHIWP12) 2. LED Impacts per Minute Under switch Load (IPM) 3. Control 4. Trigger... -
Page 4: Operation
Drive Control Button Attaching and Removing Accessories 1/2" Impact Wrench with Pin Mode Mode (Cat. No. M18CHIWP12) Indicator Indicator 1. Use only the appropriate size Square Drive Sockets. 2. To attach a socket, align the hole in the acces- Using the Control Switch sory with the detent pin on the anvil. -
Page 5: Maintenance
The further the trigger is semble the tool, battery pack or charger. pulled, the greater the speed. Contact your local authorised MILWAUKEE ® 3. To stop the tool, release the trigger. dealer or service centre for all repairs. - Page 6 Nothing But Heavy Duty ® . Your satisfaction with our products is very important to us! If you encounter any problems with the operation of this tool, please contact your authorised MILWAUKEE ® dealer or service centre.
- Page 8 Milwaukee Electric Tool Corporation (Australia) Techtronic Industries (Australia) Pty. Ltd. Doncaster, Victoria, Australia, 3108 Milwaukee Electric Tool Corporation (New Zealand) Techtronic Industries (New Zealand) Pty. Ltd. Mangere, Auckland, New Zealand, 2022 Professionally made in China for Milwaukee Electric Tool Corporation Printed in China 961016045-01(A)
