... attach the ground lead

- Loosen the thumb nut from under the sub-chassis near the tonearm and insert one
end of the lead.
- Attach the other end of the lead to the ground post of your pre-amplifier.

... install and calibrate the hinges

( Supplied when purchasing the optional dust cover )
- Locate the hinges in the lower section of the packaging and the appropriate allen
key ( 3/32" ) from the tool kit.
- Mount the hinges to the plinth and do not tighten the screws completely. Make sure
the dust cover slots line up correctly with each other before the final tightening.

... level your Delphi

Your turntable is now ready to be moved to its final location.
- Level the acrylic base by turning the leveling feet. Use the subchassis spirit level to
complete this final adjustment since the relative level has already been established
between the subchassis and the acrylic base.

What to do ...

... if the turntable does not start and the speed indicating light does not go on
Check: - AC connection to the wall outlet.
- power supply output plug to the input receptacle of the turntable.
- power supply output, if not output, replace the fuse inside.
Use 0.25 amp / 250vac for 100 and 120 volts line input.
Use 0.1 amp / 250vac for 200 and 220 volts line input.
... if the turntable does not start and the speed indication light goes on

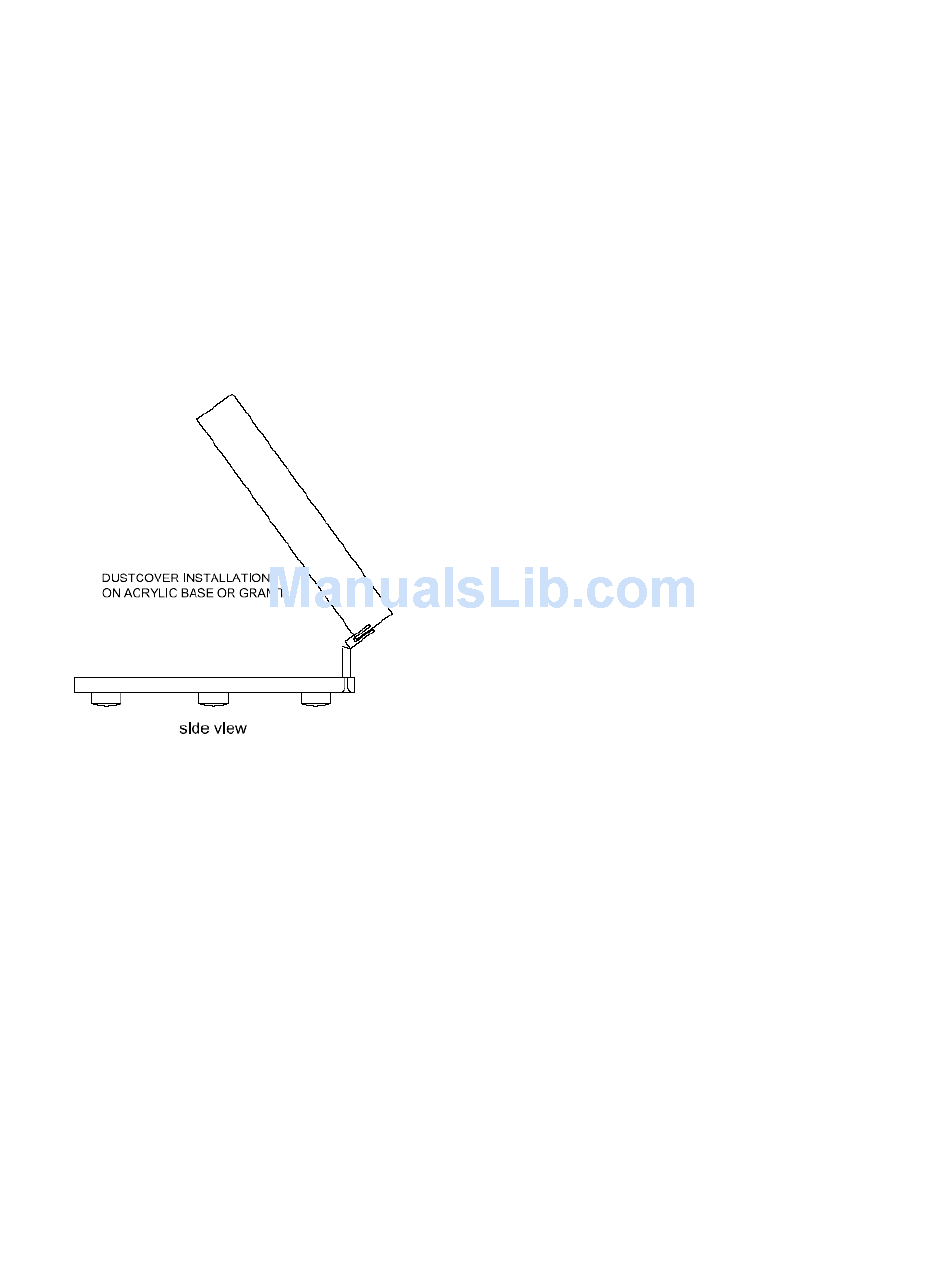

- Install the dust cover by sliding it in the hinges slot.
Note:
open in its playing area, it is possible to change the
spring tension of the hinges. The tension have been
pre-adjusted on both hinges at the factory to its best
performance.

... operate the record clamp

- Tighten the clamp so the record is pushed flat
against the mat.
Note : Damages may occur to your albums when
overtightening the record clamp.
10
If the dustcover can not be lifted totally
