P126601-01
P/N 126601-01 Rev. B 10/2015
This book is valuable. In addition to instructing you on how to install and maintain your appliance, it also
contains information that will enable you to obtain replacement parts or accessory items when needed. Keep
it with your other important papers.
INSTALLER: Leave this manual with the appliance.
CONSUMER: Retain this manual for future reference.
This wood burning fireplace complies with UL127
CAN/ULC-S610-M87 standard as a FACTORY
BUILT FIREPLACE.
This fireplace is approved for use as a wood burning fireplace or for use with a vented gas log approved to
ANSI Z21.60 or Z21.84 standards or for use with a vent-free gas log heater approved to ANSI Z21.11.2 standard .
FOR CANADA: The authority having jurisdiction
(such as the municipal building department, fire
department, etc.) should be contacted before
installation to determine the need to obtain a permit.
This installation manual will enable you to obtain a safe, efficient and dependable installation of your fireplace
system. Please read and understand these instructions before beginning your installation.
Do not alter or modify the fireplace or its components under any circumstances. Any modification or alteration of
the fireplace system, including but not limited to the fireplace, chimney components and accessories, may void the
warranty, listings and approvals of this system and could result in an unsafe and potentially dangerous installation.
IMPORTANT! TO ASSURE PROPER ALIGNMENT OF GLASS DOORS: INSTALL THIS FIREPLACE IN A SQUARE
AND PLUMB CONDITION, USING SHIMS AS NECESSARY AT SIDES AND/OR BOTTOM.
PFS
®
C
US
REPORT NO. F09-095
SAVE THIS BOOK
Installateur : Laissez cette notice avec l'appareil.
Consommateur : Conservez cette notice pour consultation ultérieure.
Ce foyer au bois est conforme aux UL 127 CAN/ULC-
S610-M87 norme comme une USINE CONSTRUITE
CHEMINÉE.
POUR LE CANADA: L'autorité compétente (comme le
service municipal du bâtiment, les pompiers, etc.) doit
être contacté avant l'installation afin de déterminer la
nécessité d'obtenir un permis.
Installation and Operation Instructions
Superior

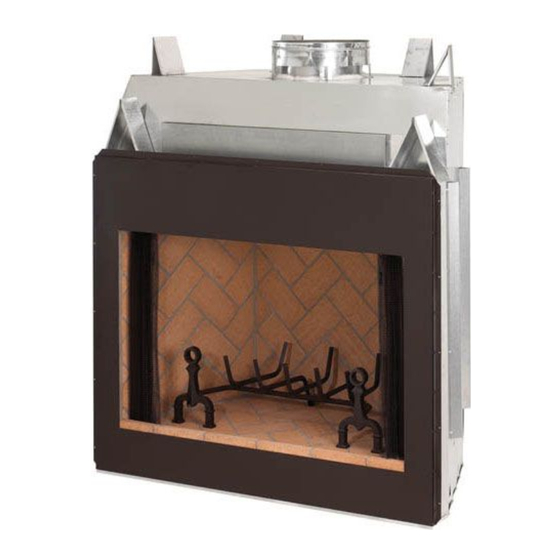

Indoor Wood Burning Fireplace
®
WRT4536RS
WRT4542RS
WRT4536RH
WRT4542RH
WRT4536WS
WRT4542WS
WRT4536WH
WRT4542WH
Models
WRT4550RS
WRT4550RH
WRT4550WS
WRT4550WH
Advertisement
Table of Contents
Related Manuals for Superior WRT4542RS
Summary of Contents for Superior WRT4542RS
- Page 1 Installation and Operation Instructions Superior Indoor Wood Burning Fireplace ® Models ® P126601-01 WRT4536RS WRT4542RS WRT4550RS P/N 126601-01 Rev. B 10/2015 REPORT NO. F09-095 WRT4536RH WRT4542RH WRT4550RH WRT4536WS WRT4542WS WRT4550WS WRT4536WH WRT4542WH WRT4550WH SAVE THIS BOOK This book is valuable. In addition to instructing you on how to install and maintain your appliance, it also contains information that will enable you to obtain replacement parts or accessory items when needed.
-
Page 2: Table Of Contents
Thank you for your purchase. We appreciate your TABLE OF CONTENTS business! Safety .....................2 Please carefully read and follow all instructions in this manual. Pay Specifications .................4 special attention to all warnings and safety information. Fireplace Installation ..............7 Following these safety, care, and operation instructions will help Venting Installation ................9 ensure many years of dependable and enjoyable service from your Refractory Panels Installation ............14... - Page 3 SAFETY Continued Overfiring of a fireplace is a condition where excessive WARNING: BURNING IMPROPER FUEL (I.E. CHAR- temperatures are reached, beyond the design capabilities COAL) CAN RESULT IN CARBON MONOXIDE POISON- of the appliance. The damage that occurs from overfiring ING, WHICH MAY LEAD TO DEATH! is not covered under the manufacturer’s limited warranty.
-
Page 4: Specifications
SPECIFICATIONS 36" MODEL 1" CHIMNEY AIRSPACE CLEARANCE TO COMBUSTIBLE MATERIAL NO COMBUSTIBLE MATERIAL ON FACE COMBUSTIBLE WALL BOARD " AIR SPACE BACK AND SIDES OUTSIDE AIR MINIMUM 12" TO PERPENDICULAR SIDEWALL GAS LINE HEARTH EXTENSION KNOCKOUTS 74" X 20" 0" TO 12"... - Page 5 SPECIFICATIONS Continued 42" MODEL 2" CHIMNEY AIRSPACE CLEARANCE TO COMBUSTIBLE MATERIAL NO COMBUSTIBLE MATERIAL ON FACE COMBUSTIBLE WALL BOARD " AIR SPACE BACK AND SIDES OUTSIDE AIR MINIMUM 18" TO PERPENDICULAR SIDEWALL GAS LINE KNOCKOUTS HEARTH EXTENSION 66" X 20" 0"...
- Page 6 SPECIFICATIONS Continued 50" MODEL 2" CHIMNEY AIRSPACE CLEARANCE TO COMBUSTIBLE MATERIAL NO COMBUSTIBLE MATERIAL ON FACE COMBUSTIBLE WALL BOARD " AIR SPACE BACK AND SIDES OUTSIDE AIR MINIMUM 18" TO PERPENDICULAR SIDEWALL GAS LINE KNOCKOUTS HEARTH EXTENSION 74" X 20" 0"...
-
Page 7: Fireplace Installation
FIREPLACE INSTALLATION SELECTING LOCATION 6. Using screws or nails, secure fireplace to framing through flanges located on sides of fireplace. To determine the safest and most efficient location for the fireplace, you must take into consideration the following guidelines: Note: For outdoor installations, fireplace enclosure must allow for adequate drainage and fresh air ventilation. - Page 8 FIREPLACE INSTALLATION Continued HEARTH EXTENSION MANTELS A hearth extension projecting a minimum of 20" in front of and a A mantel may be installed if desired (see Figure 7). Woodwork such as minimum of 12" beyond each side of fireplace opening is required wood trims, mantels or any other combustible material projecting from to protect combustible floor construction in front of fireplace.
-
Page 9: Venting Installation
VENTING INSTALLATION LINEAL GAIN OPTIONAL OUTSIDE AIR KIT (MODEL AK4/AK4F) PART NO. DESCRIPTION GAIN The installation of an outside air kit should be performed during Signature Fireplace " the rough framing of the fireplace due to the nature of it's location. 12-12DM Pipe Section "... - Page 10 VENTING INSTALLATION Continued USING ELBOW OFFSETS (30E-12DM) OFFSET RISE CHIMNEY LENGTH 12" 18" 24" 36" 48" 1. To achieve desired offset, you may install combinations of 12", " " ELBOW SET ONLY 18", 24", 36" and 48" length of double wall pipe (see offset chart "...
- Page 11 VENTING INSTALLATION Continued Return Return Elbow Elbow Return Offset Offset Elbow Elbow Elbow 6' Max. 6' Max. Ceiling Support Pipe Return 12S-12DM Return 6' Max. Elbow Elbow 6' Max. Offset Offset Elbow 6' Max. Elbow 6' Max. Offset Elbow Figure 12 - Typical Offset Terminations FIRESTOP SPACERS (FS-10, 1100EFS-10DM FOR 36"...
- Page 12 VENTING INSTALLATION Continued FLASHING INSTALLATION (V6F-10DM OR V12F-10DM) Determine the flashing to be used with the roof opening chart. Slide 17" Min. flashing over pipe until base is flat against roof. Replace as many 30" Min. 1" Min. shingles as needed to cover exposed area and flashing base. Secure 1"...
- Page 13 VENTING INSTALLATION Continued Terminations/Spark Arrestor 10 FOOT RULE The fireplace system must be terminated with the listed round top or All flue gas outlet chimney terminations must extend a minimum of chase terminations. In any case, refer to the installation instructions 3 feet in height above the highest point where it passes through the supplied with the termination.
-
Page 14: Refractory Panels Installation
REFRACTORY PANEL INSTALLATION WARNING LIFTING HAZARD SINGLE -PERSON LIFT COULD CAUSE INJURY. USE ASSISTANCE WHEN MOVING OR LIFTING. IMPORTANT: Installation of Refractory panels should be done after the fireplace is placed in a permanent location. 1. Remove grate, screen assemblies and all hardware components Figure 21 - Installing Grate Retainers out of the firebox. -
Page 15: Optional Gas Line Installation
OPTIONAL GAS LINE INSTALLATION Side Gas line hook up should be done by your supplier or a qualified Outside of Firebrick service person. Fireplace Finished Note: Before you proceed, make sure your gas supply is turned off. Incoming Side Use only a 1/2" black iron pipe and appropriate fittings. 1/2"... -
Page 16: Glass Door Installation
GLASS DOOR INSTALLATION INSTALLING GLASS DOORS IMPORTANT: Install glass door frame before installing glass Spring clips have been installed but some adjustments may be door. needed. If doors do not close properly or do not appear straight, see Door Adjustment. INSTALLING DOOR FRAMES 1. -
Page 17: Operation And Maintenance Guidelines
OPERATION AND MAINTENANCE GUIDELINES GLASS DOORS Glass doors are optional with the fireplace. When fireplace is in operation, doors must be fully opened or fully closed position only or a fire hazard may be created (see Figure 30). A fireplace equipped with glass doors operates much differently than a Doors Fully Closed fireplace with an open front. -
Page 18: Parts
PARTS MODEL CATALOG NO. WRT4536RS F0620 WRT4536RH F0621 WRT4542RS F0622 WRT4542RH F0623 WRT4550RS F0624 WRT4550RH F0625 WRT4536WS F0626 WRT4536WH F0627 WRT4542WS F0628 WRT4542WH F0629 WRT4550WS F0630 WRT4550WH F0631 16/17 Superiorfireplaces.US.com 126601-01B... - Page 19 PARTS This list contains replaceable parts used in your firebox. When ordering parts, follow the instructions listed under Replacement Parts on page 26 of this manual. WARNING: Contact an IHP dealer to obtain any of these parts. Never use substitute materials not approved by IHP.
- Page 20 PARTS MODEL CATALOG NO. WRT4536RS F0620 WRT4536RH F0621 WRT4542RS F0622 WRT4542RH F0623 WRT4550RS F0624 WRT4550RH F0625 WRT4536WS F0626 WRT4536WH F0627 WRT4542WS F0628 WRT4542WH F0629 WRT4550WS F0630 WARNING WRT4550WH F0631 LIFTING HAZARD SINGLE -PERSON LIFT COULD CAUSE INJURY. IMPORTANT: Installation of refractory panels should...
- Page 21 PARTS This list contains replaceable parts used in your firebox. When ordering parts, follow the instructions listed under Replacement Parts on page 26 of this manual. WARNING: Contact an IHP dealer to obtain any of these parts. Never use substitute materials not approved by IHP.
- Page 22 PARTS This list contains replaceable parts used in your firebox. When ordering parts, follow the instructions listed under Replacement Parts on page 26 of this manual. WARNING: Contact an IHP dealer to obtain any of these parts. Never use substitute materials not approved by IHP.
-
Page 23: Accessories
ACCESSORIES CAT NO. MODEL DESCRIPTION BI-FOLD GLASS DOORS F1002 BDG36 GLASS DOOR, 36" BLACK F1003 BDG36B GLASS DOOR, 36" BRUSHED BRASS F1004 BDG36P GLASS DOOR, 36" PLATINUM F1005 BDG42 GLASS DOOR, 42" BLACK F1006 BDG42B GLASS DOOR, 42" BRUSHED BRASS F1007 BDG42P GLASS DOOR, 42"... - Page 24 ACCESSORIES Continued FIRESTOP SPACER J4384 1100EFS-10DM 1" Clearance Firestop Spacer F0940 FS-10 2" Clearance Firestop Spacer ROOF FLASHING F0942 V6F-10DM Roof Flashing 0 to 6/12 Pitch F0943 V12F-10DM Roof Flashing 6/12 to 12/12 Pitch SQUARE CHASE-TOP TERMINATION F0948 STL-12D Square Top Termination with Slip Section Square Top Termination with Slip Section (Pre-Painted F0949 STL-12DMP...
- Page 25 IMPORTANT NOTICES IMPORTANT NOTICE Canadian code CAN/ULC-S610-M87 and other NOTICE: The firebox canopy (hood) A manufactured shroud which pertinent codes require stainless steel chimney for must not be modified or replaced with the installation of this fireplace. A Cold Air Climate Kit has been approved by a national a canopy that may be provided with is also required in Canada and is recommended for...
-
Page 26: Technical Service
TECHNICAL SERVICE REPLACEMENT PARTS See Pages 18 to 22 for a complete replacement parts list. Use only You may have further questions about installation, operation, or parts supplied from the manufacturer. troubleshooting. Please contact your IHP dealer for any questions or concerns a. -
Page 27: Warranty
® 20 Year Limited Warranty THE WARRANTY Innovative Hearth Products ("IHP") 20 Year Limited Warranty warrants your Superior Brand wood burning fi replace ("Product") to be free from defects in materials and ® workmanship at the time of manufacture. The Product body, fi rebox and ceramic glass carry the 20 Year Limited Warranty. Ceramic glass carries the 20 Year Limited Warranty against thermal breakage only. - Page 28 WARRANTY KEEP THIS WARRANTY Model Number Serial Number Date Installed Dealer's Name Dealer's Phone Number Keep receipt for warranty verification IHP reserves the right to make changes at any time, without notice, in design, materials, specifica- tions, prices and also to discontinue colors, styles and products. Consult your local distributor for fireplace code information.
