LevelOne PLI-2020 User Manual

85mbps homeplug ethernet bridge
Hide thumbs Also See for PLI-2020:
1
2
3
4
5
6
7
8

Advertisement

Quick Links

Download this manual
Level One
P
L
I
-
2
0
P
L
I
-
2
0
8
5
M
b
p
s
H
o
m
e
P
l
u
g
8
5
M
b
p
s
H
o
m
e
P
l
u
g
User Manual
2
0
2
0
E
t
h
e
r
n
e
t
B
r
i
d
g
e
E
t
h
e
r
n
e
t
B
r
i
d
g
e
V1.0-0510

Advertisement

loading

Related Manuals for LevelOne PLI-2020

Summary of Contents for LevelOne PLI-2020

  • Page 1 Level One User Manual V1.0-0510...

  • Page 2: Physical Details

    Introduction Overview LevelOne HomePlug Adapter allows you to connect any device which has an Ethernet port to a HomePlug network. In operation, the HomePlug Adapter is completely transparent, and simply passes data between the Ethernet port and the HomePlug network. Any device may be connected to the HomePlug Adapter's Ethernet port, but a Windows PC must be used for configuration.

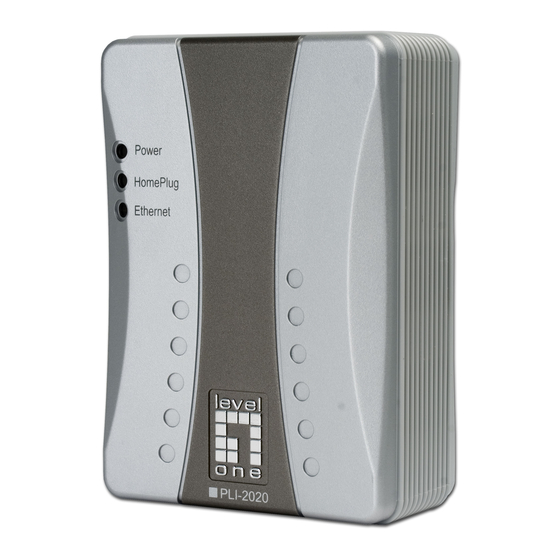

  • Page 3: Front Panel Leds

    Front Panel LEDs Power On - Normal operation. Off - No power Homeplug On - The HomePlug network is active. This means that at least one other HomePlug device was detected. Off - HomePlug network is not available - no other HomePlug devices were detected.
  • Page 4 Insert the supplied CD-ROM into your Windows PC, and wait for it to start. If it does not start, locate and run SETUP.EXE. Follow the prompts to install the LevelOne PLI-2020 utility. Once installation is completed, run the LevelOne PLI-2020 utility program.
  • Page 5 Figure 2: LevelOne PLI-2020 - Main Tab If only one (1) device is found, a connection will automatically be established, as indicated in the status area above the "Connect" button. If multiple devices are listed, select the device you wish to configure, and click the "Connect"...
  • Page 6 On this screen, you can also click Use Default to use the HomePlug Adapter's default Network Name. Click Close to exit the LevelOne PLI-2020 utility. Setup is now complete. If your PC is not the device you wish to use with the HomePlug Adapter, connect the Ethernet cable from the HomePlug Adapter to the desired device.
  • Page 7 The HomePlug Adapter is now ready for use.

  • Page 8: Operation

    Each HomePlug device must use the same Network Name. You can use the Security tab of the LevelOne PLI-2020 utility to assign a Network Name to other HomePlug devices, provided you know the unique Password for each device. The Password is normally shown on a sticker on each device.
