5.1ch Home Theater System
HT-S3300

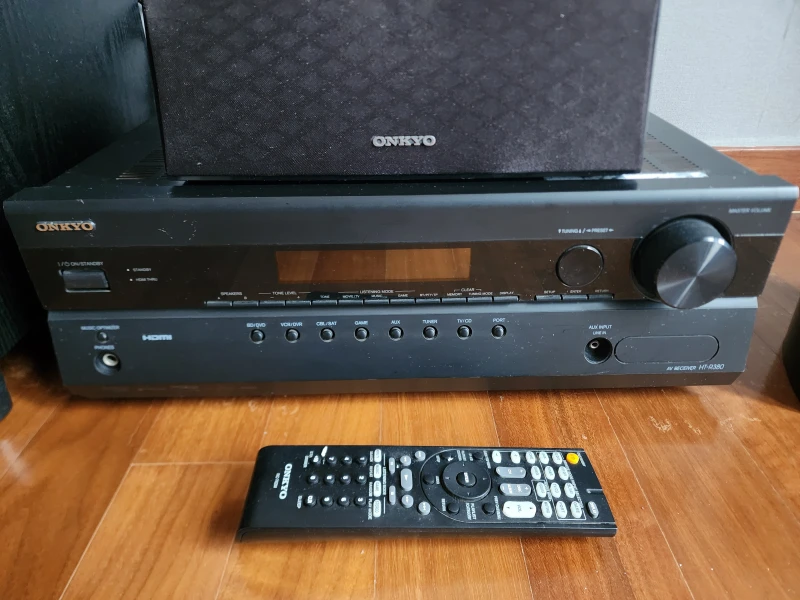

AV Receiver (HT-R380)
Speaker Package (HTP-380)
Front Speakers (SKF-380 L/R)
Center Speaker (SKC-380/SKC-380C)
Surround Speakers (SKR-380 L/R)
Subwoofer (SKW-380)
Instruction Manual
Thank you for purchasing an Onkyo 5.1ch Home
Theater System. Please read this manual thoroughly
before making connections and plugging in the unit.
Following the instructions in this manual will enable
you to obtain optimum performance and listening
enjoyment from your new 5.1ch Home Theater
System.
Please retain this manual for future reference.
Contents
Introduction ...................................2
Connections.................................12
Turning On & Basic Operations ......20
Advanced Operations .................30
Controlling iPod & Other
Components............................40
Others...........................................47
E
n
Advertisement
Table of Contents
Related Manuals for Onkyo HT-S3300
Summary of Contents for Onkyo HT-S3300
-
Page 1: Instruction Manual
Center Speaker (SKC-380/SKC-380C) Surround Speakers (SKR-380 L/R) Subwoofer (SKW-380) Instruction Manual Thank you for purchasing an Onkyo 5.1ch Home Theater System. Please read this manual thoroughly before making connections and plugging in the unit. Following the instructions in this manual will enable you to obtain optimum performance and listening enjoyment from your new 5.1ch Home Theater... -
Page 2: Important Safety Instructions
WARNING: TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS APPARATUS TO RAIN OR MOISTURE. CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK). NO USER-SERVICEABLE PARTS INSIDE. REFER SERVICING QUALIFIED PERSONNEL. -
Page 3: Precautions
If water or any other liquid gets inside this unit, have it checked by your Onkyo dealer. 8. Handling Notes • If you need to transport this unit, use the original packaging to pack it how it was when you originally bought it. -
Page 4: Speaker Precautions
Speaker Precautions Placement • The subwoofer cabinet is made out of wood and is there- fore sensitive to extreme temperatures and humidity, do not put it in locations subject to direct sunlight or in humid places, such as near an air conditioner, humidifier, bathroom, or kitchen. -
Page 5: Table Of Contents
Using the Remote Controller Installing the Batteries Note • If the remote controller doesn’t work reliably, try replacing the batteries. • Don’t mix new and old batteries or different types of batteries. • If you intend not to use Batteries (AA/R6) the remote controller for a long time, remove the batteries to prevent damage from leak- age or corrosion. -
Page 6: Features
The HD Radio Ready logo is a proprietary trademark of iBiq- uity Digital Corp. /HD Radio™ To receive HD Radio broadcasts, you must install an Onkyo UP-HT1 HD Radio tuner module (sold separately). Manufactured under license from Audyssey Laboratories™. U.S. and foreign patents pending. -
Page 7: Front & Rear Panels
Front & Rear Panels Front Panel North American models b c d e f Asian models The actual front panel has various logos printed on it. They are not shown here for clarity. The page numbers in parentheses show where you can find the main explanation for each item. a ON/STANDBY button (➔... - Page 8 Display For detailed information, see the pages in parentheses. a A and B speaker indicators b Audio input indicators c Listening mode and format indicators d Audyssey indicators (➔ 34, 38) e Tuning indicators (➔ Rear Panel a DIGITAL IN COAXIAL and OPTICAL jacks b COMPONENT VIDEO IN and OUT jacks c HDMI IN and OUT jacks d FM ANTENNA jack and AM ANTENNA terminal...
-
Page 9: Speaker Package
Speaker Package Front, Center, Surround Speakers and Subwoofer (SKF-380, SKC-380/SKC-380C, SKR-380, SKW-380) SKF-380 Front Rear SKC-380/SKC-380C Front Rear a Speaker terminals These push terminals are for connecting the speaker to the HT-R380 with the supplied speaker cables. The supplied speaker cables are color-coded for easy identification. -
Page 10: Remote Controller
Controlling the AV Receiver To control the AV receiver, press RECEIVER to select Receiver mode. You can also use the remote controller to control Onkyo Blu-ray Disc/DVD player, CD player, and other components. See “Entering Remote Control Codes” for more details (➔... -
Page 11: About Home Theater
With Blu-ray Discs, you can enjoy DTS and Dolby Digital. With analog or digital TV, you can enjoy Dolby Pro Logic II, DTS Neo:6, or Onkyo’s original DSP listening modes. -
Page 12: Connections
Connecting the AV Receiver Connecting Your Speakers Speaker Configuration The following table indicates the channels you should use depending on the number of speakers that you have. For 5.1-channel surround-sound playback, you need five speakers and a powered subwoofer. Number of channels Front speakers Center speaker Surround speakers... - Page 13 Connecting the Speaker Cables Screw-type speaker terminals Strip 1/2" to 5/8" (12 to 15 mm) of insu- lation from the ends of the speaker cables, and twist the bare wires tightly, as shown. (Supplied speaker cables are already stripped.) Using Banana Plugs (North American models) •...
-
Page 14: Wall Mounting
Wall Mounting The speakers can easily be wall mounted by using the key- hole slots. To prevent the speaker from vibrating against the wall, attach two of the supplied thick rubber stoppers to the rear of each speaker. To mount the front or surround speakers vertically, use the keyhole slot shown to hang each speaker on a screw that’s securely screwed into the wall. -
Page 15: About Av Connections
About AV Connections Connected image with AV components HDMI cable AV receiver Blu-ray Disc/ DVD player TV, projector, etc. • Before making any AV connections, read the manuals supplied with your AV components. • Don’t connect the power cord until you’ve completed and double-checked all AV connections. •... -
Page 16: Connecting Components With Hdmi
Connecting Components with HDMI Game console Satellite, cable, set-top box, etc. Connect your components to the appropriate jacks. The default input assignments are shown below. ✔: Assignment can be changed Jack Input HDMI IN1 HDMI IN2 HDMI IN3 Output HDMI OUT Refer to “About HDMI”... -
Page 17: Connecting External Components
Connecting External Components The on-screen setup menus appear only on a TV that is connected to the HDMI OUT. If your TV is connected to the MONITOR OUT V or the COMPONENT VIDEO OUT, use the AV receiver’s display when changing settings. Jack COMPONENT IN 1 (BD/DVD) -
Page 18: Connecting Antenna
AV receiver. The other jack is for connecting addi- tional u-capable components. • Connect only Onkyo components to u jacks. Connecting other manufacturer’s components may cause a malfunction. • Some components may not support all u functions. Refer to 22). -
Page 19: Which Connections Should I Use
Which Connections Should I Use? The AV receiver supports several connection formats for compatibility with a wide range of AV equipment. The format you choose will depend on the formats supported by your components. Use the following sections as a guide. The on-screen setup menus appear only on a TV that is connected to the HDMI OUT. -
Page 20: Turning On/Off The Av Receiver
Turning On/Off the AV Receiver ON/STANDBY STANDBY indicator Front panel Turning On Press ON/STANDBY on the front panel. Press RECEIVER followed by ON/STANDBY on the remote controller. The AV receiver comes on, the display lights, and the STANDBY indicator goes off. Turning Off Press ON/STANDBY on the front panel or the remote controller. -
Page 21: Basic Operations
Basic Operations This manual describes the procedure using the remote controller unless otherwise specified. Playing the Connected Component ■ Operating on the AV receiver Use the input selector buttons to select the input source. Start playback on the source component. See also: •... -
Page 22: Muting The Av Receiver
• The listening modes cannot be selected while a pair of head- phones is connected. Changing the Input Display When you connect an u-capable Onkyo component, you must configure the input display so that u can work properly. This setting can be done only from the front panel. -
Page 23: Listening To The Radio
Listening to the Radio This section describes the procedure using the but- tons on the front panel unless otherwise specified. Using the Tuner With the built-in tuner you can enjoy AM and FM radio stations. You can store your favorite stations as presets for quick selection. - Page 24 Presetting FM/AM Stations You can store a combination of up to 40 of your favorite FM/AM radio stations as presets. Tune into the FM/AM station that you want to store as a preset. See the previous section. Press MEMORY. The preset number flashes. While the preset number is flashing (about 8 sec- onds), use PRESET e/r to select a preset from 1 through 40.
- Page 25 Finding Stations by Type (PTY) You can search for radio stations by type. Press RT/PTY/TP twice. The current program type appears on the display. Use PRESET e/r to select the type of program you want. See the table shown later in this chapter. To start the search, press ENTER.
-
Page 26: Recording
Recording This section explains how to record the selected input source to a component with recording capability, and how to record audio and video from different sources. Connecting a Recording Component VCR, DVD recorder Note • The AV receiver must be turned on for recording. Recording is not possible while it’s in Standby mode. -
Page 27: Using The Listening Modes
Using the Listening Modes Selecting Listening Modes See “About Listening Modes” for detailed information about the listening modes Listening Mode Buttons MOVIE/TV button This button selects the listening modes intended for use with movies and TV. MUSIC button This button selects the listening modes intended for use with music. -
Page 28: Listening Modes
■ Speaker Layout The illustration shows which speakers are activated in each channel. See “Sp Config (Speaker Configuration)” for the 32). speaker setup (➔ Listening Modes Listening Mode Description Direct In this mode, audio from the input source is output without surround-sound process- ing. - Page 29 Use this mode with any stereo movie (e.g., TV, DVD, VHS). • Neo:6 Music Use this mode with any stereo music source (e.g., CD, radio, cassette, TV, VHS, DVD). Onkyo-Original DSP Listening Modes Listening Mode Description Orchestra Suitable for classical or operatic music, this mode emphasizes the surround channels...
-
Page 30: Advanced Setup
Advanced Setup On-screen Setup Menus The on-screen setup menus appear only on a TV that is connected to the HDMI OUT. If your TV is con- nected to the MONITOR OUT V or the COMPO- NENT VIDEO OUT, use the AV receiver’s display when changing settings. -
Page 31: Hdmi Input
Explanatory Notes Menu Sp Config Subwoofer Yes: Select if a subwoofer is connected. Select if no subwoofer is connected. a Menu selection b Setting target c Setting options (default setting underlined) HDMI Input Menu HDMI Input If you connect a video component to an HDMI input, you must assign that input to an input selector. - Page 32 Note • When an HDMI IN is assigned to an input selector in “HDMI Input” (➔ 31), this input assignment is automatically set to the same HDMI IN. And in addition to the usual inputs (e.g., COAX, etc.), you can also select HDMI inputs. •...
-
Page 33: Audio Adjust
■ Left, Center, Right, Surround Right, Surround Left, Subwoofer Specify the distance from the each speaker to your lis- tening position. Note • The speaker distance setting cannot be changed while a pair of headphones is connected, or “Audio TV OUT” setting is set to “... - Page 34 The Audyssey EQ filters in the HT-R380 are specifically opti- mized for the Onkyo HTP-380 Speaker Package and should not be used with other speakers. Audyssey settings cannot be adjusted while Speakers B is selected.
-
Page 35: Name Edit
■ Remote ID 1, 2, or 3 When several Onkyo components are used in the same room, their remote ID codes may overlap. To differenti- ate the AV receiver from the other components, you can change its remote ID from “1”, to “2” or “3”. -
Page 36: Hdmi Setup
■ AM Freq Step (Asian models) 10kHz: Select if 10 kHz steps are used in your area. 9kHz: Select if 9 kHz steps are used in your area. HDMI Setup Menu HDMI Setup ■ Audio TV OUT Off: HDMI audio is not output. HDMI audio is output. -
Page 37: Using The Audio Settings
Note “Power Control” • The setting can be set only when the above “ ” HDMI Control setting is set to “On”. • HDMI power control only works with p-compatible components that support it and may not work properly with some components due to their settings or compatibility. - Page 38 Audyssey Settings ■ Dynamic EQ ■ Dynamic Volume See “Dynamic EQ” and “Dynamic Volume” of “Audio 34). Adjust” (➔ EX.BASS EX.BASS is a technology that have developed by experi- ments and listening tests to reproduce a natural deeper bass. When you turn the mode on, you can get dynamic and deeper presence on your movies and music.
-
Page 39: Digital Input Signal Formats
Audio Selector You can set priorities of audio output when there are both digital and analog inputs. ■ AudioSel ARC: The audio signal from your TV tuner can be sent to the HDMI OUT of the AV receiver. With this selection the TV’s audio can be automati- cally selected as a priority among other assignments. -
Page 40: Controlling Ipod
Controlling iPod Connecting an Onkyo Dock Onkyo Dock UP-A1 Dock (Universal Port Option Dock) RI Dock Models sold are different depending on the region. Cable Note — • When UP-A1 Dock that seated iPod is connected, the power consumption on standby mode slightly increases. -
Page 41: Using The Onkyo Dock
Using the Onkyo Dock Dock is sold separately. For the latest information on the Onkyo Dock compo- nents, see the Onkyo web site at: http://www.onkyo.com Before using the Onkyo Dock components, update your iPod with the latest software, available from the Apple web site. -
Page 42: Controlling Your Ipod
Dock, you can con- trol your iPod in the Dock with the following buttons. See “Remote Control Codes for Onkyo Components Con- nected via u” for details on entering a remote control 22). - Page 43 • For detailed operation of the iPod, please refer to the instruction manual. This button does not turn the Onkyo DS-A2 or DS-A2X RI Dock on or off. Your iPod may not respond the first time you press this button, in which case you should press it again.
-
Page 44: Controlling Other Components
Press REMOTE MODE, point the remote control- ler at the AV receiver, and operate the component. If you want to control an Onkyo component by pointing the remote controller directly at it, or you want to control an Onkyo component that’s not connected via u, use the following remote control codes: •... -
Page 45: Resetting Remote Mode Buttons
If you want to control an Onkyo component by pointing the remote controller directly at it, use the following remote control codes: 32900: Onkyo Blu-ray Disc player 32901: Onkyo HD-DVD player 70868: Onkyo MD recorder 71323: Onkyo CD recorder 82990:... - Page 46 Press the appropriate REMOTE MODE first. Note • With some components, certain buttons may not work as expected, and some may not work at all. ✔: Available buttons Components Buttons ✔ a ON/STANDBY ✔ b GUIDE TOP MENU ✔ c q/w/e/r ENTER ✔...
-
Page 47: Others
Onkyo dealer. If you can’t resolve the issue yourself, try resetting the AV receiver before contacting your Onkyo dealer. To reset the AV receiver to its factory defaults, turn it on and, while holding down VCR/DVR, press ON/ STANDBY. - Page 48 ■ Only the front speakers produce sound When the Stereo or Mono listening mode is selected, only the front speakers and subwoofer produce sound. Check the Speaker Configuration. ■ Only the center speaker produces sound If you use the Dolby Pro Logic II Movie, Dolby Pro Logic II Music, or Dolby Pro Logic II Game listen- ing mode with a mono source, such as an AM radio station or mono TV program, the sound is concen-...
- Page 49 ■ Can’t control other components If it’s an Onkyo component, make sure that the u cable and analog audio cable are connected properly. Connecting only an u cable won’t work. Make sure you’ve selected the correct remote con- troller mode.
- Page 50 Onkyo is not responsible for damages (such as CD rental fees) due to unsuccessful recordings caused by the unit’s malfunction. Before you record important —...
-
Page 51: Specifications
Specifications AV Receiver Amplifier Section Rated Output Power All channels: (North American) 110 watts minimum continuous power per channel, 6 ohms, at 1 kHz with a maximum total harmonic distortion of (Others) × 1 ch 100 W at 6 ohms, 1 kHz, 1 ch driven (IEC) Maximum Effective Output Power (Asian) -
Page 52: Ch Home Theater Speaker Package
5.1ch Home Theater Speaker Package Passive Subwoofer (SKW-380) Type Bass-reflex type Passive subwoofer Impedance 6Ω Maximum input power 130 W Output sound pressure level 83 dB/W/m Frequency response 30 Hz–150 Hz Cabinet capacity 0.88 cubic feet (25 L) 11-5/8" × 13-9/16" × 14-1/2" Dimensions (W ×... -
Page 53: About Hdmi
About HDMI Designed to meet the increased demands of digital TV, HDMI (High Definition Multimedia Interface) is a new digital interface standard for connecting TVs, projectors, Blu-ray Disc/DVD players, set-top boxes, and other video compo- nents. Until now, several separate video and audio cables have been required to connect AV components. With HDMI, a single cable can carry control signals, digital video, and up to eight channels of digital audio (2-channel PCM, multichan- nel digital audio, and multichannel PCM). -
Page 54: Using An Rihd-Compatible Tv, Player, Or Recorder
Using an RIHD-compatible TV, Player, or Recorder p, which stands for Remote Interactive over HDMI, is the name of the system control function found on Onkyo components. The AV receiver can be used with CEC (Consumer Electronics Control), which allows system control over HDMI and is part of the HDMI standard. - Page 55 ■ How to connect and setup Confirm the connecting and setting. 1. Connect the HDMI OUT jack to the HDMI input jack of the TV. Blu-ray Disc/DVD player, etc. AV receiver DIGITAL AUDIO connection (OPTICAL) TV, projector, etc. 2. Connect the audio output from the TV to the OPTICAL IN 2 jack of the AV receiver using an optical digital cable.
- Page 56 Unit 1 & 12, 9/F, Tower 1, Ever Gain Plaza, 88, Container Port Road, Kwai Chung, N.T., Hong Kong. Tel: 852-2429-3118 Fax: 852-2428-9039 http://www.ch.onkyo.com/ SN 29400204 (C) Copyright 2010 ONKYO CORPORATION Japan. All rights reserved. Y1001-1 * 2 9 4 0 0 2 0 4 *...
