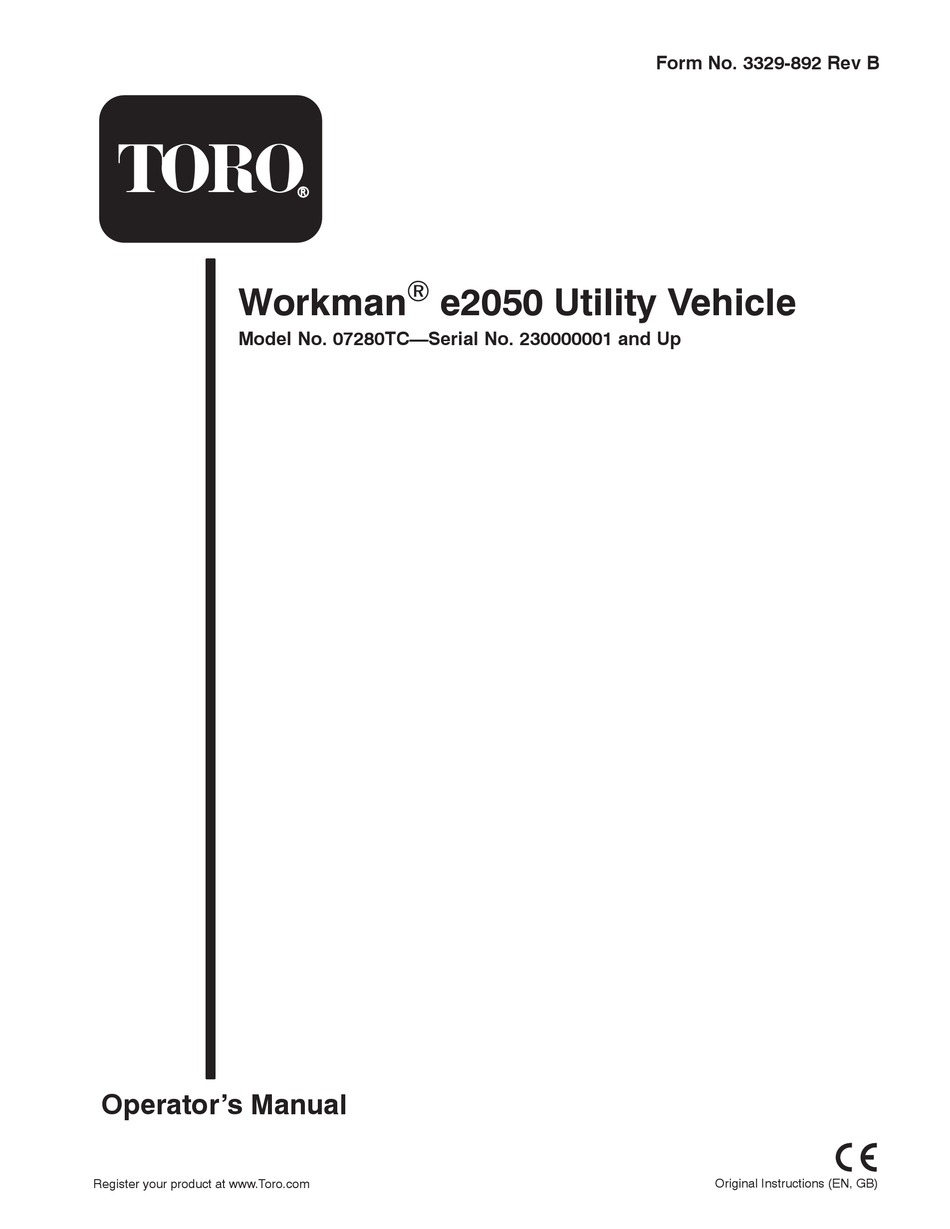

- Page 1 Form No. 3329-892 Rev B Workman e2050 Utility Vehicle Model No. 07280TC—Serial No. 230000001 and Up Operator’s Manual Register your product at www.Toro.com Original Instructions (EN, GB)
-
Page 2: Table Of Contents
......additional information, contact an Authorized Service Dealer or Toro Customer Service and have the model and Installing the Batteries . -
Page 3: Safety
Safe Operating Practices This manual identifies potential hazards and has special safety messages that help you and others avoid personal injury and even death. Danger, Warning, and Caution are Warning signal words used to identify the level of hazard. However, regardless of the hazard, be extremely careful. -
Page 4: While Operating
• Always wear substantial shoes. Do not operate the – Slow down before turning. Do not attempt sharp vehicle while wearing sandals, tennis shoes, or turns or abrupt maneuvers or other unsafe driving sneakers. Do not wear loose fitting clothing or jewelry actions that may cause a loss of vehicle control. - Page 5 • Decrease the vehicle speed if the cargo box has been initiate tipping or rolling of the vehicle. Do not slam on removed and there is no attachment on the vehicle. The the brakes when rolling backward, as this may cause the braking characteristics change and fast stops may cause vehicle to overturn.
-
Page 6: Handling And Servicing Batteries
• Use extra caution if the load exceeds the dimensions of – Never use an open flame to check the level or the box and when handling off-center loads that cannot leakage of battery electrolyte. be centered. Keep loads balanced and secure to prevent •... -
Page 7: General Maintenance
• Do not use open pans of flammable cleaning fluids for cleaning parts. • If major repairs are ever needed or assistance is required, contact an Authorized Toro Distributor. • To be sure of optimum performance and safety, always purchase genuine Toro replacement parts and accessories. -
Page 9: Slope Chart
Slope Chart ALIGN THIS EDGE WITH A VERTICAL SURFACE (TREE, BUILDING, FENCEPOST, POLE, ETC.) -
Page 11: Safety And Instruction Decals
Safety and Instruction Decals Safety decals and instructions are easily visible to the operator and are located near any area of potential danger. Replace any decal that is damaged or lost. 104-7214 1. Horn 3. Battery/hour meter 5. Light blinking, read the 7. - Page 12 107-0356 1. Warning—Do not touch moving objects, fan; do not touch the 104-7131 hot surfaces; read the Operator’s Manual. 1. Read the Operator’s Manual. 2. The maximum combined operator and passenger weight is 400 lb (181 kg.). 3. The maximum cargo weight is 800 lb (362 kg). 4.
-
Page 13: Specifications
Cargo box height 10 in (25.4 cm) inside Optional Equipment The Toro Company has optional equipment and accessories that you can purchase separately and install on your vehicle. Contact your Authorized Service Dealer for a complete list of optional equipment that is currently... -
Page 14: Setup
Complete and file in your customer history portfolio. Refer to the Parts Manual for the available power cords for the voltage used in the region or country where operating the charger. Contact your Authorized Toro Dealer to obtain the appropriate power cord. -
Page 15: Installing The Rear Wheels
Installing the Rear Wheels Installing the Steering Wheel 1. Remove the fasteners securing the wheels. 1. Remove the nut and lock washer from the steering shaft. 2. Remove the shipping bracket secured to the wheel studs. 2. Slide the steering wheel and washer onto the shaft. Position the steering wheel on the shaft so that the cross 3. -
Page 16: Installing The Seats
1. Hitch 2. Left pivot bracket Installing the Batteries m–7646 Figure 9 Toro recommends the use of either Trojan T105 or T145, or US. Battery US2200 or US145. 1. Battery pad 3. Upper cut-out holes 2. Front inside face Battery Specification: 6V 225AH @ 20hr rate Dimensions: (LxWxH) (10-1/4 x 7-1/8 x 11-1/4 inches) 4. -
Page 17: Installing The Cargo Box
9. Torque the nuts securing all battery cables to 120 to 180 Caution inch-lb (13.5 to 21 N⋅m). 10. Coat the battery terminals with Toro battery terminal Batteries can give you a powerful electrical shock. protector. • Use tools with plastic handles or wrap the 11. -
Page 18: Checking The Tire Pressure
Always use the appropriate power cord for the power outlet of the country or region charging will occur. Contact your Authorized Toro Dealer to obtain the correct power cord if necessary. m–5813 Figure 12 1. Prop rod 3. Bolt, 5/16 x 3/4 inch 2. -
Page 19: Brake Pedal
m–6219 m–7966 Figure 15 Figure 14 1. On/Off switch 6. Power cargo bed switch (optional) 2. Horn button 1. Accelerator pedal 3. Parking brake 7. Rear lift switch (optional) 3. Light switch 2. Brake pedal 8. Vehicle direction switch 4. Battery/hour meter 5. -
Page 20: Pre-Operating Checks
Pre-Operating Checks Light Switch Use this switch to turn the headlights on and off (Fig. 15). Check the following items each time you begin using the vehicle for the day: Cargo Bed Lift Switch (Optional) • Check the tire pressure. Use this switch to raise and lower the cargo bed (Fig. -
Page 21: Understanding And Using The Battery System
Understanding and Using the • Recharge frequency—charge the batteries whenever they are not in use. Fully discharging the batteries Battery System will damage them and reduce their life. Understanding Deep Cycle Batteries At the end of the battery life, the coating on the lead plates begins to deteriorate, causing the batteries to rapidly lose The vehicle contains 8 deep cycle, lead-acid batteries which electric capacity. -
Page 22: Operating The Cargo Box
1. Lift the lever on either side of the box and lift the box When only one bar is left, the warning light will begin flashing and the vehicle will go into an energy saving mode up (Fig. 22). (Fig. 21). In this mode, the vehicle will only drive at 3 mph. Recharge the batteries immediately to prevent serious damage to them. -
Page 23: Breaking-In A New Vehicle
1. Loosen the nut on the end to the latch post (Fig. 24). 2. To close the tailgate latches, lift the handles upward and slide them toward the outside of the vehicle. 3. Push the latch handles downward to secure the latch and tailgate. -
Page 24: Transporting The Vehicle
Towing a Trailer The vehicle is capable of pulling trailers. Two types of tow hitches are available for the vehicle, depending on your m–7440 application. Contact your Authorized Toro Distributor for Figure 26 details. 1. Tie down points When hauling cargo or towing a trailer, do not overload your vehicle or trailer. -
Page 25: Maintenance
Maintenance Recommended Maintenance Schedule Maintenance Service Maintenance Procedure Interval When not in use • Charge the batteries. Every 8 hours • Check the tire pressure. After first 20 hours • Check the front wheel toe-in at the proper ride height. •... - Page 26 Duplicate this page for routine use. For the week of: Mon. Tues. Wed. Thurs. Fri. Sat. Sun. Maintenance Check Item Charge the batteries. Check the brake and parking brake operation. Check any unusual operating noises. Check the tire pressure. Check for fluid leaks. Check the instrument operation.
-
Page 27: Heavy Duty Operation
Caution If you leave the key in the On/Off switch, someone could accidently start the vehicle and seriously injure you or other bystanders. Remove the key from the On/Off switch before you do any maintenance. Heavy Duty Operation Important If the vehicle is subjected to any of the conditions listed below, maintenance should be performed twice as frequently: •... -
Page 28: Maintaining The Batteries
Contact your 1. Ensure that all of the battery caps are tight. Authorized Toro Dealer to obtain the correct power cord if necessary. 2. Use a paper towel to clean the batteries. - Page 29 4. Replace the filler caps on all batteries. Warning 5. Charge the batteries for 16 hours; refer to Charging the Batteries, page 28. Charging the battery produces gasses that can 6. Remove the filler caps from each battery. explode. 7. Add just enough distilled water to bring the electrolyte Never smoke near the batteries and keep sparks level to 1/8 inch (3 mm) below the bottom of each fill and flames away from them.
-
Page 30: Greasing The Vehicle
(13.5 to 21 N⋅m). terminal and a negative terminal at the same time. 13. Coat the battery terminals with Toro battery terminal protector. 14. Ensure that the rubber boots on each battery cable are securely seated over the battery terminals. -
Page 31: Servicing The Brakes
Adjusting the Brake Pedal 3. Wipe off excess grease. Adjust the brake if the parking brake does not hold, the brake pedal travel is excessive, or braking power is not sufficient when the brake pedal is depressed. Check the adjustment every 200 hours. 1. -
Page 32: Inspecting The Tires
Inspecting the Tires Check the tire condition at least every 100 hours of operation. Operating accidents, such as hitting curbs, can damage a tire or rim and also disrupt wheel alignment, so inspect tire condition after an accident. Check the wheels to ensure that they are mounted securely. Torque the center bolts on the front wheels to 135–165 ft-lb (183–224 N⋅m) and the front and rear lug nuts to 45–65 ft-lb (61–88 N⋅m). -
Page 33: Adjusting The Front Wheel Toe-In
Note: The vehicle may need to be lowered to the ground on height. Use the same fixture or alignment gauge to that side to install the bolt. accurately measure the front of the front tires at axle height (Fig. 38). 8. -
Page 34: Checking The Transaxle Oil Level
Figure 41 1. Vehicle Fuse 2. Accessories Fuse Replacing the Headlights m–7445 Specification: Toro #104-7312, 28 volt Figure 40 Note: The headlights are wired in series; therefore, when 1. Transaxle 2. Check bolt one headlight burns out, neither will illuminate. If possible, change both headlights at the same time. -
Page 35: Washing The Vehicle
Figure 42 1. Rubber seal 3. Outside notch—align with notch in hood 2. Inside notch—align with notch on headlight 4. Headlight 6. Attach the headlight to the wire harness using the previously removed screws. 7. Align the notch on the outside of the seal with the notch in the hood. -
Page 36: Electrical Schematic
Electrical Schematic... -
Page 37: Troubleshooting
Troubleshooting The vehicle contains a computer that monitors the state of the vehicle electrical systems. This computer communicates the status of the vehicle to you through the vehicle status light. When the vehicle is functioning properly, the light will be on. When there is a problem, the light flashes.
