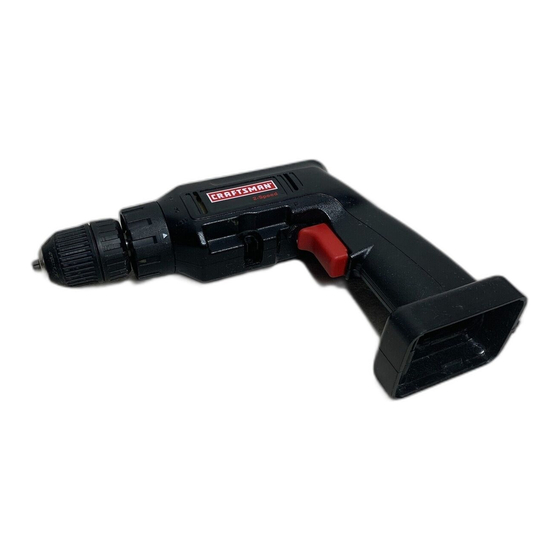

Two speed / reversible 3/8 in. cordless drill-driver
Hide thumbs
Table of Contents

Advertisement

Quick Links

Owner's Manual
Two Speed / Reversible
3/8 in. CORDLESS
DRILL-DRIVER
Model No.
315.111790
Save this manual for
future reference
CAUTION:
Read and
follow all Safety Rules
and Operating Instruc-
tions before first use of
this product.
Sears, Roebuck and Co., Hoffman Estates, IL 60179 USA
972000-419
6-97
®

Advertisement

Table of Contents
loading

Related Manuals for Craftsman 315.111790

Summary of Contents for Craftsman 315.111790

  • Page 1 Owner's Manual ® Two Speed / Reversible 3/8 in. CORDLESS DRILL-DRIVER Model No. 315.111790 Save this manual for future reference CAUTION: Read and follow all Safety Rules and Operating Instruc- tions before first use of this product. Sears, Roebuck and Co., Hoffman Estates, IL 60179 USA...

  • Page 2: Table Of Contents

    FULL ONE YEAR WARRANTY ON CRAFTSMAN 3/8 in. DRILL-DRIVER If this Craftsman 3/8 in. Drill-Driver fails to give complete satisfaction within one year from the date of purchase, RETURN IT TO THE NEAREST SEARS STORE IN THE UNITED STATES, and Sears will repair it, free of charge.

  • Page 3: Rules For Safe Operation

    RULES FOR SAFE OPERATION The purpose of safety symbols is to attract your attention to possible dangers. The safety symbols, and the explanations with them, deserve your careful attention and understanding. The safety warnings do not by themselves eliminate any danger. The instructions or warnings they give are not substitutes for proper accident prevention measures.

  • Page 4: Important Safety Rules For Battery Tools

    WHEN SERVICING USE ONLY IDENTICAL DO NOT USE TOOL IF SWITCH DOES NOT CRAFTSMAN REPLACEMENT PARTS. TURN IT ON AND OFF. Have defective switches IMPORTANT SAFETY INSTRUCTIONS FOR replaced by an authorized service center.

  • Page 5: Important Information For Recharging Hot Batteries

    RULES FOR SAFE OPERATION (Continued) An extension cord should not be used unless Do not operate charger if it has received a absolutely necessary. Use of improper sharp blow, been dropped, or otherwise extension cord could result in a risk of fire and damaged in any way;...

  • Page 6: Accessories

    ACCESSORIES The following recommended accessories are currently available at Sears Retail Stores. 6-Pc. Extra Length Magnite Power Bit Set 30-Pc. Power Screwdriver/Nutdriver Set and Case 17-Pc. Power Screwdriver/Nutdriver Set and Case High Speed Bits ..3/8 inch Max. Chuck (Item No. 2975) Chuck Key (Item No.

  • Page 7: Operation

    OPERATION WARNING: Always wear safety goggles or Place battery pack in charging stand. Align raised safety glasses with side shields when operating rib on battery pack with groove in charging stand. See Figure 1. tools. Failure to do so could result in objects being thrown into your eyes, resulting in possible Press down on battery pack to be sure contacts on serious injury.
  • Page 8 OPERATION SWITCH See Figure 2. To turn your drill ON, depress the switch trigger. To turn it OFF, release the switch trigger. SELECTOR REVERSE FORWARD CENTER POSITION (LOCK) SWITCH TRIGGER Fig. 3 WARNING: Battery tools are always in operating condition. Therefore, switch should always be locked when not in use or carrying at your side.
  • Page 9 OPERATION TO INSTALL BATTERY PACK TO REMOVE BATTERY PACK Lock switch trigger on your drill by placing the Lock switch trigger on your drill by placing the direction of rotation selector in center position. direction of rotation selector in center position. See Figure 3.
  • Page 10 OPERATION INSTALLING BITS WARNING: Do not insert drill bit into chuck See Figure 6. jaws and tighten as shown in figure 7. This could cause drill bit to be thrown from drill resulting in Lock the switch trigger by placing the direction of possible serious personal injury or damage to the rotation selector in center position.
  • Page 11 OPERATION OPERATION CHUCK KEY STORAGE ADJUSTABLE TORQUE CLUTCH See Figure 9. Your drill is equipped with an adjustable torque clutch for driving different types of screws into different Your drill has a chuck key storage area. If you decide materials. The proper setting depends on the type of to change the chuck to one that requires the use of a material and the size of screw you are using.
  • Page 12 OPERATION WARNING: When drilling metals, use a light oil on the drill bit to Always wear safety goggles or keep it from overheating. The oil will prolong the life of safety glasses with side shields when operating the bit and increase the drilling action. tools.

  • Page 13: Maintenance

    MAINTENANCE See Figure 13. WARNING: When servicing, use only identical Craftsman replacement parts. Use of any other part may create a hazard or cause product damage. Avoid using solvents when cleaning plastic parts. Most plastics are susceptible to damage from various types of commercial solvents and may be damaged by their use.

  • Page 14: Battery Pack Removal And Preparation For Recycling

    BATTERIES To obtain the longest possible battery life, we suggest the following: Your drill's battery pack is equipped with 6 nickel- Store and charge your batteries in a cool area. cadmium rechargeable batteries. Length of service Temperatures above normal room temperature from each charging will depend on the type of work will shorten battery life.

  • Page 15: Exploded View And Repair Parts List

    CRAFTSMAN 3/8 in. CORDLESS DRILL-DRIVER MODEL NO. 315.111790 The model number will be found on a plate attached to the motor housing. Always mention the model number in all correspondence regarding your 3/8 in. CORDLESS DRILL-DRIVER or when ordering repair parts.

  • Page 16: Parts Ordering / Service

    BACK PAGE...
