41cm Recycler
Model No. 21030-Serial No. 312000001 and Up
Model No. 21032-Serial No. 312000001 and Up
Contents
Introduction................................................................. 1
Safety ........................................................................... 2
General Operation ............................................... 2
Slope Operation ................................................... 2
Children ............................................................... 3
Service ................................................................. 3
Sound Pressure..................................................... 4
Sound Power ........................................................ 4
Vibration, Hand/arm ........................................... 4
Safety and Instructional Decals ............................. 5
Setup ........................................................................... 6
1 Unfolding the Handle ........................................ 6
2 Assembling the Grass Bag.................................. 6
3 Filling the Engine with Oil ................................. 7
Product Overview ........................................................ 8
Specifications ....................................................... 8
Operation..................................................................... 9
Filling the Fuel Tank............................................. 9
Checking the Engine Oil Level.............................. 9
Adjusting the Cutting Height ................................ 9
Starting the Engine............................................. 10
only)............................................................... 11
Stopping the Engine ........................................... 11
Bagging the Clippings......................................... 11
Mowing Tips ...................................................... 12
Maintenance............................................................... 12
Recommended Maintenance Schedule(s) ................ 12
Cleaning the Mower Housing.............................. 12
Cleaning the Air Filter ........................................ 13
only)............................................................... 13
Lubricating the Machine ..................................... 13
Changing the Engine Oil .................................... 13
Servicing the Blade ............................................. 14
Storage....................................................................... 16
Troubleshooting......................................................... 17
© 2012-The Toro® Company
8111 Lyndale Avenue South
Bloomington, MN 55420
®
Lawn Mower
Introduction
Read this information carefully to learn how to operate
and maintain your product properly and to avoid injury
and product damage. You are responsible for operating
the product properly and safely. Keep this manual for
future reference.
You may contact Toro directly at www.Toro.com for
product and accessory information, help finding a dealer,
or to register your product.
Whenever you need service, genuine Toro parts,
or additional information, contact an Authorized
Service Dealer or Toro Customer Service and have
the model and serial numbers of your product ready.

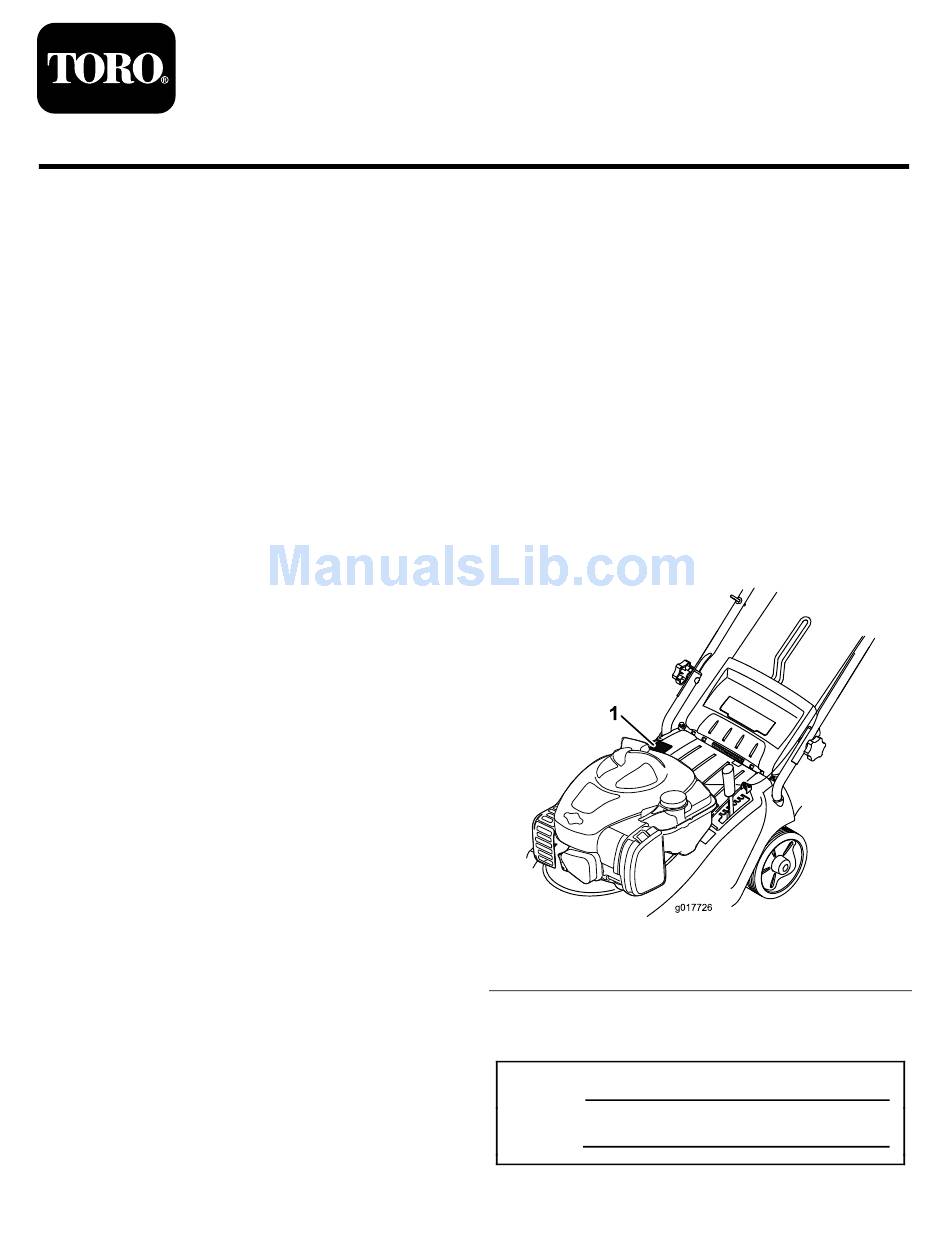

Figure 1 identifies the location of the model and serial
numbers on the product.
1. Model and serial number plate
Write the product model and serial numbers in the space
below:
Model No.
Serial No.
Register at www.Toro.com.
Form No. 3372-330 Rev B
Operator's Manual
1
g017726
Figure 1
Original Instructions (EN)
Printed in China
All Rights Reserved
Advertisement
Table of Contents
Related Manuals for Toro Recycler 21030
Summary of Contents for Toro Recycler 21030
-
Page 1: Table Of Contents
Slope Operation ........... 2 future reference. Children ............... 3 Service ..............3 You may contact Toro directly at www.Toro.com for Sound Pressure............. 4 product and accessory information, help finding a dealer, Sound Power ............4 or to register your product. -
Page 2: Safety
This manual identifies potential hazards and has safety • Never direct discharged material toward anyone. messages identified by the safety alert symbol (Figure 2), Avoid discharging material against a wall or which signals a hazard that may cause serious injury obstruction. -
Page 3: Children
Children WARNING Exhaust contains carbon monoxide, an odorless, Tragic accidents can occur if the operator is not alert to deadly poison that can kill you. the presence of children. Children are often attracted to the machine and the mowing activity. Never assume Do not run the engine indoors or in an enclosed that children will remain where you last saw them. -
Page 4: Sound Pressure
– After striking a foreign object. Inspect the machine for damage and make repairs before restarting and operating the lawnmower. – If the machine starts to vibrate abnormally. – Whenever you leave the machine. – Before refueling. • Allow the engine to cool before storing in any enclosure. -
Page 5: Safety And Instructional Decals
Safety and Instructional Decals Important: Safety and instruction decals are located near areas of potential danger. Replace damaged or lost decals. 111–0083 1. Warning—read the 3. Thrown object hazard; Operator’s Manual. keep bystanders a safe distance from the mower. 2. Cutting/dismemberment hazard of hand or foot, mower blade;... -
Page 6: Setup
Setup Note: Do not attempt to start the engine until the mower is fully assembled. Assembling the Grass Bag No Parts Required Procedure Unfolding the Handle Insert the metal frame into the grassbag fabric and then clip into position (Figure 4). No Parts Required Procedure 1. -
Page 7: Filling The Engine With Oil
Filling the Engine with Oil No Parts Required Procedure g017679 Your mower does not come with oil in the engine. 1. Remove the dipstick (Figure 5). Figure 6 3. Install the dipstick securely. Important: Change the engine oil after the first 5 0.15 L operating hours;... -
Page 8: Product Overview
Specifications Product Overview Model 21030 21032 Weight 30 kg 32 kg Length 137 cm 137 cm Width 47.5 cm 47.5 cm Height 105 cm 105 cm Width of cut 41 cm 41 cm Height-of-cut 13 to 65 mm 13 to 65 mm range (7 positions) G017695 Figure 7... -
Page 9: Operation
Checking the Engine Oil Level Operation Service Interval: Before each use or daily Filling the Fuel Tank 1. Remove the dipstick, wipe it clean, and fully install the dipstick. DANGER 2. Remove the dipstick and check the oil level Gasoline is extremely flammable and explosive. A (Figure 10). -
Page 10: Starting The Engine
CAUTION If the engine has been running, the muffler will be hot and can severely burn you. Keep away from the hot muffler. To adjust the height of cut: G017683 1. Grip the lever and pull sideways to disengage it from Figure 12 the locking notch (Figure 11). -
Page 11: Using The Self-Propel Drive (Model 21032 Only)
Using the Self-propel Drive (model 21032 only) To operate the self-propel drive, squeeze the self-propel drive bar toward the handle and hold it Figure 13). g01771 1 Figure 14 1. Rear door 3. Grass bag 2. Lug 2. Release the rear door. 3. -
Page 12: Mowing Tips
4 cm. swath with each pass. Maintenance Toro has designed this product to give you years of trouble-free use. Should it need service, bring the product to an Authorized Toro Service Dealer. Note: Determine right and left side from normal operating position. -
Page 13: Cleaning The Air Filter
Cleaning the Air Filter Lubricating the Machine Service Interval: Every 25 hours Service Interval: Every 25 hours 1. Undo the latches that hold the air filter cover to the Lubricate the wheels, linkages, and pivot points with engine (Figure 17). engine oil (Figure 19). -
Page 14: Servicing The Blade
Servicing the Blade Always mow with a sharp blade. As sharp blade cuts the grass evenly, without tearing or shredding the grass. When you replace the blade, use only genuine Toro replacement blades. WARNING Someone could accidentally start the engine and cause a serious injury to the operator or to bystanders. -
Page 15: Removing The Blade
Removing the Blade an inexpensive balancer at a hardware store. A balanced blade stays in a horizontal position; 1. Grasp the end of the blade (Figure 22) with a rag an unbalanced blade settles to the heavy side or thickly padded glove. (Figure 24). -
Page 16: Storage
Storage 1. Clean the mower housing. 2. Check the condition of the blade. 3. Fold the handle as shown in Figure 25. Important: Ensure that you do not crimp the control cables as you fold the handle. CAUTION The handles pass each other like a scissors while folding and unfolding them and can pinch your fingers. -
Page 17: Troubleshooting
Troubleshooting Problem Possible Cause Corrective Action The engine does not start 1. The wire is not connected to the spark 1. Connect the wire to the spark plug. plug. 2. The fuel cap vent hole is plugged. 2. Clean the fuel cap vent hole or replace the fuel cap. - Page 18 The Way Toro Uses Information Toro may use your personal information to process warranty claims, to contact you in the event of a product recall and for any other purpose which we tell you about. Toro may share your information with Toro's affiliates, dealers or other business partners in connection with any of these activities. We will not sell your personal information to any other company.
