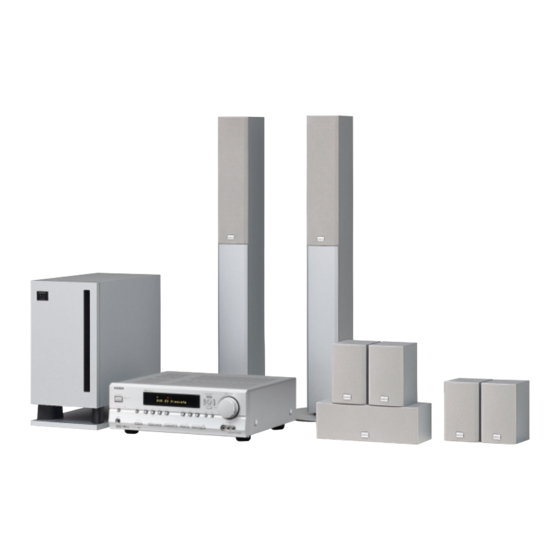

An Ideal Launching Pad for Performance-Driven Home Theater
AV-3600
TX-SR504
7.1-Channel A/V Surround Home Theater Receiver
•160 W/Ch, continuous 6
, 1 kHz, 1 channel driven, JEITA •DTS
Neo:6, DTS
®
96/24, Dolby
®
Digital EX
™
, Dolby
channels •HDTV-capable (50 MHz) component video switching (3 inputs/1 output) •H.C.P.S.
(High Current Power Supply) massive high power transformer •WRAT (Wide Range Amplifier
Technology) •3 S-Video inputs and 2 outputs •4 digital inputs (3 optical/1 coaxial) •A/V sync
control function (up to 100 ms)
Home Theater Speakers
SKF-3600
2-Way Bass Reflex Speakers
•8 cm cone woofer x 2 •2.5 cm balanced-dome tweeter •Magnetically shielded •Max. input
power: 100 W •Frequency response: 55 Hz–35 kHz •WHD: 300 x 929 x 300 mm (with speaker
base), 104 x 913 x 138 mm (without speaker base) •6.1 kg (with speaker base), 4.5 kg (without
speaker base)
SKS-3600
Center/Surround Speaker Package
Center Speaker
•8 cm cone woofer x 2 •2.5 cm balanced-dome tweeter •Wall-mounting capability
•Magnetically shielded •Max. input power: 100 W •Frequency response: 60 Hz–35 kHz •WHD:
310 x 104 x 127 mm •2.1 kg
Surround Speakers
•8 cm cone woofer •2.5 cm balanced-dome tweeter •Wall-mounting capability •Max. input
power: 100 W •Frequency response: 60 Hz–35 kHz •WHD: 104 x 169 x 127 mm •1.1 kg
SILVER
®
-ES
™
Discrete/Matrix, DTS
®
Pro Logic
®
IIx •192 kHz/24-bit DACs for all
SKR-3600
Surround Back Speaker
•8 cm cone woofer •2.5 cm balanced-dome tweeter •Wall-mounting capability •Max. input
®
power: 100 W •Frequency response: 60 Hz–35 kHz •WHD: 104 x 169 x 127 mm •1.1 kg
SL-107(S)
Bass Reflex Powered Subwoofer
•Built-in 150 W amplifier •Auto-standby/On circuitry •20 cm cone woofer •Aero Acoustic
Drive for powerful and natural sounding bass •Continuously variable crossover (50 Hz–200 Hz)
•Phase switch (0˚ or 180˚) •Speaker & line level inputs •Impedance: 65 k
(Speaker input) •Frequency response: 30 Hz–200 Hz •WHD: 230 x 435 x 401 mm •13.0 kg
TX-SR504, SKF-3600, SKS-3600, SKR-3600, SL-107(S)
(Line input), 1.2 k
TX-SR504, SKF-3600, SKS-3600,
SKR-3600, SL-107(S)
25
