Summary of Contents for Sinclair AMC-14Aa MOBILE SERIES

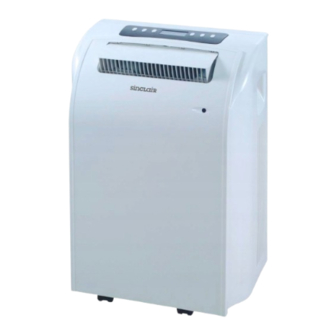

- Page 1 USER'S MANUAL MOBILE SERIES AMC-14Aa...
-
Page 3: Table Of Contents
CONTENT 1. SUMMARY ．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．1 2. WORKING PRINCIPLE．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．1 3. SAFETY LABELS OF THE UNIT．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．2 4. SPECIFICATIONS ．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．3 5. STRUCTURE．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．4 6. OPERATING METHODS ．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．． 5 --10 ※．USAGE NOTICE ．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．5 --7 ※．FUNCTIONS OF DISPLAYER AND PANEL ．．．．．．．．．．．．．．．．8--10 7. NAMES AND FUNCTIONS OF THE REMOTE CONTROLLER．． 1 1-- 18 8. -
Page 4: Working Principle
SUMMARY This MOBILE AIR CONDITIONER is a small, movable air conditioner. It possessed the functions of COOL, HEAT, DRY and the Separate Ventilation, and depends on different places, it can be moved as will. It is fit for home and office use, especially fit for the house with many rooms. With the compact configuration, excellent workmanship, elegant appearance, it looks like a standing Benz car. -
Page 5: Safety Labels Of The Unit
SAFETY LABELS OF THE UNIT Your safety and the safety of others are very important. We have provided many important safety messages in this manual and on your appliance. Always read and obey all safety messages. This is the safety alert symbol. This symbol warns you to the potential hazards that can kill or hurt you and others. - Page 6 －3 －...
-
Page 7: Structure．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．4
ＳＴＲＵＣＴＵＲＥ Ｆｒｏｎｔ Control panel Air outlet Handle Ｒｅａｒ Upper air inlet grille Heat air exhaust vent Power cord Lower air inlet grille －4 －... -
Page 8: Operating Methods
OPERATING METHODS ※．Usage notice The working range of COOL ｍｏｄｅ ａｎｄ ＤＲＹ ｍｏｄｅ： 16℃－30℃． Unpack the Air Conditioner WARNING Excessive Weight Hazard Use two or more people to move and install the air conditioner. Failure to do so can result in back or other injury. Remove packaging materials Remove and properly dispose the packaging materials. -
Page 9: Electrical Requirements
OPERATING METHODS ※．Usage notice Electrical Requirements WARNING Electrical Shock Hazard Plug into a grounded 3-prong outlet. Do not use an extension cord. Do not use an adapter. Do not remove ground prong. Failure to follow these instructions can result in death, fire, or electrical shock. -
Page 10: Operation Method
OPERATION METHOD ※．Usage Notice The wiring must be operated by the professional personnel by ■ following the national regulation. There must be electric leakage protect switch and magnetic and heat drop-off air switch that with enough capacity in fixed circuit. Don't connect earth wire to water pipe or gas pipe. - Page 11 OPERATION METHOD FUNCTIONS OF DISPLAYER AND PANEL LCD instruction (dynamic display) TIMER TIME FAN mode COOL mode DEHUMIDIFY SLEEP Set temp. display Temp. set Auto mode display Timer On/Off Fan spedd Functions for control panel and every button FAN SPEED Power (On/Off) OPERATION SET TIMER...
-
Page 12: Functions Of Displayer And Panel ．．．．．．．．．．．．．．．．8--10
OPERATION METHOD ※．Functions of displayer and panel This unit contains memory function. When power outage occur during operation, the unit stops running. After electrified, the unit would still operates with the operation mode before power outage. Functions of buttons on control panel: 1. - Page 13 OPERATION METHOD ※．Functions of displayer and panel COOLING 1). Press MODE to select COOL mode. 2). Press TEMP to set proper indoor temperature in range of 16 ℃ ℃ 3). Press FAN to set proper fan speed, HI / MD / LO. When cooling, for improve cooling effect, please note: When there is sunshine from window, please draw curtain to shield.
-
Page 14: Names And Functions Of The Remote Controller
NAMES AND FUNCTIONS OF THE REMOTE CONTROLLER LCD screen It shows all set contents SEND key Press this key to transmit the operation, the screen will show the operation. HIGH TIME SLEEP key Press this key to set SLEEP operation, and press the "Hr"... - Page 15 NAMES AND FUNCTIONS OF THE REMOTE CONTROLLER MODE key Press the "MODE" key step by step, the LCD will display the COOL-FAN-HEAT- AUTO mode, circularly. TEMP key Press once, the SET TEMP. will decrease 1℃. Press once, the SET TEMP. will HIGH increase 1℃.
-
Page 16: Cool Mode Operation
COOL MODE OPERATION 1. After inserting the batteries, press "ON/OFF" key to start the unit. 2. Press "MODE" key, to choose "COOL" mode. １８ Ｃ ０ HIGH TIME 3. Press "FAN" key, to set fan speed. SEND 4. Press "TEMP" key, to set the desired temp. -
Page 17: Heat Mode Operation
HEAT MODE OPERATION (only for cooling/heating type units) 1. After inserting the batteries, press "ON/OFF" key to start the unit. 2. Press "MODE" key, to choose "HEAT" mode. HIGH TIME 3. Press "TEMP" key, to set the desired temp. SEND 4. -
Page 18: Dry Mode Operation
DRY MODE OPERATION 1.After inserting the batteries, press "ON/OFF" key to start the unit. 2.Press "DRY" key, to set "DRY" mode, １８ Ｃ ０ when repress the key, it will run in original HIGH operation. TIME 3.Press "TEMP" key, to set desired temp. SEND 4.Press "FAN"... -
Page 19: Sleep Mode Operation
SLEEP MODE OPERATION 1. After inserting the batteries, press "ON/OFF" key to start the unit. 2. Press "MODE" key, to select the operation mode. １８ Ｃ ０ HIGH TIME 3. Press "TEMP" key, to set desired ＳＬＥＥＰ temp. SEND 4. Press "FAN" key to set fan speed. 5. -
Page 20: Auto Mode Operation
AUTO MODE OPERATION 1. After inserting the batteries, press HIGH "ON/OFF" key to start the unit. TIMER 2. Press "MODE" key, select "AUTO" mode, according to the room temp, the SEND microcomputer will adjust the turn on or turn off of the compressor and fan motor automatically to offer comfortable effect. - Page 21 TIMER MODE OPERATION 1. When the unit is running, press "TIMER" key, to set the TIMER operation. HIGH TIMER 2. Press "Hr/Min" key, to set the TIMER ON, it can be selected in the range of 1-18 hours. SEND 3. Press "SEND" key to transmit the operation to the unit.
-
Page 22: Accessories And Installation Of Heat Exhaust Hose
ACCESSORIES AND INSTALLATION OF HEAT EXHAUST HOSE Length range of exhaust pipe should be 500mm-2000mm. ● It is recommended to use it with shortest length. When installing, exhaust pipe should be as flat as possible. ● Don't prolong the pipe or connect it with other exhaust pipe, or it would cause abnormal operation. - Page 23 ACCESSORIES AND INSTALLATION OF HEAT EXHAUST HOSE If the pipe are to be bent, please install it by considering following dimension. 55cm 55cm Wrong installation is shown in following figure (If the pipe is bent too much, it would easily cause malfunction.) －20 －...
-
Page 24: Accessories Of Drainage Water
ACCESSORIES AND INSTALLATION OF HEAT EXHAUST HOSE PARTS INCLUDED Front plastic pipe end Rear plas tic pipe end Flexible Exhaust Hose Window Exhaust Adapter ACCESSORIES OF DRAINAGE WATER Accessories of drainage hose incluse: Drainage hose Fixing clip Drainage cap Bolt Pipe clip －21－... -
Page 25: Installation Method
ACCESSORIES OF DRAINAGE WATER Installation method Note: Do install drainage hose before turning on the unit to prevent water ● from making floor and carpet dirty. The L drainage cap taken from drainage point should be stored well for future use. ●... -
Page 26: Care And Maintenance ．．．．．．．．．．．．．．．．．．．．．．．．．23 --24
CARE AND MAINTENANCE Mobile unit There are wheels at the bottom of the unit, according to the demand, it can be moved in the room very conveniently. Air inlet grille ＷＡＲＮＩＮＧ Before maintenance, please pull out the power plug and cut off power supply to avoid electric shock. - Page 27 CARE AND MAINTENANCE Clean the air Please use a cloth that slightly moistened with water whose temperature is conditioner below 40℃(or the soap water or the water with cleanser) after wiping the dirt. Do not use gasoline, diesel oil or the congeneric substance to clean the unit.
-
Page 28: Troubleshooting
TROUBLESHOOTING If malfunction occur, please check the following before maintenance: Solutions Troubles Possible Causes The air conditioner doesn't start. The power supply is not connected well. 1. Insert the power plug tightly. The power plug is not inserted tightly. 2. Replace the power plug or socket. There is the malfunction of power plug 3. -
Page 29: User Notices ．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．26
USER NOTICES Location ● Do not install the unit in the hermetic place, and keep well ventilation, to avoid malfunction occurs. ● Do not install the unit at where it will be exposed to direct sunlight, in order to avoid fading and efficiency reducing. ● ... -
Page 30: After Sales Service
● The min. distance between flammable surface should be 150mm. Specific parameter for PTC is 240V/1200W, and its installation position is inside component of upper twyer. ● When water level switch works for water filled, water inside the tank is 1.12L. ●...
