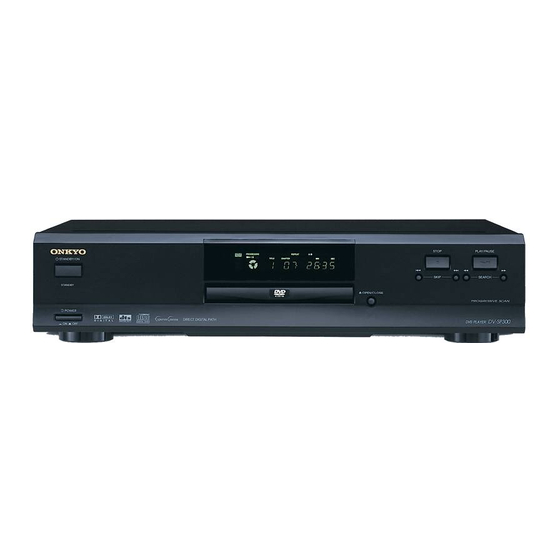

DVD Player

DV-SP300
Instruction Manual
Thank you for purchasing the Onkyo DVD Player.
Please read this manual thoroughly before making
connections and turning on the power.
Following the instructions in this manual will enable
you to obtain optimum performance and listening
enjoyment from your new DVD Player.
Please retain this manual for future reference.
Contents
Before Using Your DVD Player
Getting Started
Facilities and Connections
Basic Operation
Advanced Operation
Function Setup
Others
2
6
10
17
20
30
37
E
