Curtis DVD9009UK User Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
DVD9009UK

Advertisement

Table of Contents
loading

Related Manuals for Curtis DVD9009UK

Summary of Contents for Curtis DVD9009UK

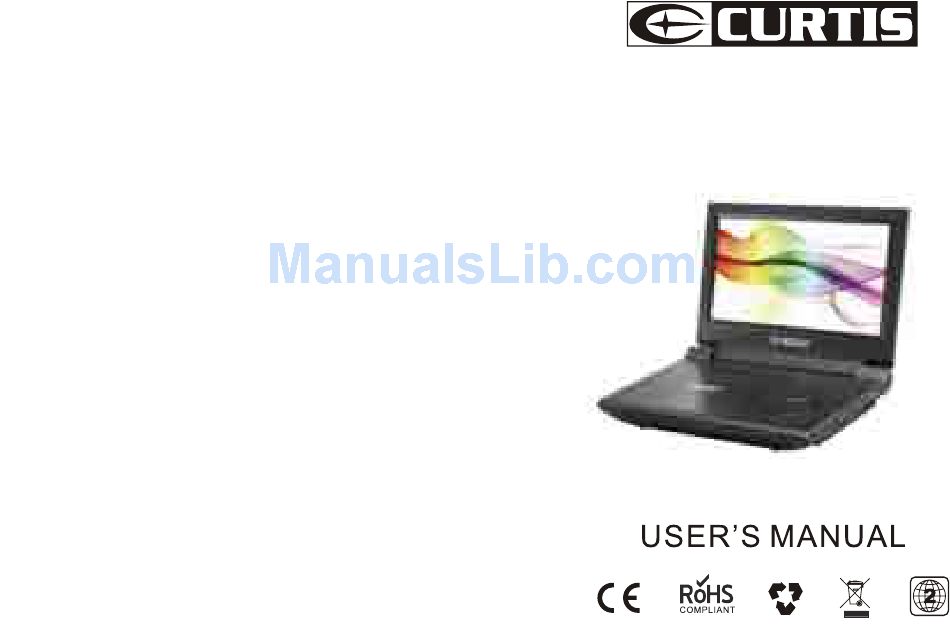

  • Page 1 DVD9009UK...

  • Page 2: Table Of Contents

    Safety Precaution Table Of Contents Safety Precaution Package Main Features The lightning flash with arrowhead symbol, within an equilateral triangle, is intended to alert the user to the presence of uninsulated “dangerous voltage” within product’s enclosure that may be of sufficient magnitude to constitute a risk of electric shock.

  • Page 3: Package

    Package Main Unit Controls DVD player AC/DC Power Adapter User Manual Car Adapter AV Cable Earphone Main Features High brightness color 9 LCD screen FUNCTION SETUP Compatible with disc of DVD, CD, JPEG, etc. Built-in stereo speaker Built-in rechargeable Lithium polymer battery Support PAL/NTSC system Support Multi-language OSD,speed forward/backward,repeat function 1.

  • Page 4: System Connection

    System Connection Connecting with external speaker Powering and installation Plug one end of the AC/DC power adaptor into the DC IN 9 -12V jack on the right of the machine, then plug the other end into the AC power receptacle. Please refer to the following illustration.

  • Page 5: Basic Operation

    Basic Operation Virtual Remote Operation Playing disc of DVD, CD 1.SRH (Search): Press the"SRH" key ,you can see the number bar below, Use left/right key to move the cursor, press ok to confirm , when playing DVD, you can 1.Connect the unit to the power; change the chapter and the title, press the "T/C "...

  • Page 6: System Setup

    Playing JPEG file System Setup 1.Place a JPEG disc into the tray,the unit will start reading and playing. 2.Press [ ] and OK button to select a JPEG file from the menu. Press Setup button,the main menu will be Setup Menu Main Page 3.Press [ ] to rotate the picture clockwise.
  • Page 7 General Setup Preference Setup TV Display Wide Audio Screen Saver Subtitle Angle Mark Subtitle English Enter this option to set whether to activate Select your preferred language to show OSD Lang Disc Menu the screen saver function. the subtitles on the screen. Screen Saver Parental Default...

  • Page 8: Specification

    Specification Compatible disc: DVD+R/RW, DVD-R/RW, CD-DA, CD-R/RW, JPEG Signal system: PAL/NTSC Main PCB Panel size: 9 inch Picture resolution: 640x234 (RGB) or 640x220(RGB) Frequency response: 20 Hz to 20 kHz Video output: 1 Vp-p/75 Ohm, unbalanced Audio output: 1.4Vrms/10kOhm Before to discard EOL unit, please remove the waste battery by below steps: Audio S/N: Better than 80 dB a.
