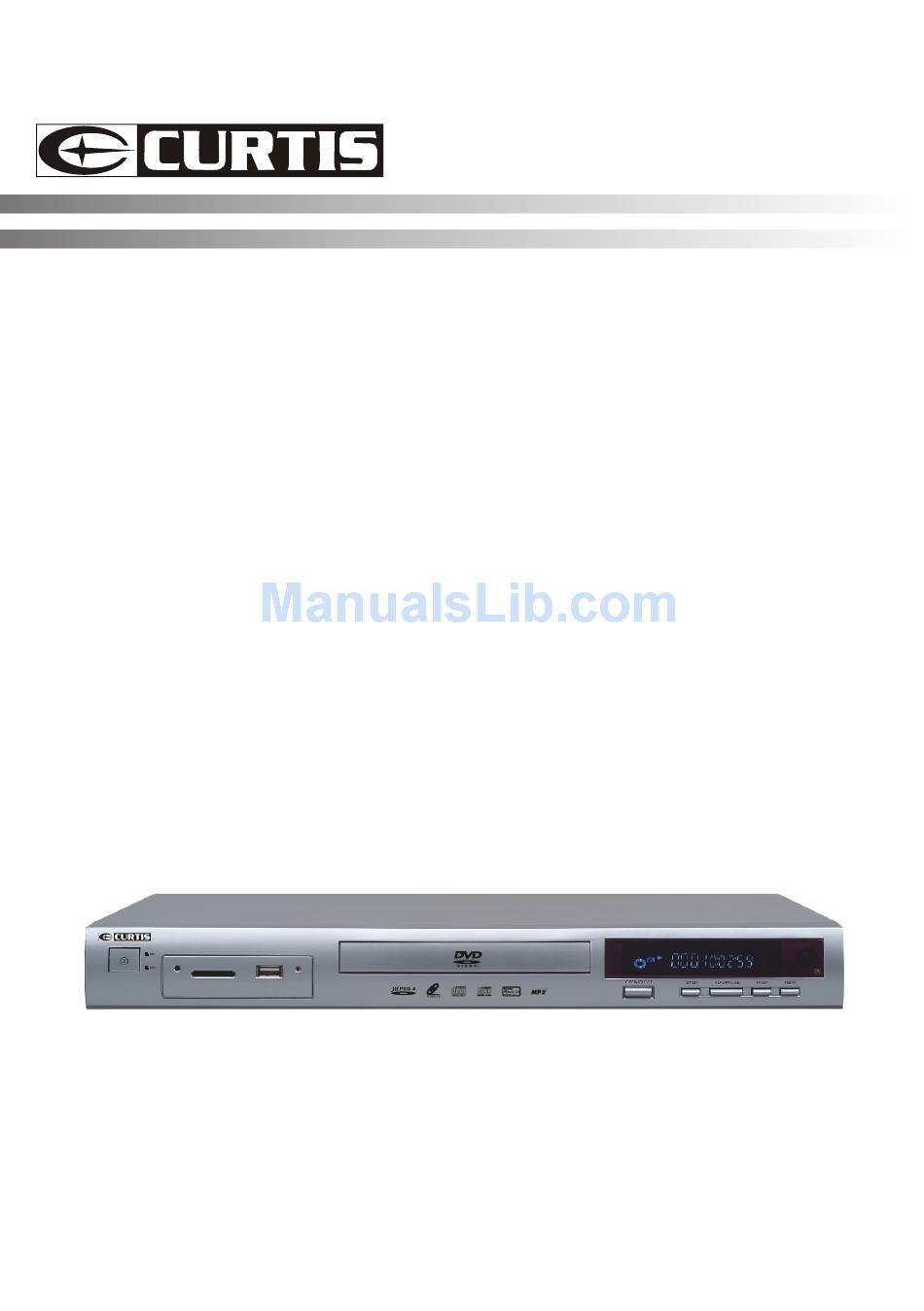

- Page 1 DVD PLAYER USER MANUAL DVD 1084 DVD1084 DVD/VCD/CD PLAYER POWER SD Card/Memory Stick USB Socket Multi Media Card Please read this user manual carefully to ensure proper use of this product and keep this manual for further reference...
-
Page 2: Important Safety Instruction
* Important Safety Instruction CAUTION RISK OF ELECTRIC SHOCK DO NOT OPEN The lightning flash with arrowhead symbol within a triangle, alerts the user to [dangerous voltage ] which could cause electric shock . The exclamation point within a triangle indicates to the user to read important operating and maintenance instructions in the manual. -
Page 3: Table Of Contents
Supporting function of disc Remote Controller Systems connection (Stereo and 5.1) Chapter 1 Basic Operation 1. Turn On the TV and your DVD player 2. Insert a disc 3. Play Chapter 2 Additional Operation 1. Selecting Tracks (compatible with DVD, SVCD, VCD, CD, JPEG discs) 2. -
Page 4: Types Of Discs Your Dvd Player Will Play
JPEG 12cm MPEG 4 Note: DVD-R, CD-R, CD-RW discs can be played in this DVD player. Supporting function of disc DVD disc can support many functions, different makers, and different function support. Prevalent marks of a few functions as follows: PAL/NTSC zone code &... -
Page 5: Remote Controller
Remote Controller: STANDBY SUBTITLE AUDIO ANGLE MUTE STEP SLOW SETUP MOVE STOP PLAY PAUSE GOTO RESET STEP MENU GOTO OPEN/CLOSE NUMBER KEYS REPEAT RESET MENU PREV NEXT TITLE/RETURN ENTER ZOOM VOL- VOL+ PROG... -
Page 6: Systems Connection (Stereo And 5.1)
systems connection (Stereo and 5.1) 1) Before connecting, make sure to turn off power of all apparatus. 2) After finishing connection, turn on the power again. AV cable (accessory) should be connected by color . Yellow plug-------- video terminal (yellow) White plug--------- left audio terminal (white) Red plug----------- right audio terminal (red) Must connect properly, especially the plug should be inserted to the bottom. -
Page 7: Chapter 1 Basic Operation
Press the Power or Standby button on the player or the remote controller, and Read appears on the TV screen. If there is not a disc in the DVD player, No disc will be displayed on both the screen and the VFD. -
Page 8: Program Menu
Sequence Play (compatible with DVD, SVCD, VCD discs) When a SVCD or VCD disc is loaded and PBC is on, once PBC button is pressed, PBC switches off. Then the player can play in sequence playback mode; when PBC button pressed twice, PBC switches on. -
Page 9: Chapter 2 Additional Operation
Chapter 2 Additional Operation 1. Selecting Tracks (compatible with DVD, SVCD, VCD, CD, JPEG discs) a) When playing a DVD disc, press Numeric buttons on the menu or title page to select tracks; During DVD playback, you can input desired title number directly. b) As a SVCD or VCD disc, during sequence playback, press Numeric buttons to select tracks. -
Page 10: Multispeed Slow Motion Playback (Compatible With Dvd, Svcd, Vcd Discs)
4. Multispeed Slow Motion Playback (compatible with DVD, SVCD, VCD discs) Press Slow button when pictures moving, you can enter Slow Motion Playback mode. Press the Slow button on the remote during playback. Press the button again on the remote to play at the next speed. -
Page 11: Using The Search Feature (Compatible With Dvd, Svcd, Vcd,Cd Discs)
Press OSD button once to show the first page: Disc Type,Track * / * (the playing track / total tracks),Mute,PBC,Repeat Mode,Elapsed Time of the Playing Track . Press the button again to show the second page: Language * / * (the serial number of playing language / the amount of optional languages) or Off,Language Type Audio Type,Subtitle * / * (the serial number of playing subtitle / the amount of optional subtitles) or Off . -
Page 12: Subtitles (Compatible With Dvd, Svcd Discs)
Notes: When playing a dual-language VCD movie disc, press the Audio button to select the desired language. 10. Changing the Audio Language (compatible with DVD, SVCD discs) During disc playback, press A appears. When a DVD or SVCD is recorded with multiple soundtracks, you can use the Lang- uage feature to temporarily change the audio language (the language of the soundtrack) There are 8 supported languages: Chinese, English, Japanese, French, Spanish, Portuguese, German and Latin(Italian). -
Page 13: Mute The Audio Output (Compatible With Dvd, Svcd, Vcd, Cd Discs)
14. Mute the Audio Output (compatible with DVD, SVCD, VCD, CD discs) Pressing the Mute button allows you to reduce sound to an inaudible level, and MUTE will be displayed on screen. Press the button again or press the Vol +/- button to return to the normal condition. -
Page 14: Chapter 3 Playing Mpeg 4/Jpeg Discs
Chapter 3 Playing MPEG 4/JPEG discs Arrow button Enter button Arrow button... -
Page 15: Chapter 4 The Setup Menu System
Chapter 4 The Setup Menu System 1. General Steps of Setup Menu a) Press the Setup button, the main setup menu appears. When the main menu displayed, the DVD system will auto pause. b) Press the Left and Right arrow buttons to highlight the icon of the desired page, then press the Down or Right arrow button to activate that page;... -
Page 16: Setup Items Introduction
PAL60: Choose this settings if your DVD player is connected to a PAL60 TV. SCREEN SAVER If the screen saver is on, when your DVD player is in Stop, Open, or No Disc state, or there is a frame frozen for more than 180sec, the screen saver will be displayed. This feature can protect the screen from damage. - Page 17 The movie might appear with black bars at the top and bottom of the screen. 4 : 3 PS (Pan & Scan): Choosing this setting if your DVD player is connected to a normal ratio TV. You can fill the movie to the entire screen of your TV. This might mean that parts of the picture (the left and right edges) won't be seen.
- Page 18 RATING The Rating feature is a rating limit system, like movie ratings. It works with DVD discs that have been assigned a rating. This helps you control the types of DVDs that your family wat- ches. Notes: If the password option is locked, you cannot set the ratings limit; the rating limit does not work when the password option unlocked.
- Page 19 AUDIO LANG UAGE Highlight the AUDIO LANG option, and press the Arrow buttons to choose the audio language you prefer. Press Enter button to confirm. If the disc you are playing has that language available, it will output audio in that language. LANGUAGE SETUP OSD LANGUAGE AUDIO LANG...
- Page 20 Dolby Digital, or MPEG receiver or decoder. For the CD there is no RAW output only PCMoutput SPDIF / PCM: Choose this setting if your DVD player is connected to a 2-channel digital stereo amplifier; When playing a disc recorded with Dolby Digital and MPEG audio formats, audio signals will be modulated into a 2-channel PCM signal, and it will be output from the Coaxial Output jack or Optical Output jack.
- Page 21 Use the Up and Down arrow button to move the scroll and adjust the hue. VIDEO SETUP BRIGHTNESS CONTRAST SATURATION EXIT SETUP SATURATION Use the Up and Down arrow button to move the scroll and adjust the saturation. VIDEO SETUP BRIGHTNESS CONTRAST SATURATION...
- Page 22 SUBWOOFER There are two settings in this option: OFF / ON. When ON is chosen, the player will auto detect the subwoofer input then output it. When OFF is chosen and the subwoofer input will not be output. In PLG (Pro Logic) mode, the subwoofer will not be output. SPEAKER SETUP DOWNMIX SUBWOOFER...
- Page 23 REAR DELAY You can adjust rear delay in this option. SPEAKER SETUP DOWNMIX SUBWOOFER BASS MODE CENTER DELAY REAR DELAY EXIT SETUP f) DIGITAL SETUP The audio setup options are illustrated below: OP MODE LINE OUT: Choose this setting to line out the input signal. It will be more suitable for playing in the night time, for the output volume is low.
- Page 24 DUAL MONO EXIT SETUP REFERENCE: To protect your DVD player, the interval between two consecutive Power button opera- tions must be above 30 seconds. Not using for a period of time, please pull out the plug from the electric outlet.
-
Page 25: Function Of Karaoke
This DVD player can compatible with the playing function of USB flash disc,SD/MS/MMC card. When there is no disc in the tray,this DVD player will auto identify and play the audio and video files stored in USB,SD/MS/MMC card when you connect them to the corresponding port.The DVD player will remind the user to play selectively if there have... -
Page 26: Disc Maintenance
Disc maintenance Disc protection: Take the disc both by the hole in the center and the brim; No paper shall be adhered to surface of disc ; Disc must be kept clean; Disc must be cleaned with soft cotton regularly by directing from disc center outside. Specifications: Type of video disc: MPEG 4/DVD/SVCD/VCD/JPEG/CD/CD-R/MP3 Signal output:...
